Scosche CR02B Car Radio Wiring Harness Kit User Manual

Bubuka

The Scosche CR02B Radio Installation Harness Kit is designed to facilitate the installation of a new aftermarket stereo in select 2002-2007 non-factory amplified Chrysler, Dodge, and Jeep vehicles. This kit allows for a quick and easy connection using the vehicle's existing factory radio stereo wire harness, eliminating the need to cut original wiring.

The CR02B stereo wire harness kit ensures a precise fit for compatible vehicles, making aftermarket radio installation straightforward. It features color-coded wires and a user-friendly design to simplify the installation process. Crafted with factory-quality automotive-grade wires and connectors, this harness aims to provide a safe and secure connection for optimal signal transmission and sound performance from your new car stereo. This product is not compatible with factory ampsistem anu dirobih.

Produk Leuwihview

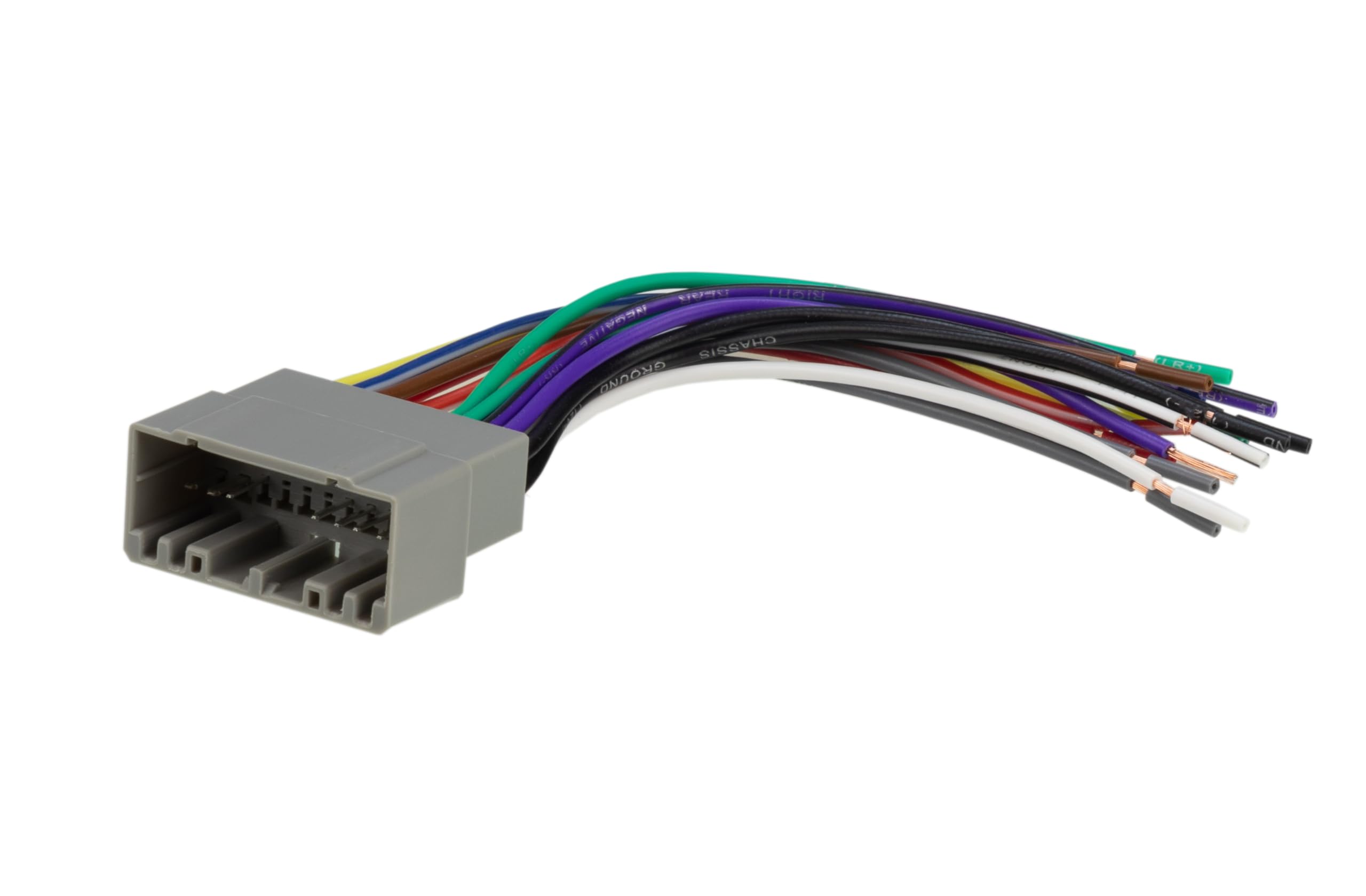

Figure 1: Scosche CR02B Car Radio Wiring Harness Kit. This image displays the complete wiring harness with its gray connector and multiple colored wires.

angka 2: Tutup-up view of the Scosche CR02B wiring harness connector. This image provides a detailed look at the gray plastic connector with its various colored wires extending from it.

Gambar 3: Detil view of the pins on the Scosche CR02B wiring harness connector. This image shows the metal pins inside the gray connector, which interface with the vehicle's electrical system.

Figure 4: Vehicle Fitment Guide for Scosche CR02B. This guide lists compatible Chrysler, Dodge, and Jeep models and their respective years (2002-2007).

Figure 5: Car stereo wire harness diagram. This diagram illustrates the components of a car stereo wire harness, emphasizing ease of installation, factory quality, and direct connection.

Figure 6: Electronics Industry Association (EIA) wire color code chart. This chart provides standard color codes for various car stereo wiring functions, such as power, ground, and speaker connections.

Setup sareng Instalasi

Proper installation of the Scosche CR02B wiring harness is crucial for the functionality of your new aftermarket stereo. Follow these general steps:

1. Disconnect the Vehicle Battery: Before beginning any electrical work, disconnect the negative terminal of your vehicle's battery to prevent electrical shorts or damage.
2. Remove the Factory Radio: Carefully remove the factory radio from your vehicle's dashboard. This typically involves removing trim panels and unscrewing the radio unit. Refer to your vehicle's service manual for specific instructions.
3. Prepare the Wiring Harnesses: The Scosche CR02B harness will connect to your new aftermarket stereo's wiring harness. Match the color-coded wires from the aftermarket stereo harness to the corresponding wires on the CR02B harness. Use appropriate connectors (e.g., crimp caps, solder and heat shrink) to ensure secure and insulated connections. Refer to the EIA wire color code chart (Figure 6) and your new stereo's manual for accurate wire identification.
4. Connect to Vehicle Harness: Once the aftermarket stereo harness is securely connected to the CR02B harness, plug the CR02B harness into the vehicle's factory wiring harness. Ensure all connections are firm.
5. Mount the New Stereo: Install your new aftermarket stereo into the dashboard opening. Secure it using the appropriate mounting hardware and reattach any trim panels.
6. Sambungkeun deui Batré sareng Uji: Reconnect the negative terminal of your vehicle's battery. Turn on the vehicle and test all functions of your new stereo, including audio, balance, fade, and any other features.

Operasi

The Scosche CR02B Car Radio Wiring Harness Kit is a passive component designed to adapt your vehicle's wiring to an aftermarket stereo. It does not have any operational controls or functions itself. All operational aspects are controlled directly through your installed aftermarket stereo unit.

Pangropéa

The Scosche CR02B Car Radio Wiring Harness Kit requires no regular maintenance. Once properly installed, it is designed to provide a reliable connection for the lifetime of your aftermarket stereo. Ensure all connections remain secure and free from moisture or physical damage.

Pamérésan masalah

If your aftermarket stereo is not functioning correctly after installation, consider the following troubleshooting steps:

• Henteu Kakuatan pikeun Stereo: Verify that the constant 12V (Yellow wire) and switched 12V (Red wire) connections are correctly made and receiving power. Check vehicle fuses.
• Henteu aya Sora tina Speaker: Ensure all speaker wires (Green, Green/Black, White, White/Black, Gray, Gray/Black, Purple, Purple/Black) are correctly connected to the corresponding speaker outputs on your aftermarket stereo and to the vehicle's speaker wiring. Confirm that the vehicle does not have a factory amplified system, as this harness is for non-ampngan ukur sistem.
• Incorrect Wire Connections: Double-check all wire connections against the EIA wire color code chart (Figure 6) and your aftermarket stereo's wiring diagram. Mismatched wires can lead to non-functionality or damage.
• Missing Pins/Incompatible Harness: As shown in the user video below, sometimes the vehicle's factory harness may have different pin configurations or fewer wires than expected, leading to incompatibility. Ensure the CR02B is the correct harness for your specific vehicle model and year, and that all necessary pins are present and align.

spésifikasi

Garansi sareng Rojongan

The Scosche CR02B Car Radio Wiring Harness Kit is backed by Scosche's Limited Lifetime Warranty. For technical assistance or support, please utilize Scosche's Lifetime Tech Support services. Contact information can typically be found on the official Scosche websitus atanapi bungkusan produk.
