Bubuka
This manual provides instructions for the DOSS DS-1668 Cloud Fox A1 WiFi Wireless Music Speaker. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device. The Cloud Fox A1 offers flexible Wi-Fi audio streaming, allowing access to online music services and local content from compatible devices. Its simple setup process connects to your home Wi-Fi network, enabling multi-room audio expansion.

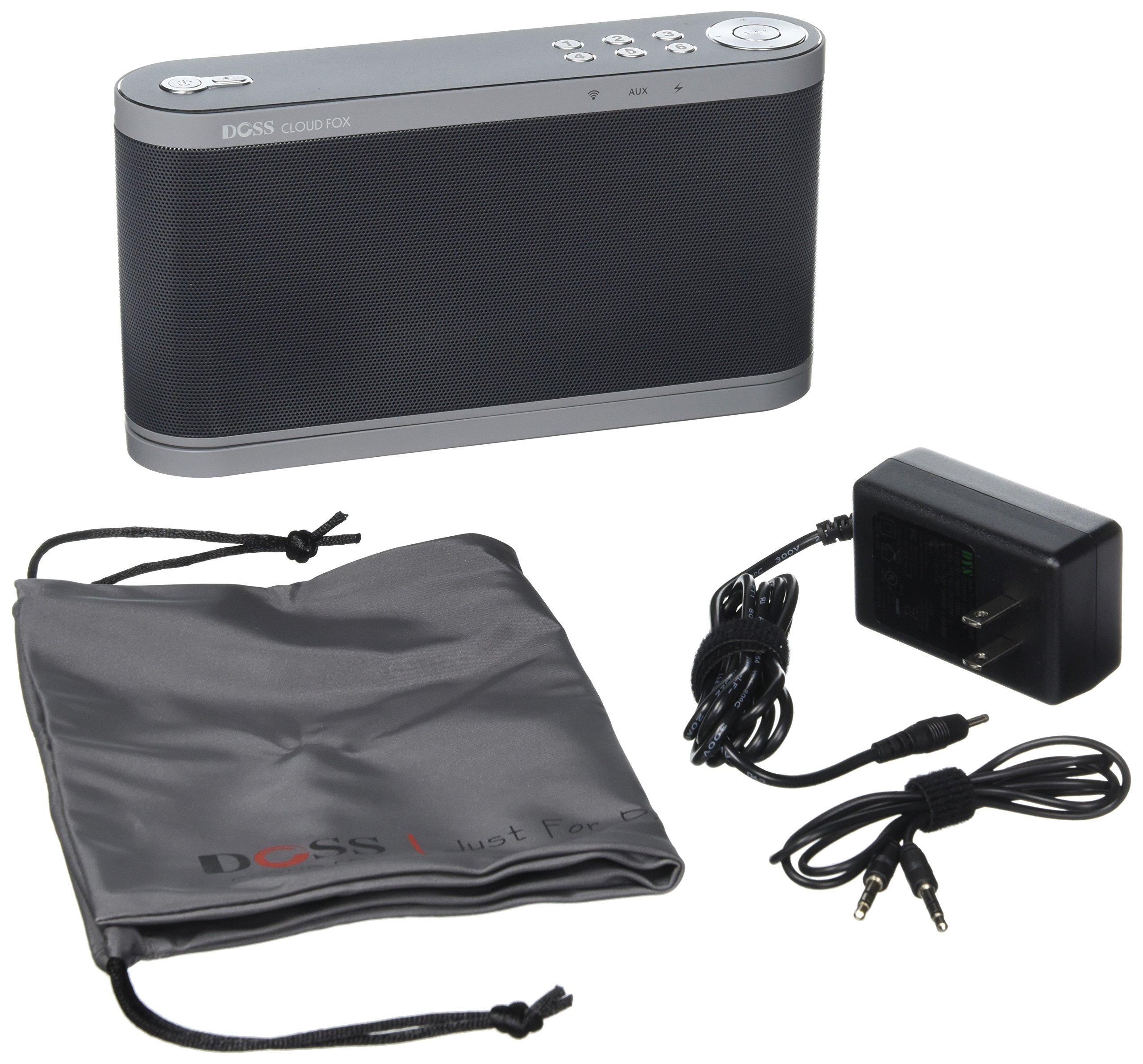

Eusi pakét
Mangga parios pakét kanggo barang-barang ieu:
- DOSS Cloud Fox A1 WiFi Speaker
- Ngecas Stand
- 9V 2A AC adaptor
- Kabel bantu 3.5mm
- Kantong waterproof
- Instruksi Manual
Produk Leuwihview


The DOSS Cloud Fox A1 features a sleek design with intuitive controls located on the top panel. These controls allow for power management, volume adjustment, and quick access to your favorite music presets. The rear panel includes essential connectivity ports such as the AUX IN for wired audio sources and the DC IN for power. The speaker is designed for both aesthetic appeal and functional ease of use in any home environment.
Disetél
- Ngecas Speaker: Connect the provided 9V 2A AC adapter to the DC IN port on the speaker and plug it into a power outlet. Allow the speaker to fully charge before first use. The rechargeable battery provides up to 16 hours of playback at 50% volume.
- Download the DOSS App: Milarian pikeun the 'DOSS' application on your smartphone or tablet's app store (iOS or Android) and install it. This app is essential for Wi-Fi setup and advanced controls.
- Daya Hurung: Press and hold the power button on the speaker until the indicator light illuminates.
- Nyambung ka Wi-Fi:
- Using the DOSS App: Open the DOSS app on your device. Follow the on-screen instructions to connect the speaker to your home 2.4 GHz Wi-Fi network. The app will guide you through the process.
- Nganggo WPS (Wi-Fi Protected Setup): If your router supports WPS, press the WPS button on your router, then press the WPS button on the speaker (if available, refer to Figure 1 for button layout). The speaker should automatically connect to your Wi-Fi network within a minute.
- Konfigurasi awal: Once connected to Wi-Fi, the DOSS app will allow you to name your speaker and configure initial settings.
Parentah Operasi
- Wi-Fi Audio Streaming: Once connected to your Wi-Fi network, use the DOSS app to access and stream music from various online services such as Pandora, iHeartRadio, and Spotify. You can also stream content from your DLNA-compatible smartphone or tablet, or use AirPlay, Spotify Connect, and QPlay.
- Input AUX: For non-Wi-Fi devices, connect an audio source using the provided 3.5mm auxiliary cable to the AUX IN port on the speaker (refer to Figure 2). The speaker will automatically switch to AUX mode or can be selected via the DOSS app.
- Prasetél Hiji-Toél: The speaker features six customizable presets. Use the DOSS app to assign your favorite music, radio stations, playlists, artists, albums, or songs to these presets. You can then access your preferred audio content with a single touch on the speaker's control panel.
- Sistem Musik Multi-Room: Expand your wireless music system by adding more DOSS Cloud Fox A1 speakers to different rooms in your home. Use the DOSS app to manage and synchronize music across multiple speakers for a true multi-room audio experience.
- Kontrol volume: Adjust the volume using the dedicated volume buttons on the speaker's top panel or through the DOSS application on your smart device.
Pangropéa
- beberesih: Anggo kaén anu garing sareng lemes pikeun ngabersihan bagian luar spéker. Ulah make cleaners abrasive atawa pangleyur.
- Apdet parangkat lunak: The DOSS Cloud Fox A1 system is designed to improve over time with new features and music services. The DOSS app will automatically notify you when software updates are available. Follow the in-app instructions to update your system.
- Panyimpenan: Upami teu dianggo salami lami, simpen speaker di tempat anu tiis sareng garing.
- Tahan cai: While a waterproof bag is included, the speaker itself is not specified as waterproof. Avoid exposing the speaker directly to water or excessive moisture.
Pamérésan masalah
If you encounter issues with your DOSS Cloud Fox A1 speaker, please refer to the following common solutions:
- Henteu aya kakuatan:
- Ensure the AC adapter is securely connected to the speaker and a working power outlet.
- Check if the battery is charged. If not, charge the speaker for at least 30 minutes.
- Henteu aya sora:
- Increase the volume on both the speaker and your connected device/app.
- Ensure the correct input source (Wi-Fi or AUX) is selected via the DOSS app.
- If using AUX, check the cable connection and try a different cable.
- Masalah Sambungan Wi-Fi:
- Pastikeun router Wi-Fi anjeun hurung sareng tiasa dianggo kalayan leres.
- Verify that you are connecting to a 2.4 GHz Wi-Fi network, as the speaker may not support 5 GHz networks.
- Restart your router, smartphone/tablet, and the speaker.
- Try re-establishing the Wi-Fi connection through the DOSS app.
- DOSS App Not Connecting:
- Ensure your smartphone/tablet is connected to the same Wi-Fi network as the speaker.
- Close and reopen the DOSS app.
- Pariksa apdet aplikasi dina toko aplikasi alat Anjeun.
spésifikasi
| merek | DOSS |
| Nomer modél | DS-1668 Cloud Fox A1 (FBA_DS) |
| Max Speaker Kaluaran Power | 16 Watt |
| Téhnologi konektipitas | AirPlay, Auxiliary, DLNA, Wi-Fi |
| Tipe Pamasangan | Méja Gunung |
| Fitur husus | Nirkabel |
| Beurat produk | 2.5 pon |
| Sumber Daya | Batré |
| Tipe Controller | Kontrol Aplikasi |
| Jumlah Batré | 1 Ion Litium (diperlukeun) |
| Produsén | Mikki Kmaxx |
| ASIN | B00YA0VPBE |
Garansi sareng Rojongan
The DOSS DS-1668 Cloud Fox A1 speaker comes with a 12-garansi sasih from the date of purchase. Additionally, DOSS provides dukungan téknis gratis salami hirup pikeun produk ieu.
For warranty claims, technical assistance, or any questions regarding your speaker, please contact DOSS customer support through their official website or the contact information provided in your purchase documentation. Please have your product model number and purchase details ready when contacting support.
