AIKE AK2822

AIKE Compact Hand Dryer

Modél: AK2822

Manual Parentah pangguna

1. Produk Langkungview

The AIKE Compact Hand Dryer Model AK2822 is designed for efficient and hygienic hand drying in home bathrooms. It features a high-quality ABS exterior, a compact size, and powerful airflow for quick drying.

  • Konstruksi kualitas luhur: Features a durable ABS exterior with a sleek design.
  • Kompak sareng Kuat: Despite its small size, it delivers powerful airflow for fast hand drying.
  • Operasi henteu gampang: Designed for ease of use for all ages, providing hygienic, touchless operation.
  • Kontrol Suhu Smart: Automatically heats air when room temperature is below 77°F (25°C) for comfortable drying; heating is off above this temperature to save energy.
  • Ramah lingkungan: Eliminates the need for paper towels, reducing waste and costs.
  • Desain Hemat Spasi: Smaller than a standard letter-size paper, allowing for installation in various spaces.

2. Eusi Paket

Pariksa yén sadaya komponén aya sateuacan dipasang:

  • Hand Dryer (x1)
  • Pitunjuk pangguna (x1)
  • Level Meter (x1)
  • 4mm Expansion Anchor (x3)
  • 4x25mm Sekrup (x3)
  • Kunci Hex (x1)
  • Safety Screw (x1)
Image showing the AIKE hand dryer and its included accessories: hand dryer, user guide, level meter, expansion anchors, screws, hex wrench, and safety screw.

Figure 2.1: Included accessories for the AIKE Hand Dryer AK2822.

3. Parentah instalasi

Follow these steps for proper installation of your AIKE Compact Hand Dryer:

  1. Nyiapkeun Surface Mounting: Choose a suitable wall location near a 110V power outlet. Ensure the surface is clean and dry.
  2. Separate the Mounting Plate: The main body of the hand dryer can be easily separated from its mounting plate. Gently slide the main body upwards or outwards from the base to detach the mounting plate. This allows for easier wiring and mounting.
  3. Mount the Plate: Use the provided screws and expansion anchors to securely fasten the mounting plate to the wall. Use the level meter to ensure it is perfectly horizontal.
  4. Kabel (upami aya): If hardwiring, connect the electrical wires to the designated terminals on the mounting plate. Ensure all connections are secure and follow local electrical codes. For plug-in models, ensure the power cord is routed neatly.
  5. Attach the Hand Dryer: Once the mounting plate is secure and wiring is complete, align the hand dryer body with the mounting plate and slide it down until it clicks securely into place.
  6. Secure with Safety Screw: Install the safety screw (if provided) to prevent accidental removal of the unit.
  7. Daya Hurung: Plug the hand dryer into a 110V outlet or restore power if hardwired. The indicator light should illuminate.
Image showing a person plugging in the AIKE hand dryer into a wall outlet, demonstrating its easy plug-in design.

Figure 3.1: Easy plug-in design for quick setup.

4. Parentah Operasi

The AIKE Compact Hand Dryer is designed for simple, touchless operation:

  1. Aktipkeun: Place your hands beneath the air outlet. The infrared sensor will detect your hands and automatically activate the dryer.
  2. Leungeun garing: Move your hands slowly back and forth under the airflow for optimal drying. The powerful air stream will dry your hands quickly, typically within 10-15 seconds.
  3. Pareuman otomatis: The dryer will automatically turn off once your hands are removed from the sensor area.
  4. Smart Heating: The dryer features an intelligent heating system. If the room temperature is below 77°F (25°C), the air will be warmed for a more comfortable drying experience. Above this temperature, the heater will remain off to conserve energy.

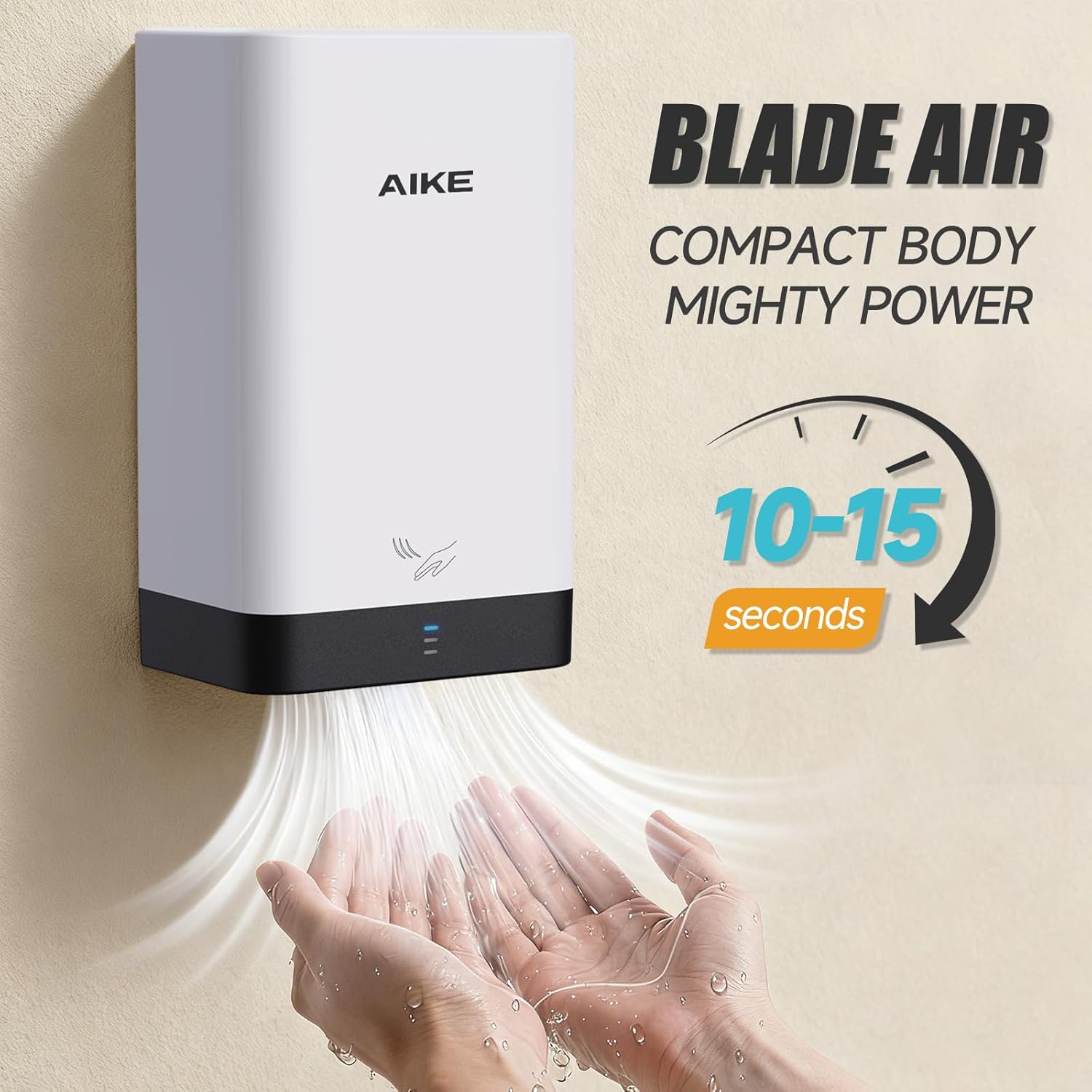

Image showing hands being dried by the AIKE hand dryer, with text indicating 10-15 seconds drying time.

Figure 4.1: Hands being dried by the AIKE Hand Dryer.

Image illustrating the smart warm and comfortable drying feature of the AIKE hand dryer, showing warm air in winter (below 77°F) and normal air in summer (above 77°F).

Figure 4.2: Smart temperature control for optimal comfort and energy efficiency.

5. Pangropéa

Regular maintenance ensures optimal performance and longevity of your hand dryer.

5.1. Ngabersihan Saringan Udara

The hand dryer is equipped with a washable pre-filter to maintain air quality and performance. Clean the filter regularly.

  1. Remove the Filter Box: Locate the filter box on the underside of the unit. Hook the concave part by hand and pull it out.
    2. Diagram showing how to remove the filter box from the hand dryer by hooking and pulling the concave part.

    Figure 5.1: Removing the filter box.

  2. Extract the Air Filter: Carefully remove the air filter from the filter box.
    3. Diagram showing the air filter being removed from the filter box.

    Figure 5.2: Removing the air filter.

  3. Ngabersihan saringan: Clean the air filter using a brush or by rinsing it with water. If the filter is very dirty or over 3 years old, it is recommended to replace it. If washed, ensure it is completely dry before reinstalling.
    4. Diagram illustrating methods to clean the air filter, including brushing and rinsing with water, and instructions for replacement if necessary.

    Figure 5.3: Cleaning the air filter.

  4. Pasang deui: Once clean and dry, place the air filter back into the filter box, and then reinsert the filter box into the hand dryer until it clicks into place.

5.2. beberesih exterior

Wipe the exterior of the hand dryer with a soft, damp lawon. Ulah make cleaners abrasive atawa pangleyur, sabab ieu bisa ngaruksak finish.

6. Cara ngungkulan

If you encounter issues with your AIKE Compact Hand Dryer, refer to the following common problems and solutions:

MasalahMungkin Cukang lantarananaSolusi
Hand dryer does not turn on.Taya catu daya.
Sensorna katutup atawa kotor.		Pariksa sambungan kakuatan sarta circuit breaker.
Ngabersihan wewengkon sensor.
Aliran hawa lemah.Air filter is dirty or clogged.Clean or replace the air filter as described in Section 5.1.
Dryer runs continuously.Karusakan sensor atanapi halangan.Ensure nothing is blocking the sensor. If problem persists, contact customer support.
Air is not warm (in cold conditions).Room temperature is above 77°F (25°C).
Pamanas gangguan.		This is normal operation if the room is warm. If the room is cold and air is still not warm, contact customer support.

If the problem persists after attempting these solutions, please contact AIKE customer support.

7. Spésifikasi

  • Ukuran produk: 6.06 x 3.9 x 10.04 inci
  • Beurat barang: 3.96 pon
  • Jumlah modél: AK2822
  • Pabrikan: Zhejiang AIKE Appliances Co., Ltd.
  • Input kakuatan: 110V (as per product title)
  • Waktu Pengeringan: 10-15 detik
  • Bahan: ABS polikarbonat
Image showing the dimensions of the AIKE hand dryer (10 inches tall, 6 inches wide) compared to a letter-size paper.

Figure 7.1: Dimensions of the AIKE Hand Dryer AK2822.

8. Garansi jeung Rojongan

AIKE offers a 2-taun jaminan produsén for this product. For any inquiries, technical assistance, or warranty claims, please contact our support team. We guarantee a response within 24 hours during working days.

Inpormasi kontak:

  • Send a message through Amazon.
  • Email our dedicated support team (specific email address not provided in product data, refer to product packaging or Amazon seller page for details).

© 2026 AIKE. All rights reserved.
