Morimoto Sealed4 4x6 LED Headlight Instruction Manual

Bubuka

The Morimoto Sealed4 LED headlights are designed as a high-performance replacement for 4x6 inch sealed beam headlights. These units feature advanced LED technology and precision optics to deliver superior illumination for various vehicle applications. They are DOT approved and compatible with standard H4651, H4652, H4656, H4666, and H6545 headlight types.

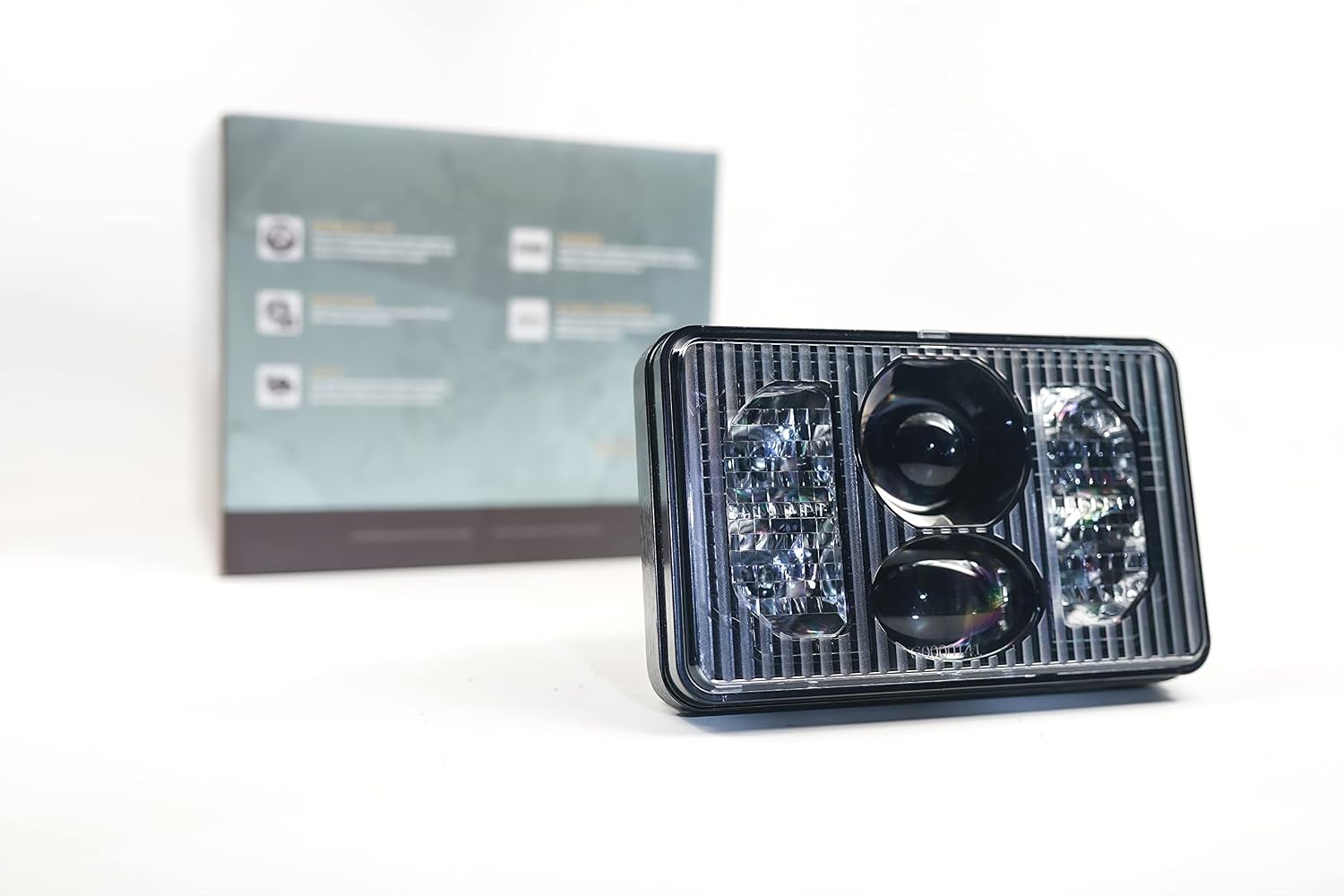

Gambar: Hareupeun view of the Morimoto Sealed4 4x6 LED Headlight, showcasing its clear lens and internal LED projectors.

Émbaran Kasalametan

• Salawasna pegatkeun sambungan batré kandaraan sateuacan ngalakukeun padamelan listrik naon waé pikeun nyegah sengatan listrik atanapi karusakan.
• Wear appropriate personal protective equipment, including safety glasses and gloves, during installation.
• Pastikeun sadaya sambungan kabel aman sareng insulated leres pikeun nyegah sirkuit pondok.
• Do not look directly into the LED light source when illuminated, as it can cause eye strain or damage.
• Consult a qualified automotive technician if you are unsure about any part of the installation process.

Eusi pakét

Pariksa yén sadaya komponén aya sareng henteu ruksak sateuacan ngamimitian pamasangan:

• Pair of Morimoto Sealed4 4x6 LED Headlight Assemblies
• Universal Wiring (H4 3-pin male inputs)

Setup sareng Instalasi

The Morimoto Sealed4 headlights are designed for a direct replacement of existing 4x6 inch sealed beam headlights, featuring H4 3-pin male inputs for a plug-and-play installation in most compatible vehicles.

1. Persiapan: Parkirkeun kandaraan dina tempat anu rata teras pencet rem parkir. Cabut terminal négatif batré kandaraan.
2. Leupaskeun Lampu Heubeul: Carefully remove the bezel or trim surrounding the existing 4x6 inch headlights. Disconnect the wiring harness from the back of the old headlight and remove any retaining clips or screws holding it in place. Gently pull out the old headlight unit.
3. Connect New Headlights: Connect the H4 3-pin male input of the Morimoto Sealed4 LED headlight to the vehicle's existing H4 wiring harness. Ensure the connection is secure.
4. Pasang Lampu Depan Anyar: Insert the Morimoto Sealed4 LED headlight into the headlight bucket. Secure it using the original retaining clips or screws. Ensure the headlight is seated properly and firmly.
5. Fungsi Uji: Reconnect the vehicle's battery. Turn on the headlights (low beam and high beam) and check for proper operation. Verify that both headlights illuminate correctly and switch between low and high beams.
6. Aiming (if necessary): If the beam pattern appears incorrect, refer to your vehicle's service manual or local regulations for proper headlight aiming procedures.
7. Majelis ahir: Reinstall any bezels or trim removed earlier.

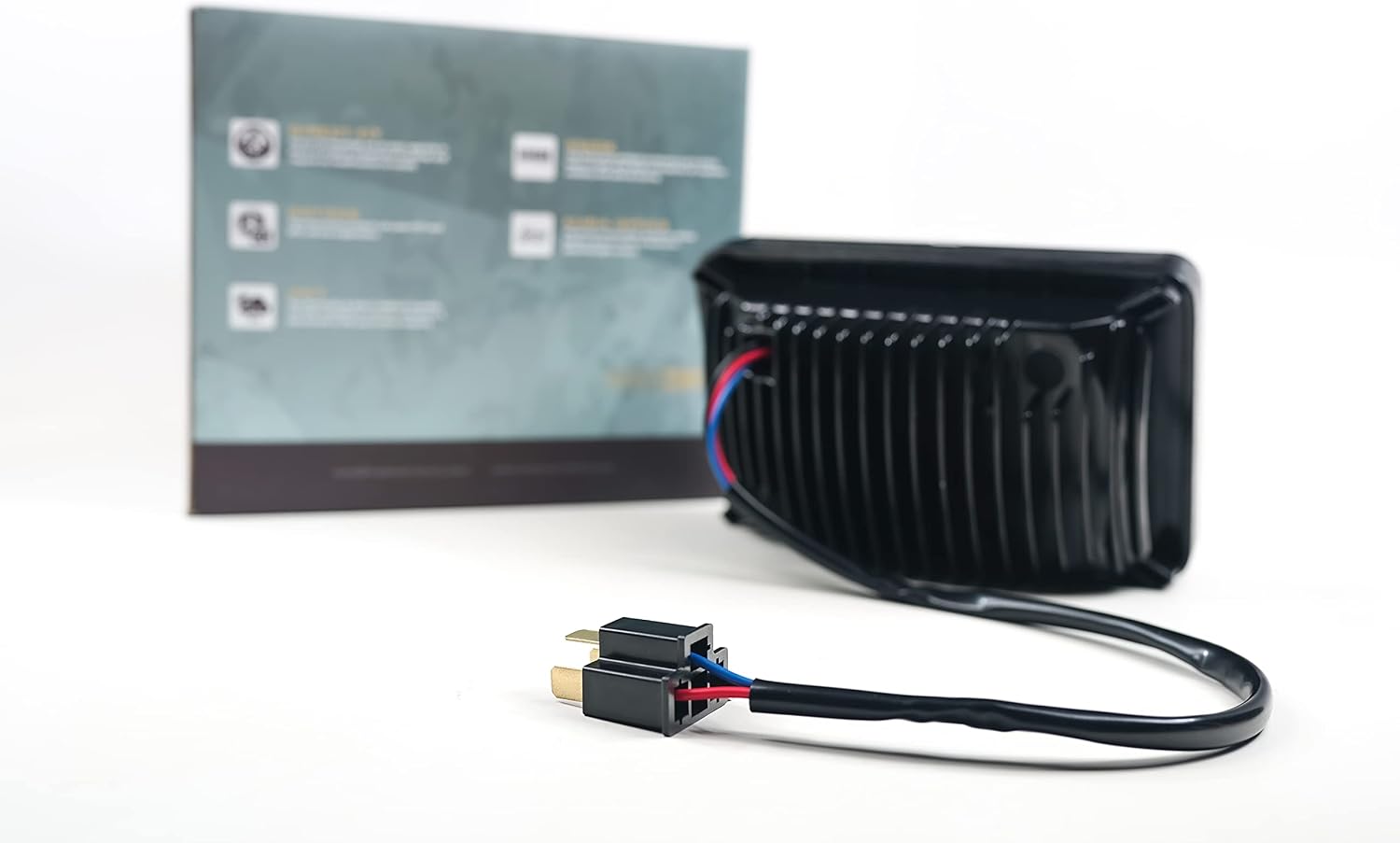

Gambar: Tukangeun view of the Morimoto Sealed4 headlight, showing the integrated heat sink and the H4 3-pin connector for easy installation.

Gambar: Technical drawing illustrating the dimensions and LED component layout of the Morimoto Sealed4 headlight, including low beam and high beam LED positions.

Parentah Operasi

The Morimoto Sealed4 LED headlights provide distinct low and high beam functionalities for optimal road illumination.

• Low Beam: When activated, the low beam utilizes NCSW170C Series LEDs and Morimoto's Kuria Optic projector lens array to produce a precisely controlled 2400 lumen output with a Left-Hand Drive (LHD) stepped beam pattern. This pattern is designed to illuminate the road ahead without causing glare to oncoming traffic.
• High Beam: Switching to high beam mode engages additional LEDs, increasing the total light output to an impressive 4300 lumens. The high beam provides maximum illumination for improved visibility on unlit roads or when additional light is required.

Gambar: Illustration of the Morimoto Sealed4 low beam pattern projected onto a wall, demonstrating the sharp cutoff and wide spread.

Gambar: Illustration of the Morimoto Sealed4 high beam pattern projected onto a wall, showing the increased light output and extended throw.

Pangropéa

The Morimoto Sealed4 LED headlights are designed for durability and minimal maintenance.

• beberesih: Clean the UV-coated polycarbonate lenses with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the lens coating.
• Pamariksaan: Periodically inspect the headlights for any signs of damage, loose connections, or debris accumulation.
• Manajemén Panas: The heavy-duty die-cast housings are designed to act as efficient heat sinks, ensuring optimal LED performance and longevity. No user maintenance is required for heat management.

Pamérésan masalah

spésifikasi

Émbaran jaminan

The Morimoto Sealed4 LED Headlights are backed by a 5 Taun Produsén Garansi. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the official Morimoto warranty documentation or contact customer support.

Ngarojong

For technical assistance, troubleshooting, or warranty inquiries, please contact Morimoto customer support. You can find contact information on the official Morimoto websitus atawa ngaliwatan dealer otorisasi Anjeun.
