SHENGLE JR1932RX-24V 2.4G Bluetooth Remote Control and Receiver Control Box Instruction Manual

Bubuka

This manual provides detailed instructions for the installation, operation, and maintenance of your SHENGLE JR1932RX-24V 2.4G Bluetooth Remote Control and Receiver Control Box Kit. This kit is designed for use with children's electric ride-on cars. Please read this manual thoroughly before use to ensure proper function and safety.

Produk Leuwihview

The SHENGLE JR1932RX-24V kit includes a 2.4G Bluetooth remote control and a corresponding receiver control box. These components facilitate remote operation of compatible children's electric ride-on cars.

Kadali jauh

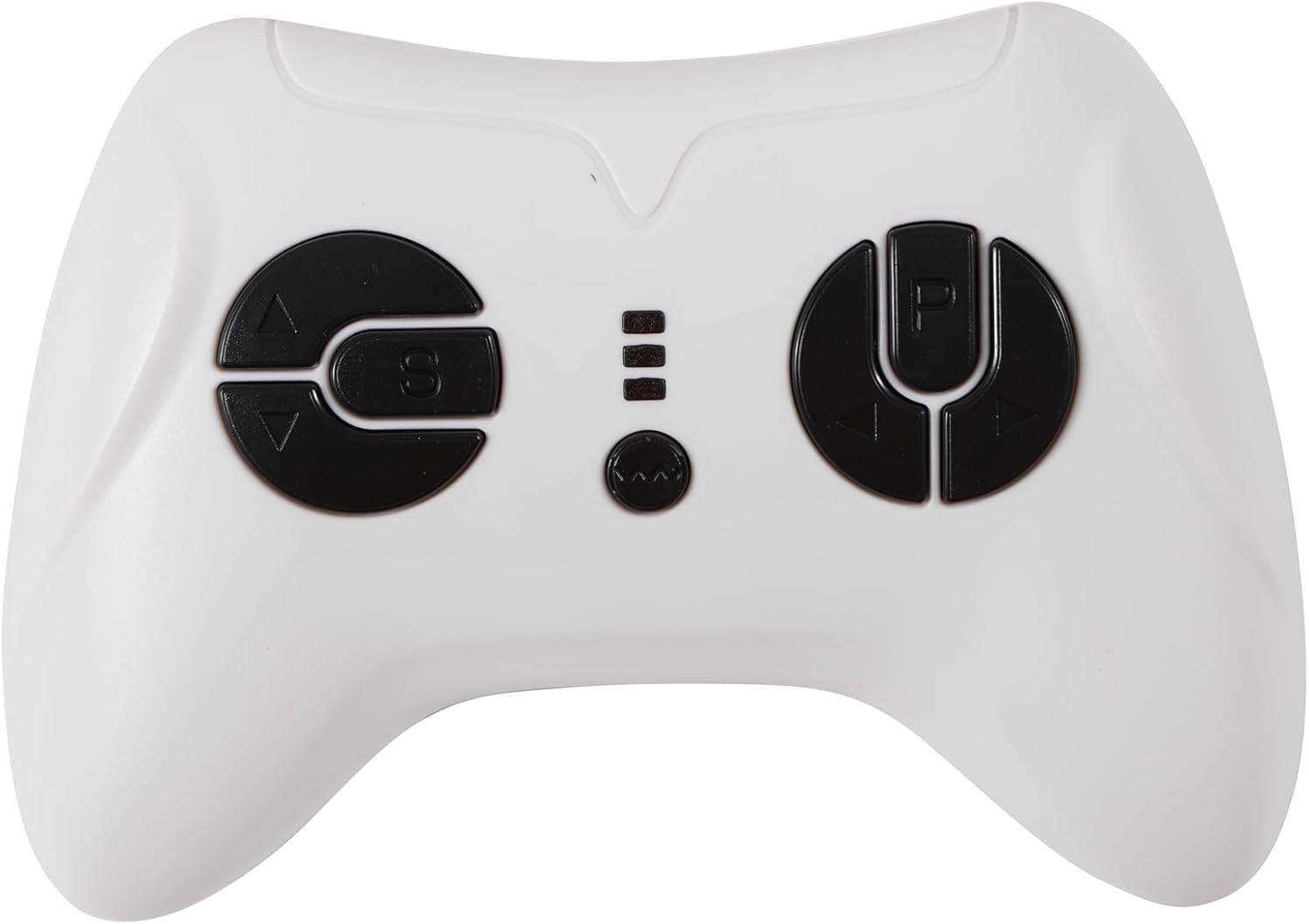

Gambar 1: Hareupeun view of the 2.4G Bluetooth Remote Control.

The remote control features buttons for forward, backward, left, right, speed selection, and power. It operates on a 2.4G Bluetooth frequency for stable connection.

Gambar 2: Balik view of the 2.4G Bluetooth Remote Control, displaying the model number JR1839FCC and FCC ID.

Receiver Control Box

Gambar 3: Top view of the JR1932RX-24V Receiver Control Box.

The receiver control box is the central unit that connects to the ride-on car's motor and power supply, receiving signals from the remote control. It is designed for 24V systems.

Disetél

1. Pamariksaan Pra-Pamasangan

• Before installation, verify that this product (Model JR1932RX-24V) is consistent with the original parts of your children's electric ride-on car. Incompatibility may lead to malfunction.
• Ensure the ride-on car's power system is compatible with a 24V receiver.

2. Receiver Control Box Installation

1. Locate the existing control box in your ride-on car.
2. Carefully disconnect all wires from the old control box, noting their positions for correct re-connection.
3. Mount the new JR1932RX-24V receiver control box in the designated location.
4. Connect the wires from the ride-on car (motor, power, steering, etc.) to the corresponding ports on the new receiver control box. Refer to the wiring diagram provided with your ride-on car or the original control box for guidance.

3. Pamasangan Batré Remote Control

• Open the battery compartment on the back of the remote control (refer to Figure 2).
• Insert the required batteries (not included), ensuring correct polarity (+/-).
• Tutup kompartemen batré anu aman.

4. Pairing the Remote Control with the Receiver

The instructions for pairing the remote control are typically printed on the product packaging box. General pairing steps for 2.4G Bluetooth remotes often involve:

1. Ensure the ride-on car is powered OFF.
2. Press and hold the pairing button on the remote control (often a small button, sometimes labeled 'Code' or 'Pair').
3. While holding the pairing button, power ON the ride-on car.
4. Release the pairing button once the remote control's indicator light stops flashing or the car responds.
5. Test the remote control functions to confirm successful pairing.

Parentah Operasi

Once the remote control and receiver are successfully paired, you can operate the ride-on car remotely.

• Tombol Daya: Ngahurungkeun/Mareuman remot kontrol.
• Tombol Maju / Mundur: Control the car's movement direction.
• Left/Right Turn Buttons: Control the car's steering.
• Tombol Pilihan Speed: Adjusts the car's speed (e.g., low, medium, high).
• Brake/Stop Button: Immediately stops the car.

Always ensure a clear line of sight to the ride-on car and operate within a safe range. Supervise children during operation.

Pangropéa

• beberesih: Wipe the remote control and receiver box with a dry, soft cloth. Avoid using harsh chemicals or liquids.
• Ngagantian batré: Replace remote control batteries when the indicator light dims or the control range decreases. Always use new batteries of the specified type.
• Panyimpenan: Store the components in a dry place away from direct sunlight and extreme temperatures when not in use. Remove batteries from the remote control if storing for extended periods.
• Pamariksaan: Periodically check all wire connections to the receiver box to ensure they are secure.

Pamérésan masalah

• Kadali jauh teu ngabales:
  • Check if the remote control is powered ON.
  • Ngaganti batréna dina kadali jauh.
  • Re-attempt the pairing process (refer to Setup section).
  • Ensure the ride-on car's power is ON.
• Mobil teu gerak atawa gerakanana teu puguh:
  • Verify all wire connections to the receiver control box are secure.
  • Check the ride-on car's main battery charge level.
  • Ensure the receiver control box is correctly installed and compatible with the car's original parts.
• Short control range:
  • Ganti batré kadali jauh.
  • Ensure there are no significant obstructions or strong interference sources between the remote and the car.

spésifikasi

• Jumlah modél: JR1932RX-24V
• Pasokan Voltage: DC 24V
• Beban Ayeuna: Max 35A
• Frékuénsi: 2.407GHz-2.473GHz
• Ukuran Paket: 7.95 x 6.34 x 2.95 inci
• Beurat barang: 9.1 ons
• Pabrikan: SHENGLE ELECTRONIC
• Umur Disarankeun: 24 months - 5 years (for compatible ride-on cars)

Émbaran jaminan

Warranty details for this product are typically provided by the seller or manufacturer at the time of purchase. Please refer to your purchase documentation or contact the seller directly for specific warranty terms and conditions.

Ngarojong

For further assistance, technical support, or inquiries regarding this product, please contact the seller through your purchase platform or refer to the contact information provided on the product packaging. Ensure you have your model number (JR1932RX-24V) ready when seeking support.
