1. Parentah Kasalametan penting
Mangga baca sareng pahami sadaya pitunjuk sateuacan ngamimitian pamasangan. Gagal nuturkeun pitunjuk ieu tiasa nyababkeun sengatan listrik, kahuruan, atanapi cilaka pribadi.
- Pastikeun daya dina pemutus sirkuit dipareuman sateuacan dipasang atanapi diropéa.
- Sadaya kabel kedah saluyu sareng kode listrik nasional sareng lokal. Mun anjeun teu wawuh jeung wiring, konsultasi hiji tukang listrik mumpuni.
- Struktur pamasanganana kedah mampuh nahan beurat kipas (sakitar 4 kg / 8.8 lbs).
- Ulah ngabengkokkeun wadah bilah nalika dipasang, ngimbangan, atanapi beberesih.
- Tetep leungeun bersih tina wilah kipas nalika kipas keur beroperasi.
- Kipas angin ieu dirarancang pikeun panggunaan jero rohangan wungkul.
- Anggo ngan ukur remot kontrol anu disayogikeun sareng kipas.
2. Produk Langkungview
The AUTODAY 52-inch DC Motor Ceiling Fan with Light combines efficient air circulation with adjustable lighting, designed for comfort and convenience in various indoor spaces. It features a silent DC motor, natural wood blades, and a versatile LED light.
Fitur konci:
- Motor DC jempé: High-performance 30W DC motor for quiet operation and up to 70% energy savings. Ideal for bedrooms, children's rooms, or offices.
- Multifunction Remote Control: Offers 6 fan speeds, 1/3/6-hour timer settings, and a memory function that restores previous light and fan settings.
- Summer/Winter Reversible Function: Allows for downward airflow in summer for cooling and upward airflow in winter to redistribute warm air.
- 3-Color Dimmable LED Light: Integrated LED panel with adjustable color temperature (3000K warm, 4000K natural, 6500K cool) and infinite dimming.
- Natural Wood Blades: Three natural wood blades provide a comfortable and natural airflow.
- Sloped siling cocog: Can be installed on ceilings with an incline of up to 15 degrees.
Image: High-quality components of the AUTODAY ceiling fan, highlighting the quiet reversible motor, soft illuminated lampshade, 24W energy-saving LED, and environmentally friendly wooden blades.
3. Eusi Paket
Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:
- Fan Motor Perumahan
- Kipas Angin (3)
- Light Kit with LED Panel
- Remote Control (merlukeun 2 batré AAA, teu kaasup)
- Downrod (250mm for 52-inch model)
- Ningkatna Kurung
- Kanopi
- Paket Hardware (screws, washers, mur kawat)
- Instruksi Manual
4. Spésifikasi
| Spésifikasi | Nilai |
|---|---|
| Nomer modél | 52-DY1233BKM |
| Ukuran (L x W x H) | 132 x 132 x 32.4 cm (52 x 52 x 12.7 inci) |
| Beurat | 3.99 kg (8.8 lbs) |
| Konsumsi Daya (Kipas) | 30W (Motor DC) |
| Konsumsi Daya (Cahaya) | 24W (LED) |
| Jumlah Speeds | 6 |
| Tipe Lampu | LED terpadu |
| Suhu Warna | 3000K (haneut), 4000K (Alami), 6500K (Tiis) |
| Métode kontrol | Kadali jauh |
| Bahan Sabeulah | Kai |
| Tipe Pamasangan | Semi-flush mount / Flush mount |
| Disarankeun Ukuran Kamar | 15 to 25 square meters (160 to 270 sq ft) |
| Sloped Ceiling Angle | Nepi ka 15 derajat |
| GTIN / UPC | 769016747186 |
For detailed energy information, scan the QR code on the energy label or visit https://eprel.ec.europa.eu/qr/2424943.
Image: EU Energy Label for the fan's light component, indicating efficiency class E.
5. Setup & Instalasi
Installation typically takes around 60 minutes. It is recommended to have two people for installation.
5.1 Daptar pariksa Pra-Pasang:
- Pareuman kakuatan dina circuit breaker.
- Ensure you have all necessary tools (screwdriver, wire strippers, ladder, etc.).
- Confirm the ceiling junction box is securely mounted and capable of supporting the fan's weight.
5.2 Mounting the Bracket:
- Attach the mounting bracket to the ceiling junction box using the screws provided. Ensure it is firmly secured.
5.3 Assembling the Fan:
- Selapkeun downrod ngaliwatan kanopi sareng wadah motor.
- Feed the electrical wires from the fan motor through the downrod.
- Secure the downrod to the motor housing with the provided pin and screws.
- Taliti angkat unit kipas sareng gantungkeun kana bracket pamasangan.
5.4 Kawat:
- Connect the fan's electrical wires to the household wiring according to the wiring diagram in the full manual (typically black to black, white to white, ground to ground). Use wire nuts to secure connections.
- Lebetkeun sadayana kawat rapih kana kotak simpang.
5.5 Attaching Blades and Light Kit:
- Attach each wooden blade to the motor housing using the screws provided. Ensure they are securely fastened.
- Connect the light kit wires to the fan motor wires.
- Attach the light kit to the bottom of the fan motor housing.
- Secure the canopy to the mounting bracket with the screws.
Image: Easy and fast installation guide, showing the fan being installed and a table detailing downrod lengths for flat and sloped ceilings. For model 52-DY1233, a 250mm downrod is used, resulting in a total fixture length of 1320mm.
Image: Guide for choosing the appropriate fan size for your room. The 52-inch fan (132cm diameter) is recommended for rooms larger than 12ft x 12ft, suitable for living rooms, dining rooms, bedrooms, and studies.
6. Parentah Operasi
The fan is operated using the included remote control. Ensure 2 AAA batteries are installed correctly in the remote.

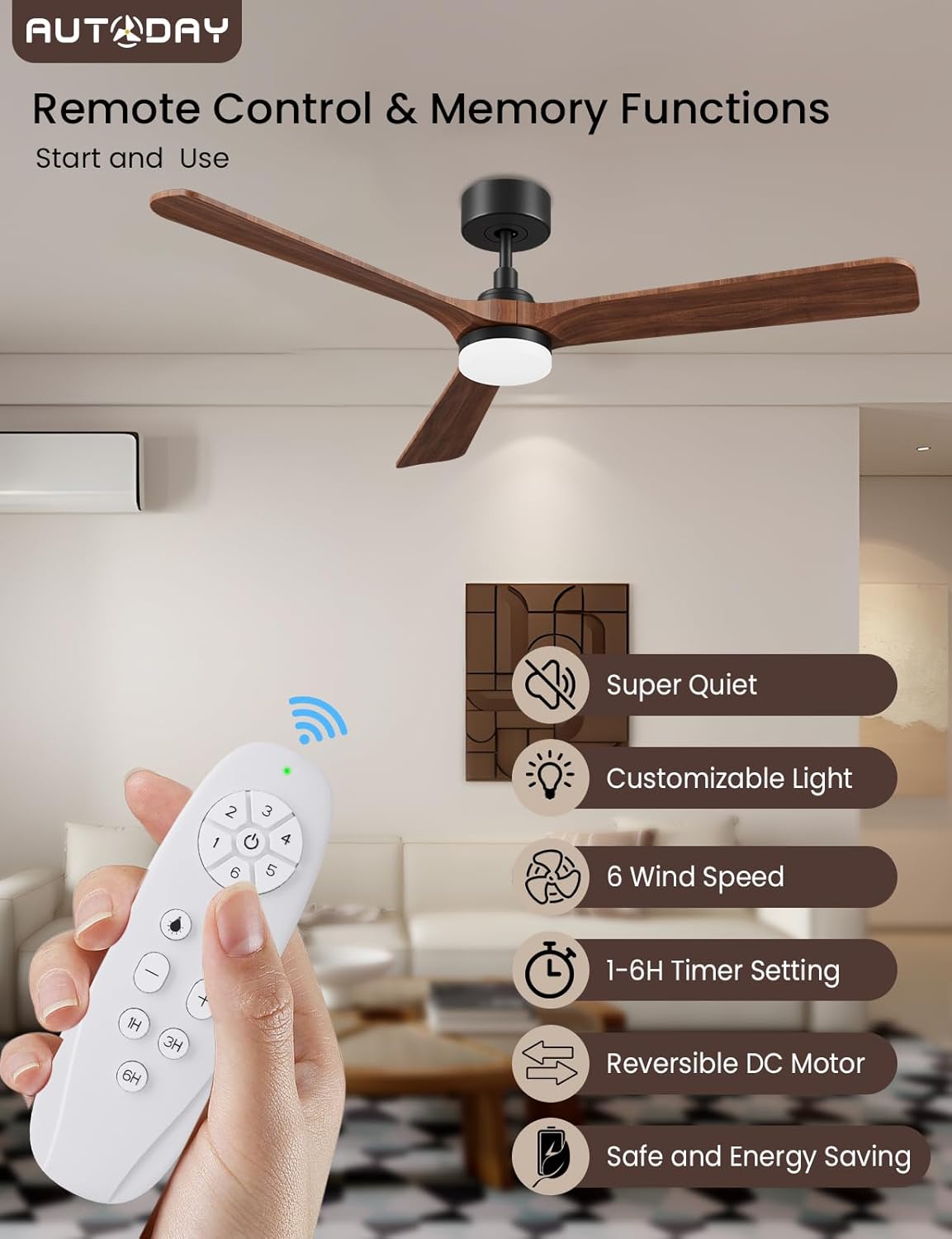

Image: The remote control for the AUTODAY ceiling fan, illustrating its various functions including fan speed, timer, light control, and reversible motor.
6.1 Fungsi Remote Control:
- Tombol Daya: Ngahurungkeun/mareuman kipas sareng lampu.
- Tombol Laju Kipas (1-6): Saluyukeun laju kipas tina 1 (panghandapna) ka 6 (pangluhurna).
- Tombol ON/OFF Lampu: Toggles the light on or off independently of the fan.
- Light Color Temperature Button: Cycles through 3000K (warm white), 4000K (natural white), and 6500K (cool white).
- Tombol Dimming (+/-): Saluyukeun kacaangan lampu LED.
- Timer Buttons (1H/3H/6H): Nyetél kipas supados pareum sacara otomatis saatos 1, 3, atanapi 6 jam.
- Reversible Function Button: Changes the direction of blade rotation for summer (downward airflow) or winter (upward airflow) mode.
The remote control features a memory function, which will recall your last fan speed and light settings when the fan is turned back on.
Image: Customizable light effects of the fan, demonstrating 3 color temperatures (3000K, 4000K, 6500K) and infinite dimming capabilities.
6.2 Summer and Winter Modes:
Image: The quiet operation of the fan (10-30 dB) and its reversible DC motor, which provides cooling in summer and helps circulate warm air in winter.
- Modeu Usum Panas (Rotasi Saarah Jarum Jam): Nyiptakeun aliran hawa ka handap, ngahasilkeun éfék cooling.
- Modeu Usum (Rotasi Searah Jarum Jam): Creates an upward airflow, pushing warm air from the ceiling down into the room, helping to distribute heat more evenly.
7. Pangropéa
Pangropéa rutin ngajamin kinerja optimal sareng umur panjang kipas siling anjeun.
- beberesih: périodik ngabersihan wilah kipas na perumahan motor kalayan lemes, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
- Panutup Lampu: The light cover can be removed for cleaning if necessary. Ensure the power is off before removing.
- Sekrup agul: Pariksa pageuh sadaya sekrup bilah sahenteuna dua kali sataun. Sekrup anu leupas tiasa nyababkeun oyag sareng bising.
- Henteu Dibutuhkeun Lubrication: The DC motor is permanently lubricated and does not require oiling.
WARNING: Always turn off the power at the circuit breaker before cleaning or performing any maintenance on your fan.
8. Cara ngungkulan
Upami anjeun ngalaman masalah sareng kipas anjeun, tingal masalah sareng solusi umum ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Kipas teu ngamimitian | No power to the fan; Loose wire connections; Remote control batteries dead. | Pariksa circuit breaker; Pastikeun sadaya sambungan kabel aman; Ganti batré kadali jauh. |
| Lampu teu jalan | Loose wire connection to light kit; LED panel faulty; Remote control issue. | Check light kit wiring; Contact customer support for replacement LED panel; Ensure remote batteries are good. |
| Kipas angin ngagelebug | screws sabeulah leupas; wilah henteu saimbang; bracket dipasang leupas. | Tighten sadayana screws sabeulah; Pastikeun bilah dipasang leres; Pariksa bracket ningkatna pikeun kantétan aman. |
| Kadali jauh teu ngabales | Dead batteries; Remote not paired (if applicable); Obstruction between remote and receiver. | Replace batteries; Refer to full manual for pairing instructions; Ensure clear line of sight. |
| Sora kaleuleuwihi | Loose screws; Fan not properly secured; Blades rubbing. | Check and tighten all screws; Ensure fan is securely mounted; Inspect blades for any obstruction. |
9. Garansi jeung Rojongan
AUTODAY products are manufactured to high-quality standards. For warranty information, technical support, or replacement parts, please contact AUTODAY customer service. Keep your purchase receipt as proof of purchase.
Contact information can typically be found on the product packaging or the official AUTODAY websitus.
