Generic Car Front Seat Adjuster Knob User Manual

1. Bubuka

This manual provides essential information for the installation, operation, and maintenance of your new Generic Car Front Seat Adjuster Knobs. These replacement parts are designed for a direct fit and offer stable, reliable performance. Please read this guide thoroughly before proceeding with installation or use.

2. Produk Langkungview

The Generic Car Front Seat Adjuster Knobs are high-quality replacement components for your vehicle's front seat adjustment mechanism. They are manufactured from durable plastic and designed for easy installation.

Fitur:

• Direct replacement for original parts.
• Stable characteristics and high reliability.
• prosés instalasi gampang.
• Diwangun tina bahan plastik anu awét.

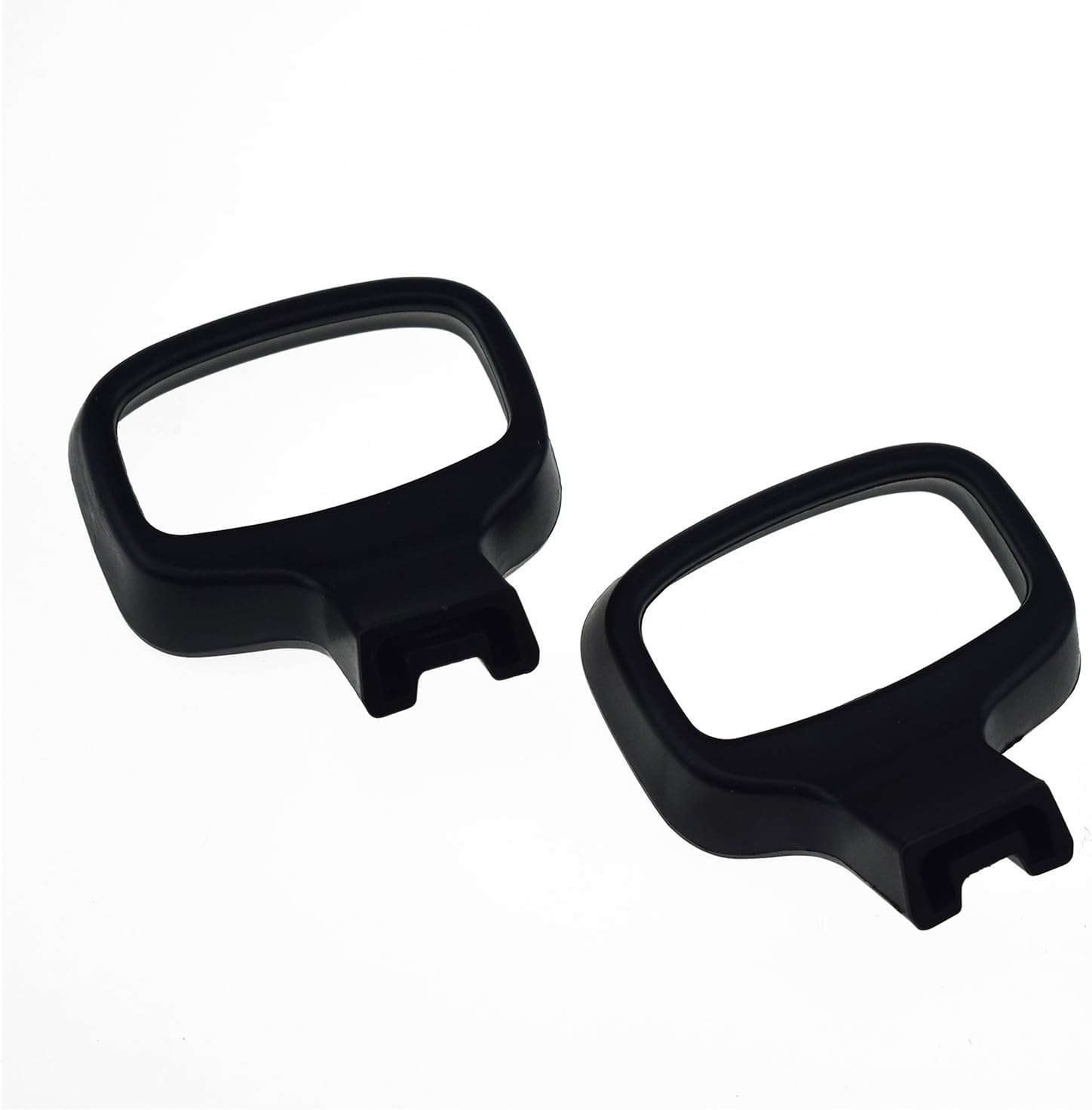

Gambar 2.1: Luhur view of the two seat adjuster knobs, showing their ergonomic shape.

Gambar 2.2: Handap view of the two seat adjuster knobs, displaying the part numbers 3C0881253 and 3C0881254 molded into the plastic.

3. Kasaluyuan

These seat adjuster knobs are compatible with a range of VW and Audi vehicle models. Please verify your vehicle's original part number against the reference part numbers provided below before installation.

Reference Part Numbers:

• 3C0881253
• 3C0881254
• 3C0881253A
• 3C0881254A
• 3C0881253A9B9
• 3C0881254A9B9

Model Kandaraan Cocog:

• Pikeun VW: Amarok (2010-2016), Beetle (5C) (2012-2018), Caddy 3 (2K) 4 (SA) (2011-2019), CC (2012-2017), Eos (2006-2016), Golf (2004-2019), Jetta (2006-2018), Passat B6 B7 B8 (2006-2018), Passat CC (2009-2012), Polo (2005-2018), Scirocco (2009-2018), Sharan (7N) (2011), Suran (2011-2019), Tiguan (2008-2019), Touran (2003-2019), T-Roc (2018-2019), Vento (2010-2014).
• Pikeun Audi: TT (2011-2014), A1 (2011-2016), Q3 (2012-2016), Q5 (2009-2016).

4. Setup jeung Instalasi

These seat adjuster knobs are designed for direct replacement and easy installation. While specific steps may vary slightly depending on your vehicle model, the general procedure involves removing the old knob and attaching the new one.

Alat anu diperyogikeun:

• Small flathead screwdriver or plastic trim removal tool (optional, for prying).

Léngkah-léngkah pamasangan:

1. Siapkeun: Ensure the vehicle is parked safely and the ignition is off.
2. Leupaskeun kenop heubeul: Gently pull the existing seat adjuster knob directly outwards from its shaft. If it is stuck, you may carefully use a flathead screwdriver or a plastic trim removal tool to pry it off, taking care not to damage the surrounding trim or the shaft.
3. Pariksa aci: Once the old knob is removed, inspect the seat adjustment shaft for any damage or debris. Clean if necessary.
4. Pasang kenop Anyar: Align the new Generic Car Front Seat Adjuster Knob with the shaft. Push the new knob firmly onto the shaft until it clicks securely into place. Ensure it is fully seated and does not wobble.
5. Fungsi Uji: Operate the seat adjustment mechanism to confirm the new knob functions correctly and allows for smooth adjustment of the seat.

Image 4.1: Detail of the knob's rear, illustrating the fitting mechanism for the seat adjustment shaft.

5. Parentah Operasi

Once installed, the seat adjuster knob operates identically to the original part. Simply grasp the knob and move it in the desired direction (e.g., up, down, forward, backward, or rotate) to adjust the position or angle of your car's front seat.

• For Recline/Tilt: Pull or push the knob to adjust the seat back angle.
• For Forward/Backward: Lift or push the knob to slide the seat along its tracks.

Always ensure the seat is securely locked in position before driving.

6. Pangropéa

The seat adjuster knobs require minimal maintenance. Regular cleaning will help preserve their appearance and functionality.

• beberesih: Wipe the knobs with a soft, damp cloth. For stubborn dirt, a mild automotive interior cleaner can be used. Avoid abrasive cleaners or solvents, as these may damage the plastic finish.
• Pamariksaan: Periodically check the knobs for any signs of wear, cracks, or looseness. If a knob becomes loose, gently push it back onto the shaft to ensure it is fully seated.

7. Cara ngungkulan

If you encounter issues with your new seat adjuster knobs, refer to the following common troubleshooting tips:

• Knob does not fit:
  • Double-check the part numbers (3C0881253A9B9, 3C0881254A9B9) against your vehicle's original part.
  • Ensure you have the correct knob for the left or right seat, as they may be specific.
  • Verify that the seat adjustment shaft is not damaged or obstructed.
• Knob feels loose after installation:
  • Ensure the knob is pushed firmly all the way onto the shaft until it clicks into place.
  • Inspect the shaft for wear or damage that might prevent a secure fit.
• Seat adjustment mechanism is not working:
  • If the knob is securely attached but the seat does not adjust, the issue may lie with the internal seat mechanism, not the knob itself. Consult a professional mechanic.

8. Spésifikasi

9. Émbaran jaminan

Produk ieu hadir kalawan a 1-Taun Garansi from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. For warranty claims or returns, please contact your retailer or the manufacturer with your proof of purchase.

10. Rojongan Palanggan

For further assistance, technical support, or inquiries regarding this product, please refer to the contact information provided by your original point of purchase. Always provide your product model numbers (3C0881253A9B9, 3C0881254A9B9) when seeking support.
