VEVOR 48-inch Tow-Behind Dethatcher Instruction Manual

1. Bubuka

This manual provides comprehensive instructions for the safe assembly, operation, and maintenance of your VEVOR 48-inch Tow-Behind Dethatcher, Model TBD120. Please read this manual thoroughly before using the product to ensure proper function and to prevent injury or damage. Keep this manual for future reference.

2. Émbaran Kasalametan

Always observe basic safety precautions when operating this equipment to reduce the risk of injury. Failure to follow these instructions may result in serious injury or property damage.

• Baca sareng pahami sadaya pitunjuk sateuacan dirakit sareng dioperasikeun.
• Wear appropriate personal protective equipment, including safety glasses and sturdy footwear.
• Pastikeun sadaya panyambungna dikencangkeun sacara aman sateuacan unggal dianggo.
• Jauhkeun barudak jeung piaraan ti wewengkon operasi.
• Do not operate the dethatcher on steep slopes where stability may be compromised.
• Always disconnect the dethatcher from the towing vehicle before performing any maintenance or adjustments.
• Do not exceed the recommended towing speed.
• Store the dethatcher in a safe, dry place when not in use.

3. Produk Langkungview

The VEVOR TBD120 Tow-Behind Dethatcher is designed to efficiently remove thatch, dead grass, and debris from your lawn. It features a robust construction and user-friendly design for effective lawn care.

Komponén konci:

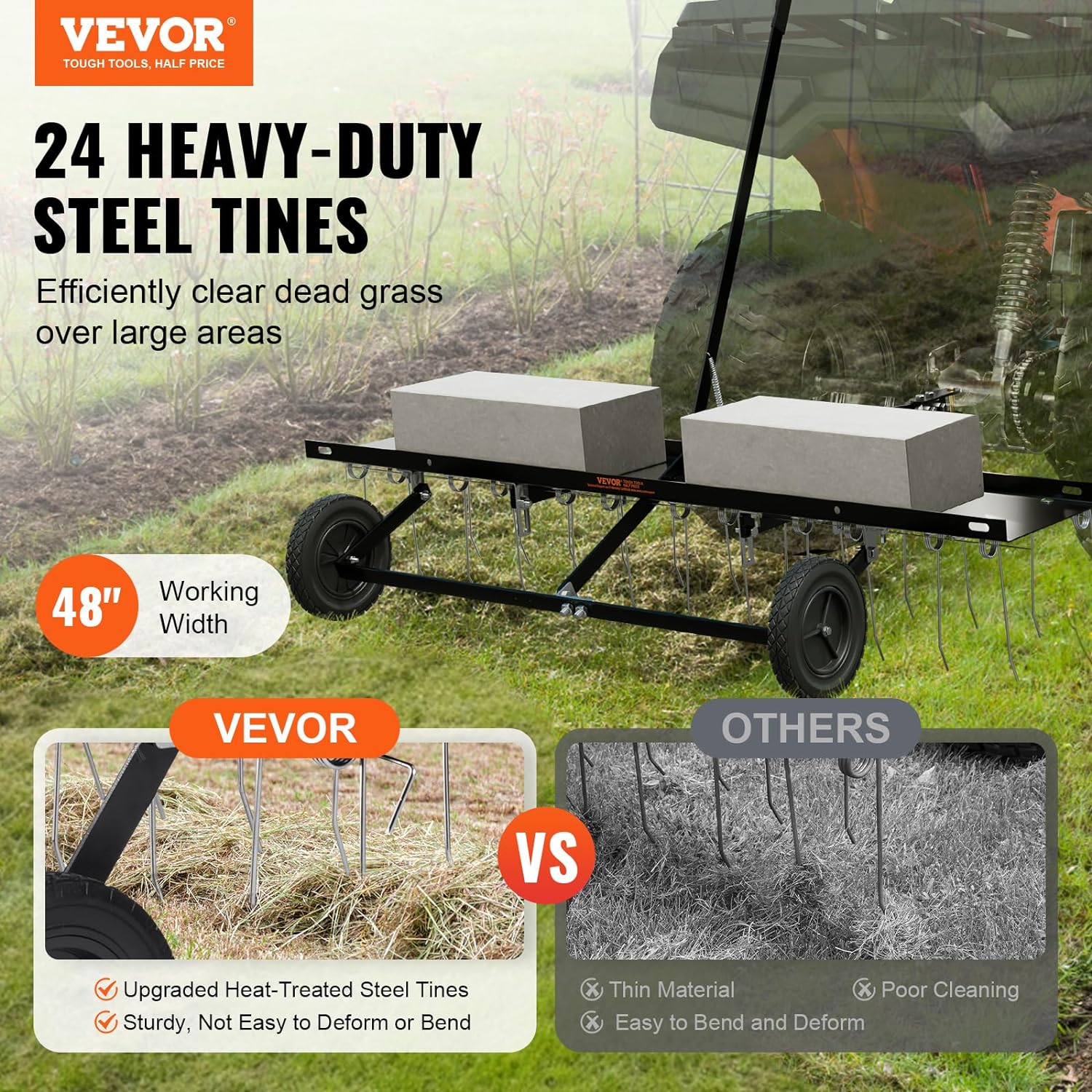

• 24 Heat-Treated Steel Tines: Durable tines for effective dethatching.
• 48-inch (1219 mm) Working Width: Covers a wide area for efficient operation.
• Universal Pin Connector: Allows attachment to various towing vehicles like ATVs and lawn mowers.
• Gagang Angkat: For easy raising and lowering of the tines.
• Weight Tray: Designed to hold additional weight (up to 70 lbs, not included) for increased dethatching effectiveness.
• Inflatable Tires: Provide smooth maneuverability across different terrains.

Gambar 3.1: Hareupeun view of the VEVOR Tow-Behind Dethatcher. This image shows the overall structure, including the tines, wheels, and weight tray.

Gambar 3.2: Sisi view of the dethatcher, highlighting the lift handle mechanism and wheel placement.

4. Spésifikasi

Figure 4.1: Detailed dimensions of the VEVOR Tow-Behind Dethatcher.

5. Majelis

Follow these steps to assemble your dethatcher. It is recommended to have a second person assist with assembly.

1. Ngabongkar komponén: Sacara saksama miceun sadaya bagian tina bungkusan. Pastikeun yén sadaya komponén anu didaptarkeun dina daptar bungkusan aya.
2. Pasang Roda: Secure the inflatable wheels to the main frame using the provided bolts and nuts. Ensure wheels spin freely but without excessive wobble.
3. Pasang Tines: Insert the 24 spring tines into their designated slots on the tine bar. Secure each tine with the provided bolts and nyloc nuts. Ensure all bolts are tightened securely to prevent loosening during operation.
4. Assemble Lift Handle: Attach the lift handle assembly to the main frame. Connect the spring mechanism as shown in the diagram to allow for tine height adjustment.
5. Attach Tow Bar: Secure the tow bar to the front of the dethatcher frame using the appropriate bolts and nuts.
6. Cék ahir: Sateuacan dianggo anu munggaran, pariksa deui sadaya baut, mur, sareng sambungan pikeun mastikeun éta pageuh sareng aman.

Gambar 5.1: Kelample of bolt fastening for secure component attachment.

Figure 5.2: The universal pin connector for attaching the dethatcher to a towing vehicle.

6. Parentah Operasi

Proper operation ensures efficient dethatching and prolongs the life of your equipment.

1. Attach to Towing Vehicle: Connect the dethatcher's tow bar to your ATV, lawn tractor, or other suitable towing vehicle using the universal pin connector. Ensure the connection is secure.
2. Adjust Tine Height: Use the lift handle to adjust the depth of the tines. For initial dethatching, set the tines to lightly scratch the surface. For heavier thatch, lower the tines further. The handle allows you to raise the tines for transport or when not in use.
3. Add Weight (Optional): For more aggressive dethatching, place additional weight (e.g., concrete blocks, up to 70 lbs) onto the weight tray. This increases the pressure of the tines on the ground.
4. Begin Dethatching: Start your towing vehicle and proceed at a slow, consistent speed. Overlapping passes slightly will ensure complete coverage.
5. Puing jelas: The dethatcher will pull up thatch and debris. Periodically stop and clear the accumulated material to maintain efficiency.
6. End Operation: When finished, raise the tines using the lift handle and disconnect the dethatcher from the towing vehicle.

Figure 6.1: The lift handle mechanism for adjusting tine height.

Figure 6.2: The dethatcher being towed, demonstrating the use of additional weights on the tray.

7. Pangropéa

Regular maintenance will ensure optimal performance and extend the lifespan of your dethatcher.

• beberesih: After each use, remove any accumulated grass, dirt, or debris from the tines, frame, and wheels. A stiff brush or hose can be used. Ensure the unit is dry before storage.
• Inspeksi Tine: Periodically inspect the spring tines for wear, bending, or breakage. Worn or damaged tines can be replaced.
• Pariksa Fastener: Regularly check all bolts, nuts, and pins for tightness. Tighten any loose fasteners to prevent components from detaching during operation.
• Tekanan Ban: Check the air pressure in the inflatable tires periodically and inflate to the recommended pressure if necessary.
• Lubrication: Apply a light lubricant to moving parts, such as the lift handle pivot points, to ensure smooth operation.
• Panyimpenan: Store the dethatcher in a clean, dry area, protected from the elements. Raising the tines during storage will prevent unnecessary wear.

8. Cara ngungkulan

This section addresses common issues you might encounter with your dethatcher.

9. Garansi jeung Rojongan

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or replacement parts, please contact VEVOR customer service through their official websitus atanapi inpormasi kontak anu disayogikeun sareng produk anjeun.
