1. Produk Langkungview
This manual provides instructions for the installation, operation, and maintenance of your Generic Undermount Kitchen Sink and Faucet Combo. This product features a 304 stainless steel sink, a waterfall faucet with a digital temperature display, and an integrated pressurized cup washer.
The sink is designed for durability and ease of cleaning, incorporating a thickened anti-condensation coating to prevent moisture buildup.
2. Émbaran Kasalametan
- Salawasna mareuman suplai cai utama sateuacan ngamimitian pamasangan atanapi pangropéa.
- Anggo alat pelindung pribadi anu pas, sapertos sarung tangan sareng panyalindungan panon, nalika dipasang.
- Pastikeun sadaya sambungan aman pikeun nyegah bocor.
- Upami anjeun henteu yakin kana léngkah naon waé, konsultasi ka tukang ledeng anu mumpuni.
3. Eusi Paket
Punten parios yén sadaya komponén aya sateuacan ngamimitian pamasangan:
- 304 Stainless Steel Undermount Sink
- Waterfall Faucet with Digital Display
- Pressurized Cup Washer
- Drain Assembly (Button-style right side drainage)
- Selang Cai Panas sareng Tiis
- Pamasangan Hardware
- Flexible Drain Pipe
- Roll-up Drying rak
Image 3.1: All included components for the kitchen sink and faucet combo.
4. Setup jeung Instalasi
4.1 Pre-Installation Measurements
Before installation, accurately measure your kitchen countertop space. The outer diameter of this sink model is 76x43cm. The recommended countertop opening for undermount installation is approximately 73x40cm. For on-counter or middle-counter installation, refer to the specific opening dimensions provided in the specifications section.
4.2 Sink Placement and Mounting
This sink supports on-counter, middle-counter, and undermount installation methods. Choose the method suitable for your countertop and secure the sink using the provided mounting hardware.
Image 4.1: The faucet can be installed in various positions on the sink deck.
4.3 Faucet and Cup Washer Installation
Install the waterfall faucet and pressurized cup washer into their designated openings on the sink deck. Connect the hot and cold water supply lines to the faucet. Ensure all connections are tightened to prevent leaks.
4.4 Rakitan Solokan
Assemble the button-style right side drainage system. Connect the drain pipe to your household plumbing. The right-side drainage design helps prevent tableware from blocking the water outlet, ensuring quick drainage.
Image 4.2: The button-style drain control and efficient vortex drainage system.
5. Parentah Operasi
5.1 Waterfall Faucet
The faucet features a retractable spray head with three spray settings. Pull down the spray head to extend its reach. Use the button on the spray head to cycle through the different spray patterns (e.g., stream, spray, waterfall).
Image 5.1: The retractable faucet with multiple spray settings.
5.2 Témbongkeun Suhu Digital
The faucet is equipped with a smart LED temperature display that shows the water temperature in real-time. This allows for precise temperature control.
5.3 Pressurized Cup Washer
Place a cup or glass upside down on the pressurized cup washer. Press down gently to activate the high-pressure water jets, which rotate to thoroughly rinse the entire interior of the cup.
Image 5.2: Operating the high-pressure cup washer.
6. Pangropéa
6.1 Cleaning the Sink
The 304 stainless steel material is scratch-resistant and easy to clean. For daily cleaning, use a soft cloth with mild soap and water. Avoid abrasive cleaners or scouring pads, which can damage the finish. The anti-oil stain surface allows for easy wiping.

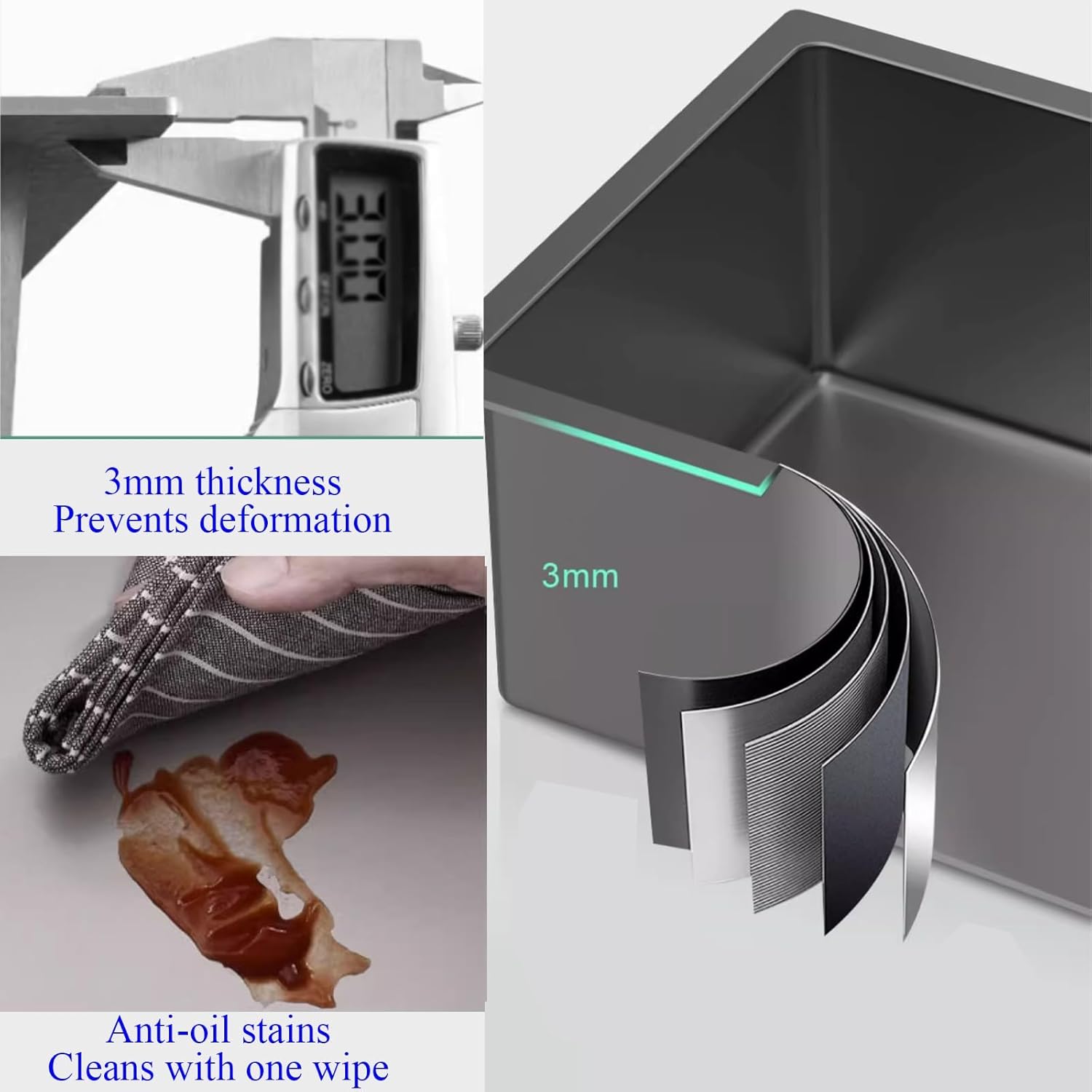

Image 6.1: The 3mm thick 304 stainless steel construction and anti-stain properties.
6.2 Anti-Condensation Coating
The sink features an anti-condensation thickened coating to prevent condensation droplets and icing on the underside, especially in colder conditions. This coating also helps protect the sink from deformation. It is normal for a small amount of shedding from this coating to occur occasionally; this does not affect product quality or normal use.
7. Cara ngungkulan
- Minor Coating Shedding: A small amount of shedding from the anti-condensation coating is normal and does not indicate a defect.
- Water Temperature Display Inaccuracy: Ensure proper water flow and check connections. If issues persist, consult customer support.
- Bocor: Check all plumbing connections for tightness. If leaks persist, turn off water supply and consult a plumber.
- Measurement Discrepancies: Slight variations (up to 1 cm) in measurements may occur due to different measurement angles. Always refer to the actual product.
- Variasi warna: Actual product color may vary slightly from pictures due to environmental light and screen settings. This is not a quality issue.
8. Spésifikasi
| Fitur | Rincian |
|---|---|
| Nomer modél | IASWWSSSW-76*43CM |
| Bahan | 304 stainless steel |
| Outer Diameter (L*W) | 76*43cm (29.9*16.9in) |
| Inner Diameter (L*W) | 71*39cm (28.0*15.4in) |
| Recommended Countertop Opening (L*W) | 73*40cm (28.7*15.7in) |
| Métode Pamasangan | On-counter, Middle-counter, Undermount |
| Fitur Keran | Retractable, 3 Spray Settings, Digital LED TEMP Display |
| Drainase | Button-style right side drainage |
| Item Beurat | 22 pon |
| Ukuran Paket | 1.18 x 0.79 x 0.39 inches (Note: These package dimensions seem unusually small for a sink. Please verify with actual product packaging.) |
9. Garansi jeung Rojongan
For warranty information or technical support, please refer to the retailer or manufacturer's contact details provided at the point of purchase. Keep your purchase receipt as proof of purchase.
