GREEN DEVIL SHIELD LD HM Bluetooth Hearing Protection Earmuffs for Safety Helmets

1. Bubuka jeung Leuwihview

The GREEN DEVIL SHIELD LD HM Bluetooth Hearing Protection Earmuffs are designed to provide superior hearing protection in noisy environments while allowing for clear communication and audio streaming. Featuring advanced Bluetooth 5.3 technology, Smart Active Listening, and a noise-canceling boom microphone, these earmuffs ensure both safety and connectivity. With an NRR (Noise Reduction Rating) of 27dB and an IP54 rating for splash protection, they are built for demanding conditions. The integrated 1000mAh battery provides extended usage.

Figure 1: GREEN DEVIL SHIELD LD HM Bluetooth Hearing Protection Earmuffs. These earmuffs offer Bluetooth 5.3, Smart Active Listening, hands-free telephony, and a noise-canceling boom microphone.

2. Naon dina Box

Mangga parios eusi pakét anjeun pikeun mastikeun yén sadaya barang aya:

• Bluetooth Earmuffs for Hard Hat
• Kabel Audio 3.5mm
• Kabel Ngecas Tipe-C
• Noise-Canceling Boom Microphone
• Mawa Kantong
• Instruksi Manual

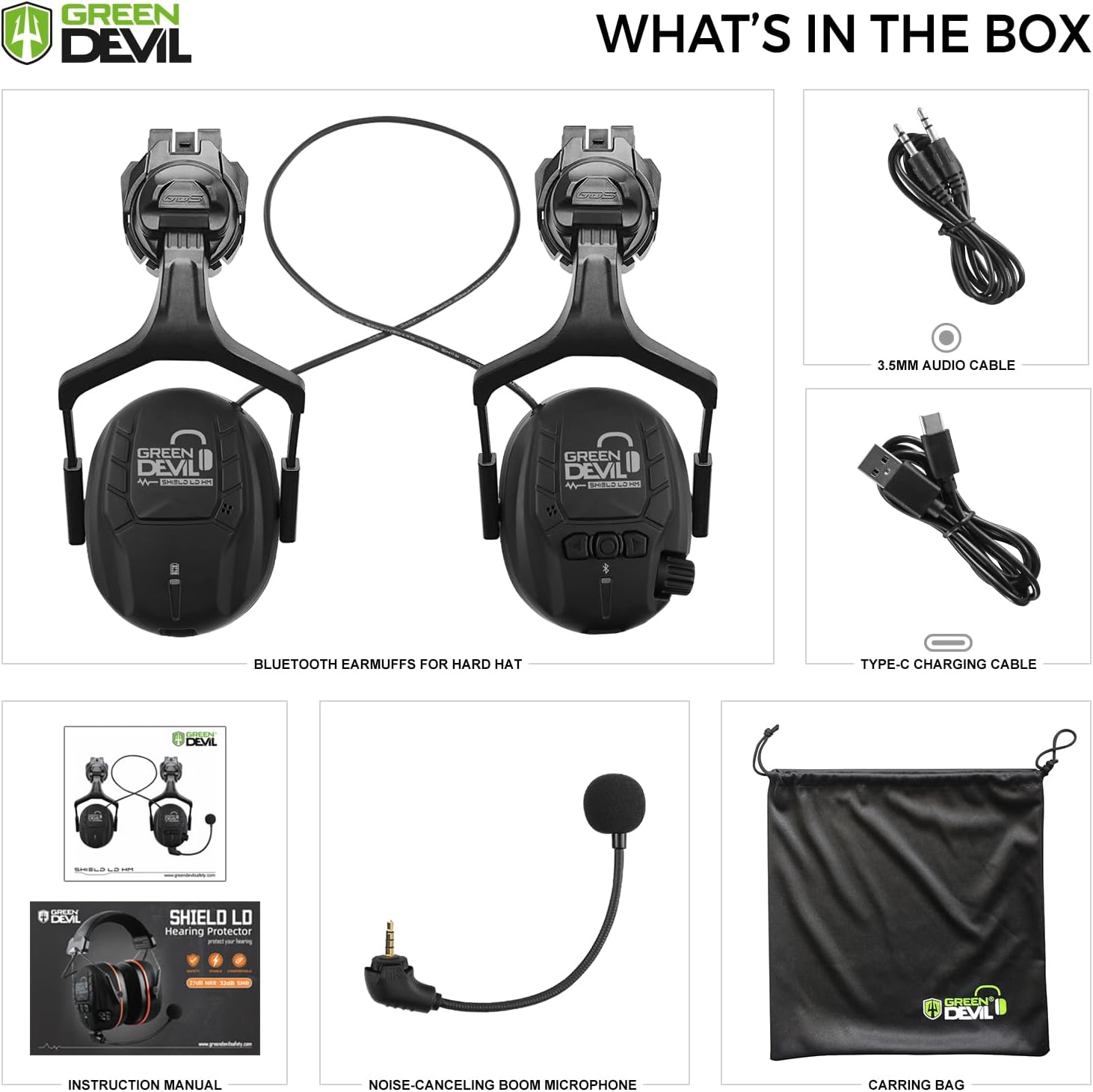

Figure 2: Package contents including the earmuffs, cables, microphone, carrying bag, and manual.

3. Setup jeung Instalasi

3.1 Attaching to a Hard Hat

The earmuffs are designed for easy attachment to most safety helmets. Follow these steps:

1. Step 1: Insert Card Slot
   Insert the hard hat slot adapters into the slots on each side of the hard hat until they click into place. Ensure the slots are compatible (approximately 0.78 inches / 20mm wide and 1.18 inches / 30mm deep).
2. Step 2: Adjustment of Position
   When in use, the attachment arms must be pushed inward until you hear a click on both sides, indicating a shift from "stand-by" to "usage" position. Position the ear cups over your ears so that the cushions fully enclose the ears and seal tightly against the head. Adjust the position of each ear cup while holding the helmet in place until you have a tight and comfortable fit that exerts even pressure around the ears.
3. Step 3: Usage Mode
   Ensure the cups and attachment arms are not in contact with the inner lining or the edge of the hard hat when in the "usage" position, otherwise this may lead to leakage.
4. Step 4: Stand-by Mode
   To switch to stand-by mode, pull the earmuffs slightly outwards from the helmet slots. This allows the earmuffs to rest off the ears without removing the helmet. No need to take off the helmet frequently to ensure safety at work.

Figure 3: Visual guide for attaching the earmuffs to a safety helmet and adjusting their position.

3.2 Nyambungkeun Audio

The earmuffs support both wired and wireless audio connections:

• Sambungan kabel: Use the provided 3.5mm audio cable to connect the earmuffs to an audio source. This mode offers a stable connection.
• Wireless Connection (Bluetooth 5.3): For wireless audio, ensure the earmuffs are powered on and in pairing mode. Milarian pikeun "GREEN DEVIL SHIELD LD HM" on your device's Bluetooth settings and connect. The wireless range extends up to 80 feet (approximately 24 meters).

Figure 4: The earmuffs can be connected via a 3.5mm audio cable for a stable wired connection or wirelessly via Bluetooth 5.3 for greater freedom.

3.3 Attaching the Boom Microphone

The noise-canceling boom microphone can be attached to the designated port on one of the ear cups. Ensure it is securely inserted for clear communication.

4. Parentah Operasi

Biasakeun diri anjeun sareng kontrol pikeun panggunaan anu optimal:

• Hurungkeun/Pareuman: Locate the power button on the ear cup. Press and hold to power on or off.
• Kontrol volume: Use the stepless volume regulation knob to adjust the audio level for both connected devices and the Smart Active Listening feature.
• Masangkeun Bluetooth: After powering on, the earmuffs will automatically enter pairing mode if not already connected. A blue indicator light will flash. Select "GREEN DEVIL SHIELD LD HM" from your device's Bluetooth list.
• Hands-Free Telephony: When connected via Bluetooth, you can answer and end calls using the designated button. The noise-canceling boom microphone ensures clear voice transmission even in high-noise environments.
• Smart Active Listening: This feature allows you to hear ambient sounds at a safe level while still protecting against harmful loud noises. Adjust the sensitivity using the volume knob.
• Kahirupan batré: The earmuffs are equipped with a 1000mAh battery, providing extended operational time. A Type-C charging cable is included for recharging.

Figure 5: Key controls and features of the GREEN DEVIL SHIELD LD HM earmuffs, including the volume knob and microphone port.

5. Pangropéa

Proper maintenance ensures the longevity and optimal performance of your earmuffs:

• beberesih: Wipe the ear cups and headband with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure no moisture enters the electronic components.
• Panyimpenan: When not in use, turn off the power and disconnect from the power source. Store the earmuffs in the provided carrying bag in a cool, dry place. Avoid exposing the product to high temperatures or direct sunlight, especially the low-reflection material of the ear cushions.
• Perawatan batré: For optimal battery life, avoid fully discharging the battery frequently. Recharge regularly, even if not in constant use.

6. Cara ngungkulan

Upami anjeun ngalaman masalah, cobian léngkah-léngkah ngungkulan masalah umum ieu:

• Henteu aya kakuatan: Ensure the battery is charged. Connect the Type-C charging cable and allow it to charge for at least 30 minutes before attempting to power on again.
• Henteu aya sora: Check the volume level on both the earmuffs and your connected device. Ensure the earmuffs are properly connected via Bluetooth or the 3.5mm audio cable.
• Bluetooth Teu Nyambung: Turn off and on the earmuffs and your device's Bluetooth. Ensure the earmuffs are in pairing mode (indicated by a flashing blue light). Move closer to your device to rule out range issues.
• Mikropon Teu Gawé: Ensure the boom microphone is securely plugged into its port. Check your device's audio input settings to ensure the earmuffs' microphone is selected.
• Poor Hearing Protection: Ensure the ear cups form a tight seal around your ears. Adjust the headband and ear cup position as described in Section 3.1.

Upami masalah masih aya saatos nyobian léngkah-léngkah ieu, mangga ngahubungi dukungan palanggan.

7. Spésifikasi

8. Garansi jeung Rojongan

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official GREEN DEVIL websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.
