This manual provides essential information for the proper installation, operation, and maintenance of your new recoil pull starter. This replacement part is designed to restore reliable starting functionality to compatible snow blower models. Please read these instructions thoroughly before proceeding with installation or use.
Kasaluyuan
This recoil pull starter is compatible with the following snow blower models:
- Toro Power Clear 621 Snow Blower
- Toro Power Clear 721 Snow Blower
It is designed to replace original equipment part numbers:
- 119-1945
- 121-4252
Image: The recoil pull starter, indicating compatibility with Toro Power Clear 621 and 721 snow blowers.
Image: The recoil pull starter, highlighting the part numbers it replaces: 119-1945 and 121-4252.
Émbaran Kasalametan
Always prioritize safety when working with power equipment. Failure to follow safety instructions can result in serious injury or damage to equipment.
- Cabut Busi: Before performing any maintenance or installation, always disconnect the spark plug wire to prevent accidental engine starting.
- Maké Alat Pelindung: Anggo alat pelindung diri anu merenah, kalebet sarung tangan sareng pelindung panon.
- Consult Snow Blower Manual: Refer to your snow blower's original owner's manual for specific safety procedures and instructions related to your model.
- Peralatan anu Aman: Ensure the snow blower is on a stable, level surface and cannot move during installation.
Setup sareng Instalasi
Follow these steps to install the new recoil pull starter. If you are unsure about any step, consult a qualified service technician.
- Persiapan:
- Ensure the snow blower engine is off and cool.
- Pegatkeun sambungan kabel busi pikeun nyegah ngamimitian teu kahaja.
- Gather necessary tools (e.g., wrenches, screwdrivers).
- Cabut Starter Lawas:
- Locate the existing recoil pull starter assembly on your snow blower.
- Unscrew the mounting bolts or nuts that secure the starter to the engine housing.
- Carefully remove the old starter assembly. Note its orientation for correct installation of the new unit.
- Pasang Starter Anyar:
- Position the new recoil pull starter in the same location and orientation as the old one.
- Align the mounting holes on the new starter with the corresponding holes on the engine housing.
- Insert and hand-tighten the mounting bolts or nuts.
- Once all bolts are in place, tighten them securely with a wrench or screwdriver. Do not overtighten.
- Cék ahir:
- Gently pull the starter rope a few times to ensure it retracts smoothly and engages the engine flywheel correctly.
- Sambungkeun deui kawat busi.
Gambar: Hareupeun view of the recoil pull starter assembly, showing the housing and pull handle.
Gambar: Tukangeun view of the recoil pull starter, detailing the internal spring and rope mechanism for proper installation.
Parentah Operasi
After installation, follow your snow blower's standard starting procedure. The new recoil pull starter is designed to provide improved reliability and enhanced performance.
- Prime Engine (if applicable): Follow your snow blower's instructions for priming the engine.
- Set Choke/Throttle: Adjust the choke and throttle controls as recommended by your snow blower's manufacturer for starting.
- Tarik Tali Starter: Grasp the starter handle firmly and pull it smoothly and steadily until the engine starts. Avoid short, jerky pulls.
- Retract Rope: Allow the rope to retract slowly and fully into the starter housing. Do not let it snap back.
Image: The recoil pull starter shown with a snow blower in operation, illustrating its function in starting the machine.
Image: The recoil pull starter, emphasizing its role in improving snow blower start-up performance in cold conditions.
Pangropéa
Regular maintenance helps ensure the longevity and proper function of your recoil pull starter.
- Pariksa Tali: Periodically check the starter rope for fraying, cuts, or excessive wear. Replace the rope if any damage is observed.
- Perumahan bersih: Keep the starter housing clean and free of debris, snow, and ice to prevent interference with the rope's retraction.
- Lubrication: Lightly lubricate the internal spring mechanism with a dry lubricant if you notice stiffness or slow retraction. Avoid excessive lubrication which can attract dirt.
- Panyimpenan: When storing the snow blower for extended periods, ensure the starter rope is fully retracted and the unit is clean and dry.
Catetan: Regularly replacing parts like the recoil pull starter can prevent unexpected breakdowns and keep your snow blower ready for use.
Pamérésan masalah
If you encounter issues with your recoil pull starter, consider the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Tali teu ditarik pinuh. | Debris in housing, worn spring, or improper installation. | Clean housing, inspect spring, re-install if necessary. Apply dry lubricant. |
| Rope pulls out but does not engage engine. | Pawls not extending, internal spring issue, or flywheel engagement problem. | Inspect internal pawls for damage or obstruction. May require professional service. |
| Starter feels stiff or hard to pull. | Lack of lubrication, internal friction, or engine compression issues. | Apply dry lubricant to internal components. Check engine for other issues if problem persists. |
| Mounting holes do not align. | Incorrect part for your specific snow blower model or manufacturing tolerance. | Double-check compatibility with your snow blower's exact model and part numbers. Some minor modification might be needed, but significant misalignment indicates an incorrect part. |
Catetan: Some user reviews mention potential issues with mounting hole alignment or rope length. Always verify fitment before final installation. If significant modification is required, the part may not be suitable for your specific unit.
spésifikasi
- Ukuran produk: 6.9 x 6.9 x 1.6 inci
- Beurat barang: 1 pon
- Pabrikan: Baowen
- Jumlah modél: DaYHbaowen213
- Ngaganti Nomer Bagian: 119-1945, 121-4252
- Kasaluyuan: Toro Power Clear 621, Toro Power Clear 721 Snow Blowers

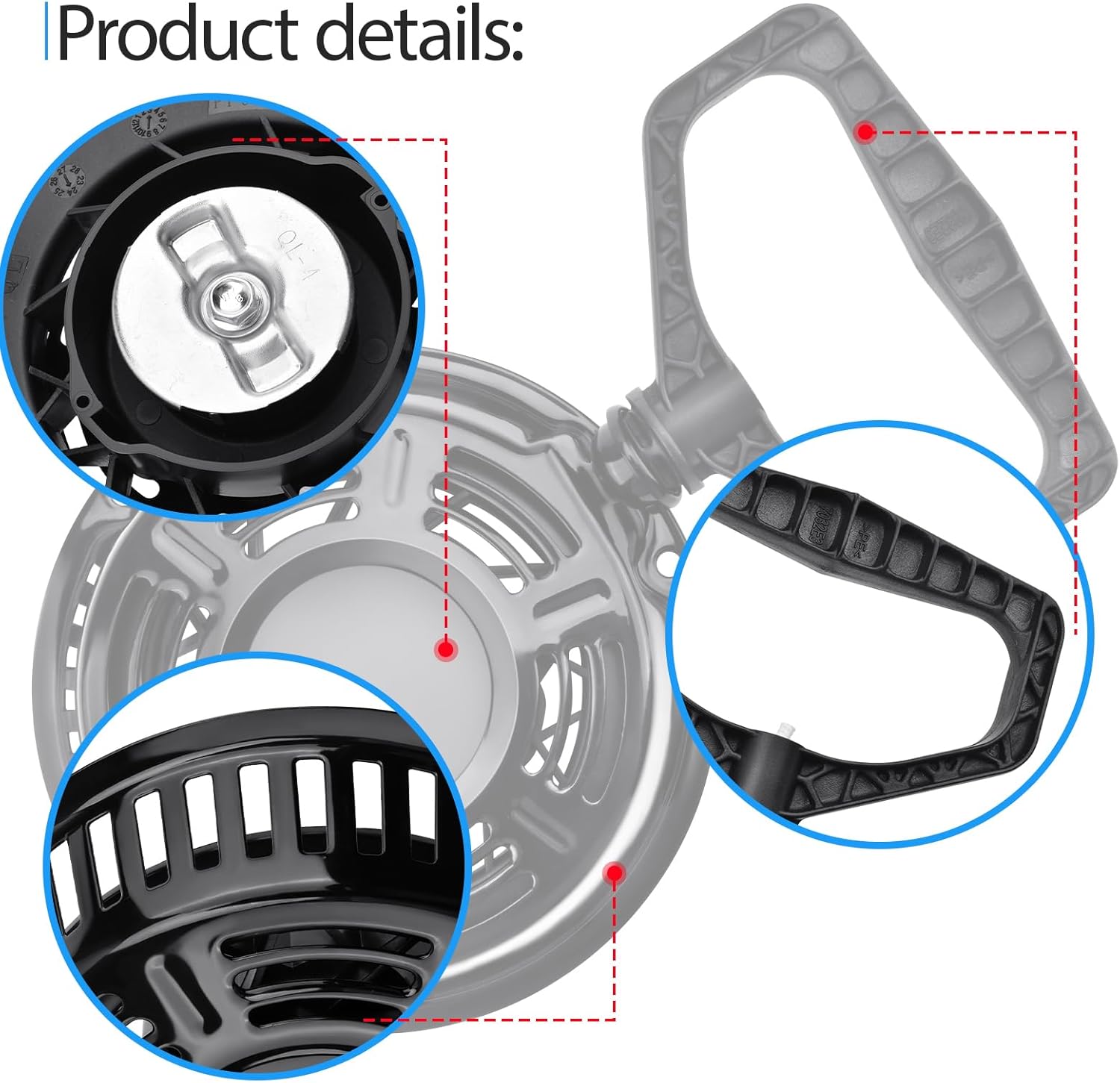

Gambar: Detil views of the recoil pull starter's components, including the handle, outer casing, and internal winding mechanism.
Garansi sareng Rojongan
For warranty information or technical support, please refer to the contact information provided by the retailer or manufacturer at the time of purchase. Keep your purchase receipt as proof of purchase.
