AirWire 10x12 Ft Louvered Pergola Instruction Manual
Model: ABY1012Grey
1. Bubuka
Thank you for choosing the AirWire 10x12 Ft Louvered Pergola. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
2. Émbaran Kasalametan
Your safety and the safety of others are paramount. Always adhere to the following safety guidelines:
- Always follow the included installation guide and instructions precisely.
- Ensure the pergola is securely anchored to a stable foundation to prevent it from being blown over or tipping during extreme weather conditions.
- Use caution when assembling and disassembling the pergola to avoid potential injuries.
- Jauhkeun barudak jeung piaraan ti wewengkon assembly.
- Inspect all parts for damage before assembly. Do not proceed with assembly if any parts are damaged.
- Ulah nanjak kana struktur pergola.
- In case of heavy snow accumulation, open the louvers or clear snow to prevent structural damage.
3. Eusi Paket
The AirWire 10x12 Ft Louvered Pergola is shipped in multiple packages. Verify all components are present and undamaged before beginning assembly. Refer to the detailed parts list in the separate installation guide for specific quantities and identification.
- Komponen Rangka Aluminium Alloy
- Powder-Coated Steel Louvered Roof Panels
- Adjustable Louver Mechanism (Crank Handle and Winding Device)
- Waterproof Curtains
- Kelambu
- Hardware Kit (bolts, screws, anchors, etc.)
- Guide instalasi
Gambar: Leuwihview of the AirWire 10x12 Ft Louvered Pergola with key dimensions and indication of 4 packages for shipment.
4. Setup jeung Majelis
Assembly of the AirWire Louvered Pergola requires careful attention to detail and multiple individuals. It is recommended that 3-4 people complete the installation, which typically takes 2-3 hours.
- Persiapan: Choose a level and stable surface for installation. Clear the area of any obstructions. Unpack all boxes and identify each component using the provided parts list.
- Majelis pigura: Begin by assembling the main aluminum frame according to the step-by-step instructions in the installation guide. Ensure all connections are secure.
- Louvered Roof Installation: Install the powder-coated steel louvered roof panels and the adjustable louver mechanism. Follow the guide for proper alignment and attachment of the crank handle and winding device.
- Gutter System Integration: The pergola features a concealed gutter design. Ensure all drainage components are correctly installed to channel rainwater effectively through the pillars.
- Gordén sareng Jaring: Attach the waterproof privacy curtains and mosquito nets as instructed. These are designed for easy removal and reattachment.
- Jangkar: Securely anchor the pergola to your chosen foundation using the provided hardware. This step is crucial for stability and safety, especially in windy conditions.
Image: A fully assembled AirWire Louvered Pergola providing shade over an outdoor seating area.
5. Parentah Operasi
5.1 Adjustable Louvered Roof
The pergola features an adjustable louvered roof, allowing you to control sunlight and airflow. Use the provided crank handle to adjust the louvers from 0° (fully open) to 90° (fully closed).
- Pikeun Buka: Turn the crank handle to rotate the louvers, allowing sunlight and ventilation.
- Pikeun nutup: Turn the crank handle in the opposite direction to close the louvers, providing shade and protection from rain.
Gambar: Detil view of the louvered roof showing the crank handle and the open/close positions for light and shade adjustment.
5.2 Concealed Gutter System
The integrated gutter system is designed to collect rainwater from the roof panels and channel it through the pillars, preventing water accumulation on the roof and maintaining a dry area underneath.
- Ensure the louvers are fully closed during rain to activate the gutter system effectively.
- Regularly check the gutter outlets at the base of the pillars for debris to ensure proper drainage.

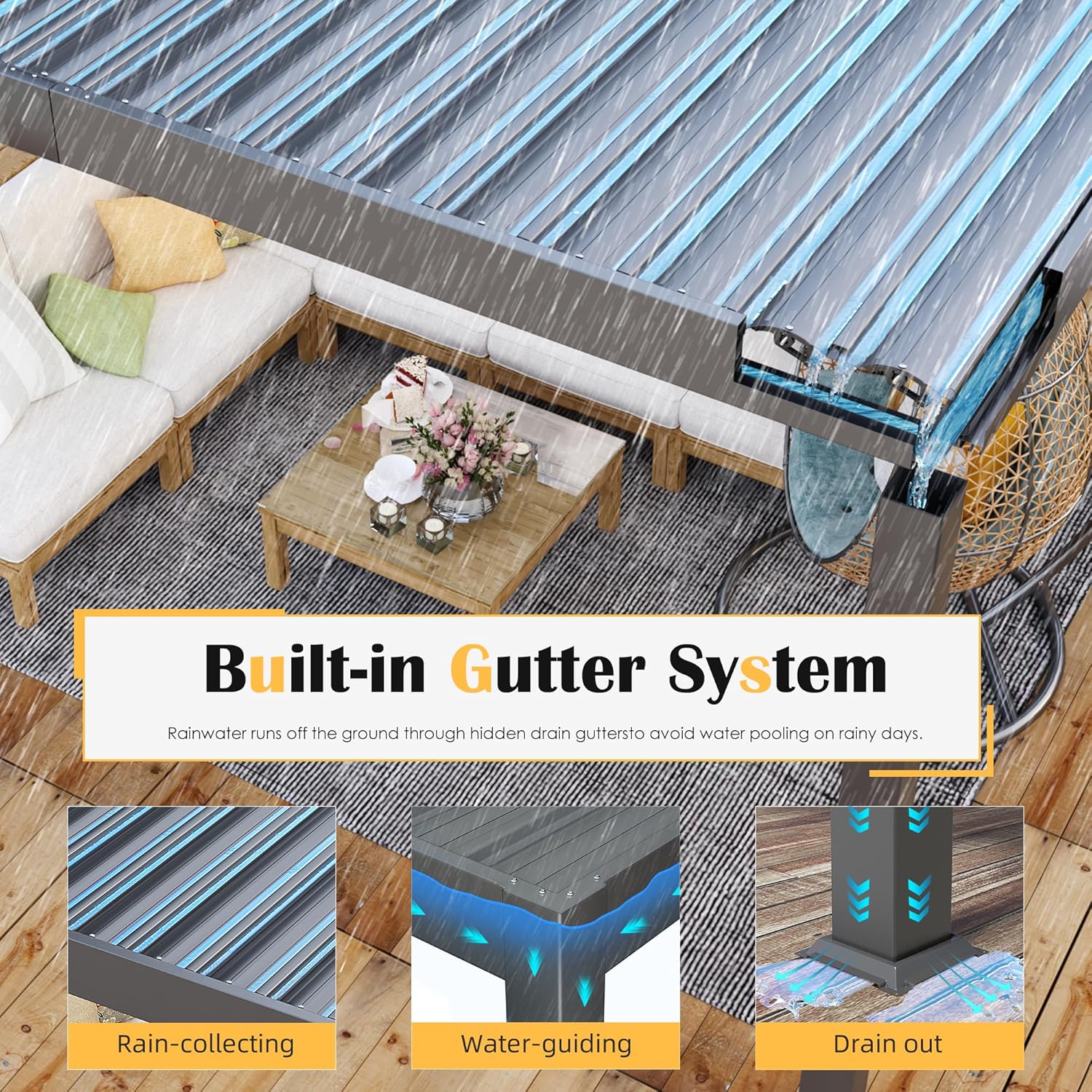

Image: Visual representation of the concealed gutter system, showing how rainwater is collected, guided, and drained through the pergola's structure.
5.3 Waterproof Curtains and Mosquito Nets
The pergola includes removable waterproof curtains for privacy and protection from wind/rain, and mosquito nets for insect control.
- Gorden: Can be drawn closed for privacy or protection, or tied back to the pillars using the humanized straps for an open feel.
- Mosquito Nets: Can be zipped closed to create an enclosed, insect-free space.
- Both curtains and nets are designed for easy attachment and removal for cleaning or seasonal storage.
Gambar: Examples of the pergola's versatile use, showing configurations for ventilation, insect protection with nets, and privacy with closed curtains.
6. Pangropéa
Regular maintenance will extend the lifespan and preserve the appearance of your AirWire pergola.
- Pigura beberesih: Bersihkeun rangka aluminium nganggo larutan sabun sareng cai anu hampang. Bilas tuntas ku cai bersih teras garingkeun ku lawon lemes. Hindarkeun pembersih anu abrasif atanapi bahan kimia anu keras.
- Cleaning Louvers: The louvered roof panels can be cleaned similarly. Ensure no debris is lodged between the panels or in the drainage channels.
- Gordén sareng Jaring: Remove curtains and nets for cleaning. Follow care instructions on their labels. Typically, they can be hand-washed or machine-washed on a gentle cycle with cold water and mild detergent. Air dry only.
- Hardware: Periodically check all bolts and screws to ensure they remain tight. Tighten as necessary.
- Sistem Talang: Inspect the concealed gutter system and pillar outlets regularly for leaves, dirt, or other blockages. Clear any debris to ensure efficient water drainage.
- Winterization: In areas with heavy snowfall, it is recommended to open the louvers to prevent snow accumulation and potential damage to the roof structure. Consider removing and storing curtains and nets indoors during harsh winter months.
7. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Bagian-bagianna teu pas ngahiji nalika dirakit. | Misalignment, manufacturing defect, incorrect part usage. | Double-check the installation guide for correct part orientation and sequence. If parts are clearly defective or missing pre-drilled holes, contact customer service. |
| Water pooling on the roof or dripping from non-drainage points. | Louvers not fully closed, gutter system blocked, improper installation of drainage components. | Ensure louvers are completely closed during rain. Inspect and clear any debris from the gutter channels and pillar outlets. Review installation steps for drainage system. |
| Pergola karasana teu stabil atawa oyag. | Insufficient anchoring, loose connections, uneven ground. | Verify all anchor points are securely fastened to a stable foundation. Tighten all bolts and screws. Ensure the ground surface is level. |
| Crank handle for louvers is stiff or not operating smoothly. | Debris in mechanism, lack of lubrication, damaged winding device. | Inspect the mechanism for any obstructions and remove them. Apply a silicone-based lubricant to moving parts if necessary. If damage is suspected, contact customer service. |
8. Spésifikasi
| Fitur | Rincian |
|---|---|
| merek | AirWire |
| Nomer modél | ABY1012Grey |
| Ukuran produk (L x W x H) | 141.1" x 116.2" x 87.4" (10x12 Ft nominal) |
| Bahan Pigura | alumunium |
| Bahan hateup | Powder-Coated Steel Louvers |
| Warna | kulawu |
| Tingkat Résistansi Cai | Waterproof (with closed louvers) |
| Perlindungan UV | Sumuhun |
| Majelis Diperlukeun | Muhun (Disarankeun 3-4 jalmi, 2-3 jam) |
Image: The AirWire Louvered Pergola at night, showcasing its structure and potential for outdoor ambiance.
9. Garansi jeung Rojongan
AirWire specializes in outdoor products and is committed to customer satisfaction. For any missing or damaged parts, or if you require assistance with assembly or operation, please contact AirWire customer service directly.
Refer to your purchase documentation or the AirWire websitus pikeun istilah jaminan husus sarta informasi kontak.
