User Manual: Queen Size Bed Frame with 8 Storage Drawers and LED Headboard

1. Bubuka

Thank you for choosing the Generic Queen Size Bed Frame. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read these instructions carefully before assembly and retain them for future reference.

2. Émbaran Kasalametan

• Pastikeun yén sadaya bagian aya sareng henteu ruksak sateuacan ngamimitian ngarakit. Entong dianggo upami aya bagian anu leungit atanapi rusak.
• Pasang rangka ranjang dina permukaan anu lemes sareng bersih pikeun nyegah goresan.
• Always use the correct tools as specified in the assembly guide.
• Do not overtighten screws or bolts, as this may damage the material.
• Jauhkeun barudak jeung piaraan ti wewengkon assembly.
• For electrical components (LED lights, charging station), ensure proper connection to a suitable power outlet. Do not overload the charging station.
• Rutin pariksa sagala sambungan na fasteners pikeun mastikeun aranjeunna tetep kedap.

3. Eusi Paket

The bed frame is delivered in one box and includes all necessary components and hardware for assembly. Please refer to the detailed parts list in the included instruction book to verify all items are present.

Komponén Kaasup: All parts as depicted in the assembly diagram, including frame components, headboard, drawers, LED strip, charging station, and hardware kit.

4. Setup jeung Parentah Majelis

Assembly of this bed frame is designed to be straightforward, typically taking approximately 45 minutes. Follow the complete instructions book and numbered parts provided in the package.

1. Buka bungkus sareng Identipikasi Bagian: Carefully unpack all components and lay them out on a clean, soft surface. Match each part to the corresponding number in the instruction book.
2. Kumpulkeun pigura: Begin by connecting the main frame components as per the step-by-step diagrams. Ensure all bolts are securely tightened.
3. Install the Headboard: Attach the headboard to the main frame, ensuring the LED strip and charging station components are correctly aligned.
4. Pasang sareng Selapkeun Laci: Assemble the 8 storage drawers according to the instructions. The drawers are equipped with pulleys for smooth operation. Insert them into their designated slots under the bed frame.
5. Pasang Slats: Place the metal platform slats onto the frame. These slats are designed to provide stable mattress support without the need for a box spring and prevent mattress sliding.

Figure 1: Overall dimensions and component breakdown of the bed frame.

Figure 2: The integrated design ensures mattress stability, preventing sliding.

5. Parentah Operasi

5.1 LED Headboard Lighting

The headboard features multifunctional LED light strips. Connect the power cord to a standard electrical outlet.

• Kontrol Warna: Choose from 16 beautiful RGB LED light colors, with access to over 60,000 colors via the mobile application.
• Penyesuaian Caang: Atur inténsitas cahaya numutkeun karesep anjeun.
• Pilihan Mode: Select various lighting modes (e.g., static, flashing, fading).
• Fungsi Timing: Setel timer supados lampu hurung atanapi pareum sacara otomatis.
• Kontrol: Use the included switch controller or download the dedicated mobile application for advanced control.

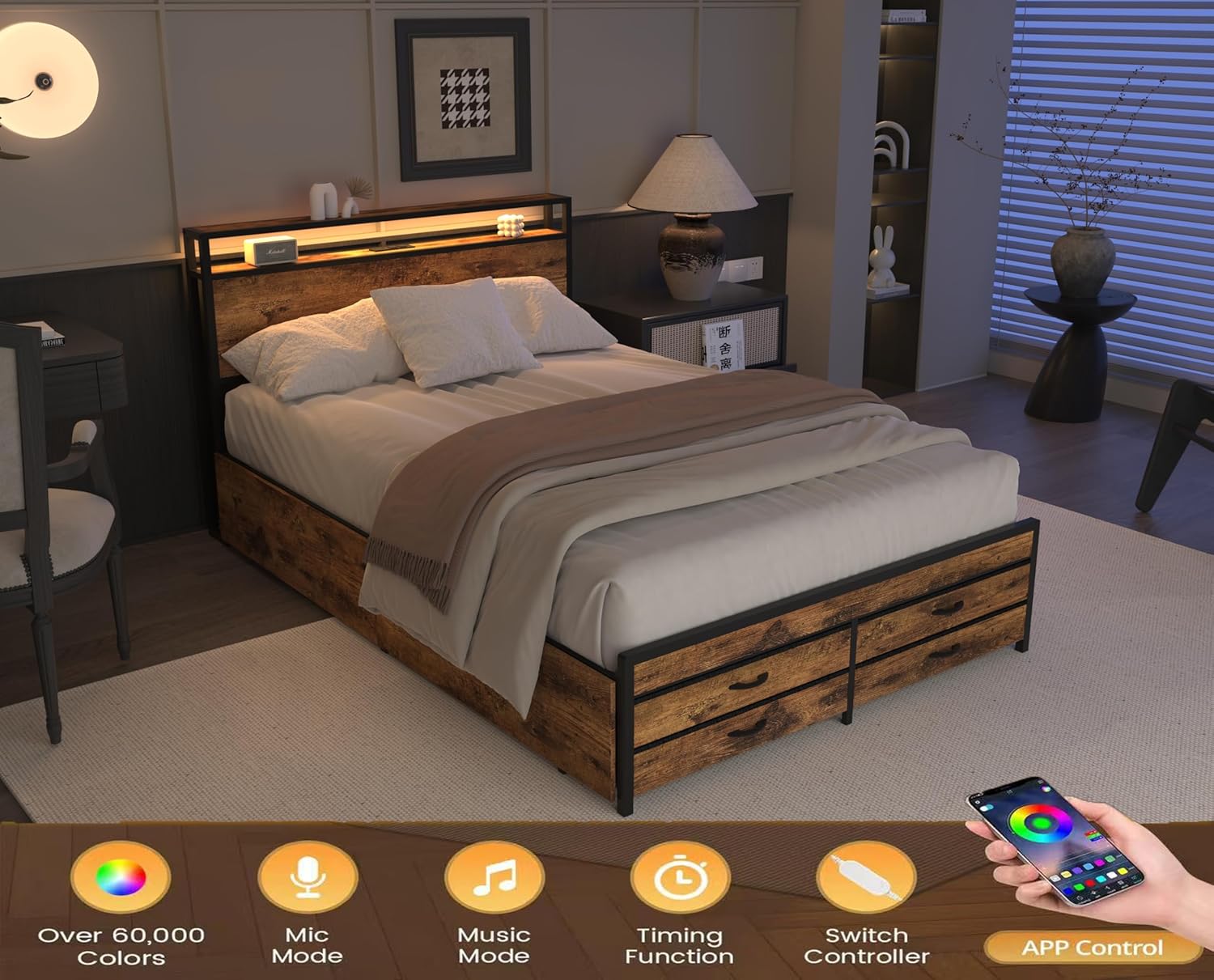

Figure 3: The LED headboard in operation, highlighting control features.

5.2 Stasion Ngecas

The headboard includes a built-in charging station for convenience.

• Outlet listrik: Features 2 standard plug outlets for electronic devices.
• Port USB: Includes 2 USB ports for charging smartphones, tablets, and other USB-powered devices.
• Manajemén Kabel: Designed with cable management features to keep cords tidy.
• Kabel listrik: The charging station is powered by a 7.9ft long power supply cord. Ensure it is plugged into a functional wall outlet.

Figure 4: Detail of the headboard charging station.

5.3 Laci gudang

The bed frame is equipped with 8 storage drawers, providing ample spasi pikeun sagala rupa item.

• Kapasitas: Ideal for storing clothing, pillows, sheets, and other bedding items.
• Operasi: Each drawer features pulleys for smooth and easy sliding in and out, even on carpeted surfaces.

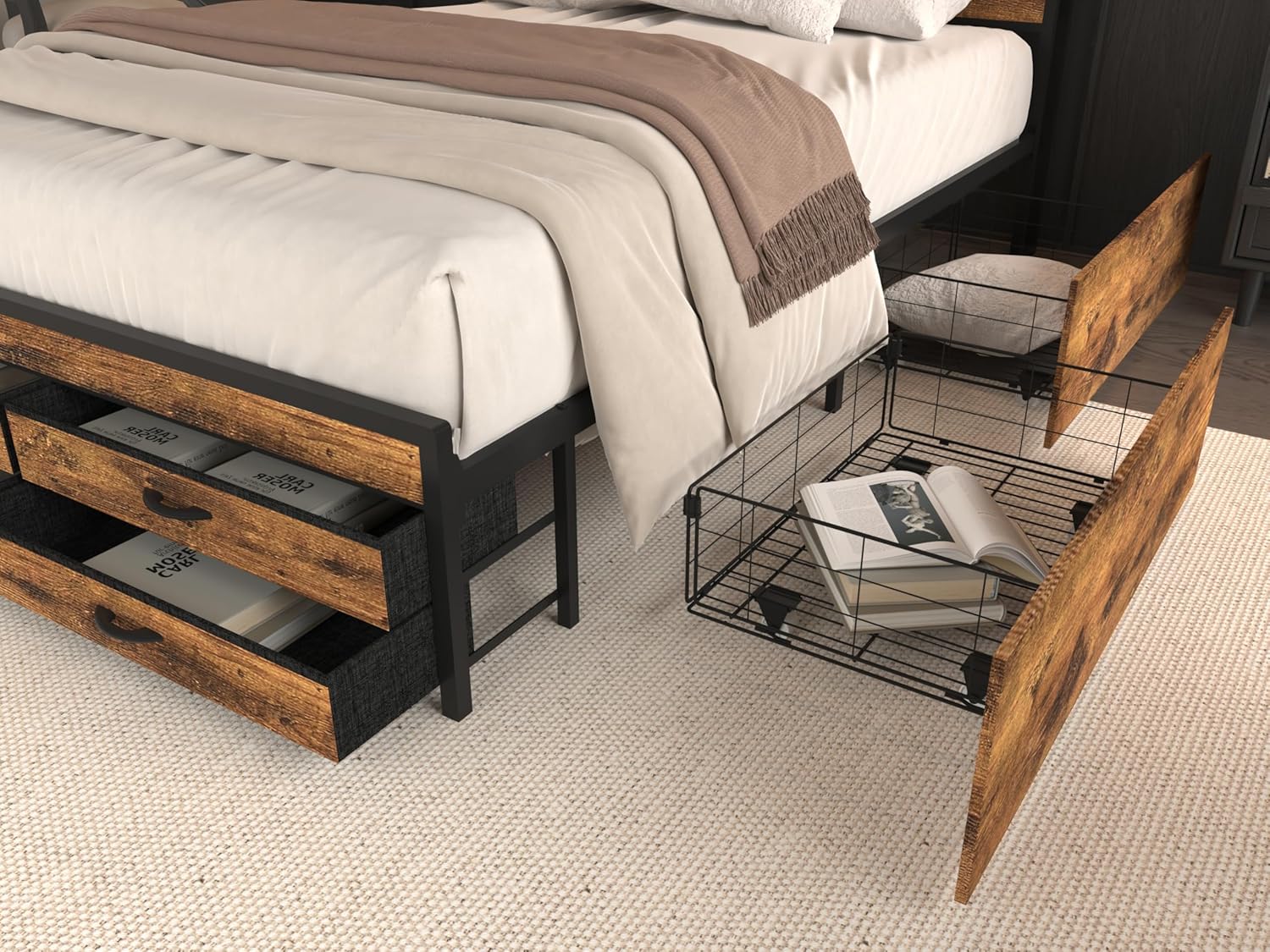

Figure 5: The bed frame with storage drawers extended.

Figure 6: Detail of the storage drawers, illustrating their practical use.

6. Pangropéa

• beberesih: Lap beungeut rangka ranjang ku kaén nu lemes,amp lawon. Hindarkeun bahan kimia anu kasar atanapi pembersih abrasive.
• Pangropéa laci: Periodically check the drawer pulleys for smooth operation. Clean any dust or debris that may hinder movement.
• Pariksa Fastener: Every few months, inspect all bolts and screws to ensure they are still tight. Retighten if necessary to maintain stability.
• Komponén listrik: Ensure the power cord for the LED lights and charging station is not pinched or damaged. Do not attempt to repair electrical components yourself.

7. Cara ngungkulan

• Lampu LED Teu Gawé:
  Solusi: Check if the power cord is securely plugged into the wall outlet and the connection to the LED strip is firm. Ensure the remote control or app is functioning correctly and batteries (if applicable) are not depleted.
• Stasion Ngecas Teu Nyayogikeun Daya:
  Solusi: Verify the main power cord for the charging station is fully inserted into a live electrical outlet. Test the outlet with another device. Ensure devices are properly connected to the USB ports or outlets.
• Laci Nempel atanapi Henteu Ngageser Mulus:
  Solusi: Check for any obstructions in the drawer tracks or wheels. Clean any accumulated dust or debris. Ensure the drawers are correctly aligned within their slots.
• Bed Frame Squeaking or Unstable:
  Solusi: Re-check all assembly bolts and screws. Tighten any loose fasteners. Ensure the bed frame is on a level surface.

8. Spésifikasi

9. Émbaran jaminan

For specific warranty details regarding this product, please refer to the documentation included with your purchase or contact the seller directly. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.

10. Rojongan Palanggan

If you have any questions, require assistance with assembly, or encounter any issues not covered in this manual, please contact the seller or manufacturer for support. Have your purchase details and product model number (B0F26ZBS37) ready when contacting support.
