1. Produk Langkungview
This document provides essential information for the installation, operation, and maintenance of your Generic Replacement Broil Element. This element is designed to replace the original broil element in compatible electric range ovens, restoring proper heating function for broiling tasks.
penting: Mangga deuiview this manual thoroughly before attempting any installation or maintenance. Always prioritize safety.
2. Verifikasi kasaluyuan
It is crucial to verify that this replacement part is compatible with your specific oven model before installation. Incompatible parts can lead to malfunction or damage.
2.1 How to Verify Compatibility:
- Check Model Numbers: Confirm that your oven's model number matches one of the compatible models listed (e.g., 9757340, W10856603, SD9757340). These numbers are typically found on a label inside the oven door frame or on the back of the appliance.
- Compare Visuals: Carefully compare the provided product images with your original broil element. Pay attention to the shape, terminal connections, and mounting brackets.
- Dimensi fisik: If possible, measure your existing element and compare it to the dimensions shown in the product images.

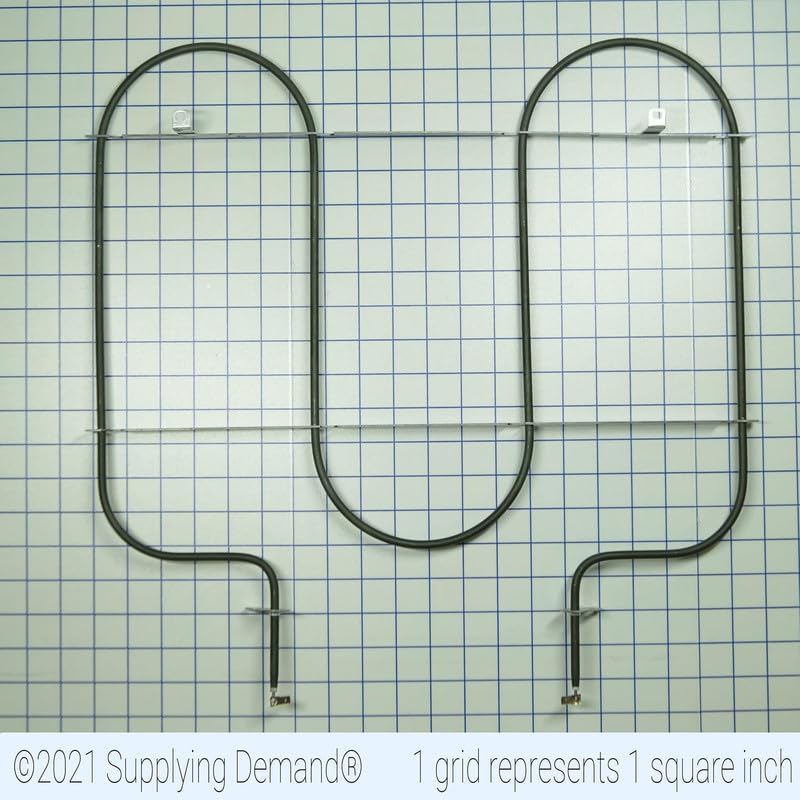

Image 1: Replacement broil element shown against a grid, where one grid square represents one square inch, aiding in dimension verification.
Catetan: The package includes 1 set ONLY. Please ensure all components are present upon receipt.
3. Émbaran Kasalametan
Working with electrical appliances can be hazardous. Always follow these safety guidelines:
- Pegatkeun Daya: ALWAYS unplug the oven from the electrical outlet or turn off the circuit breaker to the oven before beginning any installation or maintenance. Failure to do so can result in electric shock or serious injury.
- Maké Alat Pelindung: Anggo sarung tangan kerja pikeun ngajaga leungeun anjeun tina sisi anu seukeut sareng kacamata kaamanan pikeun ngajaga panon anjeun.
- Bantuan profésional: If you are unsure about any step or uncomfortable performing the installation, consult a qualified appliance technician.
- Nanganan kalayan ati-ati: Broil elements can be fragile. Handle the new element carefully to avoid damage.
4. Instalasi (Setup)
This section outlines the general steps for replacing an oven broil element. Specific steps may vary slightly depending on your oven model. Refer to your oven's original service manual for detailed instructions.
4.1 Alat Diperlukeun:
- Screwdriver (Phillips or flathead, depending on your oven's fasteners)
- Sarung tangan gawé
- Needle-nose pliers (optional, for terminal connections)
4.2 Léngkah-léngkah Pamasangan:
- Pegatkeun Daya: Ensure the oven is completely disconnected from its power source.
- Interior Oven Aksés: Buka panto oven.
- Hapus Unsur Lawas:
- Locate the broil element at the top of the oven cavity.
- Carefully remove the screws securing the element to the back wall of the oven.
- Gently pull the element forward a few inches to expose the electrical terminals.
- Disconnect the wires from the terminals. Note their positions for reinstallation. You may need to use pliers.
- Remove the old element from the oven.
- Pasang Élémen Anyar:
- Connect the electrical wires to the terminals of the new broil element. Ensure connections are secure.
- Carefully slide the new element into position, aligning the mounting brackets with the screw holes.
- Secure the element with the screws removed earlier. Do not overtighten.
- Mulangkeun Daya: Close the oven door. Reconnect the oven to its power source or turn on the circuit breaker.
- Fungsi Uji: Turn on the oven's broil function and observe if the new element heats up properly. It should glow red within a few minutes.

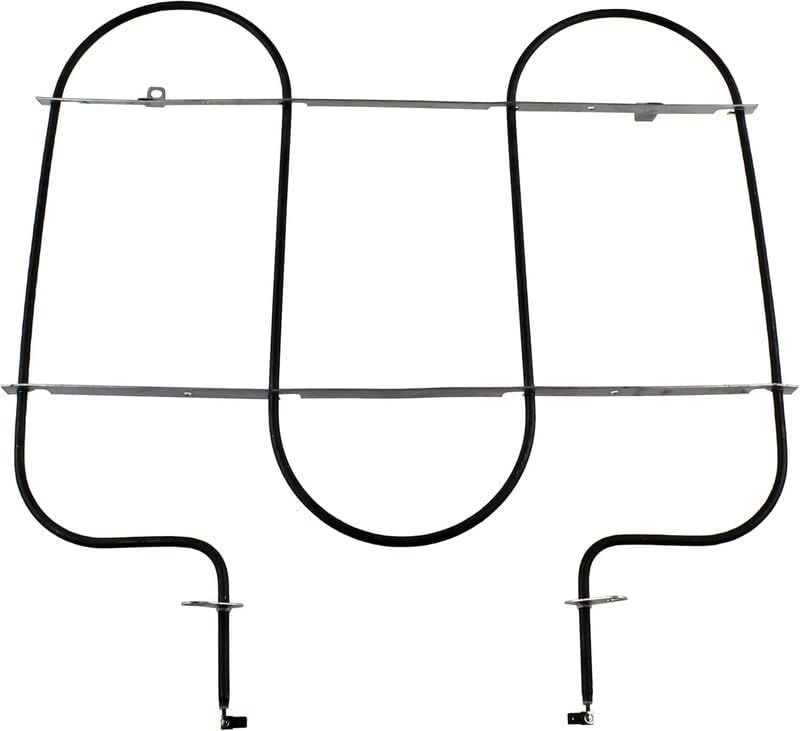

Gambar 2: Hareupeun view of the replacement broil element, showing its typical shape and terminal connections.
5. Parentah Operasi
Once installed, the replacement broil element operates identically to the original part. Refer to your oven's user manual for specific instructions on how to use the broil function, including temperature settings and cooking times.
6. Pangropéa
The broil element itself requires minimal maintenance. However, regular cleaning of your oven cavity can help prolong the life of all components, including the element.
- beberesih: Ensure the oven is cool and disconnected from power before cleaning. Wipe down the oven interior, avoiding direct contact with the element. Do not use abrasive cleaners on the element itself.
- Pamariksaan: Periodically inspect the element for any visible damage, such as cracks or severe discoloration, which could indicate a need for replacement.
7. Cara ngungkulan
If your oven's broil function is not working correctly after installing the new element, consider the following:
- Henteu Panas:
- Check if the oven is properly plugged in or if the circuit breaker is tripped.
- Verify that the electrical connections to the element are secure.
- Ensure the oven's control settings are correctly set for broiling.
- Pemanasan henteu rata:
- Confirm the element is fully seated and secured in its mounting brackets.
- Inspect the element for any physical damage that might have occurred during installation.
If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified appliance technician for further diagnosis.
8. Spésifikasi
- Nomer Bagian: bakepart#350622, SD9757340
- Model anu cocog: 9757340, W10856603 (and others as specified by manufacturer)
- warna: Hideung
- Item Jumlah Paket: 1
- Pabrikan: Generik
9. Garansi jeung Rojongan
For information regarding warranty coverage or technical support, please refer to the seller or retailer from whom you purchased this replacement part. Keep your proof of purchase for any warranty claims.
