Manual Instruksi Umum pikeun Remote Control

1. Bubuka

This document provides instructions for the Generic replacement remote control designed for use with Eluxe Clima RG57A6/BGEF portable room air conditioners. This remote control operates via infrared (IR) technology. Please note that this remote displays temperature in Celsius only and is not compatible with Fahrenheit settings.

It is important to verify your air conditioner model number matches 'Eluxe Clima RG57A6/BGEF' to ensure compatibility. If your model is not listed, this remote may not function correctly with your unit.

2. Setelan: Pamasangan Batré

Remot kontrol ieu peryogi dua (2) batré AAA pikeun dianggo. Batréna teu kaasup dina remot kontrol ieu.

1. Teangan tempat panutup kompartemen batré dina tonggong kadali jauh.
2. Geser panutup ka handap atawa pencét kancing (upami aya) pikeun muka kompartemen.
3. Selapkeun dua batré AAA, mastikeun terminal positif (+) jeung négatip (-) align bener jeung markings jero kompartemen nu.
4. Ganti panutup kompartemen batré, geser deui kana tempatna nepi ka klik aman.

Important: Once batteries are installed, the remote is ready for use. No additional programming or setup is typically required for compatible air conditioner models.

3. Parentah Operasi

This section describes the general functions of the buttons found on the remote control. Please note that remote control designs may vary slightly, and not all buttons shown or described may be present on your specific unit. Refer to the images below for common button layouts.

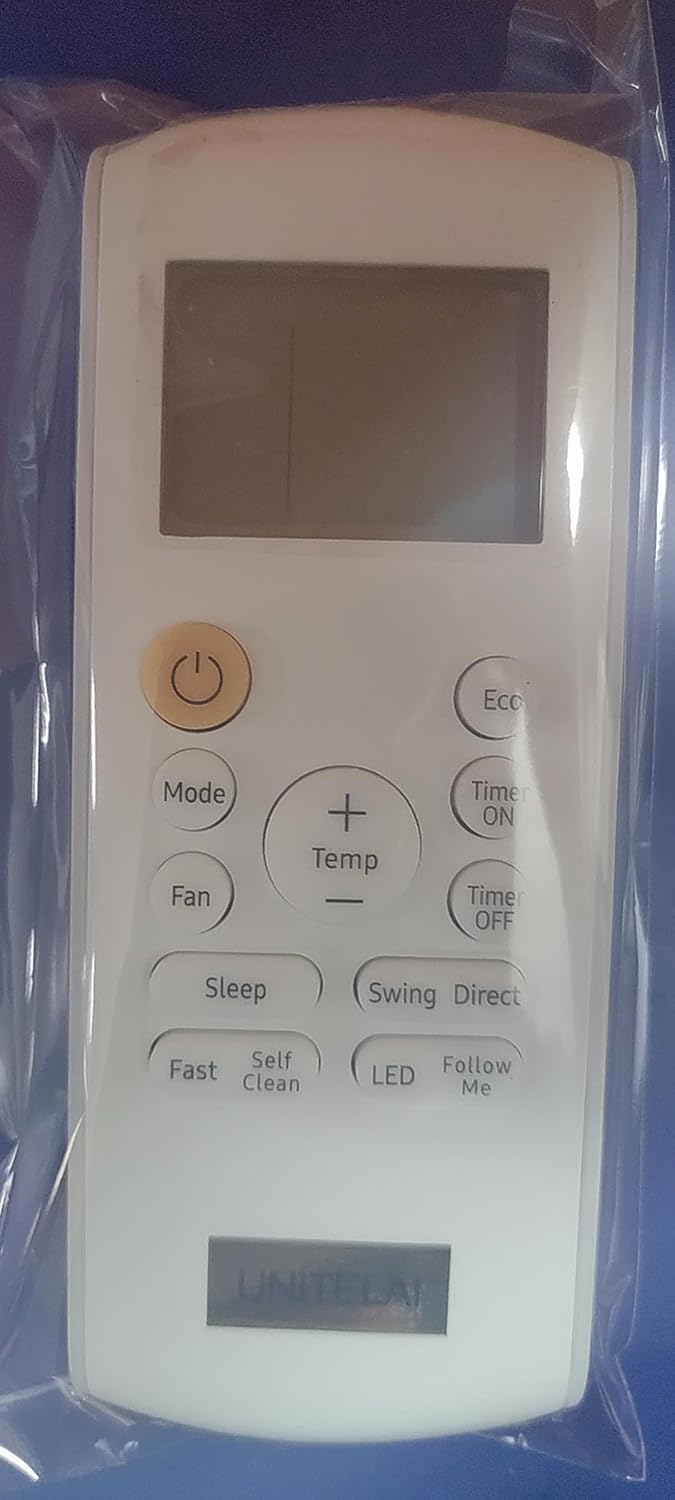

Gambar 1: Common Remote Control Layout A. Features buttons for Power, Mode, Fan, Temperature adjustment, Sleep, Swing, Fast, Self Clean, LED, Follow Me, Eco, Timer ON, and Timer OFF.

Gambar 2: Common Remote Control Layout B. Features buttons for ON/OFF, Mode, Fan, Temperature adjustment, Sleep, Swing, Turbo, LED, Short Cut, Timer ON, and Timer OFF.

• ON/OFF (Power) Button: Pencét pikeun ngaktipkeun atanapi mareuman unit AC.
• Tombol MODE: Cycles through available operating modes such as Cool, Fan, Dry, Auto, and Heat (if supported by your AC unit).
• Tombol kipas: Saluyukeun laju kipas (contona, Lemah, Sedeng, Luhur, Otomatis).
• Tombol SUHU +/-: Ngaronjatkeun atawa ngurangan setelan suhu nu dipikahoyong. Note: Temperature display is in Celsius only.
• Tombol SLEEP: Ngaktipkeun atanapi mareuman modeu sare, anu biasana nyaluyukeun suhu sareng kecepatan kipas pikeun sare anu nyaman.
• Tombol Ayun: Controls the automatic horizontal movement of the air conditioner's louvers.
• Tombol LANGSUNG: Adjusts the vertical direction of the air flow.
• Tombol TIMER ON: Nyetél timer supados AC hurung sacara otomatis.
• Tombol TIMER OFF: Nyetél timer supados AC pareum sacara otomatis.
• Tombol ECO: Activates economy mode for energy saving (Layout A).
• FAST / TURBO Button: Initiates rapid cooling or heating for quick temperature changes. (Layout A: Fast, Layout B: Turbo)
• Tombol BERSIH DIRI: Activates the self-cleaning function of the air conditioner (if available on your unit).
• Tombol LED: Turns the display light on the air conditioner unit on or off.
• Tombol FOLLOW ME: Activates a feature where the remote control acts as a temperature sensor, allowing the AC to adjust based on the remote's location (if supported by your AC unit).
• Tombol POTONGAN PONDOK: Allows saving and recalling a preferred operating setting (Layout B).

Note: The estimated time displayed on the remote control may not be accurate.

4. Catetan penting jeung Warnings

• Kasaluyuan: This remote is specifically designed for Eluxe Clima RG57A6/BGEF air conditioners. It may not work with other models.
• Suhu Témbong: The remote control displays temperature in Celsius only. It does not support Fahrenheit.
• Tampilan waktos: Any estimated time displayed on the remote is for reference only and may not be accurate.
• Variasi Penampilan: Due to manufacturing variations, the physical appearance and button layout of your remote control may differ slightly from the images provided. All core functions for the specified model should remain accessible.
• Infrared Operation: Ensure there is a clear line of sight between the remote control and the air conditioner's infrared receiver for proper operation.

5. Cara ngungkulan

• Jauh Teu Ngabales:
  • Pariksa naha batréna dipasang kalayan leres sareng polaritas anu leres (+/-).
  • Ganti batré anu lami ku batré AAA anu énggal.
  • Pastikeun teu aya halangan antara kadali jauh sareng panarima AC.
  • Confirm you are within the effective range of the air conditioner's IR receiver.
• Air Conditioner Not Responding to Specific Functions:
  • Some functions (e.g., Self Clean, Follow Me) are dependent on the features available on your specific air conditioner model. If a button does not work, your AC unit may not support that function.
• Incorrect Temperature Display:
  • This remote displays temperature in Celsius only. If you require Fahrenheit, this remote is not compatible.

6. Spésifikasi

7. Garansi jeung Rojongan

As a generic replacement product, direct manufacturer warranty and support may be limited. For any issues or further assistance, please contact the seller from whom you purchased this remote control. They will be able to provide guidance regarding returns, replacements, or troubleshooting specific to your purchase.
