Generic 100LBS Capacity Walk-Behind Broadcast Spreader

Bubuka

This manual provides instructions for the safe assembly, operation, and maintenance of your new Generic 100LBS Capacity Walk-Behind Broadcast Spreader. This robust push spreader is designed for efficient distribution of various materials such as seeds, fertilizers, salt, and ice melt across small to medium-sized lawns and areas. It features a 100lb (56L) capacity hopper, a 30-scale control system for precise spreading, and 13-inch all-terrain pneumatic tires for smooth operation.

Inpormasi Kasalametan:

• Always read and understand all instructions before operating the spreader.
• Wear appropriate safety gear, including gloves and eye protection, when handling materials.
• Jauhkeun barudak jeung piaraan ti wewengkon operasi.
• Do not overload the hopper beyond the specified capacity.
• Ensure all fasteners are tightened securely before each use.

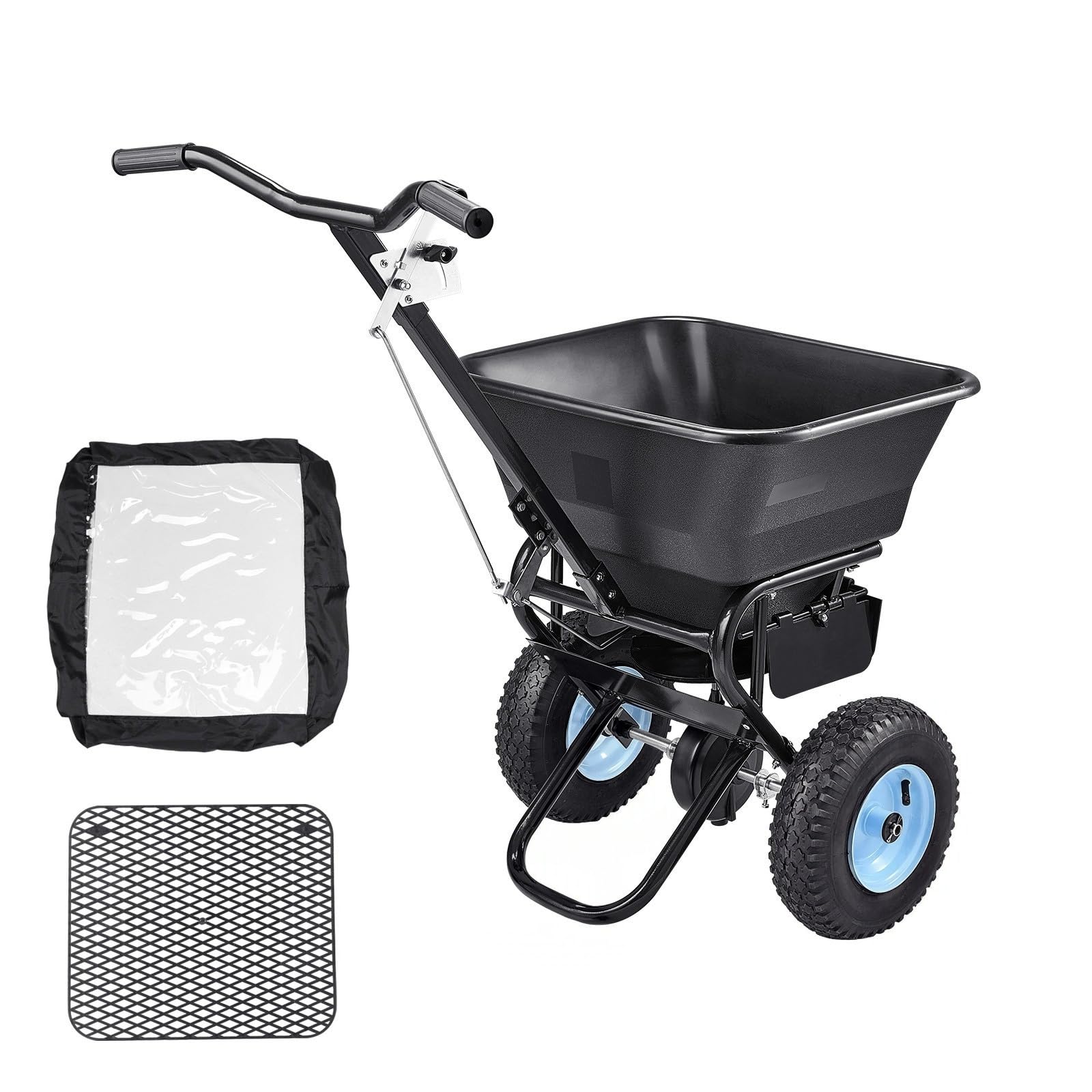

Image: The Generic 100LBS Capacity Walk-Behind Broadcast Spreader, showcasing its overall design with a black hopper, metal frame, and large pneumatic tires.

Eusi pakét

Before beginning assembly, ensure all parts are present. Refer to the assembly diagram provided in the product packaging for a complete list of components. Key components are pre-installed to simplify the assembly process.

• Hopper assembly with grate
• Main frame with axle and gearbox
• Rakitan kétang
• Two 13-inch pneumatic wheels
• Control rod and linkage
• Hardware kit (bolts, nuts, washers, cotter pins)

Setup sareng Majelis

Assembly is designed to be quick and straightforward, with many critical components pre-installed. Follow these steps to assemble your broadcast spreader:

1. Pasangkeun Handlebar: Secure the handlebar assembly to the main frame using the provided bolts and nuts. Ensure it is firmly attached and aligned correctly.
2. Pasang Roda: Slide the 13-inch pneumatic wheels onto the axle on each side of the main frame. Secure them with the washers and cotter pins as instructed in the assembly diagram.
3. Connect the Control Rod: Attach the control rod from the handlebar to the spreader mechanism on the hopper. This rod controls the flow rate of material from the hopper. Ensure the linkage moves freely.
4. Cék ahir: Verify that all bolts, nuts, and pins are securely fastened. Ensure the wheels rotate freely and the control mechanism operates smoothly.

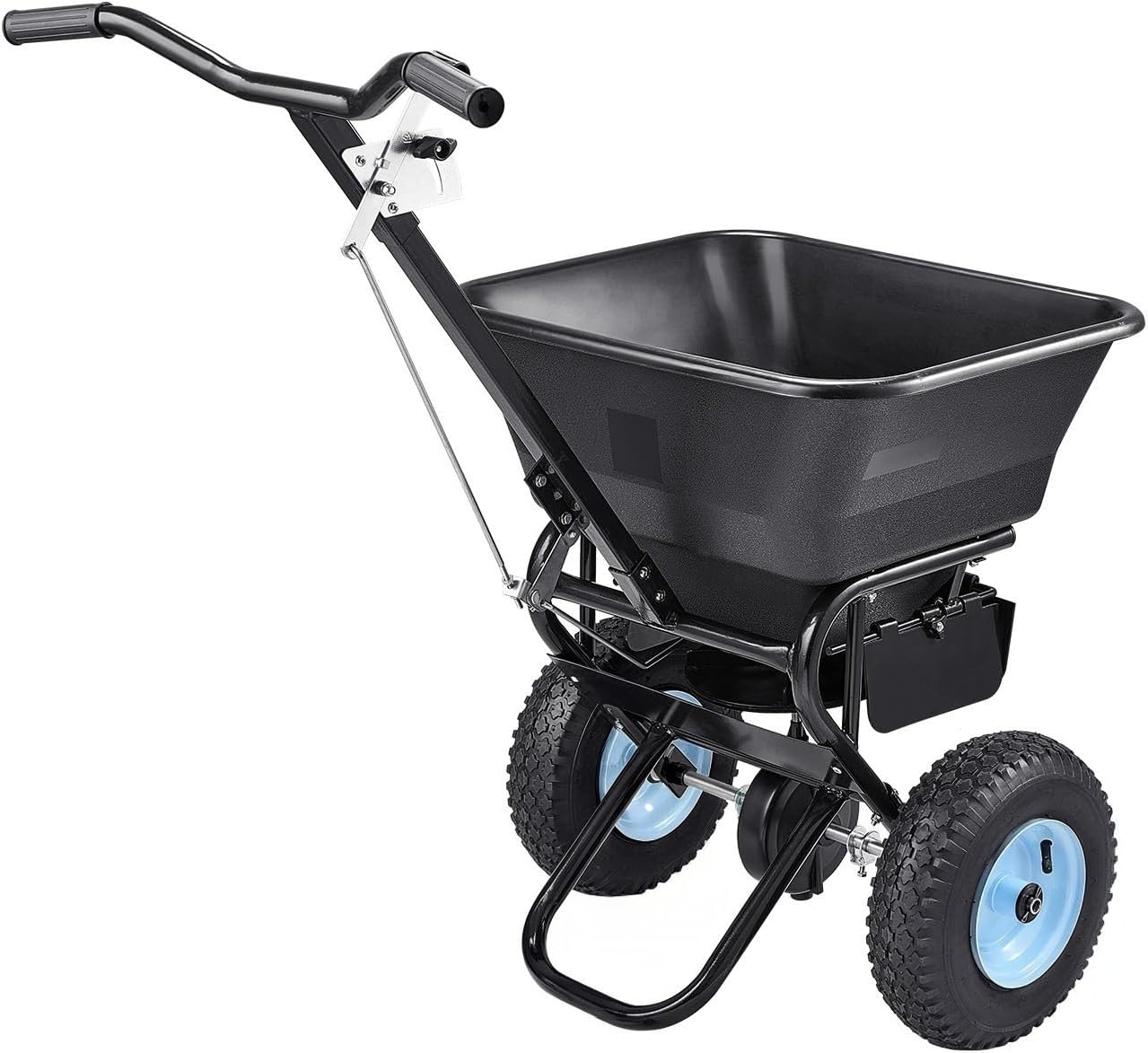

Gambar: Hiji sudut view of the broadcast spreader, illustrating the connection points for the handle and wheels, useful for assembly reference.

Parentah Operasi

Proper operation ensures efficient and even distribution of materials.

1. Prepare the Spreader: Ensure the flow gate is closed before filling the hopper to prevent material spillage.
2. Eusian Hopper: Carefully pour your desired material (seeds, fertilizer, salt, ice melt) into the 56L hopper. The maximum capacity is 100 lbs. The integrated hopper grate helps break up clumps and prevents large debris from entering the spreading mechanism.
3. Adjust Spread Width: Use the 30-scale control system on the handlebar to set the desired flow rate and spread width. The spreader offers an adjustable spread width from 0 to 9.8 inches. A faster pushing speed will generally result in a wider spread. Experiment with settings on a small, inconspicuous area to achieve the desired coverage.
4. Begin Spreading: Start walking at a consistent pace before opening the flow gate. Maintain a steady speed and overlap your passes slightly to ensure even coverage.
5. Stop Spreading: Close the flow gate before stopping or turning to prevent over-application in one spot.
6. Bahan Sésa Kosong: After use, empty any remaining material from the hopper back into its original container. Do not store material in the spreader.

Gambar: A close-up view of the spreader's hopper, showing the internal grate designed to prevent clumping and ensure smooth material flow.

Pangropéa

Regular maintenance will extend the life and performance of your broadcast spreader.

• beberesih: After each use, thoroughly clean the hopper, spreading mechanism, and wheels with water. Remove any residue of fertilizer, seeds, or salt, as these can be corrosive. Dry all metal parts completely to prevent rust.
• Lubrication: Periodically apply a light lubricant to moving parts, such as the axle and control linkage, to ensure smooth operation. Avoid lubricating the spreading mechanism directly if it could contaminate the material being spread.
• Panyimpenan: Store the spreader in a clean, dry place, away from direct sunlight and extreme temperatures. Ensure the hopper is empty and clean before storage.
• Tekanan Ban: Check the pressure of the pneumatic tires periodically and inflate to the recommended PSI if necessary.

Pamérésan masalah

Ieu sababaraha masalah umum sareng solusi poténsialna:

• Uneven Spreading:
  • Check for clogs in the hopper or spreading mechanism.
  • Ensure the flow gate is fully open to the desired setting.
  • Verify consistent walking speed during operation.
  • Ensure material is dry and free of clumps.
• Material Not Flowing:
  • Confirm the flow gate is open.
  • Check for large clumps or foreign objects blocking the hopper opening.
  • Ensure the agitator (if present) is moving freely.
• Kasusah Ngadorong:
  • Pariksa tekanan ban jeung inflate lamun perlu.
  • Ensure wheels are free of debris and rotate smoothly.
  • Do not overload the hopper beyond its capacity.

spésifikasi

Image: A diagram illustrating the key dimensions of the broadcast spreader in both inches and millimeters.

Garansi sareng Rojongan

For warranty information, please refer to the documentation included with your product packaging or contact the seller directly. If you encounter any issues or require technical assistance, please reach out to the customer support provided by the retailer or manufacturer.
