Bubuka
Hatur nuhun pikeun meuliasing the ETOE Seal A1324 Projector. This manual provides essential information for setting up, operating, and maintaining your projector to ensure optimal performance and longevity. Please read this manual thoroughly before using the device.
ETOE Seal A1324 Projector and Remote Control
Produk Leuwihview
The ETOE Seal A1324 is a portable smart projector featuring Google TV, wireless mirroring capabilities, and a compact design for home cinema use. It offers a vibrant viewing experience with FHD resolution and 4K UHD upscaling, automatic keystone correction, and auto-focus for easy setup.
Fitur konci:
- Integrated Google TV operating system (Android 11)
- Wireless mirroring and Google Cast support
- Full HD 1080P native resolution with 4K UHD upscaling
- Automatic Keystone Correction (±30°)
- Pokus otomatis
- Dual-band WiFi (2.4GHz/5GHz 802.11a/b/g/n/ac)
- Built-in 5W stereo speakers with Dolby Audio support
- Compact and portable design with a convenient handle
Portable design with integrated handle
Eusi pakét
Mangga parios pakét kanggo barang-barang ieu:
- ETOE Seal A1324 Projector
- Kadali jauh
- Adaptor kakuatan
- Manual pangguna (dokumén ieu)
Tata perenah alat
Puncak View:
Kadali Panel Top
- Tombol Daya: Pencét pikeun ngahurungkeun/mareuman atanapi lebet kana modeu siaga.
- Tombol Napigasi: Pikeun navigasi menu.
- Tombol Volume: Saluyukeun volume audio.
- Penyesuaian fokus: Manual focus override (if applicable, otherwise auto-focus).
Tukangeun View (Ports):
Palabuhan Panel Rear
- DC IN: Port input kakuatan.
- USB: Pikeun nyambungkeun alat panyimpenan USB.
- HDMI: For connecting external video sources (e.g., laptop, game console).
- AUX: Kaluaran audio 3.5mm pikeun spiker éksternal atanapi headphone.
Guide Setup
- panempatan: Place the projector on a stable, flat surface. Ensure there are no obstructions to the lens or ventilation vents. For optimal viewing, position the projector directly in front of the screen or wall.
- Sambungan Daya: Connect the power adapter to the DC IN port on the projector and then plug it into a power outlet.
- Daya Hurung: Pencét tombol daya dina proyektor atawa kadali jauh pikeun ngahurungkeun alat.
- Initial Setup (Google TV):
- Follow the on-screen instructions to complete the initial Google TV setup, including language selection, Wi-Fi network connection, and Google account login.
- The projector features automatic keystone correction and auto-focus, which should adjust the image automatically.
Automatic Keystone Correction in action
Automatic Focus adjustment
- Penyesuaian Gambar: If needed, you can manually adjust focus or keystone correction through the projector settings menu.
Parentah Operasi
Using Google TV:
Once connected to Wi-Fi and logged into your Google account, you can access a wide range of apps and content through the Google TV interface. Use the remote control to navigate menus, launch apps, and control playback.
Google TV Interface and Applications
Kadali Sora (Hei Google):
The remote control includes a dedicated button for Google Assistant. Press the button and speak into the remote to search for content, control smart home devices, or get information.
Kadali Jarak Jauh nganggo Asisten Google
Wireless Mirroring / Google Cast:
You can wirelessly mirror content from compatible smartphones, tablets, or computers to the projector using Google Cast or other mirroring features. Ensure your device and the projector are connected to the same Wi-Fi network.
Connecting External Devices (HDMI):
Use an HDMI cable to connect devices like laptops, gaming consoles, or Blu-ray players to the projector's HDMI port. Select the HDMI input source from the projector's menu.
Puterkeun USB:
Insert a USB storage device into the USB port to play media files directly from the device. Navigate to the media player app on Google TV to access your files.
Audio Output (AUX):
Connect external speakers or headphones to the 3.5mm AUX port for enhanced audio experience.
Pangropéa
- Ngabersihan lensa: Lembut usap lénsa proyektor ku kaén anu lembut, bébas serat anu dirarancang khusus pikeun permukaan optik. Ulah make cleaners abrasive atawa gaya kaleuleuwihan.
- Ngabersihan Casing: Anggo lawon anu lemes sareng garing pikeun ngabersihkeun bagian luar proyéktor. Pikeun tanda anu bandel, usap sakedikamp lawon bisa dipaké, dituturkeun ku lawon garing.
- Ventilasi: Pastikeun ventilasi ventilasi bébas tina lebu sareng kokotor pikeun nyegah panas teuing. Ulah ngahalangan ventilasi nalika dioperasikeun.
- Panyimpenan: Lamun teu dipake keur lila, nyimpen projector dina tiis, tempat garing, jauh tina sinar panonpoé langsung jeung hawa ekstrim.
Pamérésan masalah
- Henteu aya kakuatan:
- Check if the power adapter is securely connected to both the projector and the power outlet.
- Pastikeun stop kontakna jalan kalawan bener.
- Teu aya gambar:
- Pastikeun proyektor parantos dihurungkeun.
- Check the input source selection (e.g., HDMI, Google TV).
- Ensure the HDMI cable (if used) is securely connected to both the projector and the source device.
- Gambar kabur:
- Allow the auto-focus feature to adjust. If needed, manually adjust focus via settings.
- Pastikeun beungeut proyéksi datar tur projector stabil.
- Image Distorted (Trapezoid Shape):
- Allow the automatic keystone correction to adjust. If needed, manually adjust keystone correction via settings.
- Pastikeun proyektor ditempatkeun sategak lurus kana layar sabisa-bisa.
- Henteu aya sora:
- Pariksa tingkat polumeu boh dina proyektor sareng alat sumber.
- Ensure no headphones or external speakers are connected to the AUX port if you intend to use the internal speakers.
- Upami nganggo spiker éksternal, pastikeun aranjeunna disambungkeun leres sareng diaktipkeun.
- Remote Control Teu Ngabales:
- Pariksa jeung ngaganti accu dina kadali jauh.
- Pastikeun teu aya halangan antara remot sareng panarima IR proyéktor.

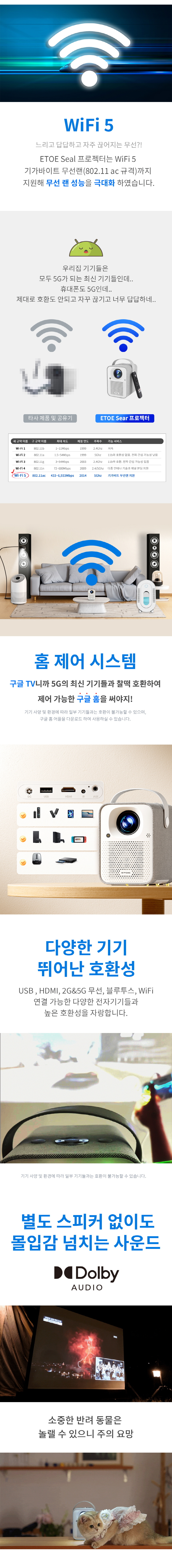

spésifikasi
Spesifikasi Produk Lengkep
| Fitur | Spésifikasi |
|---|---|
| Ngaran produk | ETOE Seal A1324 Projector |
| Ukuran (WxDxH) | 118.4 x 142 x 168.5 mm |
| Resolusi | 1920 x 1080P FHD (UHD 4K Upscaling) |
| CPU | ARM Quad 64-bit Cortex-A53 |
| Wifi | 2.4GHz / 5GHz 802.11a/b/g/n/ac |
| Ukuran layar | 40-120 inci |
| Sistem operasi | Google TV (Latest Android 11) |
| Babandingan Lempar | 1.22 |
| Rasio Aspék | 16:9 / 4:3 |
| Zum | 50% - 100% |
| Panyatur | 5W Stereo x 2 |
| Koréksi Keystone | ±30° Automatic Keystone Support |
| Babandingan Kontras | 3000:1 |
| Caang | 400 ANSI Lumens |
| Dipeunteun Voltage | 19V === 4.74A / 90W |
| Palabuhan sambungan | HDMI x 1, USB x 1, AUX x 1 |
| Sertifikasi KC | R-R-eTO-A1324 |
Tip pamaké
- Optimal Viewing: For the best image quality, use the projector in a dark environment.
- Jarak proyéksi: Adjust the projector's distance from the screen to achieve your desired screen size within the 40-120 inch range.
- Kinerja Wi-Fi: For stable streaming and mirroring, ensure your projector is within good range of your 5GHz Wi-Fi network.
Garansi sareng Rojongan
The ETOE Seal A1324 Projector comes with a garansi 1 taun covering quality-related issues from the date of purchase. For product inquiries, technical support, or warranty claims, please contact our customer support center.
Kontak Rojongan Palanggan: 02-6952-5771
Mangga tahan bukti pameseran Anjeun pikeun layanan jaminan.
