1. Bubuka
This manual provides essential information for the installation, operation, and maintenance of your Topeak Panoram V12/V9 Wire Kit. This kit is designed as a standard sensor replacement or upgrade for Topeak Panoram series cycle computers, ensuring accurate data transmission for your cycling activities. The wire kit features a generous 170cm cable length, providing flexibility for various bicycle frame sizes and mounting preferences.
Please read this manual thoroughly before attempting installation or use to ensure proper function and longevity of your product.
2. Setup jeung Instalasi
The Topeak Panoram V12/V9 Wire Kit includes a sensor and a wire designed to connect to your compatible Topeak Panoram cycle computer. Proper installation is crucial for accurate speed and distance readings.
- Pasang sénsor: Attach the sensor securely to your bicycle's front fork using the provided mounting hardware. Ensure the sensor is positioned so that it can detect the spoke magnet as it passes.
- Attach the Magnet: Secure the spoke magnet to one of the spokes on your front wheel. Position the magnet so that it aligns with the sensor when the wheel rotates, with a gap of approximately 1-5mm between the sensor and the magnet.
- Jalur kabel: Carefully route the sensor wire along your bicycle's fork and frame, securing it with zip ties or cable clips (not included) to prevent it from interfering with moving parts or getting snagged. Ensure there is enough slack to allow for handlebar movement without straining the cable.
- Connect to Cycle Computer: Plug the wire's connector into the designated port on your Topeak Panoram V12 or V9 cycle computer. Refer to your cycle computer's manual for the exact port location.
- Fungsi Uji: Rotate the front wheel to check if the cycle computer registers speed. Adjust the sensor and magnet position if necessary to achieve consistent readings.

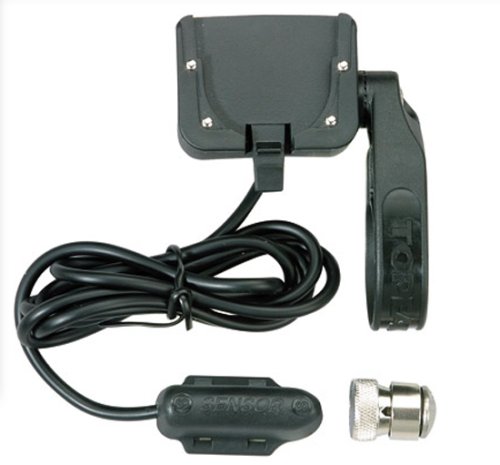

Image 1: The Topeak Panoram V12/V9 Wire Kit, showing the sensor unit and the 170cm connecting cable. This kit is essential for transmitting speed and distance data to your compatible cycle computer.
3. Parentah Operasi
Once the Topeak Panoram V12/V9 Wire Kit is correctly installed and connected to your cycle computer, its operation is automatic. The sensor detects each rotation of the wheel via the spoke magnet and transmits this data through the wire to the cycle computer.
- Deteksi otomatis: The cycle computer should automatically detect the sensor once it's connected and the wheel begins to turn.
- Tampilan Data: Speed, distance, and other relevant metrics will be displayed on your cycle computer's screen. Refer to your specific Panoram V12 or V9 cycle computer manual for details on navigating its display modes and functions.
- Kalibrasi: Ensure your cycle computer is correctly calibrated with your wheel size for accurate readings. This setting is typically found within the cycle computer's menu.
4. Pangropéa
Regular maintenance ensures the longevity and reliable performance of your wire kit.
- beberesih: Periodically wipe the sensor and cable with a damp lawon pikeun miceun kokotor sareng lebu. Hindarkeun nganggo bahan kimia anu keras atanapi pembersih anu abrasif.
- Pamariksaan kabel: Regularly inspect the entire length of the cable for any signs of wear, cuts, or kinks. Ensure all cable ties or clips are secure.
- Sensor/Magnet Alignment: Check the alignment and gap between the sensor and the spoke magnet. Adjust if they have shifted due to vibrations or impacts.
- Pariksa Konektor: Ensure the connector plugged into the cycle computer is clean and securely seated.
- Panyimpenan: If removing the kit for storage, ensure it is clean and stored in a dry place away from extreme temperatures.
5. Cara ngungkulan
If you encounter issues with your Topeak Panoram V12/V9 Wire Kit, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| No speed/distance reading | Sensor/magnet misalignment, loose connection, damaged cable. | Check sensor and magnet alignment (1-5mm gap). Ensure cable is securely plugged into the cycle computer. Inspect cable for damage. |
| Bacaan teu akurat | Incorrect wheel size calibration, inconsistent sensor detection. | Verify wheel size setting in your cycle computer. Re-check sensor/magnet alignment for consistent detection. |
| gangguan kabel | Cable not properly secured or routed. | Re-route and secure the cable using zip ties or clips, ensuring it does not rub against moving parts or get caught. |
If problems persist after following these steps, please contact Topeak customer support or consult your cycle computer's specific manual.
6. Spésifikasi
Key technical specifications for the Topeak Panoram V12/V9 Wire Kit (Model: RK-TPC6):
- Jumlah modél: RK-TPC6
- Kasaluyuan: Topeak Panoram V12 and V9 series cycle computers
- Panjang kabel: 170 cm (kira-kira 67 inci)
- Beurat pakét: 68.04 Gram (kira-kira 2.4 ons)
- Ukuran Paket (L x W x H): 4.7 x 3.4 x 1.4 inci
- Jenis Olahraga: Ngabuburit
7. Garansi jeung Rojongan
For warranty information, please refer to the official Topeak website or the documentation provided with your original Topeak Panoram cycle computer. Topeak products typically come with a limited warranty against manufacturing defects.
For technical support, replacement parts, or further assistance, please visit the official Topeak website or contact their customer service department. You can often find contact details and FAQs on their support pages.
Topeak Official Websitus: www.topeak.com
