Buku Panduan Pangguna Subwoofer Hareup Aktif Canton AS 85

1. Bubuka

This manual provides essential information for the safe and efficient operation of your Canton AS 85 Active Front-Firing Subwoofer. Please read it thoroughly before installation and use, and retain it for future reference.

2. Produk Langkungview

The Canton AS 85 is an active front-firing subwoofer designed to enhance the low-frequency performance of your audio system. Key features include:

• Active subwoofer design for powerful bass reproduction.
• Discreet and modest design to integrate seamlessly into various environments.
• Solid cabinet construction to minimize resonance and improve sound clarity.
• Long-excursion woofer with wave technology for deep and precise bass.
• Bluetooth connectivity for versatile audio input.

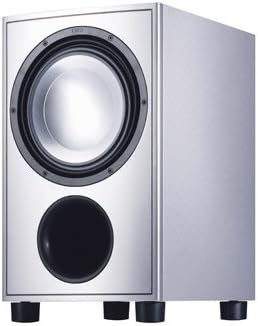

Gambar 1: Canton AS 85 Active Front-Firing Subwoofer. This image shows the silver-finished subwoofer from an angled front view, highlighting the main speaker cone and the bass reflex port below it. The unit stands on four feet.

3. Parentah Kasalametan

Perhatikeun pancegahan kaamanan di handap ieu pikeun nyegah kejutan listrik, seuneu, atanapi karusakan unit:

• Ulah ngalaan unit ka hujan atawa Uap.
• Ulah muka lomari. Serahkan sadaya jasa ka tanaga anu mumpuni.
• Mastikeun ventilasi ditangtoskeun; ulah ngahalangan bukaan ventilasi.
• Teundeun unit dina permukaan datar anu stabil.
• Pegatkeun sambungan kabel listrik nalika badai kilat atanapi nalika henteu dianggo kanggo waktos anu lami.
• Hindarkeun nempatkeun di deukeut sumber panas atanapi sinar panonpoé langsung.

4. Eusi Paket

Pastikeun yén sadaya item aya:

• Canton AS 85 Active Front-Firing Subwoofer
• Kabel listrik
• Manual pangguna (dokumén ieu)

5. Setélan

5.1 Nempatkeun

Optimal placement of the subwoofer is crucial for sound quality. Consider the following:

• Penempatan sudut: Often provides the most bass output, but can sometimes sound boomy.
• Front Wall Placement: Near your main speakers can improve integration.
• Métode "Subwoofer Crawl": Place the subwoofer in your primary listening position, then crawl around the room to find where the bass sounds best. Place the subwoofer in that location.
• Ensure adequate space for ventilation around the unit.

5.2 Sambungan

Before making any connections, ensure the subwoofer and all connected audio components are turned off and unplugged from the power outlet.

1. Input Audio: Connect an RCA cable from the LFE (Low-Frequency Effects) output or subwoofer pre-out of your AV receiver/amplifier to the LFE input on the Canton AS 85. If your receiver does not have an LFE output, use the stereo RCA inputs.
2. Sambungan Daya: Sakali sadaya sambungan audio dijieun, sambungkeun kabel listrik nu disadiakeun ka inlet daya subwoofer urang lajeng ka stop kontak témbok nu cocog.

6. Parentah Operasi

6.1 Daya Awal Hurung

After connecting, turn on your AV receiver/amplifier first, then the subwoofer. The subwoofer typically has an auto-on/standby feature that activates when an audio signal is detected.

6.2 Kontrol jeung pangaluyuan

The Canton AS 85 features several controls to integrate it seamlessly with your main speakers and room acoustics:

• Volume/Gain: Adjusts the output level of the subwoofer. Start with a low setting and gradually increase until the bass blends well with your main speakers without overpowering them.
• Frékuénsi Crossover: Determines the highest frequency the subwoofer will reproduce. Set this based on the low-frequency capabilities of your main speakers. A common starting point is 80 Hz. Consult your main speaker's specifications.
• Kontrol Fase: Adjusts the phase of the subwoofer's output relative to your main speakers. Experiment with 0° and 180° settings to find the one that produces the most coherent and impactful bass at your listening position.

6.3 Konektipitas Bluetooth

The Canton AS 85 supports Bluetooth connectivity for wireless audio input. Refer to the specific instructions for pairing your device with the subwoofer. Typically, this involves:

1. Activating Bluetooth pairing mode on the subwoofer (consult the unit's physical controls or indicator lights).
2. Enabling Bluetooth on your source device (smartphone, tablet, etc.).
3. Selecting "Canton AS 85" (or similar) from the list of available devices to pair.

7. Pangropéa

Pikeun mastikeun umur panjang sareng kinerja optimal subwoofer anjeun:

• beberesih: Use a soft, dry cloth to wipe the cabinet. Do not use liquid cleaners or abrasive materials.
• Ventilasi: Jaga liang ventilasi tetep bébas tina lebu sareng halangan.
• Panyimpenan: Upami nyimpen unit kanggo waktos anu lami, cabut colokanna teras simpen di tempat anu tiis sareng garing.

8. Cara ngungkulan

9. Spésifikasi

10. Garansi jeung Rojongan

Canton products are manufactured to high-quality standards. For warranty information and technical support, please refer to the warranty card included with your product or visit the official Canton websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.
