1. Bubuka
This user manual provides essential information for the safe and efficient operation of your new Liebherr GP 1366 freestanding upright freezer. Please read these instructions carefully before installation, first use, or maintenance to ensure optimal performance and to prevent damage or injury. Keep this manual in a safe place for future reference.
2. Émbaran Kasalametan
Always adhere to the following safety guidelines to prevent accidents and ensure the longevity of your appliance:
- Kasalametan listrik: Pastikeun freezer disambungkeun ka stop kontak listrik anu di-ground kalayan voltase anu lerestage. Do not use extension cords or multiple socket adapters. Disconnect the appliance from the power supply before cleaning or maintenance.
- Ventilasi: Ensure adequate air circulation around the appliance. Do not block ventilation openings.
- Bahan anu gampang kaduruk: Do not store explosive substances or products containing flammable propellants (e.g., aerosol cans) inside the freezer.
- Barudak: Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma (kaasup murangkalih) anu kakurangan kamampuan fisik, indrawi, atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kana kasalametanana. . Barudak kedah diawaskeun pikeun mastikeun yén aranjeunna henteu maén sareng alatna.
- pembuangan: When disposing of the appliance, ensure that the refrigerant circuit is not damaged. Contact your local authority for information on proper disposal methods.
3. Setup jeung Instalasi
Proper installation is crucial for the performance and safety of your freezer.
3.1 Ngabongkar bungkusan
Carefully remove all packaging materials. Inspect the freezer for any signs of transport damage. If damage is found, contact your supplier immediately. Keep packaging materials out of reach of children.
3.2 Nempatkeun
- Simpen freezer dina permukaan anu teuas sareng rata pikeun nyegah geteran sareng bising.
- Ensure sufficient ventilation space around the appliance. Maintain a minimum distance of 5 cm from walls and other appliances.
- Avoid placing the freezer near direct sunlight, heat sources (e.g., ovens, radiators), or in areas with extreme temperature fluctuations.
3.3 Sambungan Listrik
Sateuacan nyambungkeun, pastikeun volumnatage and frequency indicated on the rating plate match your household power supply. The appliance must be properly grounded. Do not connect the freezer to the power supply for at least 4 hours after moving it to allow the refrigerant to settle.
3.4 Mimiti Mimiti
After the waiting period, plug in the freezer. The internal temperature will gradually decrease. Allow the appliance to run for several hours (e.g., 4-6 hours) before loading it with food to ensure it reaches the optimal freezing temperature.

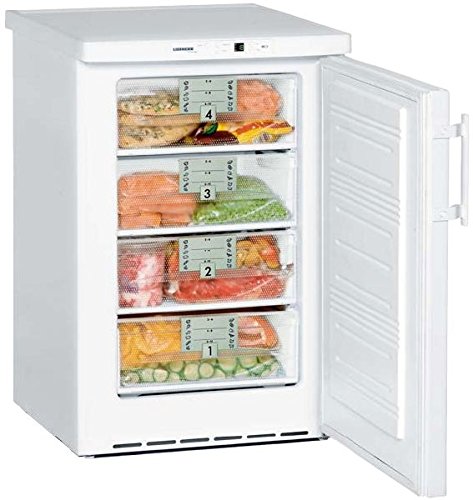

Image: Liebherr GP 1366 upright freezer with its door open, revealing four transparent freezer drawers. Each drawer is filled with various frozen food items, such as vegetables, meat, and prepared meals, and is labeled with a number for organization. The control panel is located at the top of the unit.
4. Parentah Operasi
Understanding the controls and proper food storage techniques will maximize your freezer's efficiency.
4.1 Panel kontrol
The control panel, located at the top of the freezer, typically includes:
- Suhu Témbong: Némbongkeun suhu internal ayeuna.
- Tombol pangaturan suhu: Used to set the desired freezing temperature.
- SuperFrost/Fast Freeze Button: Activates rapid freezing for fresh food.
- Indikator Alarm: Illuminates or sounds if the internal temperature rises above a safe level.
Refer to the specific markings on your appliance's control panel for detailed functions.
4.2 Dahareun seger katirisan
- Bekukeun ngan ukur kadaharan anu seger sareng teu ruksak.
- Package food in airtight containers or freezer bags to prevent dehydration and flavor transfer.
- Do not exceed the maximum freezing capacity stated in the specifications.
- For best results, activate the SuperFrost/Fast Freeze function several hours before placing large quantities of fresh food into the freezer.
4.3 Storage of Frozen Food
- Organize food using the transparent drawers for easy access and inventory management.
- Label all packages with the date of freezing and contents.
- Adhere to recommended storage times for different food types to maintain quality and safety.
5. Pangropéa jeung beberesih
Pangropéa rutin ngajamin kinerja sareng kabersihan anu optimal.
5.1 Ngabersihan Interior
- Disconnect the freezer from the power supply before cleaning.
- Remove all food and drawers.
- Clean the interior with a soft cloth, lukewarm water, and a mild, food-safe cleaning agent. Avoid abrasive cleaners or solvents.
- Dry all surfaces thoroughly before reconnecting the power.
5.2 Defrosting
This freezer requires manual defrosting when a layer of ice approximately 5 mm thick has formed. Excessive ice buildup reduces efficiency.
- Pegatkeun sambungan freezer tina catu daya.
- Remove all frozen food and store it in a cool place (e.g., wrapped in blankets or in another freezer).
- Leave the freezer door open to allow the ice to melt naturally. Place towels or a shallow tray at the bottom to collect water. Do not use sharp objects or heating devices to speed up defrosting.
- Once defrosted, clean and dry the interior thoroughly before reconnecting power and returning food.
5.3 Daya Outage
Bisi hiji kakuatan outage, keep the freezer door closed to maintain the internal temperature for as long as possible. The insulation will help keep food frozen for several hours. Check food quality before consumption after a prolonged outage.
6. Cara ngungkulan
Sateuacan ngahubungan layanan palanggan, ulangview masalah umum sareng solusi ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Freezer teu cooling | No power supply; thermostat set too high; door not closed properly. | Check power plug and fuse; adjust thermostat to a colder setting; ensure door is fully closed and seal is intact. |
| Tumpukan és kaleuleuwihan | Door left open too long; warm food placed inside; faulty door seal. | Defrost the appliance; ensure door is closed quickly; allow food to cool before freezing; check and replace door seal if necessary. |
| Sora anu teu biasa | Appliance not level; objects touching the back wall; normal operating sounds. | Adjust leveling feet; ensure nothing is touching the back; gurgling/hissing sounds are normal for refrigerant. |
7. Spésifikasi
- merek: Liebherr
- model: GP 1366
- Jumlah modél: GP1366-20
- Tipe: Freezer nangtung nangtung
- Kapasitas: 104 liter
- warna: Bodas
- Approximate Package Dimensions (H x W x D): 91 x 71.5 x 56.5 cm
- GTIN (Global Trade Item Number): 04016803008873
- ASIN: B000ULLIWS
- Tanggal munggaran sayogi: Pébruari 21, 2020
Note: Specifications are subject to change without notice. Refer to the appliance's rating plate for the most accurate and up-to-date information.
8. Garansi jeung Rojongan
Your Liebherr GP 1366 freezer comes with a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions, including warranty period and coverage. For technical support, spare parts, or service requests, please contact your authorized Liebherr dealer or visit the official Liebherr websitus pikeun informasi kontak layanan palanggan.
When contacting support, please have your model number (GP1366-20) and serial number (found on the rating plate inside the appliance) readily available.
