Laney CXP-110 Active Stage Monitor Pamaké Manual

1. Bubuka

The Laney CXP-110 is an ultra-compact, active enclosure designed for use as a stage monitor or mounted on a speaker stand. It features a robust construction with a tough vinyl covering, metal corners, rubber feet, and a kick-proof steel grill, ensuring durability for various performance environments. Engineered in Great Britain, this unit delivers 130 watts of power through its 10-inch woofer. It includes essential controls such as a balanced Mic input, 1/4-inch jack Line input, two-band EQ, and Master Volume. The CXP-110 also provides a Line Link socket for connecting to additional active enclosures or monitors, and a 35mm pole stand fitting for versatile placement options.

2. Émbaran Kasalametan

Please read and understand all safety instructions before operating the Laney CXP-110. Retain this manual for future reference.

• Sumber Daya: Sambungkeun unit ngan ka catu daya tina jinis anu dijelaskeun dina manual ieu atanapi ditandaan dina unit.
• Ventilasi: Pastikeun ventilasi nyukupan. Ulah meungpeuk sagala bukaan ventilasi.
• Cai sareng Uap: Ulah ngalaan unit ka hujan atawa Uap. Ulah nempatkeun objék ngeusi cairan, kayaning vases, dina unit.
• Panas: Ulah nempatkeun unit deukeut sumber panas kayaning radiators, registers panas, kompor, atawa alat sejenna (kaasup ampLiifiers) anu ngahasilkeun panas.
• beberesih: Ngabersihan ngan ku kaén garing.
• Palayanan: Entong nyobian ngalayanan produk ieu nyalira. Rujuk sadayana ngalayanan ka tanaga jasa anu mumpuni.
• Kabel: Nangtayungan kabel listrik tina leumpang atawa diciwit, utamana dina colokan, wadah merenah, jeung titik dimana aranjeunna kaluar tina aparat.
• Stabilitas: Ensure the unit is placed on a stable surface or securely mounted on a compatible speaker stand (35mm pole stand fitting).

3. Setélan

The Laney CXP-110 can be used in two primary configurations: as a floor monitor or mounted on a speaker stand.

3.1. Floor Monitor Setup

Place the CXP-110 on a stable, flat surface directly on the stage floor. Its angled design allows it to project sound upwards towards the performer. Ensure the unit is positioned to avoid obstruction and provide optimal sound coverage.

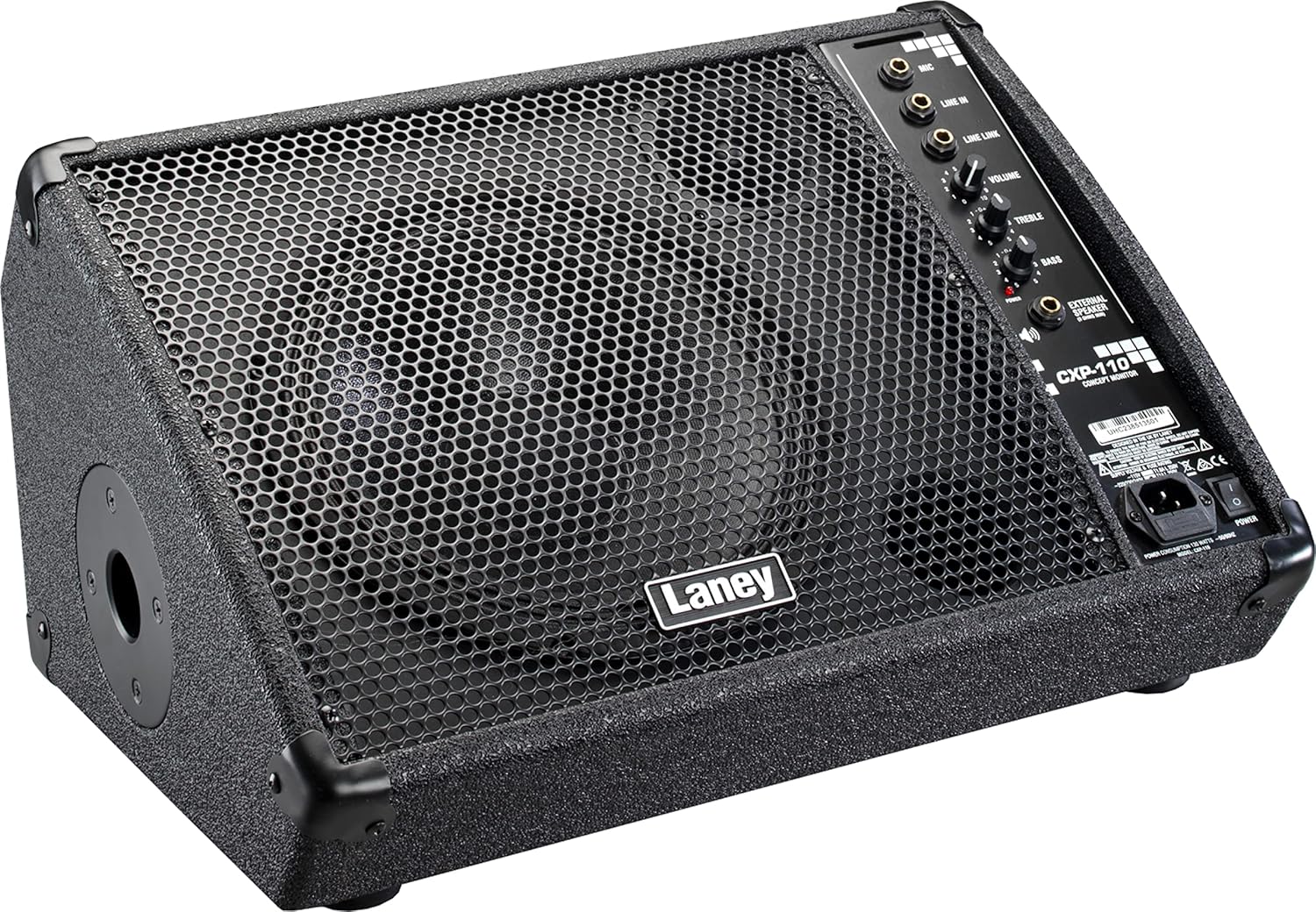

Figure 3.1: Laney CXP-110 in floor monitor position.

This image shows the Laney CXP-110 from an angled perspective, highlighting its design for use as a stage floor monitor. The speaker grille faces upwards, and the control panel is visible on the right side.

3.2. Speaker Stand Setup

For use as a side fill monitor or front-of-house speaker, the CXP-110 is equipped with a 35mm pole stand fitting. Carefully mount the unit onto a compatible speaker stand, ensuring it is stable and secure before operation.

Figure 3.2: Laney CXP-110 showing the pole mount socket.

Gambar ieu nyadiakeun sisi view of the Laney CXP-110, clearly showing the circular opening for the 35mm pole stand fitting on its left side, allowing for elevated placement.

3.3. Sambungan Daya

Connect the supplied power cable to the IEC power inlet on the rear panel of the CXP-110 and then to a suitable AC power outlet. Ensure the power switch is in the OFF position before connecting.

4. Parentah Operasi

The CXP-110 features a straightforward control panel for easy operation.

angka 4.1: Control Panel Leuwihview.

This detailed image focuses on the control panel of the Laney CXP-110, showing the various input jacks (Mic, Line In, Line Link), and control knobs (Volume, Treble, Bass), along with the power indicator and external speaker output.

4.1. Input

• Input MIC: Use this balanced input for connecting a microphone.
• LINE IN Input: Use this 1/4-inch jack input for connecting line-level sources such as mixers, instruments, or playback devices.
• LINE LINK Output: This socket allows you to connect the CXP-110 to an additional active enclosure or monitor, expanding your sound system.

4.2. Kadali

• JILID: Adjusts the overall output level of the monitor. Start with this control at a low setting and gradually increase to the desired level.
• TREBLE: Controls the high-frequency response of the monitor. Turn clockwise to increase treble, counter-clockwise to decrease.
• BASS: Controls the low-frequency response of the monitor. Turn clockwise to increase bass, counter-clockwise to decrease.

4.3. Powering on / Pareum

After connecting all inputs and outputs, switch the power button to the ON position. The power indicator light will illuminate. To power off, switch the button to the OFF position.

5. Pangropéa

Proper maintenance will ensure the longevity and optimal performance of your Laney CXP-110.

• beberesih: Anggo lawon anu lemes sareng garing pikeun ngabersihkeun bagian luar unit. Entong nganggo pembersih abrasif, pangleyur, atanapi lilin.
• Panyimpenan: Upami teu dianggo, simpen monitor di tempat anu tiis sareng garing, jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
• Angkutan: When transporting the unit, ensure it is securely packed to prevent damage. The robust construction with metal corners and a steel grill provides good protection.
• Pamariksaan: Periodically inspect the power cord and all input/output jacks for any signs of wear or damage.

Figure 5.1: Integrated Handle.

This image displays the top of the Laney CXP-110, clearly showing the sturdy integrated handle designed for easy and secure transportation of the unit.

6. Cara ngungkulan

If you encounter issues with your Laney CXP-110, refer to the following common problems and solutions.

If the problem persists after attempting these solutions, please contact Laney customer support or a qualified service technician.

7. Spésifikasi

8. Émbaran jaminan

Laney products come with a limited warranty. Please refer to the warranty card included with your product or visit the official Laney websitus kanggo syarat sareng katangtuan garansi anu lengkep. Simpen bukti pameseran anjeun kanggo klaim garansi.

9. Rojongan Palanggan

For technical assistance, service, or parts, please contact Laney customer support. Contact information can typically be found on the official Laney websitus atanapi dina bungkusan produk.

Websitus: www.laney.co.uk
