Bubuka
This manual provides essential information for the installation, operation, and maintenance of your Phylrich Hand Shower, Model K6526-OEB. Designed with a modern aesthetic and a rain shower setting, this hand shower offers a focused spray for an enhanced bathing experience. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Fitur produk
- Rain Shower Setting: Provides a soothing rain shower experience.
- Gaya Modern: Features a sleek and minimalist design.
- Tembok dipasang: Designed for convenient installation on a bathroom wall.
- Single Jet: Delivers a focused shower spray.
- Bentuk buleud: Boasts a sleek round showerhead shape.

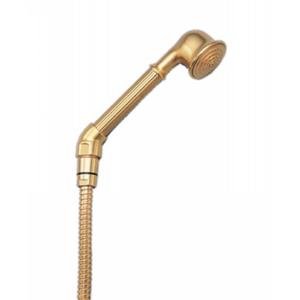

Image: The Phylrich K6526-OEB Hand Shower, showcasing its elegant design and Old English Brass finish. The showerhead is round, and the handle features a ribbed texture, connecting to a flexible hose.
Setup sareng Instalasi
The Phylrich Hand Shower K6526-OEB is designed for wall-mounted installation. Professional installation is recommended to ensure proper function and to comply with local plumbing codes.
Léngkah-léngkah Pamasangan Umum (Taroskeun ka ahli pikeun parentah anu lengkep):
- Persiapan: Ensure water supply is turned off at the main valve. Clear the installation area.
- Ningkatna bracket: Secure the wall-mounted bracket to a sturdy surface, ensuring it is level and at the desired height. Use appropriate anchors for your wall type.
- Sambungkeun selang: Attach the flexible shower hose to the water supply outlet and to the hand shower unit. Ensure all connections are tight to prevent leaks. Use plumber's tape on threaded connections.
- Tes: Slowly turn on the water supply and check for any leaks. Test the hand shower's function.
Note: Specific plumbing requirements may vary. Always refer to the detailed installation guide provided with your complete shower system or consult a certified plumber.
Parentah Operasi
The Phylrich Hand Shower K6526-OEB features a single jet and a rain shower setting, providing a consistent and soothing water flow.
- Ngaktipkeun Aliran Cai: Turn on the water supply from your shower valve.
- Nyaluyukeun Suhu: Use your shower valve's hot and cold water controls to achieve the desired water temperature.
- Using the Hand Shower: Remove the hand shower from its wall mount. Direct the spray as needed for personal bathing.
- Rain Shower Setting: The K6526-OEB is designed to provide a gentle, wide rain-like spray pattern. No adjustment is needed for this setting as it is the primary function.
- Returning to Mount: After use, place the hand shower back securely into its wall-mounted holder.
Pangropéa
Regular cleaning and maintenance will help preserve the finish and performance of your Phylrich Hand Shower.
- Ngabersihkeun finish: Ngagunakeun lemes, damp cloth and mild soap to clean the exterior surfaces. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Nozzle beberesih: Periodically inspect the showerhead nozzles for mineral buildup. Most modern showerheads have flexible rubber nozzles that can be gently rubbed with your finger or a soft brush to dislodge deposits.
- Inspeksi selang: Check the flexible hose for any signs of wear, kinks, or leaks. Replace if necessary.
- Filter Screen (if applicable): Some hand showers include a small filter screen at the hose connection point. If water flow diminishes, check and clean this screen.
Pamérésan masalah
If you encounter issues with your Phylrich Hand Shower, refer to the common problems and solutions below.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Tekanan Cai Lemah | Clogged nozzles or filter screen; low household water pressure. | Clean showerhead nozzles and check filter screen. Consult a plumber if household pressure is consistently low. |
| Bocor tina Sambungan | Sambungan leupas; ring/gasket nu geus ruksak. | Tighten connections. Replace worn washers or gaskets. Ensure plumber's tape was used. |
| Pola Semprotan Anu Teu Teratur | Partially clogged nozzles. | Clean individual nozzles to remove mineral deposits. |
If the problem persists after attempting these solutions, please contact a qualified plumber or Phylrich customer support.
spésifikasi
| Atribut | Rincian |
|---|---|
| merek | Phylrich |
| Nomer modél | K6526/OEB |
| Gaya | Modern |
| Wangun | Buleud |
| Tipe Setélan | Hujan |
| Tipe Pamasangan | Tembok dipasang |
| Jumlah Setélan | 1 |
| Jumlah Jet | 1 |
| UPC | 883908588388 |
Garansi sareng Rojongan
For information regarding the warranty of your Phylrich Hand Shower K6526-OEB, please refer to the warranty documentation included with your purchase or visit the official Phylrich website. For technical support or further assistance, please contact Phylrich customer service directly.
Note: Warranty terms and conditions may vary by region and retailer. Keep your proof of purchase for warranty claims.
