Foxconn TSAA725 ATX Tower Case Instruction Manual

1. Bubuka

This manual provides detailed instructions for the installation, operation, and maintenance of your Foxconn TSAA725 ATX Tower Case. Please read this manual thoroughly before beginning installation to ensure proper setup and safe use of the product. Keep this manual for future reference.

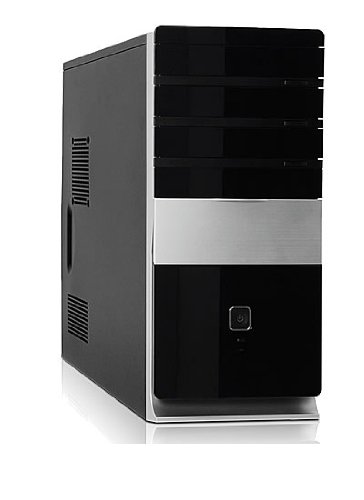

Gambar: Hareupeun view of the Foxconn TSAA725 ATX Tower Case, showcasing its design and front panel ports.

2. Émbaran Kasalametan

Perhatikeun tindakan pencegahan kaamanan ieu pikeun nyegah karusakan kana produk atanapi cilaka ka diri anjeun:

• Always disconnect the power supply from the wall outlet before opening the computer case or performing any installation/maintenance.
• Handle internal components with care to avoid electrostatic discharge (ESD) damage. Use an anti-static wrist strap if available.
• Mastikeun ventilasi ditangtoskeun sabudeureun kasus pikeun nyegah overheating.
• Ulah ngalaan wadahna ka Uap atawa suhu ekstrim.
• Tetep bagian leutik jauh ti barudak.

3. Eusi Paket

Pastikeun yén sadaya item aya dina bungkusan:

• Foxconn TSAA725 ATX Tower Case
• 350W Power Supply (pre-installed)
• Accessory kit (screws, standoffs, cable ties)
• Ieu instruksi manual

4. Fitur konci

The Foxconn TSAA725 ATX Tower Case offers the following features:

• Bahan: 0.5mm SGCC Alloy Steel construction for durability.
• Pangrojong motherboard: Compatible with ATX and Micro ATX motherboards.
• Teluk drive:
  • 3x 5.25" External Bays
  • 2x 3.5" External Bays
  • 4x 3.5" Internal Bays
• Sistim cooling:
  • 1x 80/92/120mm rear fan support (fan not included)
  • Optional 1x 80/92/120mm front fan support (fan not included)
  • 80mm Air Duct for CPU cooling.
• Panel I/O hareup:
  • 2x USB 2.0 palabuhan
  • 1x Soket Headphone
  • 1x Microphone jack
• Sasayogian tanaga: Integrated 350W Power Supply.

5. Setup jeung Instalasi komponén

Follow these steps to install your computer components into the Foxconn TSAA725 case:

1. Nyiapkeun Kasus:

   Place the case on a flat, stable surface. Remove the side panel(s) by unscrewing the thumbscrews at the rear of the case and sliding the panel backward.

2. Pasang Motherboard:

   Install the necessary standoffs onto the motherboard tray according to your motherboard's form factor (ATX or Micro ATX). Carefully place the motherboard onto the standoffs, aligning the screw holes. Secure the motherboard with screws provided in the accessory kit.

3. Install Drives (HDD/SSD):

   For 3.5" internal drives, slide the drive into an available 3.5" internal bay and secure it with screws from the side. For 5.25" external drives (e.g., optical drives), remove the front panel bay cover, slide the drive in from the front, and secure it with screws.
4. Pasang kartu ékspansi:

   Remove the appropriate expansion slot covers at the rear of the case. Insert your graphics card or other expansion cards into the PCIe/PCI slots on the motherboard and secure them with screws.

5. Sambungkeun kabel:

   Connect the power supply cables to the motherboard (24-pin ATX, 4/8-pin CPU), graphics card (if applicable), and drives (SATA power). Connect the front panel cables (USB, audio, power switch, reset switch, LED indicators) to the corresponding headers on the motherboard. Refer to your motherboard manual for header locations.

6. Manajemén Kabel:

   Route cables neatly to improve airflow and aesthetics. Use cable ties from the accessory kit if needed.
7. Tutup Kasus:

   Once all components are installed and cables are connected, reattach the side panel(s) and secure them with the thumbscrews.

6. Parentah Operasi

After successful assembly, connect your peripherals (monitor, keyboard, mouse) and power cable to the case. Press the power button on the front panel to start your computer.

Panel hareup I/O Ports:

• Port USB 2.0: For connecting USB devices such as keyboards, mice, and external storage.
• Jack headphone: Pikeun nyambungkeun headphone atanapi speaker.
• Jack mikropon: Pikeun nyambungkeun mikropon.
• Tombol Daya: Pikeun ngahurungkeun atanapi mareuman komputer.
• Tombol Reset: Pikeun ngabalikan deui komputer.

7. Pangropéa

Regular maintenance helps ensure optimal performance and longevity of your computer case:

• beberesih lebu: Periodically clean dust from inside the case, especially from fans and heatsinks, using compressed air. Ensure the computer is powered off and unplugged before cleaning.
• Bersihan luar: Ngusap bagian luar kotak ku lemes, damp lawon. Hindarkeun pembersih abrasive atanapi pangleyur.
• Manajemén Kabel: Pariksa rute kabel sacara berkala pikeun mastikeun teu aya kabel anu ngahalangan aliran hawa atanapi operasi kipas.

8. Cara ngungkulan

Upami anjeun mendakan masalah, tingal solusi umum ieu:

• Computer does not power on:
  • Ensure the power cable is securely connected to both the case's power supply and the wall outlet.
  • Check if the power supply switch (if present) is in the 'ON' position.
  • Pariksa deui yén kabel tombol daya panel hareup parantos disambungkeun kalayan leres kana motherboard.
• Henteu aya tampilan dina monitor:
  • Ensure the monitor is powered on and connected to the correct video output on your graphics card or motherboard.
  • Pasang deui kartu grafik sareng modul RAM.
• Port USB teu jalan:
  • Verify that the front panel USB cables are correctly connected to the motherboard's USB headers.
  • Coba sambungkeun alat ka port USB anu béda.

9. Spésifikasi

10. Garansi jeung Rojongan

For warranty information and technical support, please refer to the official Foxconn websitus atanapi ngahubungan pangecér lokal Anjeun. Simpen bukti pameseran anjeun pikeun klaim garansi.

Sumberdaya Online: For additional support and updated drivers, visit the official Foxconn support page.

Catetan: Sarat jeung katangtuan garansi bisa béda-béda gumantung kana wilayahna.
