Stack-On FS-14-MB-E 14-Gun Fire Resistant Safe with Electronic Lock Instruction Manual

1. Produk Langkungview

The Stack-On FS-14-MB-E 14-Gun Fire Resistant Safe is designed for secure storage of firearms and valuables. This safe features a robust construction and an electronic lock for reliable access control. It is approved by the California Department of Justice for firearm safety standards.

fitur konci ngawengku:

• Résistansi seuneu: Tested and verified to be fire resistant for 30 minutes at up to 1400°F by ETL, an independent testing lab. The door stripping expands when exposed to high temperatures, sealing the safe's contents.
• Kaamanan ditingkatkeun: Features reinforced steel doors filled with fire retardant material, a 3-point locking system with key coded cylinder lock, and 2-way locking with 1-inch steel live action locking bolts and up to 5 locking points.
• Configurable Interior: Fully carpeted interior with adjustable barrel rests designed to accommodate scoped rifles and side-by-side shotguns, allowing for flexible storage of firearms, ammunition, pistols, and other items.

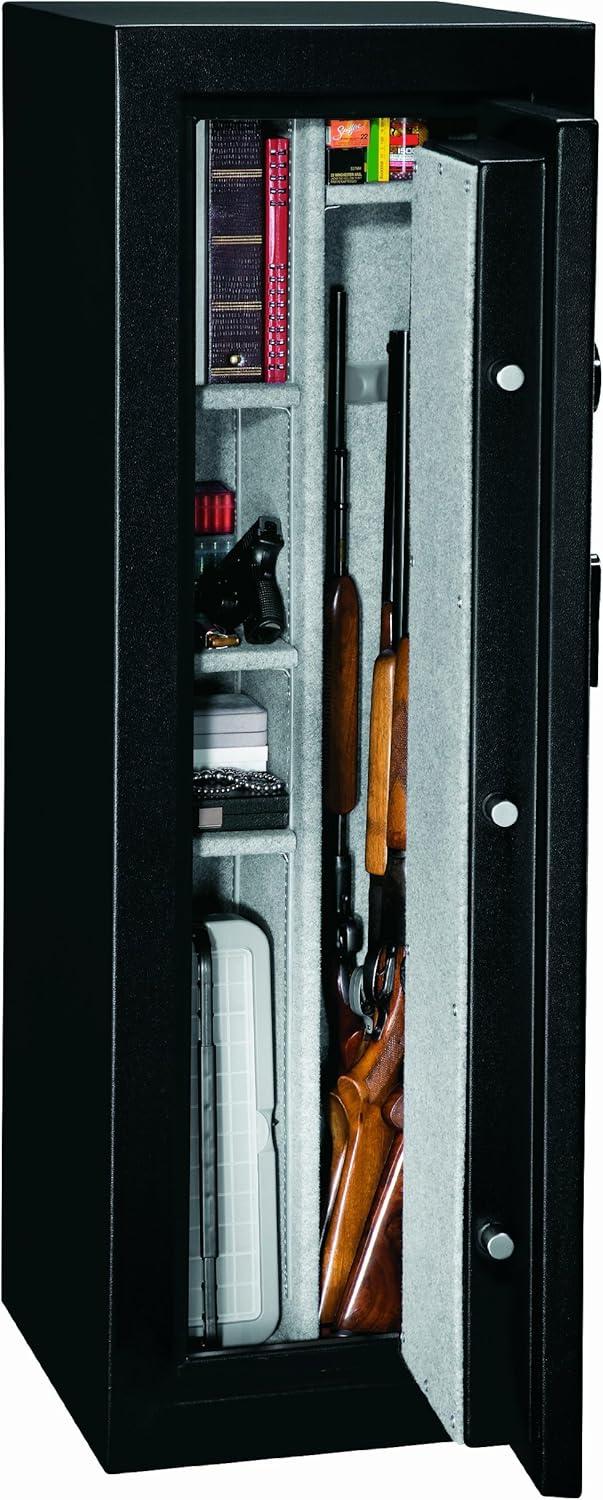

Gambar 1: Hareupeun view of the Stack-On FS-14-MB-E safe with the door open, displaying the interior layout with rifles and adjustable shelving.

2. Émbaran Kasalametan

This safe is designed to provide secure storage for firearms and valuables. Always follow these safety guidelines:

• Panempatan Aman: For maximum security, the safe should be bolted to the floor. Pre-drilled holes are provided for this purpose.
• Firearm Safety: Ensure all firearms stored within the safe are unloaded and secured with trigger locks or other safety devices as appropriate.
• Kontrol Aksés: Keep the electronic lock combination confidential and store backup keys in a secure location away from the safe.
• Kaamanan Barudak: Never allow children access to the safe or its contents.

All Stack-On Fire Resistant Safes are approved by the California Department of Justice as meeting their standards for firearm safety.

3. Setup jeung Instalasi

3.1 Ngabongkar bungkusan

Carefully remove the safe from its packaging. Inspect the safe for any signs of damage. Due to its weight (approximately 279 pounds), it is recommended to have assistance when moving the safe to its final location.

3.2 Nempatkeun

Choose a secure, level location for your safe. Consider areas that are less visible and offer structural support for the safe's weight.

3.3 Ngajaga Brankas

For optimal security, anchor the safe to the floor using the pre-drilled holes at the bottom. Use appropriate hardware (bolts included) for your flooring type to prevent unauthorized removal.

3.4 Konfigurasi interior

The safe features a fully carpeted interior with adjustable barrel rests and shelving. You can customize the interior layout to suit your storage needs. The patented barrel rest standoffs keep scoped rifles away from the back of the safe and allow for one-position storage. The molded barrel rests are designed not to deteriorate or compress over time.

angka 2: interior lengkep view of the safe, highlighting the adjustable shelving and barrel rests for organized storage of firearms and accessories.

4. Parentah Operasi

4.1 Electronic Lock Operation

Your safe is equipped with an electronic lock for quick and secure access. Refer to the separate electronic lock manual for detailed instructions on setting and changing your personal combination. Always test your new combination with the door open before closing it.

4.2 Ngagantian batré

The electronic lock is powered by batteries. To replace the batteries, push the tab on the lock face and turn it counter-clockwise to remove. Replace the old batteries with new ones, ensuring correct polarity. Reattach the lock face by turning it clockwise until it clicks into place.

4.3 Backup Key Access

In case of electronic lock failure or if you forget your combination, you can access the safe using the backup key. Insert the key into the designated keyhole, turn it, and then operate the handle to open the safe. Keep backup keys in a secure location separate from the safe.

5. Pangropéa

To ensure the longevity and proper functioning of your Stack-On safe, perform the following maintenance:

• beberesih: Ngusap bagian luar tina brankas ku lemes, damp lawon. Hindarkeun pembersih abrasive anu tiasa ngaruksak bérés.
• Mékanisme konci: Periodically check the electronic lock and handle for smooth operation. Do not lubricate the electronic lock mechanism.
• Pariksa batré: Replace the electronic lock batteries annually or when the low battery indicator appears to prevent lockouts.
• Seal panto: Inspect the door stripping for any damage that might compromise its fire-resistant properties.

6. Cara ngungkulan

If you encounter issues with your safe, consider the following common solutions:

• Electronic Lock Not Responding: Check and replace the batteries. Ensure they are inserted correctly. If the issue persists, use the backup key.
• Difficulty Turning Handle: Ensure the correct combination has been entered and the lock has disengaged. Do not force the handle.
• Panto henteu disegel leres: Check for any obstructions around the door frame or hinges. Ensure the safe is on a level surface.

For persistent issues, contact Stack-On customer support.

7. Spésifikasi

8. Garansi jeung Rojongan

The Stack-On FS-14-MB-E safe comes with a Kawates Jaminan Hirupna jeung a Garansi Lima Taun Terbatas. For specific details regarding warranty coverage, claims, or technical support, please refer to the warranty card included with your product or visit the official Stack-On websitus.

For customer support, you may also refer to the contact information provided by the retailer or manufacturer.
