Sunlite FC8T9/CW 8-Inch T9 Round Fluorescent Circline Lamp Manual pamaké

1. Produk Langkungview

The Sunlite T9 Round Fluorescent Circline Lamp is an energy-efficient lighting solution designed for various indoor applications. This 22-watt lamp provides 1250 lumens of 4100K cool white light, offering bright and consistent illumination. It features a G10Q 4-pin base for straightforward installation and boasts a long lifespan of 10,000 hours. The lamp is RoHS compliant, ensuring environmental friendliness.

Gambar 1.1: Sunlite FC8T9/CW 8-Inch T9 Round Fluorescent Circline Lamp.

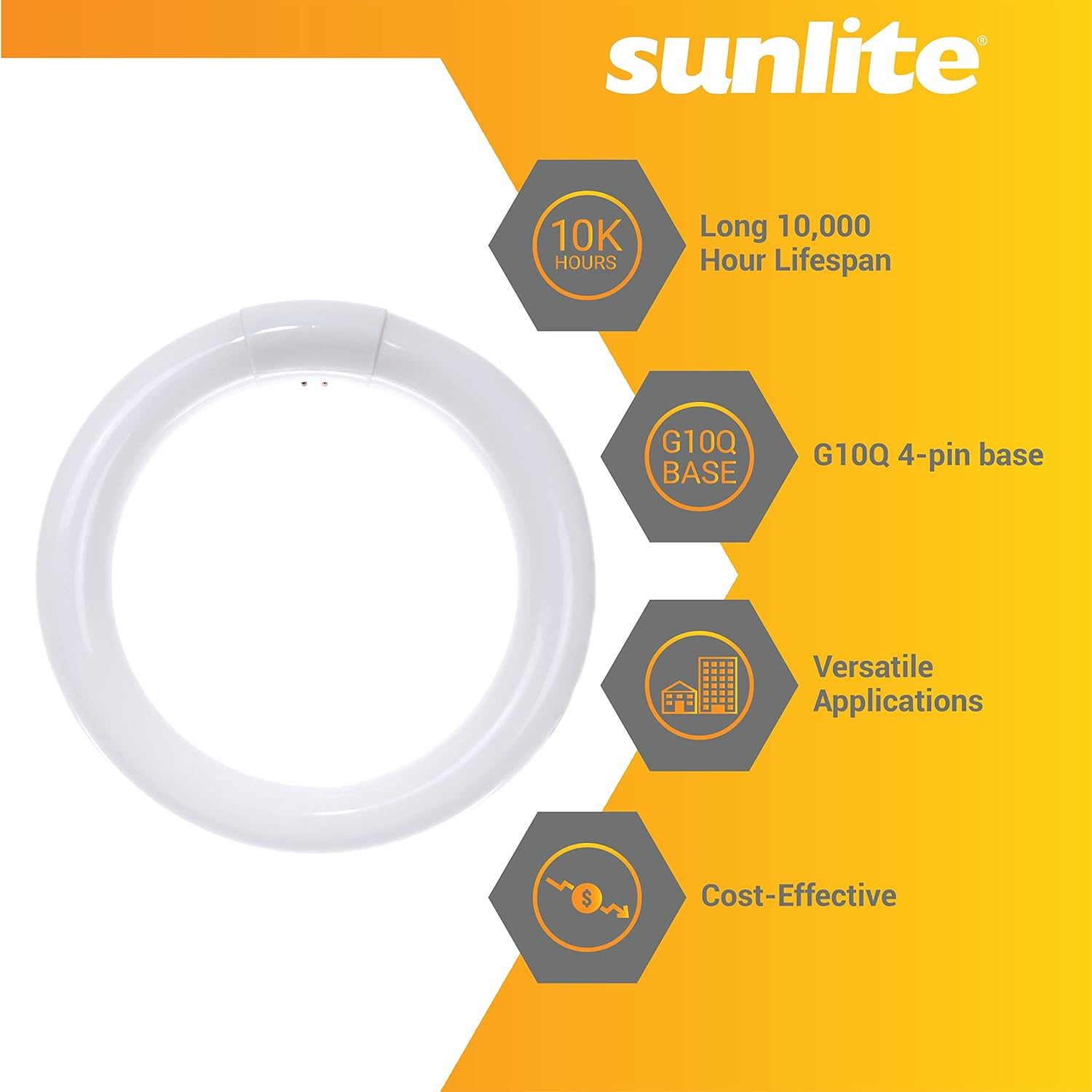

Gambar 1.2: Key features and benefits of the Sunlite FC8T9/CW lamp.

2. Émbaran Kasalametan

PERHATOSAN: This product can expose you to chemicals that are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.

• Always disconnect power to the fixture before installing or replacing the lamp.
• Pastikeun lamp nyaeta tiis saméméh nanganan.
• Do not use in wet locations unless the fixture is specifically designed for such environments.
• Handle fluorescent lamps with care to prevent breakage.
• Buang anu dipaké lamps nurutkeun peraturan lokal, sabab bisa ngandung merkuri.

3. Setup jeung Instalasi

Ieu lamp is designed for easy installation in compatible fixtures with a G10Q 4-pin base.

Léngkah-léngkah pamasangan:

1. Pareuman Daya: Before beginning installation, ensure the power supply to the light fixture is completely turned off at the circuit breaker.
2. Hapus Old Lamp (upami tiasa dianggo): Carefully remove the existing circline fluorescent lamp from its fixture. Note how it is connected to the G10Q 4-pin base.
3. Identifikasi Dasar: Locate the G10Q 4-pin base on your fixture. The Sunlite FC8T9/CW lamp has a matching 4-pin connector.
4. Lebetkeun Anyar Lamp: Align the 4 pins of the new Sunlite FC8T9/CW lamp with the corresponding slots in the G10Q base. Gently push the lamp into the base until it is securely seated. Do not force the lamp.
5. Aman Lamp: Pastikeun lamp is properly seated and any retaining clips or mechanisms in your fixture are engaged to hold the lamp di tempatna.
6. Mulangkeun Daya: Sakali dina lamp geus aman dipasang, balikkeun kakuatan ka fixture di circuit breaker.
7. Tes: Hurungkeun switch lampu pikeun mastikeun lamp fungsina leres.

Gambar 3.1: Lamp dimensions and G10Q 4-Pin Base detail.

4. Parentah Operasi

The Sunlite FC8T9/CW lamp operates immediately upon receiving power from a compatible fixture. It is designed for indoor use in circline fixtures, hallways, kitchens, and other residential or commercial indoor lighting applications.

• Kaluaran cahaya: Provides 1250 lumens of bright, consistent illumination.
• Suhu warna: Emits 4100 Kelvin (Cool White) light, suitable for creating a neutral and bright ambiance.
• Énergi Énergi: Consumes only 22 watts, offering an energy-efficient lighting solution.

Gambar 4.1: Understanding light color temperature, with 4100K as Cool White.

5. Pangropéa

The Sunlite FC8T9/CW lamp merlukeun pangropéa minimal alatan umur panjang na.

• beberesih: Périodik, kalayan kakuatan pareum sareng lamp tiis, gently ngusap lamp surface with a soft, dry cloth to remove dust and debris. Do not use liquid cleaners directly on the lamp.
• ngagantian: Ngaganti lamp when it reaches the end of its operational life (approximately 10,000 hours) or if it shows signs of flickering or dimming. Follow the installation steps for replacement.

6. Cara ngungkulan

If your Sunlite FC8T9/CW lamp teu jalan sakumaha anu dipiharep, pertimbangkeun hal-hal ieu:

• Lamp Henteu Hurungkeun:
  • Ensure the power supply to the fixture is on at both the wall switch and the circuit breaker.
  • Pariksa lamun lamp is securely seated in its G10Q 4-pin base. Remove and re-insert if necessary.
  • Mariksa lamp for any visible damage or breakage. A broken lamp moal beroperasi.
  • If the fixture uses a ballast, ensure the ballast is functioning correctly. A faulty ballast can prevent the lamp tina cahaya.
• Kedip-kedip atanapi Dimming:
  • Flickering can indicate the lamp is nearing the end of its lifespan and may need replacement.
  • Pastikeun lamp is fully seated in the base. Loose connections can cause flickering.
  • A failing ballast can also cause flickering or dimming.
• Noise anu teu biasa:
  • A humming noise often indicates a problem with the fixture's ballast. Consult a qualified electrician if this persists.

If these steps do not resolve the issue, consider replacing the lamp or consulting a qualified electrician for fixture inspection.

7. Spésifikasi

8. Garansi jeung Rojongan

Inpormasi Garansi: For details regarding the product warranty, please refer to the packaging of your Sunlite FC8T9/CW lamp.

Rojongan Palanggan: For further assistance or inquiries, please visit the official Sunlite store or contact their customer service. You can find more information at the Sunlite Brand Store.
