Kombinasi Multi-Input Laney AH40 AmpManual Pamaké lifier

Bubuka

The Laney AH40 is a versatile 40-watt multi-input combo amplifier designed to accommodate a wide range of instruments and audio sources. Featuring three independent channels, a 5-band graphic master EQ, and digital delay, it offers optimum performance and flexibility for musicians. Its compact design makes it suitable for small stages, personal monitoring, and easy transport. The AH40 is engineered to handle keyboards, electronic drums, microphones, acoustic/electric instruments, and playback devices, embodying the principle: ALL INSTRUMENTS WELCOME!

Gambar: Angled view of the Laney AH40 Multi-Input Combo Amplirén, nuduhkeuncasing desain kompak na grille hareup.

Disetél

Unpacking sarta panempatan

• Ati-ati ngaleupaskeun amplifier from its packaging. Retain all packaging materials for future transport or service.
• Place the AH40 on a stable, level surface. Ensure adequate ventilation around the unit to prevent overheating. Do not obstruct the rear vent.
• The amplifier can be used in an upright position or tilted back as a monitor wedge for personal monitoring.

Sambungan Daya

1. Pastikeun ampSaklar daya lifier aya dina posisi OFF.
2. Connect the supplied AC power cord to the power inlet on the rear panel of the amppangagung.
3. Plug the other end of the power cord into a suitable grounded AC power outlet.

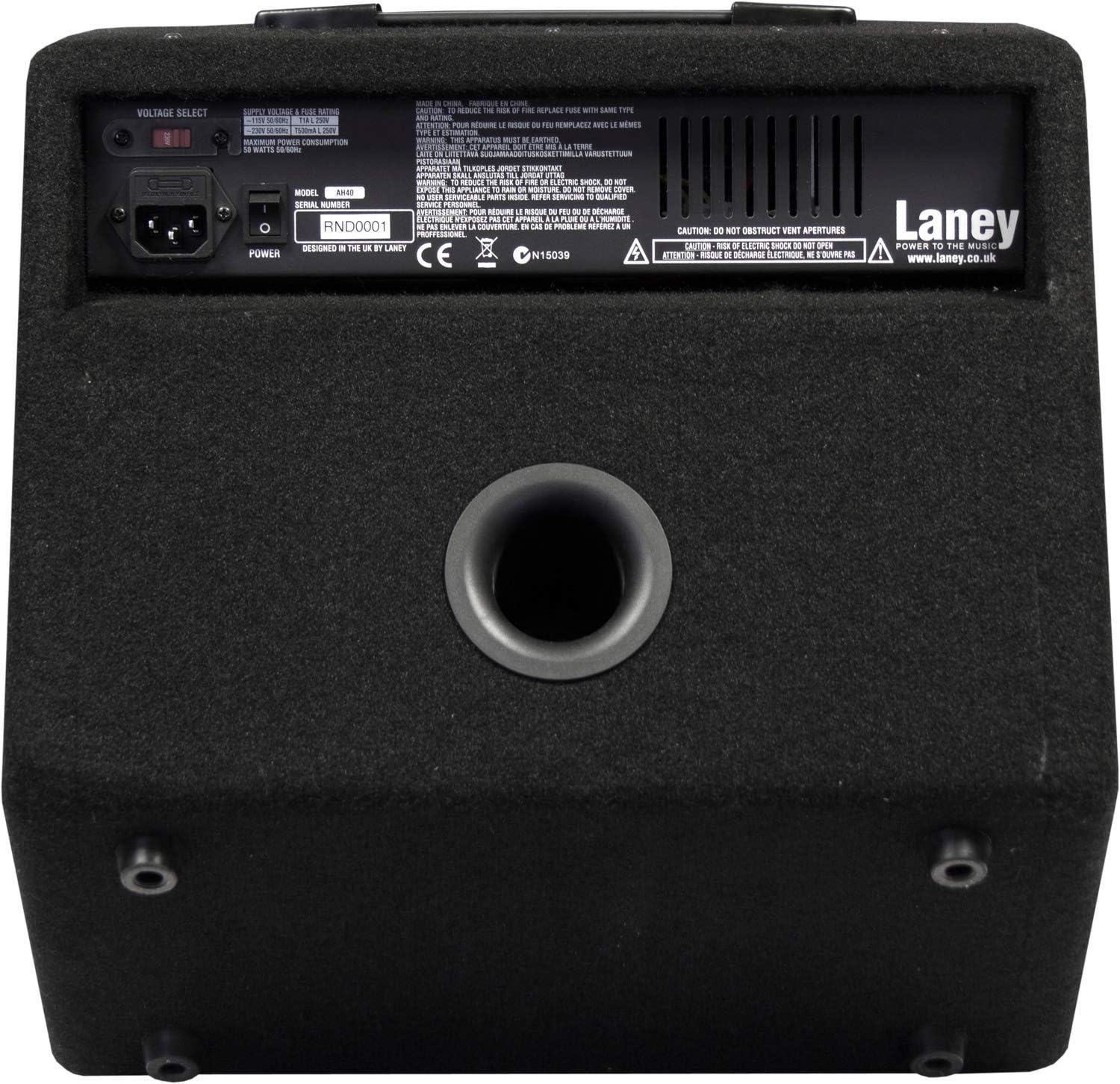

Image: Rear panel of the AH40 amplifier, highlighting the power input, fuse holder, and ventilation port. Note the warning about not obstructing the vent.

Instrument and Microphone Connections

The AH40 features three input channels, each designed for different types of audio sources:

• Saluran 1 (CH1): Features an XLR input for microphones and a 1/4-inch jack input for line-level instruments.
• Saluran 2 (CH2): Provides two 1/4-inch jack inputs (L/R) for stereo line-level instruments like keyboards or electronic drums.
• Saluran 3 (CH3): Offers a 1/4-inch jack input switchable between line-level and instrument-level (e.g., guitar).

Connect your instruments or microphones to the appropriate channels before powering on the amppangagung.

Parentah Operasi

Familiarize yourself with the control panel of your AH40 amplifier. The controls are logically laid out for ease of use.

Gambar: Detil view of the AH40 amplifier's control panel, showing inputs, level controls, equalization sliders, and master section.

Kontrol Panel Langkungview

• CH1 (Mic/Line): XLR and 1/4-inch inputs with a dedicated LEVEL control.
• CH2 (Stereo Line): Left and Right 1/4-inch inputs with a shared LEVEL control.
• CH3 (Line/Inst): 1/4-inch input with a switch to select between Line and Instrument level, and a dedicated LEVEL control.
• Sarua: A 5-band graphic EQ section with sliders for 100Hz, 250Hz, 1KHz, 3KHz, and 10KHz frequencies. Adjust these to shape your overall tone.
• Bagian Master: Includes MASTER VOLUME, AUX IN (3.5mm jack for external audio players), LINE OUT (1/4-inch jack for connecting to other amplifiers or PA systems), and PHONES (3.5mm headphone output).
• Indikator kakuatan: LED light indicating when the unit is powered on.

Léngkah Operasi Dasar

1. Ensure all LEVEL controls and the MASTER VOLUME are set to their minimum positions.
2. Connect your instruments/microphones to the appropriate channels.
3. Hurungkeun amplifier using the power switch on the rear panel. The power indicator LED on the front panel will illuminate.
4. Slowly increase the LEVEL control for the channel(s) you are using until you hear your signal.
5. Gradually increase the MASTER VOLUME to achieve your desired overall output level.
6. Adjust the 5-band graphic EQ sliders to fine-tune your sound.
7. For silent practice, connect headphones to the PHONES output. This will mute the main speaker.
8. To play along with external audio, connect your device to the AUX IN jack. The AUX IN level is controlled by your external device.

Pangropéa

beberesih

• Sok pegatkeun sambungan na amplifier from the power supply before cleaning.
• Anggo kaén anu garing sareng lemes pikeun ngusap permukaan luar.
• Pikeun kokotor nekad, a rada damp cloth can be used, followed by a dry cloth. Avoid using abrasive cleaners, solvents, or waxes.
• Do not allow any liquids to enter the ampventilasi atawa panel kontrol pemanas.

Panyimpenan

• Nyimpen éta ampsimpen di tempat anu tiis sareng garing, jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
• Protect the unit from dust and moisture. If storing for extended periods, consider covering it with a dust cover.

Precautions Kasalametan

• Ulah beroperasi dina amplifier with damaged power cords or plugs.
• Ensure proper ventilation; never block the air vents.
• Ulah ngalaan ampLifier kana hujan atawa Uap.
• Refer all servicing to qualified service personnel. Do not attempt to open the ampchassis lifier.

Pamérésan masalah

If you encounter issues with your AH40 amplifier, consult the following common troubleshooting steps before seeking professional service.

spésifikasi

Émbaran jaminan

Laney products are manufactured to high standards and come with a limited warranty. For specific details regarding the warranty period, coverage, and terms and conditions applicable to your AH40 amplifier, please refer to the warranty card included with your product or visit the official Laney websitus. Punten tahan bukti pameseran anjeun pikeun klaim garansi.

Rojongan Palanggan

Should you require further assistance, technical support, or have questions not covered in this manual, please contact Laney customer support. You can find contact information, FAQs, and additional resources on the official Laney websitus: www.laney.co.uk.
