GIVI A123 AIRSTAR YAMAHA V-MAX 1200 Windshield Deflector Instruction Manual

1. Bubuka

This manual provides detailed instructions for the proper installation, operation, and maintenance of your GIVI A123 AIRSTAR Windshield Deflector, specifically designed for Yamaha V-MAX 1200 motorcycles. Please read this manual thoroughly before beginning installation and retain it for future reference. Correct installation ensures optimal performance and safety.

2. Émbaran Kasalametan penting

Always prioritize safety when working on your motorcycle. Failure to follow these instructions could result in injury or damage to the product or motorcycle.

• Pamasangan profésional disarankeun: Upami anjeun teu yakin kana léngkah naon waé, mangga milarian bantosan ti montir motor anu mumpuni.
• Maké Gear Kasalametan: Always wear appropriate personal protective equipment, including eye protection and gloves, during installation.
• Motorcycle Stability: Ensure the motorcycle is stable and securely supported on a level surface before beginning any work.
• Pariksa Fasteners: Regularly inspect all mounting hardware for tightness, especially after the first few rides and periodically thereafter. Loose fasteners can lead to vibration or detachment.
• Ngahindarkeun halangan: Ensure the installed deflector does not obstruct your view, interfere with steering, or impede the operation of any controls.

3. Eusi Paket

Before beginning installation, carefully unpack all components and verify that the following items are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact your GIVI dealer.

• GIVI A123 AIRSTAR Windshield Deflector (Acrylic)
• Specific Mounting Hardware Kit (Stainless Steel components)
• Lembar Instruksi (Dokumén ieu)

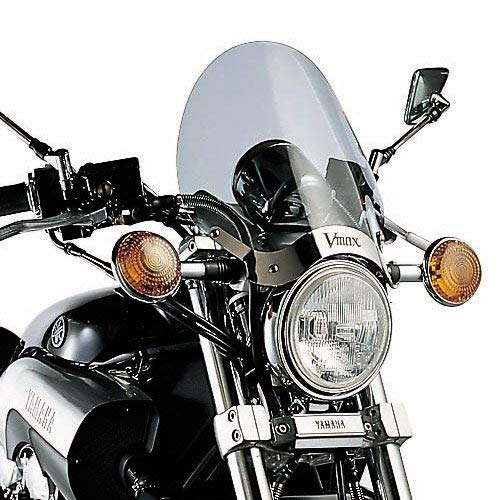

Image: GIVI A123 AIRSTAR Windshield Deflector. This image displays the clear acrylic deflector designed for the Yamaha V-MAX 1200, showcasing its form and transparency.

4. Pituduh Setelan sareng Pamasangan

Follow these steps carefully to install your GIVI A123 AIRSTAR Windshield Deflector. Refer to your motorcycle's service manual for specific details on removing existing components if necessary.

1. Nyiapkeun motor: Park the Yamaha V-MAX 1200 on a firm, level surface. Turn off the engine and remove the ignition key. Allow the engine and exhaust to cool completely.
2. Identipikasi Titik Pasang: Locate the designated mounting points on your motorcycle's front fork or handlebar area, as indicated in the included diagram (if provided). These points are where the deflector brackets will attach.
3. Pasang kurung: Secure the specific mounting brackets from the hardware kit to the identified points on the motorcycle. Use the appropriate bolts, washers, and spacers as shown in the diagram. Do not fully tighten at this stage.
4. Mount the Deflector: Carefully position the GIVI A123 deflector onto the attached brackets. Align the pre-drilled holes in the deflector with the corresponding holes on the brackets.
5. Amankeun Deflektor: Insert the remaining bolts and fasteners through the deflector and into the brackets. Hand-tighten all fasteners to allow for minor adjustments.
6. Atur sareng Kencengkeun: Once the deflector is correctly positioned and aligned, progressively tighten all bolts and fasteners using appropriate tools. Ensure even pressure and avoid over-tightening, which can damage components.
7. Cék ahir: Verify that the deflector is securely mounted, does not wobble, and does not interfere with steering, controls, or lighting. Check all fasteners for tightness.

Catetan: For optimal safety and performance, GIVI strongly recommends professional installation by an authorized dealer or experienced mechanic.

5. Parentah Operasi

The GIVI A123 AIRSTAR Windshield Deflector is designed to enhance rider comfort by redirecting airflow and reducing wind buffeting. Once correctly installed and securely fastened, no further operational adjustments are typically required. The deflector functions passively to improve your riding experience.

6. Pangropéa

Proper care and maintenance will prolong the life and maintain the clarity of your GIVI A123 AIRSTAR Windshield Deflector.

• beberesih: Clean the acrylic deflector regularly with a soft cloth, mild soap, and lukewarm water. Avoid abrasive cleaners, harsh chemicals (like ammonia-based products), or rough cloths, as these can scratch or damage the acrylic surface.
• Pangeringan: Dry the deflector with a clean, soft microfiber cloth to prevent water spots.
• Pamariksaan: Periodically inspect the deflector and all mounting hardware for any signs of wear, cracks, or looseness. Address any issues promptly.
• Panyimpenan: When not in use for extended periods, store the motorcycle in a covered area to protect the deflector from prolonged exposure to harsh sunlight and extreme weather conditions.

7. Cara ngungkulan

This section addresses common issues you might encounter with your windshield deflector.

8. Spésifikasi produk

• merek: GIVI
• model: A123 (AIRSTAR YAMAHA V-MAX 1200)
• Bahan: Akrilik
• Beurat barang: 2.2 pon
• Ukuran Paket: 14.75 x 12.5 x 5.5 inci
• Nomer Bagian Pabrikan: A123
• posisi: Puseur hareup
• Exterior Finish (Mounting Hardware): Beusi sténless

9. Émbaran jaminan na Rojongan Palanggan

GIVI products are manufactured to high standards and undergo rigorous quality control. For specific warranty details regarding your GIVI A123 AIRSTAR Windshield Deflector, please refer to the warranty card included with your purchase or visit the official GIVI websitus. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.

For technical assistance, spare parts, or any other inquiries, please contact your authorized GIVI dealer or the GIVI customer support service in your region. Provide your product model number (A123) and purchase details when contacting support.
