Wright Products V2010WH Tap-N-Go Pneumatic Door Closer Instruction Manual

1. Bubuka

This manual provides detailed instructions for the installation, operation, and maintenance of the Wright Products V2010WH Tap-N-Go Pneumatic Door Closer. This standard-duty pneumatic closer is designed for out-swinging wood or metal doors, offering a full 90-degree opening capability and a convenient push-button hold-open feature. It includes a tool-free adjusting screw for precise control over the closing speed.

2. Émbaran Kasalametan

• Salawasna nganggo alat kaamanan anu pantes, kalebet pelindung panon, nalika pamasangan.
• Ensure the door is securely supported before beginning installation to prevent accidental movement.
• Do not attempt to modify the door closer. Unauthorized modifications may compromise safety and product performance.
• Jauhkeun bagian leutik sareng alat ti barudak.

3. Eusi Paket

The Wright Products V2010WH Tap-N-Go Pneumatic Door Closer package includes the pneumatic door closer unit and all necessary installation hardware. Please verify all components are present before beginning installation.

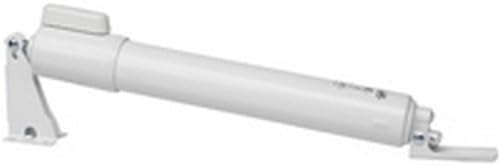

This image displays the Wright Products V2010WH Tap-N-Go Pneumatic Door Closer in white. The cylindrical closer body is shown with mounting brackets on both ends. A small, white push-button mechanism for the hold-open feature is visible on the top side of the closer.

4. Setup jeung Instalasi

The V2010WH door closer is designed for installation on out-swinging wood or metal doors. It can be used alone for light and medium-weight doors. For heavier full-view storm doors, it is recommended to use the V2010WH in conjunction with either a V920 or V1020 closer (sold separately) for optimal performance and support.

Catetan Instalasi Umum:

• Refer to the included hardware package for specific screw types and bracket orientations.
• Ensure proper alignment of the closer and brackets to allow for a smooth 90-degree door opening.
• Mounting location should provide sufficient clearance for the closer's operation without obstruction.

5. Parentah Operasi

Push Button Hold-Open Feature:

The V2010WH features a convenient push-button mechanism that allows the door to be held open at a desired position. To engage the hold-open feature, simply open the door to the desired angle and press the button located on the closer body. To release, gently push the door further open, and the closer will disengage, allowing the door to close.

Adjusting Closing Speed:

The closing speed of the door can be adjusted using the tool-free adjusting screw located at the end of the closer. Turning the screw clockwise will decrease the closing speed (slower close), while turning it counter-clockwise will increase the closing speed (faster close). Adjust gradually until the desired closing speed is achieved.

6. Pangropéa

The Wright Products V2010WH Tap-N-Go Pneumatic Door Closer is factory lubricated, requiring minimal maintenance. Periodically inspect the closer and mounting hardware for any signs of wear, looseness, or damage. Ensure all screws are tight. Clean the exterior with a damp lawon sakumaha diperlukeun. Ulah make cleaners abrasive atawa pangleyur.

7. Cara ngungkulan

• Door not closing fully: Check for obstructions, ensure the closer is properly aligned, and adjust the closing speed screw.
• Door closing too fast/slow: Adjust the closing speed screw as described in Section 5.
• Hold-open feature not engaging/disengaging: Ensure the button mechanism is clean and free of debris. Check for proper installation and alignment.
• Sora-sora ngerik atawa sora-sora nu teu biasa: Inspect for loose components or misalignment. If noises persist, contact customer support.

8. Spésifikasi

9. Émbaran jaminan

For detailed warranty information regarding your Wright Products V2010WH Tap-N-Go Pneumatic Door Closer, please refer to the official Wright Products websitus atanapi ngahubungan layanan palanggan maranéhanana langsung. Simpen bukti pameseran anjeun pikeun klaim garansi.

10. Rojongan

If you require further assistance, have questions about installation, or need to report an issue, please visit the Wright Products Store atawa resmi maranéhanana websitus pikeun informasi kontak rojongan customer.
