VENUS Magma Plus 15GV 15-Litre Storage Water Heater User Manual

Bubuka

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your VENUS Magma Plus 15GV 15-Litre Storage Water Heater. Please read these instructions carefully before using the appliance and retain them for future reference. The VENUS Magma Plus 15GV is designed for reliable hot water supply, featuring Scale Guard Technology and Double Ceramic Heating Elements for enhanced durability and performance.

Parentah Kasalametan

penting: Salawasna turutan pancegahan kaamanan dasar pikeun ngirangan résiko seuneu, kejutan listrik, sareng tatu pribadi.

• Ensure the water heater is installed by a qualified technician in accordance with local regulations and this manual.
• Do not operate the water heater if it has a damaged cord or plug, or if it is not working properly or has been dropped or damaged.
• Before any maintenance or cleaning, always disconnect the power supply to the appliance.
• Do not block or cover any openings on the water heater.
• Alat ieu henteu dimaksudkeun pikeun dianggo ku jalma (kalebet murangkalih) anu ngirangan kamampuan fisik, indrawi atanapi mental, atanapi kirang pangalaman sareng pangaweruh, kecuali aranjeunna dipasihan pangawasan atanapi petunjuk ngeunaan panggunaan alat ku jalma anu tanggung jawab kana kasalametanana.
• Jauhkeun barudak tina alat sareng pastikeun aranjeunna henteu maén sareng éta.
• The water heater must be properly grounded.
• Ulah nganggo kabel panyambung atanapi adaptor kanggo alat ieu.
• Ensure the water pressure does not exceed 8 Bars, as specified for this model.

Produk Leuwihview

The VENUS Magma Plus 15GV is a 15-litre storage water heater designed for efficiency and durability. Key features include:

• Kapasitas: 15 Litres, suitable for bathing and general household use.
• Wattage: 2000 Watts for quick heating.
• Tekanan: Rated for 8 Bars, suitable for high-rise buildings.
• BEE Rating: 5 Star energy efficiency for reduced power consumption.
• Tangki Jero: Porcelain Enamel Glasslined Tank for corrosion resistance.
• Unsur pemanasan: Glasslined Double Ceramic Heating Elements for extended lifespan and efficient heating.
• Bahan Awak Luar: Durable PP Plastic.
• Scale Guard Technology: Reduces scale deposits, minimizing stress on heating elements and prolonging appliance life.
• Capillary Thermostat: Allows precise temperature setting by the user.
• ISI Certification: India's first BIS approved water heater with Porcelain Enamelled GL Tank, ensuring quality and safety.
• Perlindungan: Maximum protection against hard water and corrosion.

Gambar 1: Hareupeun view of the VENUS Magma Plus 15GV 15-Litre Storage Water Heater, showing its compact design and control knob.

Setup sareng Instalasi

The VENUS Magma Plus 15GV water heater comes with an installation kit, flexible hose, and wall fixing card. Professional installation is highly recommended to ensure proper functioning and safety.

Komponén Kaasup:

• 1 Storage water heater unit
• Flexible hose (for water connections)
• Manual pamaké (dokumén ieu)
• Installation Kit (mounting brackets, screws, etc.)
• Wall fixing card (for precise mounting)

Léngkah-léngkah Instalasi (Leuwihview):

1. Pilihan Situs: Choose a suitable wall location, ensuring it is strong enough to support the filled water heater and is close to water inlet/outlet points and a power source.
2. Pamasangan: Use the provided wall fixing card to mark drilling points. Securely mount the water heater to the wall using the installation kit.
3. Sambungan cai: Connect the cold water inlet and hot water outlet pipes using the flexible hoses. Ensure all connections are tight to prevent leaks. Install a pressure relief valve if required by local codes.
4. Sambungan listrik: Connect the water heater to a dedicated, properly grounded electrical outlet. Ensure the voltage cocog sarat alat urang (230 Volts).
5. Ngeusian tank: Before switching on, open a hot water tap in your home to allow air to escape and the tank to fill completely with water. Close the tap once water flows steadily.
6. Cék awal: Inspect all connections for leaks and ensure the appliance is securely mounted.

Gambar 2: Kelample of the VENUS Magma Plus 15GV water heater installed in a bathroom, demonstrating typical wall mounting.

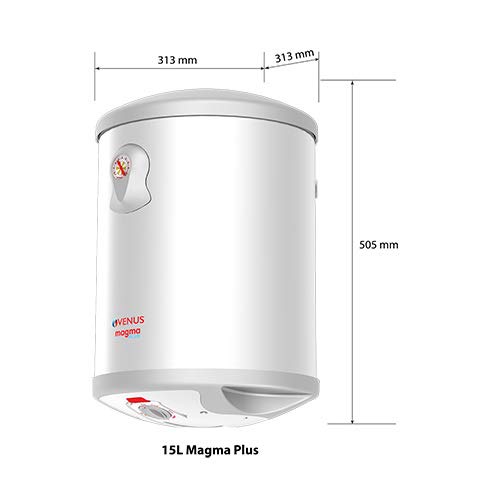

Figure 3: Dimensional drawing of the 15L Magma Plus water heater, showing height (505mm) and width/depth (313mm).

Parentah Operasi

Once the water heater is correctly installed and filled with water, you can begin operation.

1. Daya Hurung: Switch on the main power supply to the water heater. The indicator light (if present) will illuminate.
2. Setel Suhu: Use the temperature control knob, located at the bottom of the unit, to set your desired water temperature. The Capillary Thermostat allows for precise adjustment.
3. Siklus pemanasan: The water heater will begin heating the water. The heating time will vary depending on the initial water temperature and the desired setting. For a full tank, it may take approximately 30-55 minutes to reach maximum temperature (around 75°C).
4. Pareum otomatis: The thermostat will automatically cut off power to the heating elements once the set temperature is reached, saving energy. It will reactivate when the water temperature drops.
5. Pareum listrik: When hot water is no longer needed for an extended period, it is recommended to switch off the power supply to the water heater.

angka 4: Tutup-up view of the VENUS Magma Plus 15GV, highlighting the temperature control knob at the bottom.

Pituduh Kapasitas:

The 15-litre capacity is generally suitable for:

• Bathing (bucket wash) for 2-3 members.
• Bathing (shower/bathtub) for 2-3 members.

Figure 5: A general guide for determining water heater capacity based on intended use and family size. The 15-litre Magma Plus falls under the storage geyser category.

Pangropéa

Regular maintenance ensures the longevity and efficient performance of your water heater.

• beberesih: Periodically wipe the outer body with a soft, damp lawon. Ulah make cleaners abrasive atawa pangleyur.
• Scale Guard Technology: The integrated Scale Guard Technology helps reduce mineral deposits. However, in areas with extremely hard water, periodic descaling by a qualified technician may still be beneficial.
• Tekanan Bantuan Klep: Check the pressure relief valve annually to ensure it is not blocked and is functioning correctly. Refer to the installation guide for specific instructions on testing this valve.
• Inspeksi Rod Anoda: The sacrificial anode rod protects the tank from corrosion. It should be inspected and replaced periodically (typically every 1-3 years, depending on water quality) by a service professional.
• Palayanan profésional: It is recommended to have your water heater inspected by a qualified service technician at least once every two years.

Pamérésan masalah

Sateuacan ngahubungi layanan palanggan, mangga tingal masalah sareng solusi umum ieu:

For issues not listed above or if solutions do not resolve the problem, please contact VENUS customer support.

spésifikasi

Garansi sareng Rojongan

Your VENUS Magma Plus 15GV water heater is backed by a comprehensive warranty and dedicated customer support.

Rincian Garansi:

• Tangki Jero: 5 Taun
• Unsur pemanasan: 2 Taun
• Overall Product: 2 Taun

Mangga nahan resi pameseran Anjeun pikeun klaim jaminan. Garansi nyertakeun cacad manufaktur dina kaayaan pamakean normal.

Rojongan Palanggan:

For installation assistance, service requests, or any queries regarding your product, please contact VENUS Home Appliances Pvt Ltd.

• Pabrikan: VENUS HOME APPLIANCES PVT LTD
• Alamat: No. 4/993, Kamaraj St, Annai Indira Nagar, Perungudi, Chennai
• Nomer Kontak: 8144666999
