Buku Panduan Pangguna Kaméra Aksi Tahan Cai WiMiUS Q1 4K WiFi

1. Bubuka

Thank you for choosing the WiMiUS Q1 4K WiFi Waterproof Action Camera. This manual provides essential information for setting up, operating, and maintaining your device. Please read it carefully before use to ensure optimal performance and longevity of your camera.

Image 1.1: WiMiUS Q1 4K WiFi Waterproof Action Camera. This image displays the camera in its retail packaging, highlighting its 4K Full HD capabilities, 40m waterproof rating, WiFi connectivity, 170-degree wide angle, and 2.0-inch LCD screen.

2. Eusi Paket

Punten parios yén sadaya barang anu didaptarkeun di handap kalebet kana pakét anjeun:

• 1 x WiMiUS Q1 4K Action Camera
• Batré 2 x 900mAh anu tiasa dicas deui
• 1 x Batré Ngecas Dock
• Various mounting accessories (e.g., waterproof case, helmet mounts, bicycle mount, adhesive mounts, clips, bandages, tethers, USB cable, cleaning cloth)

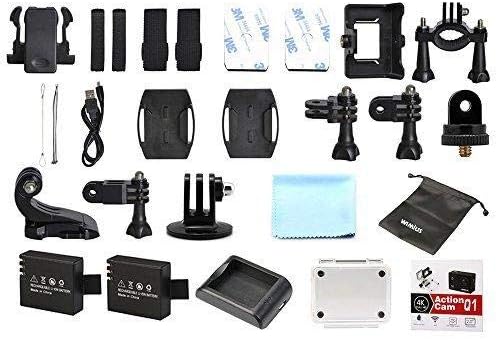

Image 2.1: WiMiUS Q1 Action Camera Accessories. This image shows the comprehensive set of accessories included with the camera, such as various mounts, straps, a charging dock, two batteries, a USB cable, and a cleaning cloth.

3. Kaméra Langkungview

Familiarize yourself with the camera's buttons and ports:

Image 3.1: WiMiUS Q1 Camera Labeled Parts. This diagram illustrates the various components of the camera, including the Power/Mode button, OK button, UP/WiFi button, Down button, Speaker, Microphone, Micro SD card slot, USB port, HDMI port, Charging Indicator, Operation Indicator, and WiFi Indicator.

1. Tombol Kakuatan / Mode: Pencét terus tahan pikeun hurung/pareum. Pencét sakeudeung pikeun ngaganti mode.
2. Tombol OK: Confirm selection, start/stop recording, or take a photo.
3. UP/WiFi Button: Navigate up in menus. Press and hold to activate/deactivate WiFi.
4. Tombol Turun: Navigasi ka handap dina ménu.
5. Speaker: Kaluaran audio.
6. Mikropon: Audio input for recording.
7. Slot SD Mikro: Insert Micro SD card (up to 64GB, not included).
8. Port USB: Pikeun ngecas sareng mindahkeun data.
9. Port HDMI: Pikeun nyambungkeun kana tampilan éksternal.
10. Indikator ngecas: Némbongkeun status ngecas.
11. Indikator Operasi: Shows camera's operational status.
12. Indikator WiFi: Némbongkeun status sambungan WiFi.

4. Setélan

4.1. Pamasangan batré

1. Buka panutup kompartemen batré dina handapeun kaméra.
2. Insert a fully charged 900mAh battery, ensuring the correct orientation.
3. Tutup panutup kompartemen batré aman.

4.2. Pamasangan Kartu Micro SD

A Micro SD card (not included) is required for storing photos and videos. The camera supports cards up to 64GB.

1. Pilari slot kartu Micro SD di sisi kaméra.
2. Insert the Micro SD card with the contacts facing the camera's front until it clicks into place.
3. Pikeun nyabut, nyorong gently kartu nepi ka springs kaluar.

4.3. Ngecas Batré

Use the provided charging dock and USB cable to charge the batteries. A full charge takes approximately 3 hours.

1. Selapkeun batré kana dock ngecas.
2. Connect the charging dock to a USB power source (5V 1A) using the USB cable.
3. The charging indicator on the dock will show the charging status.

4.4. Ngagunakeun Case waterproof

The waterproof case allows the camera to be used underwater up to 40 meters. Ensure the case is properly sealed before submerging.

1. Place the camera inside the waterproof case.
2. Tutupkeun kancingna pageuh-pageuh pikeun mastikeun segelna kedap cai.
3. Before first use, test the empty waterproof case in water to confirm no leaks.

5. Parentah Operasi

5.1. Daya Hurung / Pareum

• Daya Hurung: Pencét jeung tahan tombol Daya / Modeu tombol pikeun 3 detik.
• Pareum listrik: Pencét jeung tahan tombol Daya / Modeu tombol pikeun 3 detik.

5.2. Modeu Ngalihkeun

Pencét pondok Daya / Modeu button to cycle through different modes: Video Recording, Photo Shooting, Playback, and Settings.

5.3. Ngarekam Pidéo

1. Switch to Video Recording mode.
2. Pencét éta OK button to start recording. The operation indicator will flash.
3. Pencét éta OK button again to stop recording. The operation indicator will stop flashing.

Resolusi Video: 4K@30FPS, 2.7K@30FPS, 1080P@60FPS, 720P@120FPS.

Special Video Modes:

• Selang waktos: Intervals of 0.5S, 1S, 2S, 5S, 10S, 30S, 60S.
• Ngarekam loop: 2min, 3min, 5min segments.
• Gerak Slow: 1080P@60FPS, 720P@120FPS.

5.4. Poto Shooting

1. Switch to Photo Shooting mode.
2. Pencét éta OK tombol pikeun nyandak poto.

Resolusi poto: 16M, 14M, 12M, 8M, 5M.

Modeu Poto: Single, Self-Timer (3S/5S/10S), Continuous Shot (3P/S, 5P/S, 10P/S, 20P/S).

5.5. Sambungan Wi-Fi

Connect your camera to a smartphone or tablet via Wi-Fi for remote control and file mindahkeun.

1. Download the official WiMiUS app from your device's app store.
2. On the camera, press and hold the UP/WiFi button to activate Wi-Fi. The Wi-Fi indicator will light up.
3. On your smartphone/tablet, go to Wi-Fi settings and connect to the camera's Wi-Fi network (SSID usually starts with 'WiMiUS' or similar).
4. Open the WiMiUS app to control the camera remotely.

5.6. Puterkeun deui

Pikeun ulangview video sareng poto anu direkam ku anjeun:

1. Switch to Playback mode using the Daya / Modeu kancing.
2. Ngagunakeun éta UP jeung Turun buttons to navigate through your files.
3. Pencét éta OK tombol pikeun view anu dipilih file.

6. Pangropéa

6.1. beberesih

• Use a soft, lint-free cloth to clean the camera lens and LCD screen.
• Pikeun smudges nekad, enteng dampbilas lawon ku cai. Hindarkeun bahan kimia anu keras.
• Pastikeun kaméra geus garing saméméh nutup sagala port atawa kompartemen.

6.2. Panyimpenan

• Simpen kaméra di tempat anu tiis sareng garing jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
• Cabut batré upami kaméra moal dianggo kanggo waktos anu panjang.

7. Cara ngungkulan

• Kaméra teu hurung: Ensure the battery is fully charged and correctly inserted. Try using the second battery.
• Kasalahan kartu SD: Ensure the Micro SD card is correctly inserted and formatted (FAT32 recommended). Try a different compatible Micro SD card.
• Kualitas video/poto goréng: Check lens for smudges. Ensure adequate lighting. Verify resolution settings.
• Masalah sambungan Wi-Fi: Ensure Wi-Fi is enabled on the camera and your mobile device. Restart both devices. Check for app updates.
• Kaméra beku: Cabut sareng pasang deui batréna pikeun ngareset kaméra.

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official WiMiUS websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.
