This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the Carrier HD44AR331 Motor. This motor is designed for HVAC applications, specifically as a furnace replacement motor.

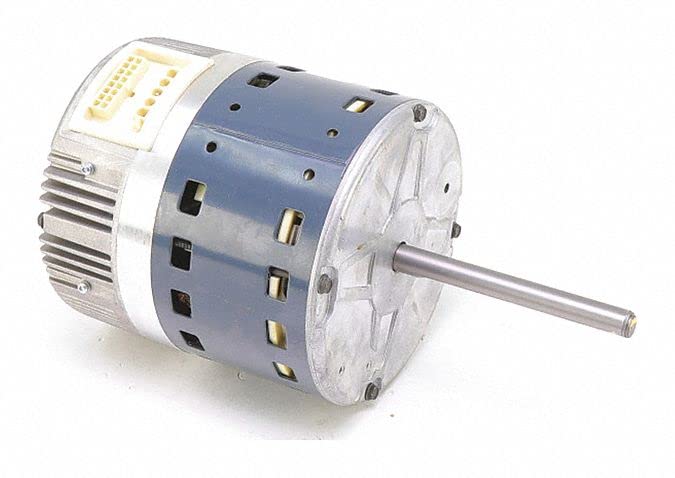

Image: The Carrier HD44AR331 Motor, a grey cylindrical motor with a protruding shaft and a white electrical connector block on one end. The motor casing has ventilation slots.
The Carrier HD44AR331 is a 120/240V, single-phase, 0.5 HP motor operating at 1050 RPM. It is a robust component designed for reliable performance in compatible systems.
Émbaran Kasalametan
Always disconnect power before installing, servicing, or cleaning the motor. Failure to do so can result in serious injury or death. Installation should be performed by a qualified technician in accordance with all local and national electrical codes.
- Pastikeun grounding ditangtoskeun pikeun nyegah shock listrik.
- Ulah ngajalankeun motor lamun éta ruksak atawa geus kakeunaan wiring.
- Anggo alat pelindung diri (APD) anu pantes nalika pamasangan sareng pangropéa.
- Refer to the wiring diagram provided with your HVAC unit for correct electrical connections.
Setup sareng Instalasi
- Pegatkeun daya: Before beginning installation, ensure that all power to the HVAC unit is completely disconnected at the circuit breaker or fuse box. Verify with a voltage panguji.
- Ngaleupaskeun Motor Lawas: Carefully disconnect the wiring from the old motor, noting the connections. Remove any mounting bolts or clamps securing the old motor.
- New Motor Placement: Position the Carrier HD44AR331 motor in the designated mounting location. Ensure it is securely fastened using appropriate bolts and brackets.
- Sambungan Wiring: Connect the electrical wiring to the new motor according to the wiring diagram of your HVAC system. Pay close attention to voltage (120V or 240V) and phase connections. The motor is designed for 120/240V, 1-phase operation.
- Susunan Poros: Ensure the motor shaft is properly aligned with the blower wheel or fan assembly. Misalignment can cause vibration and premature wear.
- Cék ahir: Double-check all connections and mounting hardware for tightness. Ensure no wires are pinched or exposed.
Parentah Operasi
The Carrier HD44AR331 motor operates as part of your HVAC system's blower assembly. Its operation is typically controlled by the thermostat and the HVAC system's control board.
- Once installed and wired correctly, restore power to the HVAC unit.
- Set your thermostat to a mode that requires blower operation (e.g., "Fan On" or a heating/cooling mode).
- Observe the motor for smooth operation and listen for any unusual noises.
- The motor is designed for continuous duty within its specified ratings.
Pangropéa
Regular maintenance helps ensure the longevity and efficient operation of your Carrier HD44AR331 motor. Always disconnect power before performing any maintenance.
- beberesih: Periodically inspect the motor for dust and debris accumulation. Use a soft brush or compressed air to gently clean the motor's exterior and ventilation openings. Do not allow moisture to enter the motor.
- Bantalan: Motor ieu biasana dilengkepan bantalan anu disegel anu henteu meryogikeun pelumasan. Ulah nyobian ngalumaskeun bantalan anu disegel.
- Pamariksaan Getaran: Annually check for excessive vibration during operation. Excessive vibration can indicate a problem with the motor, blower wheel, or mounting.
- Pamariksaan kabel: Inspect electrical connections for signs of wear, corrosion, or looseness. Tighten any loose connections.
Pamérésan masalah
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Motor teu hurung | Taya catu daya wiring salah Overload protector tripped Motor lepat | Pariksa pemutus sirkuit/sekring Pariksa kabelna ngalawan diagram Allow motor to cool, reset protector Taroskeun ka teknisi mumpuni pikeun ngagantian |
| Motor jadi panas | Ventilasi teu cekap Overload salah voltage Masalah bantalan | Clear obstructions around motor Check for restricted airflow in system Pariksa suplai voltage Motor replacement may be necessary |
| Noise atawa geter kaleuleuwihan | Pamasangan leupas Unbalanced blower wheel Bantalan dipaké Uing dina blower | Tighten bolts ningkatna Inspect and clean blower wheel Gantian motor Clean blower assembly |
If troubleshooting steps do not resolve the issue, contact a certified HVAC technician for further assistance.
spésifikasi
- Jumlah modél: HD44AR331
- merek: Pamawa
- Voltage: 120/240V
- Fase: Single Phase (1ph)
- Daya kuda (HP): 0.5 hp
- RPM: 1050 rpm
- Pigura: FR39
- Ukuran produk: 9 x 7 x 5 inci
- Beurat barang: 4 pon
- Pabrikan: Perusahaan Carrier
Garansi sareng Rojongan
For warranty information and technical support, please refer to the official Carrier website or contact Carrier customer service directly. Keep your purchase receipt and model number (HD44AR331) readily available when seeking support.
Note: Specific warranty terms and conditions may vary based on region and point of purchase.
