Nanolux OG-1000W Dimmable Digital Grow Light E-Ballast User Manual

1. Bubuka

1.1 Produk Leuwihview

The Nanolux OG series ballast is an original digital electronic ballast designed for horticultural lighting. It features a dimming function, allowing operation at Super-lux, 100%, 75%, and 50% power levels. This ballast incorporates a Random Start system, which provides a 0-15 second delay for striking the bulb, reducing initial power draw during large installations. It is also NCCS (Nanolux Communication Control System) ready for advanced control.

1.2 Fitur konci

• Kaluaran anu tiasa diredupkeun: Operates at Super-lux, 100%, 75%, and 50% power settings.
• Random Start Technology: Staggers bulb ignition by 0-15 seconds to minimize power surges during startup.
• NCCS Ready: Compatible with Nanolux Communication Control System for wireless control.
• High Power Factor: Runs lamps at over 99% efficient power factor.
• Dual Output Plug: Accepts both industry standard fixture plug styles.
• Cool Running: Designed for optimal heat dissipation, maintaining a cool ambient temperature.
• Kasaluyuan serbaguna: Runs any quality brand HPS (High Pressure Sodium) or MH (Metal Halide) horticultural lamp.
• Commercial Compliance: Meets FCC commercial requirements.
• Voltage Pilihan: Available in 120-240V, 240V, and 277V configurations.

2. Émbaran Kasalametan

Please read and understand all safety warnings and instructions before installing or operating the Nanolux OG-1000W Dimmable Digital Grow Light E-Ballast. Failure to do so may result in electric shock, fire, serious injury, or property damage.

• Kasalametan listrik: Always disconnect power before installing, servicing, or moving the ballast. Ensure all electrical connections are secure and comply with local electrical codes.
• Pamakéan jero rohangan wungkul: This ballast is designed for indoor use in horticultural environments. Do not expose to water, high humidity, or outdoor elements.
• Ventilasi: Ensure adequate ventilation around the ballast to prevent overheating. Do not block ventilation openings.
• Lamp Kasaluyuan: Use only compatible Metal Halide (MH) or High Pressure Sodium (HPS) lamps with the correct wattage.
• Pamasangan profésional: Installation by a qualified electrician is recommended, especially for complex setups or higher voltage aplikasi.
• Suhu: Do not operate the ballast in ambient temperatures exceeding its specified operating range.
• Penanganan: Handle the ballast with care. Avoid dropping or subjecting it to strong impacts.

3. Eusi Paket

Pastikeun yén sadaya barang aya sareng dina kaayaan anu saé nalika muka bungkusan.

• Nanolux OG-1000W Dimmable Digital Grow Light E-Ballast
• Kabel listrik
• Manual Pitunjuk (dokumén ieu)

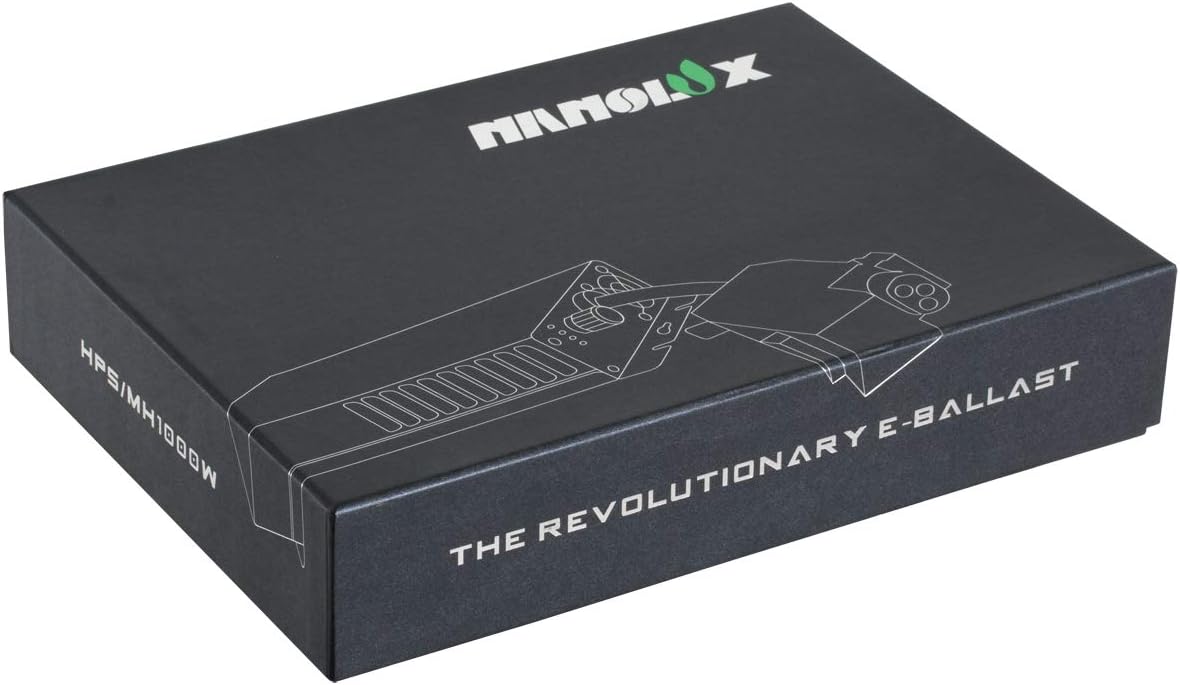

The image above shows the Nanolux OG-1000W Dimmable Digital Grow Light E-Ballast as it appears in its retail packaging.

4. Setélan

4.1 Mounting the Ballast

Mount the ballast in a vertical position on a non-combustible surface, ensuring adequate airflow around the unit. Avoid mounting directly above heat sources or in enclosed spaces. The ballast should be easily accessible for adjustments and maintenance.

This image illustrates the compact size of the Nanolux OG-1000W ballast, making it suitable for various mounting configurations.

4.2 Connecting the Lamp

1. Ensure the ballast is disconnected from the power source.
2. Nyambungkeun lamp cord from your reflector to the output receptacle on the ballast. The dual output plug is designed to accept common industry fixture plug styles.
3. Pastikeun lamp is securely installed in its fixture.

The image above displays the rear of the ballast, highlighting the output port where the lamp fixture connects and the input port for the power cord.

4.3 Sambungan Daya

1. Verify that the power cord is securely connected to the input port on the ballast.
2. Plug the power cord into a grounded electrical outlet that matches the ballast's voltage requirements (120-240V, 240V, or 277V).
3. The ballast is now ready for operation.

Gambar ieu nyadiakeun sisi view of the ballast, illustrating its design features for efficient cooling.

5. Parentah Operasi

5.1 Dimming Functions

The Nanolux OG-1000W ballast features a rotary dimming knob to adjust the light output. The available settings are:

• Super-lux: Provides an overdrive setting for maximum light output.
• 100%: Full rated wattage kaluaran.
• 75%: Reduces light output to 75% of rated wattage.
• 50%: Reduces light output to 50% of rated wattage.

Rotate the knob to select the desired power level. The corresponding indicator light on the ballast will illuminate.

5.2 Random Start Feature

The Random Start feature is automatically enabled. When multiple Nanolux ballasts are powered on simultaneously, this feature introduces a random delay of 0-15 seconds before each ballast strikes its bulb. This prevents a large instantaneous power draw, which can be beneficial for electrical systems in larger installations.

5.3 NCCS Wireless Control System

The Nanolux OG-1000W ballast is NCCS (Nanolux Communication Control System) ready. This allows for advanced wireless control and monitoring when used with compatible NCCS devices. Refer to the NCCS system manual for detailed setup and operation instructions.

5.4 Fitur Produk Pidéo

video ieu nyadiakeun leuwih visualview of the Nanolux OG-1000W Dimmable Digital Grow Light E-Ballast, showcasing its key functionalities and design elements.

6. Pangropéa

Regular maintenance ensures optimal performance and longevity of your Nanolux OG-1000W ballast.

• beberesih: Periodically clean the exterior of the ballast with a dry, soft cloth. Ensure the ventilation openings are free from dust and debris. Do not use liquid cleaners or immerse the unit in water.
• Cék sambungan: Regularly inspect all electrical connections (power cord, lamp cord) to ensure they are secure and free from damage.
• Kaayaan Lingkungan: Monitor the ambient temperature and humidity in the operating environment to ensure it remains within the recommended range.

7. Cara ngungkulan

If you encounter issues with your Nanolux OG-1000W ballast, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Nanolux customer support.

8. Spésifikasi

9. Garansi jeung Rojongan

For warranty information, technical support, or service inquiries regarding your Nanolux OG-1000W Dimmable Digital Grow Light E-Ballast, please contact Nanolux customer service directly. Details can typically be found on the official Nanolux websitus atanapi bungkusan produk.

Nanolux Websitus: www.nanoluxtech.com
