1. Bubuka
Thank you for choosing the Teka Eline Round Stainless Steel Sink. This manual provides essential information for the safe installation, operation, and maintenance of your new sink. Please read these instructions carefully before installation and retain them for future reference.
The Teka Eline sink is designed for durability and functionality, featuring a single round bowl made from high-quality stainless steel, suitable for modern kitchen environments.
2. Émbaran Kasalametan
Punten perhatikeun pancegahan kaamanan di handap ieu pikeun nyegah tatu atanapi karusakan produk:
- Installation should be performed by a qualified professional to ensure proper sealing and connection to plumbing.
- Always wear appropriate personal protective equipment (e.g., gloves, safety glasses) during installation.
- Ensure the countertop material can support the weight of the sink and its contents when full.
- Do not use abrasive cleaners or harsh chemicals on the stainless steel surface, as this can cause damage.
- Jauhkeun barudak leutik tina tempat pamasangan.
3. Eusi Paket
Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:
- Teka Eline Round Stainless Steel Sink (1 unit)
- Drain assembly (Grid type)
- Mounting clips/hardware
- Citakan pamasangan (upami kalebet)

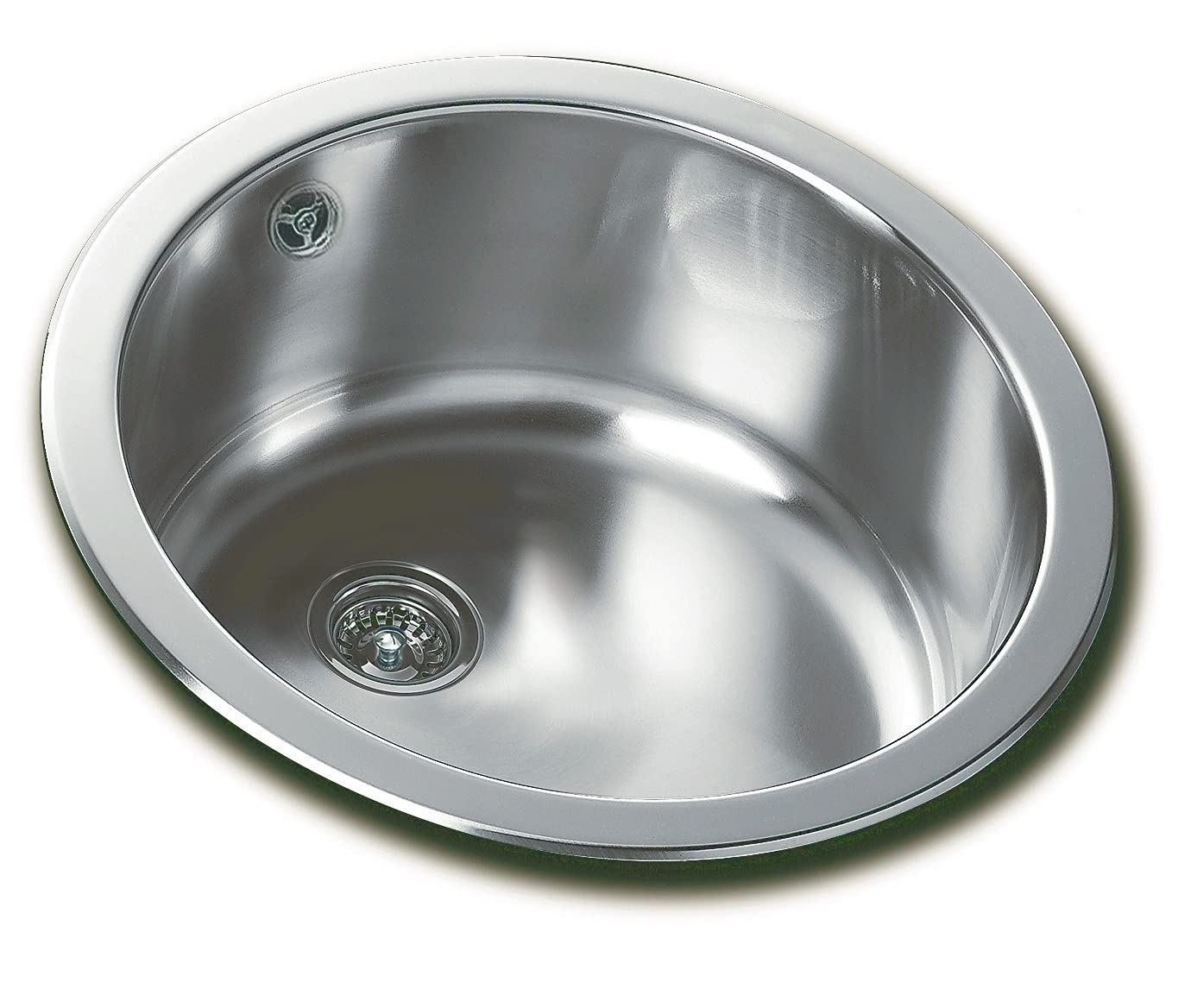

Image 1: Teka Eline Round Stainless Steel Sink, showing the polished finish and single bowl design.
4. Parentah instalasi
The Teka Eline sink is designed for drop-in installation. Follow these steps for proper setup:
- Nyiapkeun countertop: Using the provided template (if available) or the sink's dimensions, mark the cutout area on your countertop. Ensure the cutout is precise for a secure fit.
- Potong bubuka: Carefully cut the opening in the countertop according to the marked lines. Smooth any rough edges.
- Larapkeun Sealant: Apply a bead of silicone sealant around the perimeter of the cutout opening on the countertop.
- Posisi Wastafel: Carefully lower the sink into the cutout opening, ensuring it is centered and level. Press down firmly to create a good seal with the sealant.
- Amankeun Wastafel: Attach the mounting clips to the underside of the sink rim and tighten them against the countertop to secure the sink in place.
- Pasang Majelis Saluran: Connect the grid drain assembly to the sink's drain opening, ensuring all seals are properly seated to prevent leaks.
- Sambungkeun Pipa: Connect the drain assembly to your household plumbing system. Test for leaks by running water into the sink.
Image 2: Technical diagram showing the dimensions of the Teka Eline sink. The outer diameter is 450mm, and the inner bowl diameter is 390mm. Please refer to the product specifications for precise depth measurements.
Gambar 3: Lain view of the Teka Eline Round Stainless Steel Sink, highlighting its polished surface and compact design.
5. Operasi sarta pamakéan
The Teka Eline sink is designed for standard kitchen use. To operate, simply turn on your faucet to fill the sink or rinse items. The grid drain type allows for efficient water drainage while preventing larger debris from entering the plumbing.
- Avoid dropping heavy or sharp objects into the sink, which could dent or scratch the stainless steel.
- Do not pour harsh chemicals, paints, or solvents down the drain, as these can damage the plumbing and the sink's finish over time.
- For optimal performance, ensure the drain is clear of food particles and debris after each use.
6. Perawatan sareng Pangropéa
Proper care will ensure the longevity and appearance of your stainless steel sink:
- beberesih poean: Wipe the sink with a soft cloth or sponge and mild dish soap after each use. Rinse thoroughly with clean water and dry to prevent water spots and mineral buildup.
- Noda nekad: For more stubborn stains, use a non-abrasive stainless steel cleaner. Always rub in the direction of the grain to avoid scratching.
- Hindarkeun: Do not use steel wool, abrasive pads, bleach, or cleaners containing chlorides, as these can damage the stainless steel finish and cause corrosion.
- Nyegah goresan: While stainless steel is durable, it can scratch. Use a sink grid or mat to protect the bottom of the sink from pots and pans.
- Pangropéa saluran: Regularly clean the drain strainer to prevent blockages and maintain good drainage.
7. Cara ngungkulan
Ieu mangrupikeun solusi pikeun masalah umum anu anjeun tingali:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Water spots/Stains | Hard water minerals, not drying the sink after use. | Wipe dry after each use. Use a stainless steel cleaner for existing spots. |
| Drainase laun | Food debris or grease buildup in the drain. | Clean the drain strainer. Use a plumbing-safe drain cleaner if necessary. |
| Leaks around the sink rim or drain | Improperly sealed installation or loose drain connections. | Check sealant around the rim; reapply if needed. Tighten drain connections. Consult a plumber if issues persist. |
| Goresan dina beungeut cai | Abrasive cleaning, sharp objects. | Use non-abrasive cleaners. Consider a stainless steel scratch repair kit for minor scratches. Prevent future scratches with a sink grid. |
8. Spésifikasi produk
| Fitur | Rincian |
|---|---|
| merek | Teka |
| Nomer modél | ELINE (Reference: 10108035) |
| Bahan | Beusi sténless |
| Warna | pérak |
| Wangun | Buleud |
| Tipe rengse | Dipoles |
| Métode Pamasangan | Lebetkeun |
| Ukuran (L x W x H) | 50 x 50 x 28 cm (kira-kira 19.7 x 19.7 x 11 inci) |
| Sink Width | 45 cm (kira-kira 17.7 inci) |
| Jumlah Mangkuk | 1 |
| Number of Faucet Holes | 1 |
| Tipe solokan | Grid |
| Item Beurat | 2.38 kg (kira-kira 5.25 lbs) |
9. Garansi jeung Rojongan
Teka products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Teka website. For technical support or service inquiries, please contact Teka customer service through their official channels.
Pabrikan: TEKA
Websitus: www.teka.com
