Buku Panduan Pwc Engine Johnson Evinrude Power Pack CD3 AL 113-4808

1. Bubuka

This manual provides essential information for the installation, operation, and maintenance of the Pwc Engine Johnson Evinrude Power Pack CD3 AL 113-4808. This power pack is designed as a direct replacement component for specific Johnson and Evinrude outboard marine engines, ensuring reliable ignition system performance.

Proper installation and adherence to these instructions are crucial for the optimal function and longevity of the power pack and your engine.

2. Produk Langkungview

The Pwc Engine Power Pack CD3 AL 113-4808 is a high-performance ignition control unit compatible with various Johnson and Evinrude outboard engines. It integrates advanced features to enhance engine reliability and protection.

2.1 Fitur konci

• 6700 RPM Limiter: Prevents engine over-revving, protecting internal components from damage.
• S.L.O.W. (Speed Limiting Overheat Warning) Function: Automatically limits engine RPM to 2500 RPM in the event of engine overheating, providing a safety mechanism and warning.
• Fungsi Mimitian Gancang: Facilitates easier engine starting.
• OEM Standard Compliance: Manufactured to meet or exceed original equipment manufacturer specifications for fit and performance.

2.2 Komponén

The power pack unit includes the main control module and an integrated wiring harness with various connectors for engine integration.

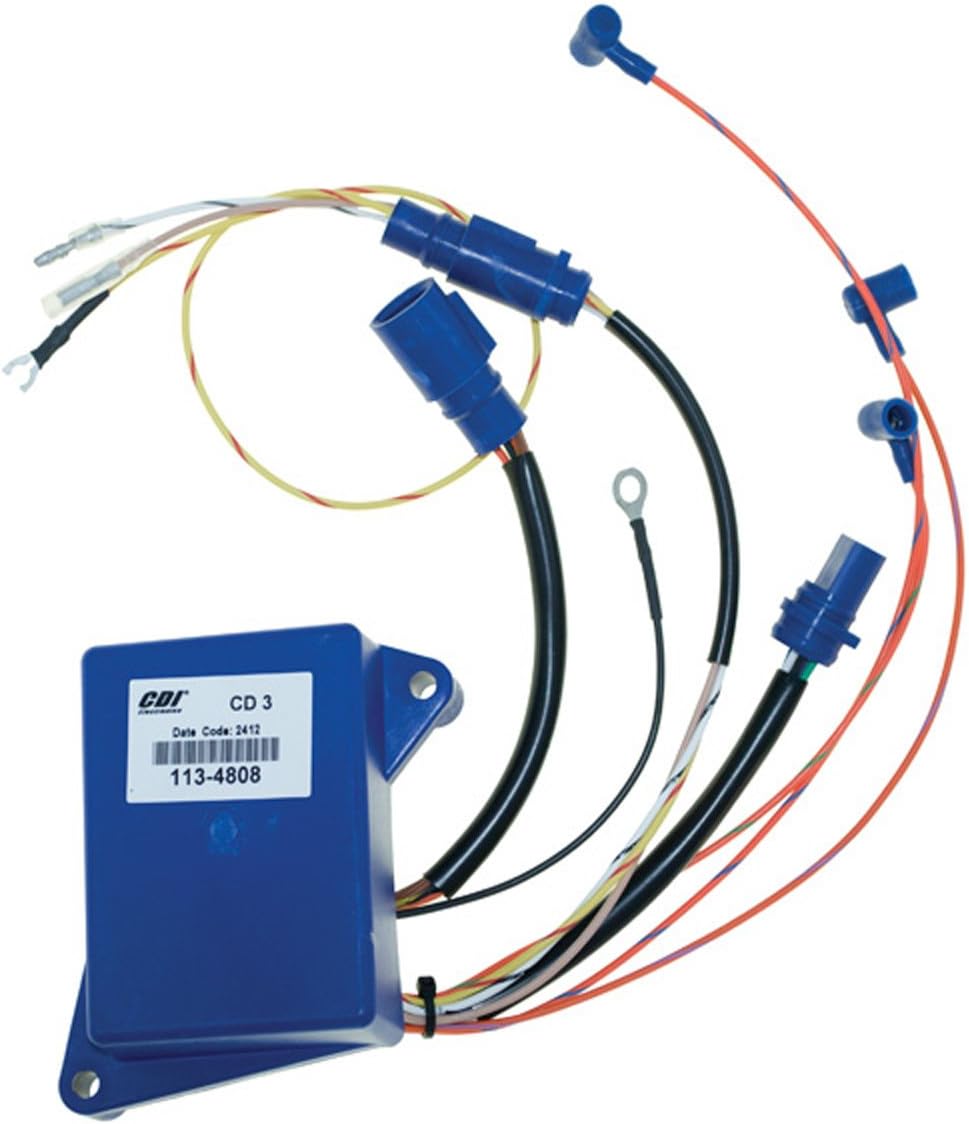

Gambar 1: Pwc Engine Johnson Evinrude Power Pack CD3 AL 113-4808. This image displays the blue power pack module with its integrated wiring harness, including various connectors and ignition coil wires.

3. Compatibility and Application

This power pack is compatible with the following engine models and specifications:

• Jenis mesin: Johnson Evinrude CD3 AL
• Kuda Kuda: 70 Hp
• Model Taun: 1994 - 1995
• Konfigurasi mesin: TTL, 3 Cylinder Loop Charged engines
• Also Fits: 1993-1998 60 Hp, 70 Hp, and 40 Jet 3 Cylinder Loop Charged engines.

Ngagantikeun Nomer Bagian OEM: 18-5774, 18-5780, 584808, 585145, 585189, 5004532, 5004533.

Important: Always verify compatibility with your specific engine model and existing part numbers before installation.

4. Parentah instalasi

Safety Warning: Disconnect the battery before performing any electrical work on your engine. Consult a qualified marine technician if you are unsure about any installation steps.

1. Persiapan: Ensure the engine is turned off and the battery is disconnected. Gather necessary tools (wrenches, screwdrivers, wire cutters/strippers if needed).
2. Panggihan Power Pack anu tos aya: Identify the current power pack unit on your engine. Note how it is mounted and connected.
3. Pegatkeun sambungan kabel: Carefully disconnect all wires and connectors from the old power pack. Pay attention to the color coding and routing of each wire. It may be helpful to take photos for reference.
4. Hapus Unit Old: Unbolt or unmount the old power pack from its position.
5. Pasangkeun Paket Daya Anyar: Securely mount the new Pwc Engine Power Pack CD3 AL 113-4808 in the same location as the old unit. Ensure all mounting hardware is tightened appropriately.
6. Sambungkeun Wiring: Connect the wiring harness of the new power pack to the corresponding engine connections. Refer to the following wire lengths for ignition coils:
   • Orange/Blue Wire: 13 inches
   • Orange Wire: 6 inches
   • Orange/Green Wire: 9 inches
   Pastikeun sadaya sambungan aman sareng bebas tina korosi.
7. Pariksa sambungan: Double-check all wiring connections to ensure they are correct and tight.
8. Sambungkeun deui Batré: Once all connections are verified, reconnect the engine battery.
9. Test Engine: Start the engine and observe its operation. Listen for any unusual noises and check for proper ignition and RPM response.

5. Prinsip Operasi

The power pack operates automatically once installed. Its primary functions are to control the ignition timing and provide protective features for the engine.

• Operasi normal: The power pack manages the ignition system to ensure optimal spark delivery for efficient combustion across the engine's RPM range, up to the 6700 RPM limit.
• S.L.O.W. Function: If the engine's temperature sensors detect an overheating condition, the S.L.O.W. function will activate. This reduces the engine's maximum RPM to approximately 2500 RPM, signaling the operator to address the overheating issue while allowing the engine to be safely operated at reduced power.
• Mimitian Gancang: This feature assists in cold starting by optimizing ignition parameters during the initial cranking phase.

6. Pangropéa

The Pwc Engine Power Pack is a sealed electronic unit and generally requires minimal maintenance. However, periodic inspection of its connections and surrounding environment is recommended.

• Inspeksi Visual: Regularly inspect the power pack and its wiring harness for any signs of physical damage, corrosion, or loose connections.
• Kabersihan: Keep the area around the power pack clean and free from excessive moisture, dirt, or debris. Use a soft, dry cloth for cleaning. Avoid using harsh chemicals or high-pressure water directly on the unit.
• Integritas sambungan: Ensure all electrical connectors remain tight and free of corrosion. Apply dielectric grease to connections if operating in a high-moisture environment.

7. Cara ngungkulan

If you experience issues with your engine's ignition system after installing the power pack, consider the following troubleshooting steps:

• No Spark or Intermittent Spark:
  • Verify all wiring connections are secure and correctly installed.
  • Check for damaged or corroded wires and connectors.
  • Inspect spark plugs and ignition coils for proper function.
  • Ensure the engine's kill switch is not engaged.
• Engine Overheating (S.L.O.W. Function Activated):
  • The power pack is functioning as designed to protect the engine.
  • Immediately investigate the cause of engine overheating (e.g., clogged cooling system, faulty water pump, low coolant).
  • Do not continue to operate the engine at high RPMs until the overheating issue is resolved.
• Mesin teu ngamimitian:
  • Confirm battery charge and connections.
  • Check fuel supply and engine priming.
  • Ensure all safety interlocks (e.g., neutral safety switch) are correctly engaged.

If issues persist after troubleshooting, it is recommended to consult a certified marine mechanic or contact Pwc Engine customer support.

8. Spésifikasi

9. Garansi jeung Rojongan

For specific warranty information regarding your Pwc Engine Power Pack, please refer to the documentation provided at the time of purchase or contact the seller directly. Pwc Engine products are designed to meet high-quality standards.

For technical assistance or support, please contact your authorized Pwc Engine dealer or the customer service department of Water Sport Manufacturing.

Note: Unauthorized modifications or improper installation may void the product warranty.
