Esperanza ECN002 ZEPHYR Inhaler User Manual

Bubuka

Thank you for choosing the Esperanza ECN002 ZEPHYR Inhaler. This device is designed to deliver medication in mist form for respiratory therapy. Please read this manual thoroughly before use to ensure safe and effective operation. Keep this manual for future reference.

Émbaran Kasalametan penting

• Always consult your physician or pharmacist to determine the appropriate medication, dosage, and treatment regimen.
• Do not use the device in the presence of flammable anesthetics or oxygen.
• Jauhkeun alat tina jangkauan barudak sareng piaraan.
• Pastikeun kabel listrik henteu ruksak sareng disambungkeun leres ka stop kontak listrik anu cocog.
• Do not immerse the compressor unit in water or any other liquid.
• Unplug the device from the power outlet before cleaning or maintenance.
• Paké ngan asesoris jeung bagian dianjurkeun ku produsén.

Komponén produk

The Esperanza ECN002 ZEPHYR Inhaler typically includes the following components:

• Unit Kompresor
• Piala Nebulizer
• Tabung hawa
• Corong
• Topeng Dewasa
• Topeng Barudak
• Saringan Udara (cadangan)

Gambar 1: The Esperanza ECN002 ZEPHYR Inhaler compressor unit with the nebulizer cup, air tube, and mask assembled, ready for use. The blue lid of the compressor is open, revealing the power switch.

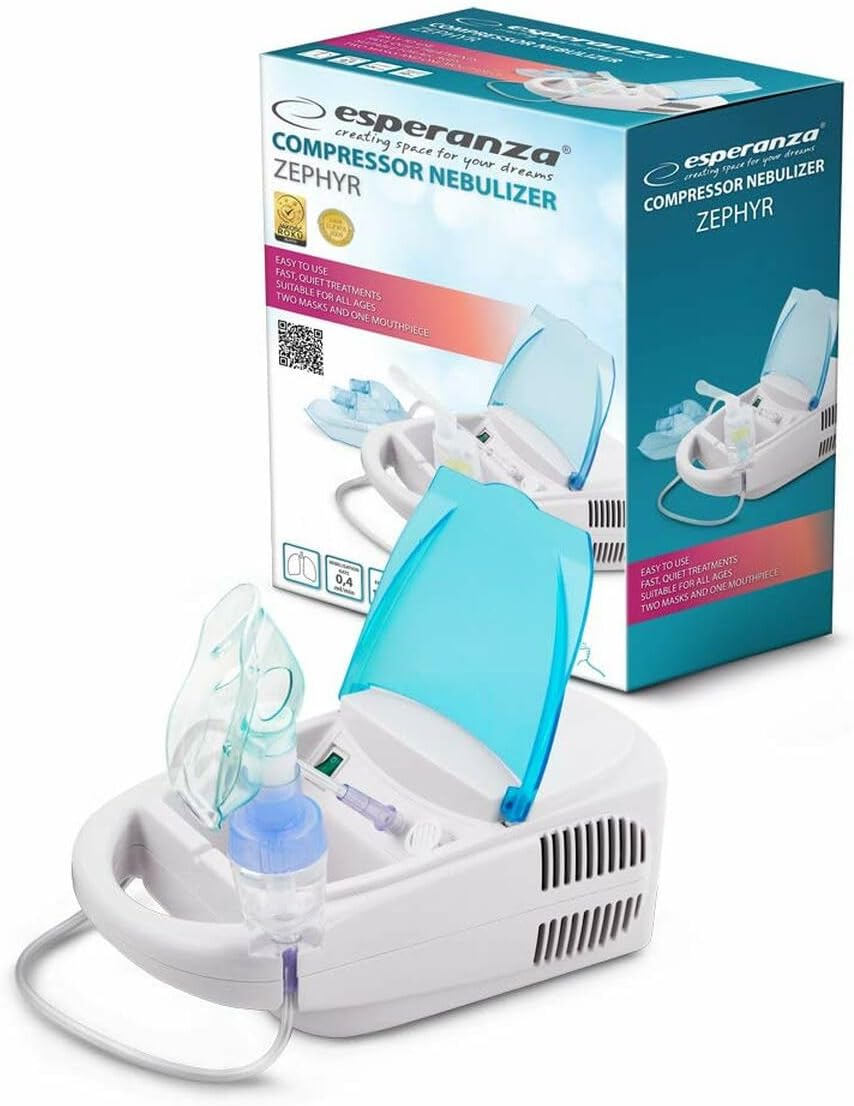

Gambar 2: The Esperanza ECN002 ZEPHYR Inhaler shown alongside its retail packaging box. The box highlights features such as "easy to use" and "fast, quiet treatments."

Setup sareng Majelis

1. Ngabongkar: Sacara saksama miceun sadaya komponén tina bungkusan. Mariksa karusakan naon waé.
2. Bersih: Before first use, clean the nebulizer cup, mouthpiece, and masks as described in the "Maintenance" section.
3. Sambungkeun Tabung Udara: Attach one end of the air tube to the air outlet on the compressor unit.
4. Attach Nebulizer Cup: Connect the other end of the air tube to the bottom inlet of the nebulizer cup.
5. Add Medication: Open the nebulizer cup and pour the prescribed amount of medication into the medication chamber. Do not overfill.
6. Attach Mouthpiece/Mask: Securely attach either the mouthpiece or the appropriate mask (adult or child) to the top of the nebulizer cup.
7. Sambungan Daya: Colokkeun kabel listrik kana stop kontak listrik anu cocog.

Parentah Operasi

1. Ensure the device is properly assembled and medication is loaded into the nebulizer cup.
2. Sit upright in a comfortable position.
3. Turn on the compressor unit by pressing the power switch. The compressor will begin to produce a fine mist.
4. If using the mouthpiece, place it between your teeth and seal your lips around it. Breathe slowly and deeply through your mouth.
5. If using a mask, place it over your nose and mouth, ensuring a snug fit. Breathe normally.
6. Continue the treatment until the medication chamber is empty or the mist stops forming. This typically takes 5-10 minutes for 5ml of medication.
7. Once the treatment is complete, turn off the compressor unit and unplug it from the power outlet.

Catetan: The device may become warm during operation. This is normal. If it becomes excessively hot or emits unusual odors, discontinue use immediately and contact customer support.

beberesih sarta Pangropéa

Beberesih Sapopoé (Saatos Unggal Dianggo):

1. Disconnect the nebulizer cup, mouthpiece/mask, and air tube from the compressor unit.
2. Disassemble the nebulizer cup into its individual parts.
3. Wash all parts (except the air tube and compressor unit) in warm soapy water. Rinse thoroughly with clean water.
4. Air dry the parts completely on a clean paper towel or cloth.

Disinfection (Once a Week or as Recommended):

1. After daily cleaning, soak the nebulizer cup parts, mouthpiece, and mask in a solution of one part white vinegar to two parts distilled water for 30 minutes.
2. Alternatively, use a medical disinfectant solution as recommended by your physician or the manufacturer.
3. Rinse all parts thoroughly with sterile water and air dry completely.

Compressor Unit Cleaning:

• Wipe the exterior of the compressor unit with a clean, damp lawon. Ulah make cleaners abrasive atawa beuleum dina cai.

Ngaganti Saringan Udara:

• Check the air filter regularly (e.g., every 10-12 treatments or monthly).
• Replace the filter when it appears discolored or clogged. Do not wash or reuse old filters.
• Refer to the filter compartment on your compressor unit for replacement instructions.

Panyimpenan:

• Store the clean, dry device and accessories in a cool, dry place, away from direct sunlight and extreme temperatures.

Pamérésan masalah

Spésifikasi teknis

• Jumlah modél: ECN002
• merek: Esperanza
• Ukuran (L x W x H): 2.79 x 24.64 x 16.51 cm (kira-kira 1.1 x 9.7 x 6.5 inci)
• beurat: 1.87 kg (kira-kira 4.12 lbs)
• Sumber Daya: AC (standard electrical outlet) - spésifik voltage/frequency not provided, refer to device label.
• Laju Nebulization: Not specified in provided data.
• Ukuran partikel: Not specified in provided data.
• Suhu operasi: Not specified in provided data.
• Suhu Panyimpenan: Not specified in provided data.

Spésifikasi tiasa robih tanpa aya bewara sateuacanna pikeun perbaikan produk.

Garansi sareng Rojongan

For warranty information, please refer to the warranty card included with your product or contact your point of purchase. Esperanza provides customer support for product inquiries, troubleshooting, and spare parts.

Punten tahan bukti pameseran anjeun pikeun klaim garansi.
