Kinzo 37-Piece Screwdriver Set Instruction Manual

1. Produk Langkungview

The Kinzo 37-Piece Screwdriver Set is designed for various tasks in work, workshop, home, garden, and hobby environments. This comprehensive set features screwdrivers and bits crafted from durable chrome vanadium steel, ensuring longevity and reliable performance. Each tool is engineered for a comfortable and secure grip, and many feature magnetic tips for enhanced usability, aiding in screw retention during tasks.

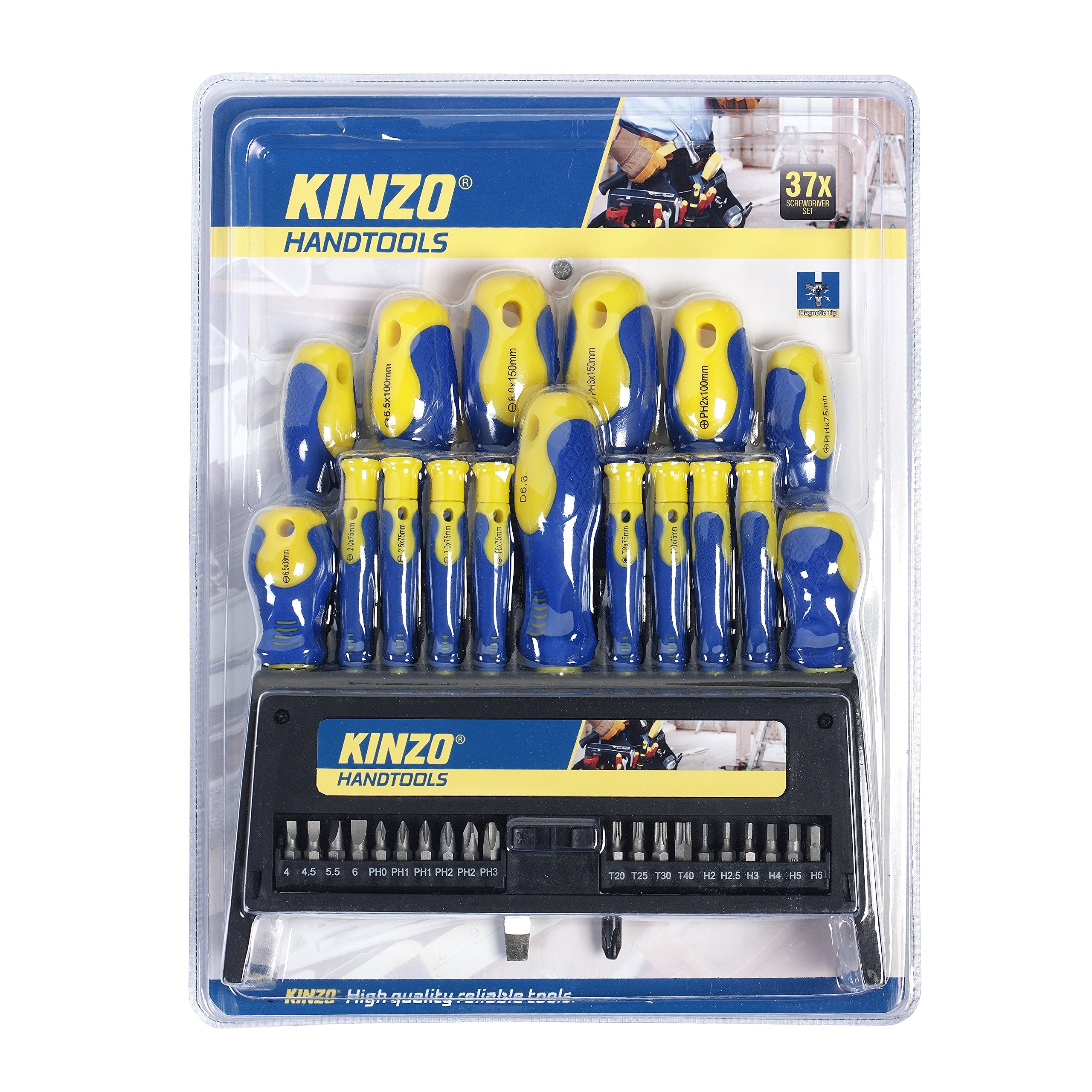

Image 1.1: The Kinzo 37-Piece Screwdriver Set, showcasing the range of tools included.

2. Émbaran Kasalametan

Always adhere to basic safety precautions when using hand tools to prevent injury and damage to property.

• Nganggo panyalindungan panon: Salawasna nganggo kacamata kaamanan atawa kacasoca pikeun ngajaga panon anjeun tina lebu ngalayang.
• Anggo Alat anu Leres: Select the appropriate screwdriver size and type for the screw head to prevent stripping the screw or damaging the tool.
• Ngajaga Pakem Teguh: Ensure a secure grip on the screwdriver handle to prevent slippage.
• Larapkeun Tekanan Ajeg: Apply firm, steady pressure in line with the screw to prevent the tip from camming out.
• Jaga Parabot Bersih sareng Garing: Store tools in a clean, dry place to prevent rust and maintain their condition.
• Do Not Use as a Pry Bar: Screwdrivers are not designed for prying; using them as such can cause damage to the tool or injury.
• Jauhkeun tina jangkauan barudak: Store tools securely away from children.

3. Eusi Paket

The Kinzo 37-Piece Screwdriver Set includes a variety of screwdrivers and interchangeable bits, designed to cover a wide range of fastening needs. The set typically contains:

• Slotted Screwdrivers: Assorted sizes including 6.5x38mm, 2.0x75mm, 2.5x75mm, 3.0x75mm, 6x75mm, 6.5x100mm, 8.0x150mm.
• Phillips Screwdrivers: Assorted sizes including PH1x75mm, PH2x100mm, PH3x150mm.
• Torx Screwdriver: T8x75mm.
• Screwdriver Bits (6.3mm hex shank):
  • Slotted: 4mm, 4.5mm, 5.5mm, 6mm.
  • Phillips: PH0, PH1 (x2), PH2 (x2), PH3.
  • Torx: T20, T25, T30, T40.
  • Hex: H2, H2.5, H3, H4, H5, H6.
• Panyekel Bit: For use with the interchangeable bits.
• Storage Case/Tray: To keep all 37 pieces organized.

Note: The exact composition of the 37 pieces may vary slightly. Refer to the product packaging for the most accurate list.

4. Setup and Tool Selection

Proper tool selection is crucial for effective and safe operation.

1. Identify Screw Head Type: Determine if the screw head is Slotted, Phillips, Torx, Hex, or another type.
2. Match Size: Select a screwdriver or bit that precisely fits the screw head. A snug fit prevents cam-out and damage to both the screw and the tool.
3. For Bits: If using an interchangeable bit, insert it firmly into the bit holder or a compatible driver handle until it is securely seated.
4. Tip Magnét: Utilize the magnetic tip feature (present on many tools) to hold screws in place, especially when working in awkward positions or with small fasteners.

5. Parentah Operasi

Follow these steps for effective use of your Kinzo screwdriver set:

1. Posisi Alat: Place the tip of the selected screwdriver or bit into the corresponding screw head.
2. Nerapkeun tekanan: Apply firm, downward pressure directly in line with the screw. This helps prevent the tool from slipping out of the screw head.
3. Rotasikeun:
   • Ka ketang a screw, rotate the screwdriver handle clockwise.
   • Ka ngaleupas a screw, rotate the screwdriver handle counter-clockwise.
4. Ngajaga Pajajaran: Keep the screwdriver aligned with the screw throughout the rotation to avoid stripping the screw head or damaging the tool tip.
5. Hindarkeun Overtightening: Tighten screws until snug. Overtightening can damage the screw, the material, or the tool.

6. Pangropéa sarta perawatan

Proper maintenance extends the life of your tools and ensures optimal performance.

• beberesih: After each use, wipe down screwdrivers and bits with a clean, dry cloth to remove dirt, dust, and grease. For heavier grime, a mild, non-corrosive cleaning agent can be used, followed by thorough drying.
• Panyimpenan: Store the entire set in its original case or a suitable tool organizer in a dry environment. This prevents rust, corrosion, and keeps the tools organized and easily accessible.
• Pamariksaan: Periodically inspect the tips of screwdrivers and bits for signs of wear, rounding, or damage. Worn tools can damage screw heads and should be replaced.
• Lubrication (upami aya): While not typically required for screwdrivers, ensure any moving parts (e.g., bit holder mechanisms) are free of debris.

7. Cara ngungkulan

Masalah umum sareng solusina:

• Screwdriver Slips / Strips Screw Head:
  • Cukang lantaranana: Incorrect screwdriver size/type, insufficient downward pressure, or worn tool tip.
  • Solusi: Ensure you are using the correct size and type of screwdriver/bit for the screw. Apply firm, steady downward pressure while turning. Replace worn bits or screwdrivers.
• Screw is Stuck / Difficult to Turn:
  • Cukang lantaranana: Rust, threadlocker, or overtightening.
  • Solusi: For rusted screws, apply penetrating oil and allow it to soak. For very tight screws, ensure maximum leverage and grip. Avoid excessive force that could damage the screw or tool.
• Bits Fall Out of Holder:
  • Cukang lantaranana: Bit not fully inserted, or bit holder mechanism is worn.
  • Solusi: Ensure the bit is pushed all the way into the holder. If the holder is worn, it may need replacement.

8. Spésifikasi

9. Rojongan

For product inquiries, technical assistance, or to report any issues, please contact the retailer from whom you purchased this Kinzo Screwdriver Set. You may also visit the official Kinzo websitus kanggo sumber daya dukungan tambahan sareng inpormasi kontak.
