ALLOYSEED Bluetooth FM Transmitter Car Charger User Manual

Bubuka

Thank you for choosing the ALLOYSEED Bluetooth FM Transmitter Car Charger. This device allows you to stream audio from your Bluetooth-enabled smartphone or tablet to your car's FM radio, make hands-free calls, and charge your mobile devices via its integrated USB port. Please read this manual carefully to ensure proper use and optimal performance.

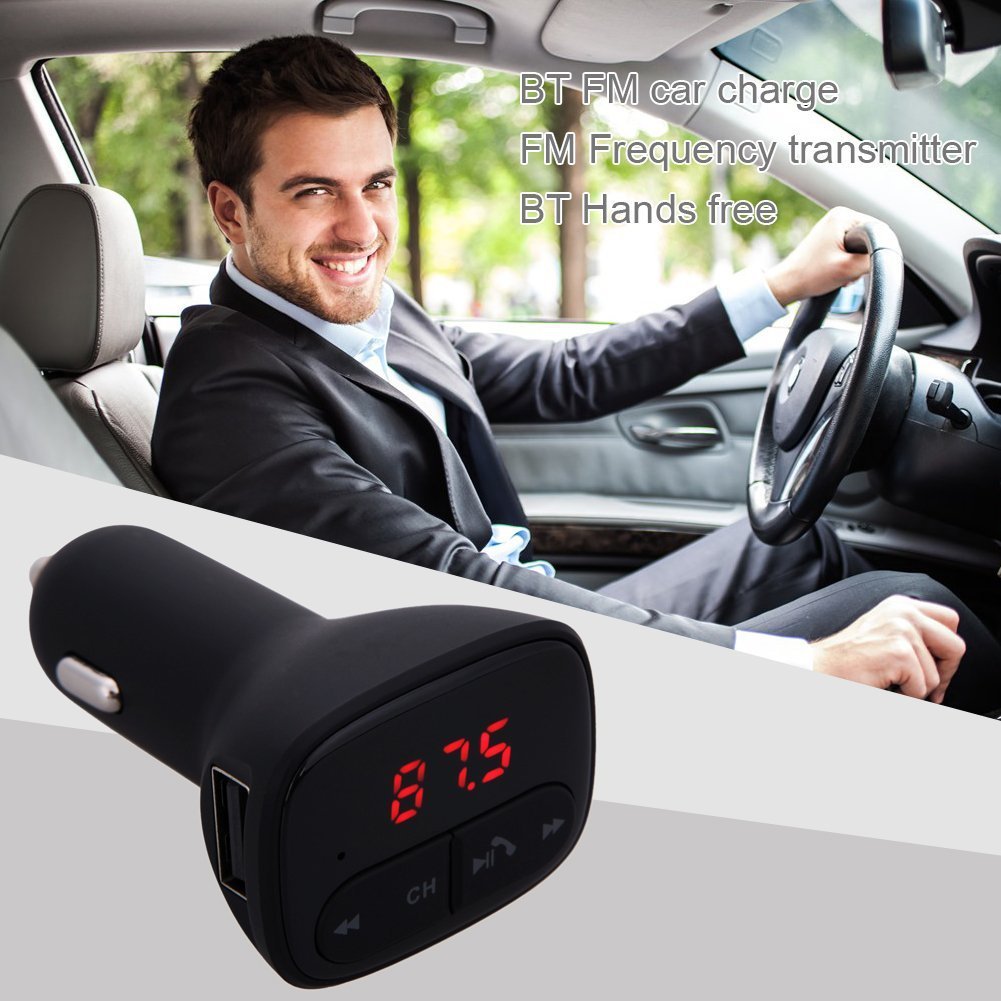

Image: The ALLOYSEED Bluetooth FM Transmitter Car Charger plugged into a car's cigarette lighter socket, with a driver in the background.

Émbaran Kasalametan

• Ulah ngabongkar atawa ngaropéa alat.
• Jauhkeun alat tina cai, beueus, sareng suhu anu ekstrim.
• Hindarkeun alat ka sinar panonpoé langsung pikeun période anu panjang.
• Ensure the car's cigarette lighter socket provides the specified DC 12V~24V input voltage.
• Do not operate the device while driving if it distracts you from the road. Prioritize road safety.

Produk Leuwihview

Familiarize yourself with the components of your ALLOYSEED Bluetooth FM Transmitter Car Charger:

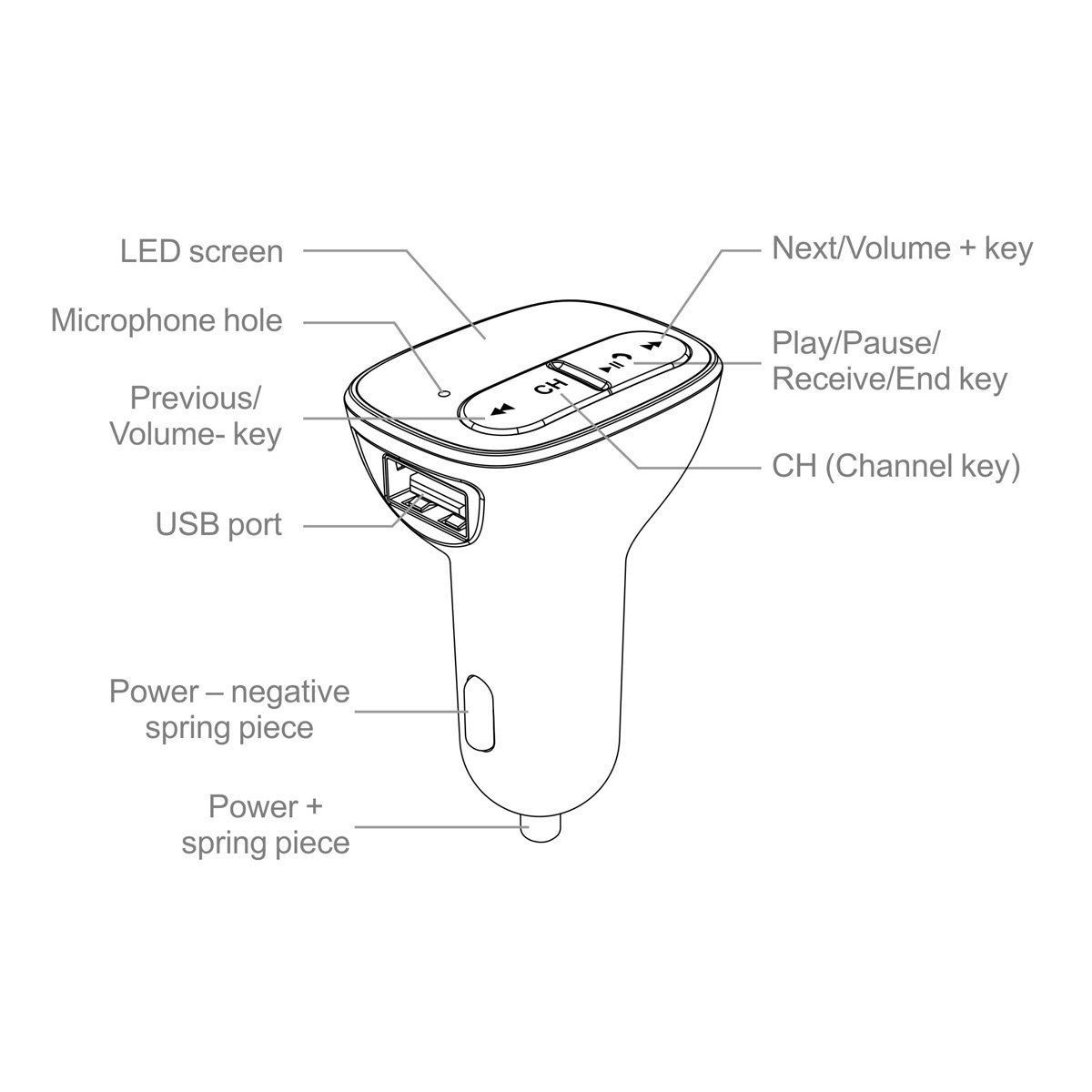

Image: A detailed diagram of the ALLOYSEED Bluetooth FM Transmitter Car Charger, highlighting its various components and controls.

1. Layar LED: Displays FM frequency.
2. Microphone Hole: Pikeun nelepon handsfree.
3. saméméhna/Volume- Key: Pencét sakeudeung pikeun lagu samemehna, pencét lila pikeun ngurangan volume.
4. Next/Volume+ Key: Pencét sakeudeung pikeun lagu salajengna, pencét lila pikeun ningkatkeun volume.
5. Play/Pause/Receive/End Key: Short press to play/pause music, answer/end calls. Long press to reject calls.
6. CH (Channel Key): Short press to enter FM frequency adjustment mode.
7. Port USB: 2.1A output for charging mobile devices.
8. Power - Negative Spring Piece: Connects to the negative terminal of the car's power socket.
9. Power + Spring Piece: Connects to the positive terminal of the car's power socket.

spésifikasi

Disetél

1. Selapkeun kana Socket Mobil: Plug the ALLOYSEED Bluetooth FM Transmitter into your car's 12V-24V cigarette lighter socket. The device will power on automatically, and the LED screen will display the current FM frequency.
2. Daya Hurung: The device powers on automatically when connected to the car's power.

Parentah Operasi

1. Setting the FM Frequency

1. Pencét éta CH (Channel) key. The frequency display on the LED screen will start flashing.
2. Ngagunakeun éta Previous/Volume- key or Next/Volume+ key to adjust the FM frequency. Select a frequency that is clear and not occupied by a local radio station.
3. Once the desired frequency is set, wait a few seconds. The display will stop flashing, and the frequency will be saved.
4. Tune your car's FM radio to the frékuénsi sarua as displayed on the transmitter.

2. Papasangan Bluetooth

1. After powering on, the device will automatically enter Bluetooth pairing mode. The LED screen may show a Bluetooth icon or similar indicator.
2. Dina smartphone atanapi tablet anjeun, aktipkeun Bluetooth sareng milarian alat anu sayogi.
3. Select the device named "ALOYSEED" (or similar) from the list to pair.
4. Once paired, a confirmation sound or indicator may be heard/seen. You are now ready to stream audio.

3. Puterkeun Musik

• After successful Bluetooth pairing, open your music player on your smartphone/tablet and start playing music.
• The audio will be transmitted to your car's FM radio.
• Ngagunakeun éta Tombol Puter / Reureuh on the transmitter to play or pause music.
• Ngagunakeun éta Previous/Volume- key jeung Next/Volume+ key for track navigation (short press) and volume adjustment (long press).
• The device has an automatic memory function, resuming the last played song when restarted.

4. Nelepon Hands-Free

• When a call comes in, the music will automatically pause.
• Pencét éta Play/Pause/Receive/End key sakali pikeun ngajawab telepon.
• Pikeun ngeureunkeun telepon, pencét tombol Play/Pause/Receive/End key sakali deui.
• Pikeun nampik telepon asup, pencét lila kenop Play/Pause/Receive/End key.
• Mikropon internal ngamungkinkeun komunikasi anu jelas.

5. Ngecas Alat

• Connect your mobile device (smartphone, tablet, etc.) to the port USB on the transmitter using a compatible USB charging cable.
• The USB port provides a 2.1A output for efficient charging.

Pangropéa

• Bersihkeun alat ku kaen anu lemes sareng garing. Ulah make cleaners cair atawa aerosol.
• Ensure the USB port and cigarette lighter connector are free from dust and debris.
• Simpen alat dina tempat anu tiis sareng garing upami henteu dianggo kanggo waktos anu lami.

Pamérésan masalah

• Henteu aya kakuatan: Ensure the device is securely plugged into the car's cigarette lighter socket and that the car's ignition is on. Check the car's fuse for the cigarette lighter.
• Kualitas Sora Lemah/Statis:
  • Adjust the FM frequency on the transmitter and your car radio to find a clear, unoccupied channel.
  • Pastikeun volume dina telepon sareng radio mobil anjeun disetel kalayan leres.
  • Move away from areas with strong radio interference.
• Bluetooth Teu Nyapasangkeun:
  • Pastikeun Bluetooth diaktipkeun dina alat sélulér Anjeun.
  • Restart the transmitter by unplugging and re-plugging it.
  • Poho alat tina setelan Bluetooth telepon anjeun teras cobian pasangkeun deui.
  • Ensure the transmitter is within range of your phone.
• Ngecas USB Teu Jalan:
  • Check if the charging cable is properly connected to both the device and the USB port.
  • Coba kabel USB anu béda.
  • Ensure the car charger is receiving power.

Garansi sareng Rojongan

This product is covered by a warranty policy. For details regarding warranty coverage, terms, and conditions, please refer to the information provided at the point of purchase or contact ALLOYSEED customer support. Keep your purchase receipt as proof of purchase.

For technical assistance or further inquiries, please contact ALLOYSEED customer support through the official channels provided by the seller or manufacturer.
