1. Bubuka
This manual provides detailed instructions for the installation, operation, and maintenance of your Soundstream SPT.22 Pro Audio Tweeters. Please read this manual thoroughly before attempting installation or use to ensure proper function and safety.
2. Émbaran Kasalametan
Awas: Produk ieu ngandung bahan kimia anu dipikanyaho Nagara California pikeun nyababkeun kanker sareng cacad kalahiran atanapi cilaka réproduktif sanés. Kanggo inpo nu leuwih lengkep, mangga buka www.P65Warnings.ca.gov.
- Salawasna pegatkeun batré kandaraan sateuacan ngamimitian padamelan listrik naon waé.
- Pastikeun sadaya kabel diisolasi kalayan leres pikeun nyegah korsleting.
- Taroskeun pamasang audio mobil profésional upami anjeun henteu yakin ngeunaan bagian mana waé tina prosés pamasangan.
- Do not operate audio equipment at excessively high volumes for prolonged periods, as this may cause hearing damage.
- Ensure the tweeters are securely mounted to prevent detachment during vehicle operation.
3. Eusi Paket
Pastikeun yén sadaya item aya dina bungkusan:
- (2) Soundstream SPT.22 Tweeters
- Wiring
- Pamasangan Hardware
- Manual Pitunjuk (dokumén ieu)
Image 1: Contents of the Soundstream SPT.22 package, showing two tweeters and various color trim rings.
4. Setup jeung Instalasi
4.1 Pamasangan
The SPT.22 tweeters are designed for siram Gunung pamasangan.
- Choose a suitable mounting location in your vehicle, ensuring adequate clearance behind the mounting surface for the tweeter's depth (2.5 inches).
- Use the provided template (if included, or measure carefully) to mark the cutout area.
- Potong liang dina permukaan pemasanganna kalawan ati-ati.
- Secure the tweeter into the opening using the supplied mounting hardware. Ensure a snug fit to prevent vibrations.
4.2 Kabel
Proper wiring is crucial for optimal performance and to prevent damage to the tweeters or your audio system.
- The SPT.22 tweeters have an impedance of 4 ohm. Ensure your amplifier or head unit can safely drive a 4-ohm load.
- Sambungkeun terminal positif (+) tweeter kana output positif (+) tweeter anjeun. amplifier or crossover.
- Sambungkeun terminal négatif (-) tweeter kana kaluaran négatif (-) tweeter anjeun. amplifier or crossover.
- It is highly recommended to use a passive or active crossover to filter out low frequencies, as tweeters are designed to reproduce high frequencies only. Failure to do so can damage the tweeters.
- Pastikeun sadaya sambungan aman sareng insulated pikeun nyegah sirkuit pondok.
5. Parentah Operasi
Once installed and wired correctly, your Soundstream SPT.22 tweeters are ready for use.
- Start with your audio system's volume at a low level.
- Gradually increase the volume and adjust the audio settings (equalizer, crossover points) on your head unit or amplifier to achieve the desired sound balance.
- Listen for clear, crisp high-frequency reproduction. If distortion is heard, reduce the volume or re-check your crossover settings.
- Avoid operating the tweeters at maximum power for extended periods to prolong their lifespan.
6. Pangropéa
The Soundstream SPT.22 tweeters require minimal maintenance.
- Periodically wipe the tweeter grilles with a soft, dry cloth to remove dust.
- Do not use harsh chemicals or abrasive cleaners, as these can damage the finish or components.
- Ensure no foreign objects obstruct the tweeter's diaphragm.

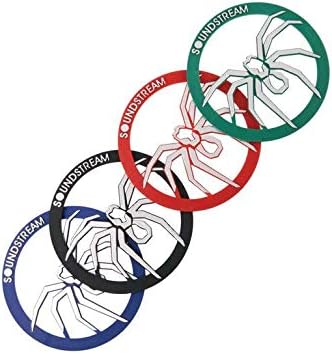

Image 2: Interchangeable color rings for customizing the appearance of the SPT.22 tweeters.
7. Cara ngungkulan
If you experience issues with your SPT.22 tweeters, refer to the following common problems and solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| No Sound from Tweeters |
|
|
| Sora Distort |
|
|
| Sora intermittent |
|
|
8. Spésifikasi
| Fitur | Spésifikasi |
|---|---|
| Ngaran modél | SPT.22 |
| Tipe Speaker | Tweeter |
| Tipe Pamasangan | siram Gunung |
| Penanganan Daya Max | 600 Watt |
| RMS Power nanganan | 300 Watt |
| Impedansi | 4 ohm |
| Réspon Frékuénsi | 2 kHz - 25 kHz |
| Pamasangan Jerona | 2.5 inci |
| Ukuran produk (D x W x H) | 14.5" x 4" x 3.2" |
| Item Beurat | 1.2 pon |
| Téhnologi konektipitas | Dikabel |
| Mode Kaluaran Audio | Stereo |
| UPC | 709483054837 |
9. Émbaran jaminan
The Soundstream SPT.22 Pro Audio Tweeters come with a Garansi kawates. For specific terms and conditions of your warranty, please refer to the warranty card included with your product or visit the official Soundstream websitus. Simpen resi pameseran anjeun salaku bukti pameseran pikeun klaim garansi.
10. Rojongan
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Soundstream customer support.
- Dukungan Online: Kunjungi Soundstream resmi websitus pikeun FAQs jeung sumber rojongan.
- Toko merek: Anjeun oge bisa manggihan inpo leuwih lengkep jeung produk di Soundstream Amazon Store.
