This instruction manual provides essential information for the proper installation and maintenance of your Homedics TotalClean AF-15 Carbon Pre-Filter. This filter is specifically designed for use with the Homedics TotalClean AP-15 Air Purifier to ensure optimal performance in reducing household odors and capturing larger airborne particles.
Produk Leuwihview
The Homedics TotalClean AF-15 Carbon Pre-Filter is an integral component of your AP-15 Air Purifier's filtration system. It functions as the first line of defense, capturing larger particles such as dust, hair, lint, and dirt, while also utilizing activated carbon to reduce common household odors. This pre-filter helps extend the life of the main HEPA filter by preventing premature clogging.
Image: Homedics TotalClean AF-15 Carbon Pre-Filter, showing the product packaging and its primary function to remove large particles and reduce odors.
Image: The Homedics AP-15 Air Purifier shown alongside the AF-10FL filter, indicating compatibility.
Pamasangan
Follow these steps to correctly install or replace the AF-15 Carbon Pre-Filter in your Homedics TotalClean AP-15 Air Purifier:
- Ensure the air purifier is turned off and unplugged from the power outlet before proceeding.
- Locate the filter cover on your AP-15 Air Purifier. Refer to your air purifier's main instruction manual for specific details on opening the filter compartment.
- Carefully remove the used pre-filter and main HEPA filter assembly.
- Detach the old carbon pre-filter from the main HEPA filter.
- Place the new AF-15 Carbon Pre-Filter onto the main HEPA filter, ensuring it fits securely.
- Reinsert the filter assembly into the air purifier, making sure it is seated correctly.
- Tutup panutup saringan kalayan aman.
- Colokkeun deui nyucikeun hawa kana stop kontak listrik.

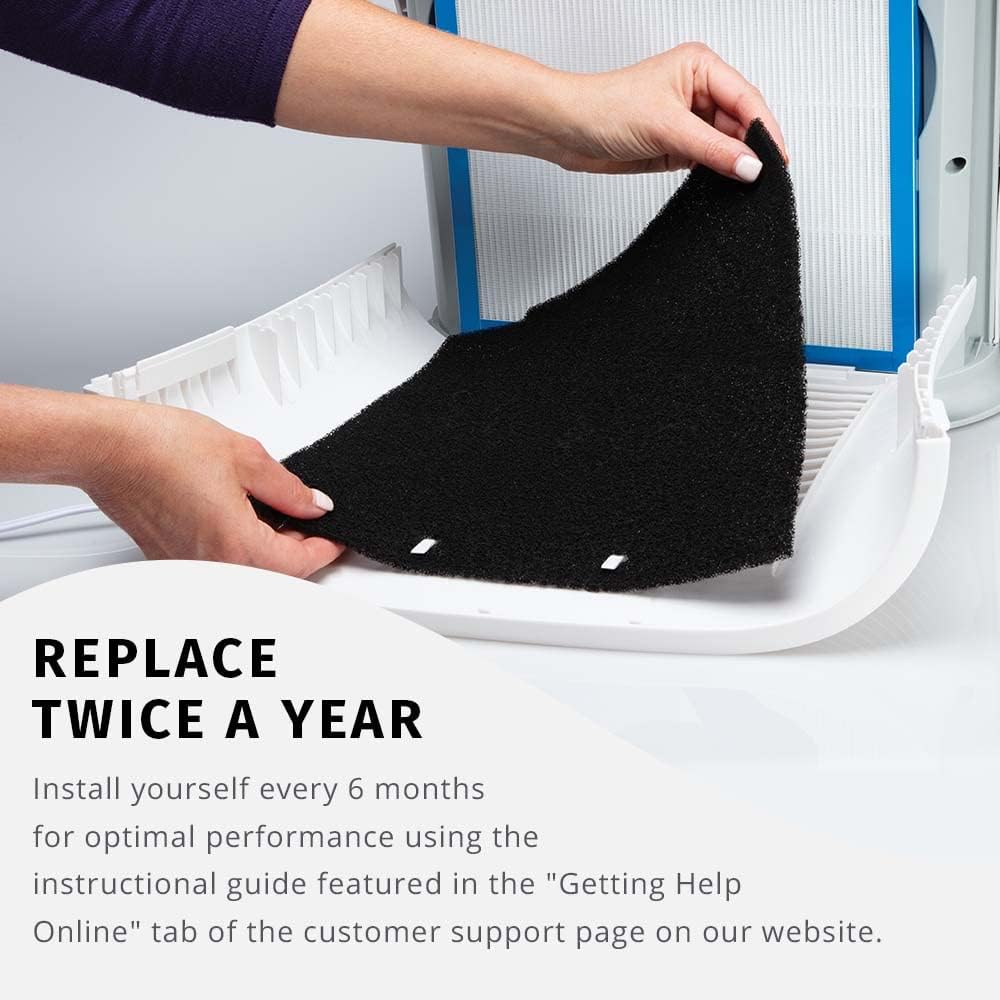

Image: A person's hands demonstrating the installation of the carbon pre-filter into the air purifier unit.
Operating: Filter Reset
After replacing the carbon pre-filter, it is important to reset the filter indicator on your Homedics TotalClean AP-15 Air Purifier. This ensures accurate tracking of filter life.
- With the air purifier powered on, locate the filter reset button or indicator light on the control panel.
- Press and hold the filter reset button for approximately 3-5 seconds until the indicator light resets or turns off. Refer to your AP-15 Air Purifier's manual for the exact location and procedure for the filter reset button.
Image: A close-up of the Homedics air purifier's control panel, highlighting the power, fan speed, and filter replacement indicator.
Pangropéa
For optimal performance of your Homedics TotalClean AP-15 Air Purifier, the AF-15 Carbon Pre-Filter should be replaced regularly.
- Jadwal ngagantian: Replace the AF-15 Carbon Pre-Filter every 3 months under normal usage conditions. Increased usage or environments with higher levels of pollutants may require more frequent replacement.
- beberesih: The carbon pre-filter is not washable and should not be cleaned. Attempting to clean it may damage the filter material and reduce its effectiveness.
Pamérésan masalah
If you experience issues after replacing your pre-filter, consider the following:
- Bau Persisten: Ensure the pre-filter is correctly installed and seated. If odors persist, the main HEPA filter may also need replacement, or the environment may have a continuous source of strong odors.
- Filter Indicator Light Still On: Confirm that you have performed the filter reset procedure as described in the 'Operating: Filter Reset' section. If the light remains on, consult your AP-15 Air Purifier's main manual or Homedics customer support.
- Ngurangan aliran hawa: Check that the filter is not obstructed and is installed correctly. Ensure the air purifier's intake and output vents are clear.
spésifikasi
| Fitur | Rincian |
|---|---|
| Nomer modél | AF-15 |
| Compatible Air Purifier | Homedics TotalClean AP-15 |
| Jenis Filter | Karbon Pra-Filter |
| Bahan | Karbon |
| Ukuran (kira-kira) | 11.31 inches (L) x 10.88 inches (W) x 0.21 inches (Th) |
| kuantitas | 4 saringan per pak |
Image: Visual representation of the dimensions for both the Homedics AP-15 Air Purifier and the AF-15 filter.
Garansi
No specific warranty information is provided for this replacement carbon pre-filter. For details regarding the warranty of your Homedics TotalClean AP-15 Air Purifier, please refer to the original product manual or contact Homedics customer support.
Ngarojong
For further assistance, questions, or to purchase additional replacement filters, please visit the official Homedics website or contact their customer support department. Contact information can typically be found on the Homedics website or in your air purifier's original manual.
