Identiv SCR 3310 v2.0 SCM USB Smart Card Reader

1. Bubuka

The Identiv SCR 3310 v2.0 is a compact and practical USB smart card reader designed for secure digital transactions and access. Its ergonomic design and mounting holes allow for easy integration into various systems. This reader is compatible with ISO 7816 smart cards in ID-1 format and is EMV Level 1 certified, ensuring reliable performance for a wide range of applications.

Typical applications include e-banking, electronic identification, social security and loyalty programs, electronic coupon campaigns, secure network and PC access, and online shopping.

2. Émbaran Kasalametan

Please read and follow these safety guidelines to ensure safe and proper operation of your smart card reader:

• Entong ngalaan alat ka suhu anu ekstrim, sinar panonpoé langsung, atanapi kalembaban anu luhur.
• Hindarkeun ragrag atanapi ngagentoskeun alat kana tabrakan anu kuat.
• Ulah nyobian ngabongkar atawa ngaropéa alat. Ieu bakal ngabatalkeun jaminan.
• Jauhkeun alat tina cairan. Upami cairan asup kana alat, langsung pegatkeun sambunganna teras hubungi layanan palanggan.
• Use only the provided USB cable or a compatible, certified USB cable.
• Pastikeun ventilasi ditangtoskeun sabudeureun alat salila operasi.

3. Eusi Paket

Pastikeun yén sadaya item aya dina pakét anjeun:

• Identiv SCR 3310 v2.0 Smart Card Reader
• Integrated USB Type-A Cable (1.5 m)
• Pituduh Mimitian Gancang (upami aya, teu disebutkeun sacara éksplisit tapi umum)

4. Setélan

4.1 Ngahubungkeun Pamaca

The SCR 3310 v2.0 is a plug-and-play device that draws power directly from the USB port. No external power adapter is required.

1. Teangan hiji port USB sadia dina komputer Anjeun.
2. Insert the USB Type-A connector of the reader's cable into the USB port.
3. The green status LED on the reader will illuminate, indicating that the device is powered on and ready.

Gambar 1: Hareupeun view of the SCR 3310 v2.0 Smart Card Reader.

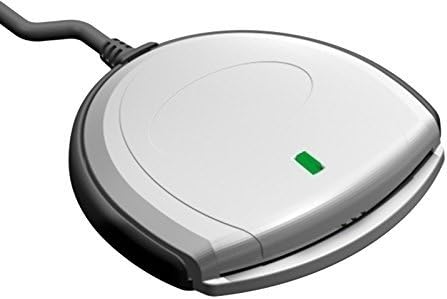

Gambar 2: Angled view of the reader with the green status LED illuminated.

4.2 Pamasangan Supir

The SCR 3310 v2.0 is CCID compliant, meaning it typically uses standard drivers built into modern operating systems. In most cases, the driver will install automatically upon connecting the device.

Sistem Operasi anu Dirojong:

• Windows 98, ME, 2000, XP, Server 2003
• Windows Vista (32/64 Bit)
• Windows 7 (32/64 Bit)
• Windows 8 (32/64 Bit)
• Windows 10 (32/64 Bit)
• Windows CE 4.2, 5.0
• MacOS
• Solaris
• Linux

If the driver does not install automatically, or if you encounter issues, you may need to download the latest drivers from the Identiv support website. The reader utilizes PC/SC and CT-API (via a PC/SC-based wrapper) for application communication.

Figure 3: Driver installation process on a computer.

Note: This reader does not work with DATEV applications.

5. Parentah Operasi

5.1 Inserting a Smart Card

To use the smart card reader, insert your ID-1 format smart card into the slot on the front of the device.

1. Orient the smart card with the chip facing upwards and towards the reader.
2. Gently slide the smart card into the slot until it is fully seated. Do not force the card.
3. The reader will automatically detect the card. The green status LED may blink or change state depending on the application's activity.

Figure 4: Smart card being inserted into the reader.

5.2 Removing a Smart Card

Pikeun miceun kartu pinter:

1. Ensure that no application is actively using the smart card.
2. Gently pull the smart card out of the slot.

Caution: Do not remove the smart card while an application is actively accessing it, as this may lead to data corruption or application errors.

6. Pangropéa

The Identiv SCR 3310 v2.0 requires minimal maintenance. Follow these guidelines to keep your device in optimal condition:

• beberesih: Use a soft, dry, lint-free cloth to wipe the exterior of the reader. Do not use liquid cleaners, aerosols, or abrasive materials.
• Panyimpenan: When not in use, store the reader in a clean, dry environment, away from dust and extreme temperatures.
• Perawatan kabel: Avoid bending or kinking the USB cable excessively. Do not pull the cable to disconnect the reader from the computer; always grasp the USB connector.

7. Cara ngungkulan

If you encounter issues with your smart card reader, refer to the following common problems and solutions:

8. Spésifikasi

Gambar 5: Balik view of the reader with product information and certifications.

9. Garansi jeung Rojongan

9.1 Émbaran jaminan

Identiv products are manufactured to the highest quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Identiv websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.

9.2 Rojongan Téknis

If you require technical assistance or have questions not covered in this manual, please contact Identiv customer support. You can find contact information and additional resources, including driver downloads and FAQs, on the official Identiv websitus:

www.identiv.com/support

When contacting support, please have your product model (SCR 3310 v2.0) and serial number (found on the back of the device, e.g., 53312211230194) parantos siap.
