Symcode MJ-R30-2D Mini Ring Barcode Scanner User Manual

1. Bubuka

The Symcode MJ-R30-2D is a compact, ring-type barcode scanner designed for efficient data collection in various environments such as warehouses, retail stores, and logistics centers. It offers versatile connectivity options including Bluetooth, 2.4GHz wireless, and USB wired connection, supporting both 1D and 2D barcode types. This manual provides essential information for setting up, operating, and maintaining your device.

2. Produk Langkungview jeung Komponén

The MJ-R30-2D scanner features a unique ring design for comfortable, hands-free operation. It is equipped with advanced decoding capabilities to read various barcode types efficiently.

Eusi pakét:

• Symcode MJ-R30-2D Barcode Scanner
• USB Ngecas / Kabel Data
• Dongle USB Nirkabel 2.4GHz
• User Manual (Brochure)

3. Setup jeung Konfigurasi Awal

The MJ-R30-2D scanner is designed for plug-and-play operation, requiring no application downloads or driver installations for basic functionality. For detailed configuration, refer to the provided Japanese instruction manual and scan the appropriate setup codes.

Kasaluyuan Sistim:

• Windows
• Mac OS
• iOS (iPhone, iPad)
• alat Android

Catetan: For PCs without built-in Bluetooth, a separate Bluetooth receiver adapter is required to use the Bluetooth connection mode.

4. Modeu Operasi

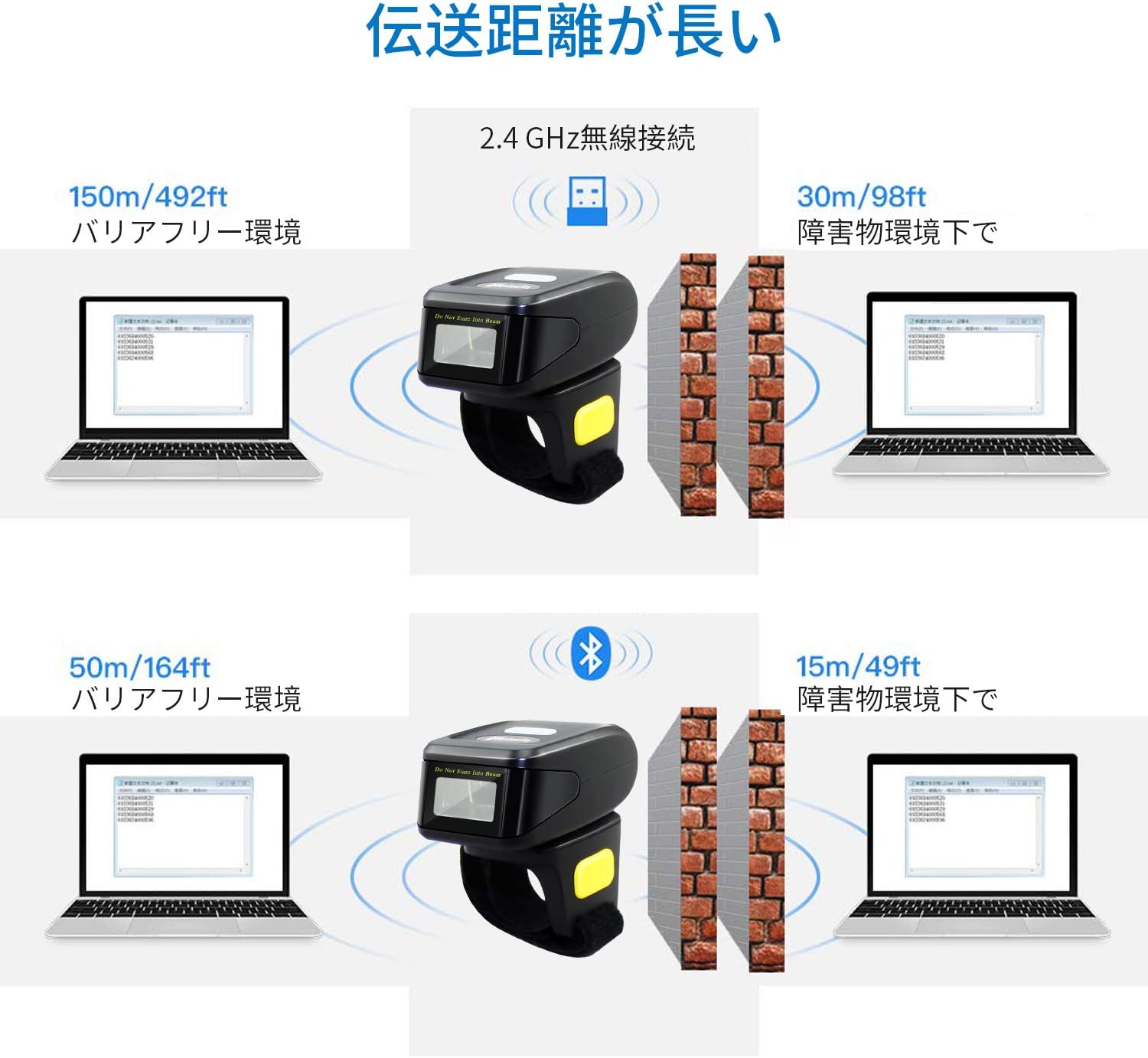

The scanner supports three primary connection modes: USB Wired, 2.4GHz Wireless, and Bluetooth.

4.1. Modeu Kabel USB

Connect the scanner directly to your computer using the provided USB cable. This mode allows for both data transmission and charging. The cable ensures a stable connection and supports mobile flash charging.

4.2. Modeu Wireless 2.4GHz

Insert the 2.4GHz USB dongle into your computer's USB port. The scanner will automatically connect to the dongle. This mode provides a robust wireless connection suitable for environments where Bluetooth might be less ideal.

4.3. Mode Bluetooth

Enable Bluetooth on your smartphone, tablet, or computer. Put the scanner into Bluetooth pairing mode (refer to the manual for specific instructions, usually by scanning a pairing barcode). Select the scanner from your device's Bluetooth settings to establish a connection. No dongle is required for Bluetooth-enabled devices.

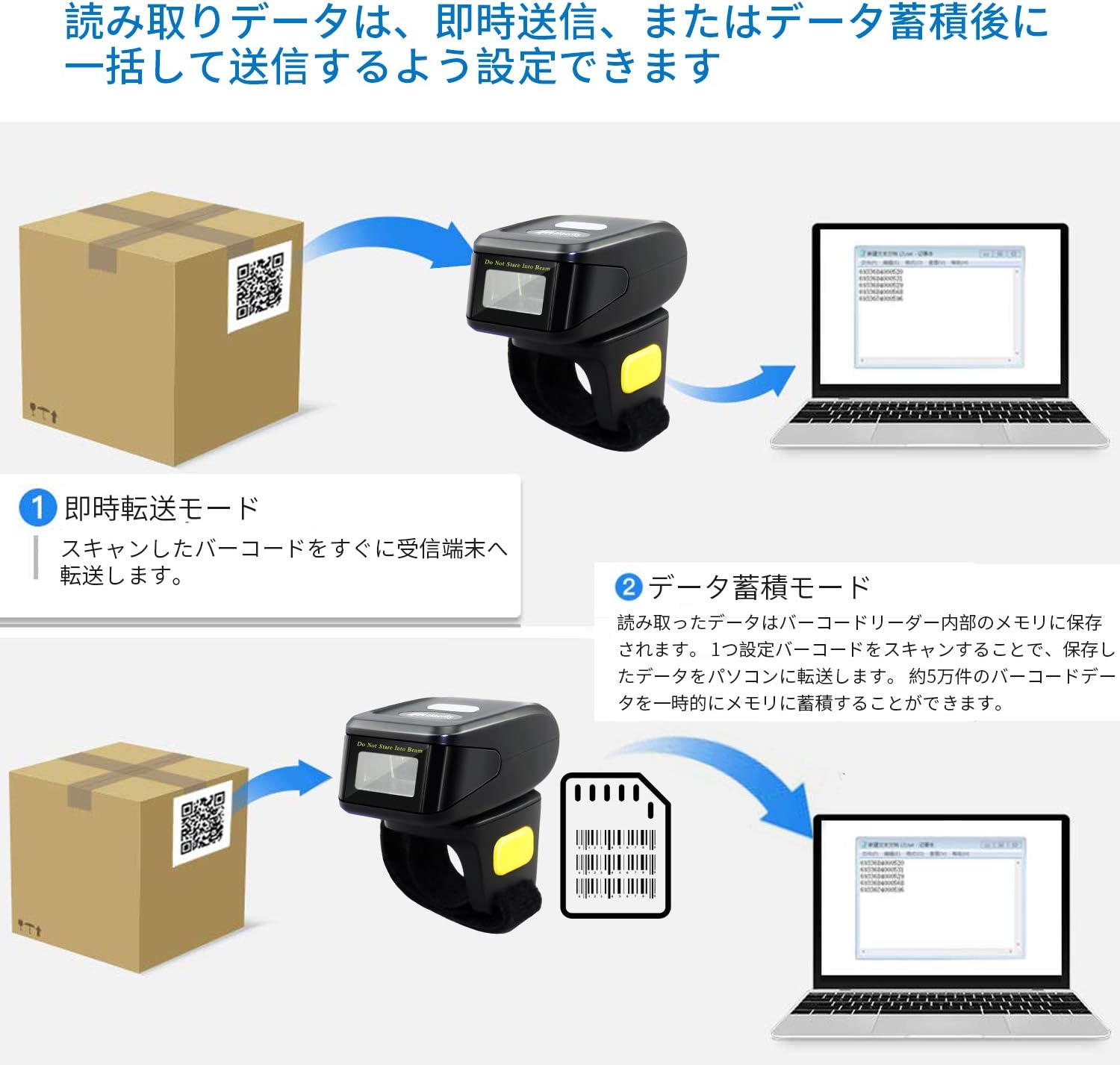

5. Data Transmission Modes

The scanner offers flexibility in how scanned data is handled, allowing for immediate transfer or temporary storage.

5.1. Instant Transmission Mode

In this mode, scanned barcodes are immediately transmitted to the connected receiving device (e.g., computer, smartphone). This is ideal for real-time inventory updates or point-of-sale operations.

5.2. Data Storage Mode

The scanner can store approximately 50,000 barcode entries in its internal memory. Scanned data is saved internally and can be uploaded in a batch to a connected PC or device later. This mode is useful for offline scanning or when connectivity is intermittent.

6. Kamampuh Dekoding Barcode

The MJ-R30-2D scanner features excellent decoding capabilities, recognizing both 1D and 2D barcodes even if they are blurred, damaged, or scanned under challenging lighting conditions (weak or strong light).

Supported 1D Barcode Types:

• JAN/EAN-13, JAN/EAN-8, UPC-A, UPC-E
• Code11, Code32, Code39, Code 39 Full ASCII, Code93, Code128
• Codabar (NW-7)
• Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5
• PLESSEY, MSI, ITF14
• ISBN, ISSN
• GS1 Databar, GS1-128 (UCC/EAN128), ISBT-128

Supported 2D Barcode Types:

• QR Code
• Matrix Data
• PDF417
• Kodeu Aztec
• Maxicode

7. Batré jeung Ngecas

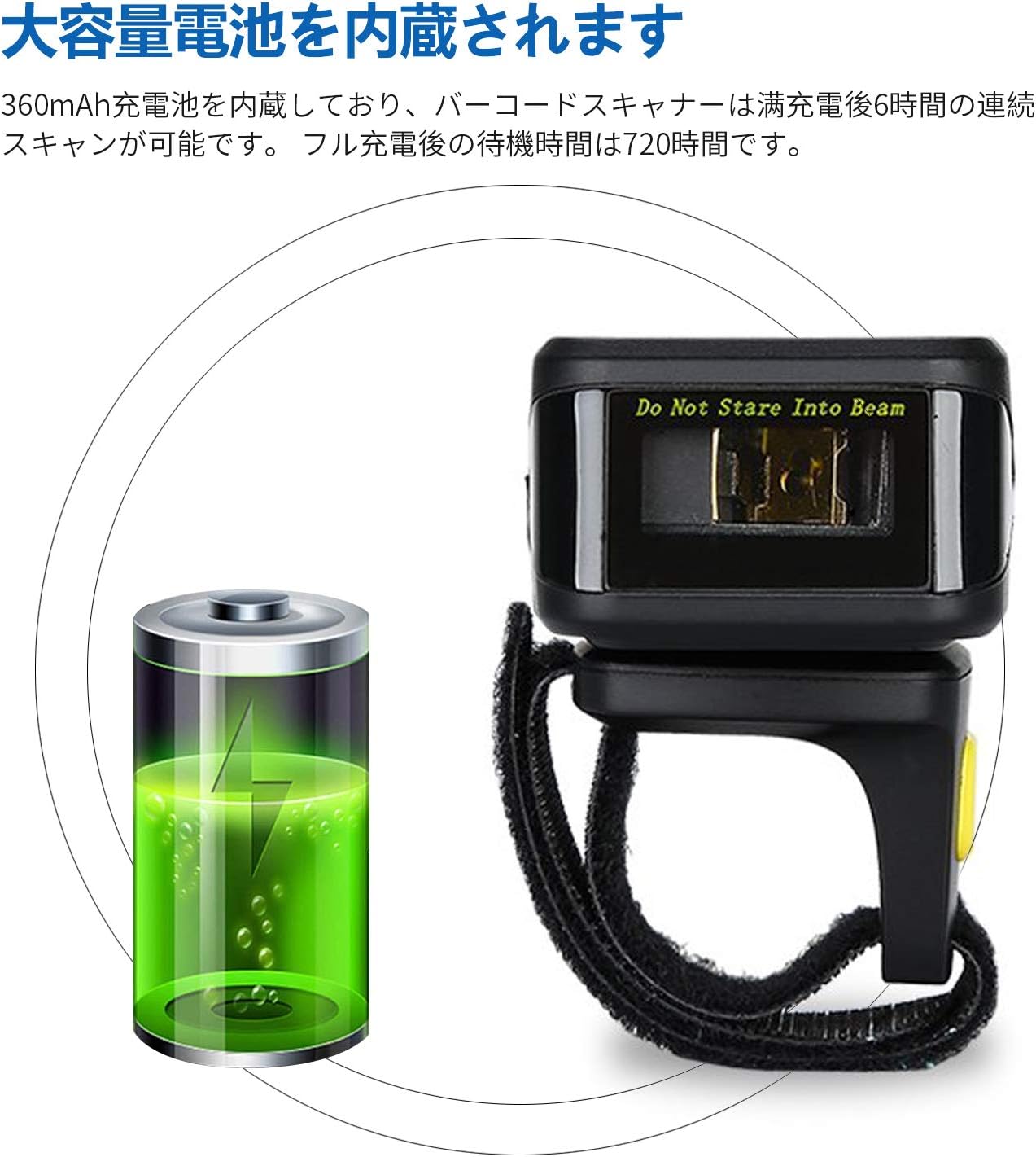

The MJ-R30-2D is equipped with a built-in 360mAh rechargeable battery, providing reliable power for extended use.

Kinerja batré:

• Nyeken kontinyu: Nepi ka 6 jam dina muatan pinuh.
• Waktu sayaga: Up to 720 hours (30 days) on a full charge.

Ngecas:

Connect the scanner to a power source using the provided USB cable. The device will indicate when it is charging and when it is fully charged. Ensure the scanner is fully charged before initial use for optimal performance.

8. Kustomisasi sareng Setélan

The scanner's operation can be customized to fit specific user needs by scanning configuration barcodes found in the detailed product manual.

Scan Reading Modes:

• Modeu pemicu: Scan a barcode by pressing the trigger button.
• Modeu Scan Terus: The scanner continuously scans for barcodes without requiring a trigger press.
• Modeu Deteksi Otomatis: Pamindai sacara otomatis ngadeteksi sareng nyeken barkod nalika éta lebet kana kolomna view.

Feedback Settings:

The scanner's sound and vibration feedback can be toggled on or off as desired, typically by scanning specific configuration barcodes.

9. Cara ngungkulan

This section addresses common issues you might encounter with your Symcode MJ-R30-2D scanner.

9.1. Scanner Not Connecting

• Pariksa kakuatan: Pastikeun scanner tos dicas.
• Sambungan kabel: Verify the USB cable is securely connected to both the scanner and the computer.
• 2.4GHz Wireless: Ensure the USB dongle is properly inserted into the computer and the scanner is in 2.4GHz mode.
• Sambungan Bluetooth: Make sure Bluetooth is enabled on your host device and the scanner is in pairing mode. If connecting to a PC without built-in Bluetooth, ensure a Bluetooth adapter is installed.

9.2. Barcodes Not Scanning

• Jenis Barcode: Confirm the barcode type is supported by the scanner (refer to Section 6).
• Barcode Quality: Ensure the barcode is not excessively damaged, blurred, or poorly printed.
• Pencahayaan: Adjust the scanning angle or environment if glare or insufficient light is an issue.
• Jarak: Maintain an appropriate distance between the scanner and the barcode.

9.3. On-Screen Keyboard Disappears on iOS Devices

When the scanner is connected via Bluetooth to an iOS device (e.g., iPhone, iPad), the on-screen keyboard may not appear automatically. To resolve this, you may need to disconnect the scanner temporarily or use a specific function key combination on the scanner (if available) to toggle the keyboard. Refer to the detailed manual for specific iOS compatibility settings.

10. Spésifikasi

11. Pangropéa

Pangropéa anu leres mastikeun umur panjang sareng kinerja anu optimal tina pamindai barkod anjeun.

• beberesih: Anggo lawon anu lemes sareng garing pikeun ngabersihkeun bagian luar scanner. Pikeun jandela scanning, anggo lawon anu henteu ngaganggu bulu sacara hampang.ampened with a mild cleaning solution (e.g., isopropyl alcohol) if necessary. Avoid abrasive cleaners or direct spraying of liquids.
• Panyimpenan: Simpen alat panyeken di tempat anu tiis sareng garing jauh tina sinar panonpoé langsung sareng suhu anu ekstrim.
• Perawatan batré: For long-term storage, ensure the battery is partially charged (around 50%) to prevent deep discharge. Recharge the battery periodically if not in use for extended periods.
• Perlindungan fisik: While durable, avoid dropping the scanner or subjecting it to strong impacts to prevent internal damage.

12. Garansi jeung Rojongan

Symcode Technology, established in 2009, is committed to providing high-quality barcode scanning products and comprehensive customer support.

For any product-related inquiries, technical assistance, or support needs, please contact Symcode customer service through the platform where you purchased the product (e.g., Amazon). This ensures you receive prompt and accurate support directly from the manufacturer or authorized reseller.
