Tevlaphee Steering Wheel Lock (Black) Instruction Manual

1. Bubuka

This manual provides detailed instructions for the proper installation, operation, and maintenance of your Tevlaphee Steering Wheel Lock. Please read this manual thoroughly before using the product to ensure safe and effective operation. This device is designed to provide an additional layer of security for your vehicle and includes an emergency escape hammer function.

2. Produk Langkungview

The Tevlaphee Steering Wheel Lock is a robust anti-theft device constructed from high-quality alloy steel, aluminum, and metal. It features a B+ quality lock core for enhanced security and an integrated emergency escape hammer. The design is universal, allowing for effortless adaptation to most vehicles.

Fitur konci:

• B+ Quality Lock Core: Designed with a complex double crescent-shaped lock core to resist prying, sawing, and drilling.
• Emergency Escape Hammer: A solid conical head hammer integrated into the design, capable of breaking car windows in emergencies such as floods, accidents, or fires.
• Panjangna tiasa disaluyukeun: Nodal design allows for length adjustment to fit various steering wheel sizes.
• Scratch Protection: Includes adhesive strips and protective caps to prevent damage to your steering wheel and interior.
• Nyaman Pakem: Foam-wrapped handle for comfortable handling and wear resistance.

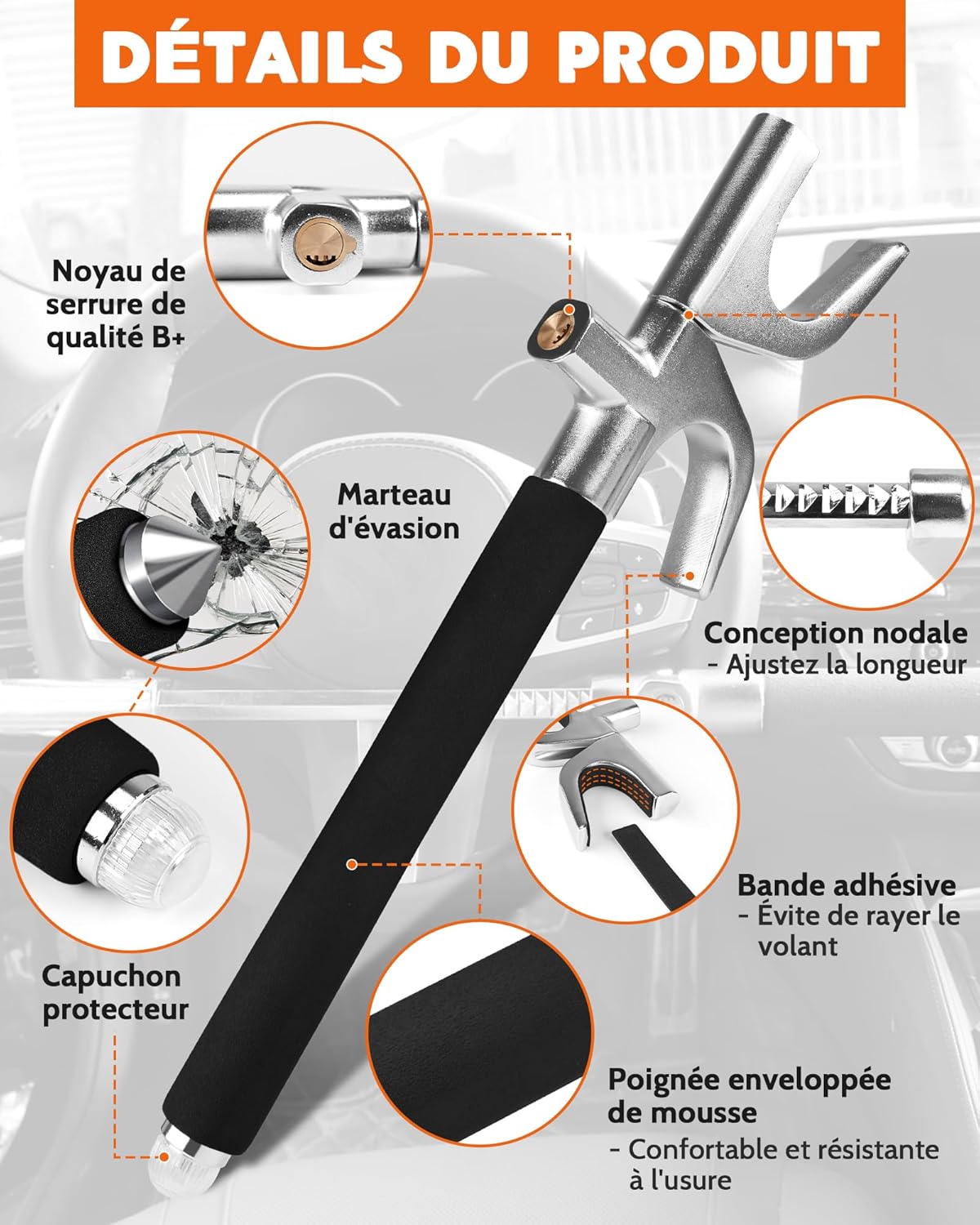

Figure 1: Tevlaphee Steering Wheel Lock - Product Details

Figure 2: B+ Quality Lock Core Detail

Figure 3: Emergency Escape Hammer Tip

3. Émbaran Kasalametan

• Always ensure the lock is securely installed before leaving your vehicle.
• Never attempt to drive with the steering wheel lock engaged.
• Keep keys in a safe place, separate from the vehicle.
• The emergency hammer is for emergency use only. Handle with care to avoid accidental injury or damage.
• Ensure the protective pads are correctly applied to prevent scratches to your steering wheel.

4. Setup jeung Instalasi

Follow these steps to prepare and install your Tevlaphee Steering Wheel Lock:

1. Ngabongkar komponén: Carefully remove the steering wheel lock, 3 keys, 4 protection pads, 2 protective caps, and the Velcro strap from the packaging.
2. Attach Protective Pads: Peel the backing from the 4 protection pads and adhere them to the inner surfaces of the lock's claws where they will contact the steering wheel. This prevents scratches.
3. Pasang Tutup Pelindung: Place the two clear protective caps over the emergency hammer tips at each end of the lock when not in use.
4. Secure with Velcro (Optional): Use the provided Velcro strap to secure the lock in a compact position when storing it, or to hold the claws together during initial setup.
5. Posisikeun konci: Place one claw of the lock over the steering wheel. Extend the lock until the second claw can securely grip the opposite side of the steering wheel. Ensure the lock is positioned to prevent the steering wheel from turning significantly.
6. Pasangkeun konci na: Push the locking mechanism until it clicks into place. No key is needed to lock the device.

Gambar 4: Léngkah-léngkah Pamasangan anu Gampang

5. Operasi

Locking the Device:

To lock the device, simply extend it to the desired length and push the locking mechanism until it engages. The lock will automatically secure without the need for a key. Ensure the lock is firmly in place and prevents significant steering wheel movement.

Figure 5: Quick Locking Mechanism

Muka konci Alat:

Insert one of the provided keys into the lock core and turn it to release the mechanism. The lock will disengage, allowing you to remove it from the steering wheel.

Using the Emergency Escape Hammer:

In an emergency situation where you need to break a car window (e.g., flood, accident, fire), remove the protective cap from one of the hammer tips. Firmly press the conical tip against a side window until it shatters. Aim for the corners of the window for best results.

Figure 6: Emergency Window Breaking Function

6. Pangropéa

• beberesih: Wipe the lock with a soft, damp lawon pikeun miceun lebu sareng kokotor. Hindarkeun pembersih abrasif anu tiasa ngaruksak lapisan akhir.
• Lubrication: Periodically apply a small amount of graphite lubricant to the lock core to ensure smooth operation.
• Panyimpenan: When not in use, store the lock in a dry place, away from extreme temperatures. Ensure the protective caps are on the hammer tips.
• Ngaganti Pad: If the protective pads show signs of wear or detachment, replace them to maintain steering wheel protection.

7. Cara ngungkulan

Kasesahan Ngonci / Muka konci:

• Pastikeun konci parantos dipasangkeun sapinuhna sareng diputer kalayan leres.
• Check for any obstructions in the lock core. Apply lubricant if necessary.
• Verify that the lock is not jammed against the steering wheel or dashboard.

Scratches on Steering Wheel:

• Ensure the protective pads are correctly installed and are not worn out. Replace if necessary.
• Adjust the lock's position to minimize contact with sensitive areas of the steering wheel.

8. Spésifikasi

9. Garansi jeung Rojongan

Tevlaphee products are manufactured to high-quality standards. For warranty information, technical support, or any questions regarding your steering wheel lock, please refer to the contact information provided with your purchase or visit the official Tevlaphee websitus. Punten tahan bukti pameseran anjeun pikeun klaim garansi.
