1. Bubuka
This manual provides essential information for the proper installation, maintenance, and troubleshooting of your Pwc Engine Ariens Snowblower Auger Replacement Belt. Please read these instructions carefully before proceeding with installation or maintenance to ensure safe and effective operation.
2. Produk Langkungview
The Pwc Engine Auger Replacement Belt is designed to meet or exceed OEM standards for Ariens snowblowers. It is constructed from fiber-reinforced polychloroprene rubber compound and features an aramid cord, ensuring superior strength, dimensional integrity, and extended belt life.

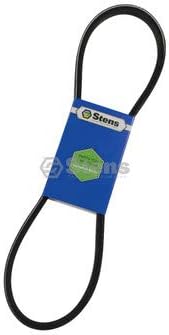

Gambar 1: Pwc Engine Ariens Snowblower Auger Replacement Belt. This image displays the black rubber belt, coiled, with a blue and green product label wrapped around it.
3. Kasaluyuan
This auger drive belt is compatible with the following Ariens Snowblower models:
- Ariens ST926DLE (9HP, 26")
- Model Numbers: 924124-924127, 924335-924337, and 924518
It is a replacement for Ariens OEM Part Numbers: 07200004 jeung 7200004. The Pwc Engine part number is OPE 265-903 A.
penting: Always verify your snowblower's specific OEM part number before purchasing and installing a replacement belt to ensure correct fitment. If unsure, consult your snowblower's original manual or contact a qualified service technician.
4. Pamasangan
Replacing the auger belt on a snowblower requires mechanical aptitude. If you are uncomfortable performing this procedure, it is recommended to seek assistance from a qualified service technician.
Pancegahan Kasalametan:
- Cabut Busi: Always disconnect the spark plug wire to prevent accidental engine starting.
- Mesin Tiis: Allow the engine and all moving parts to cool completely before beginning work.
- Maké Alat Pelindung: Anggo alat pelindung pribadi anu pas, sapertos sarung tangan sareng panyalindungan panon.
- Stabilize Snowblower: Ensure the snowblower is on a flat, stable surface and cannot roll or tip during maintenance.
General Installation Steps (Consult your snowblower's specific service manual for detailed instructions):
- Access Belt Cover: Locate and remove the belt cover(s) on your snowblower, typically found near the engine or auger housing. This may involve removing several bolts or screws.
- Ngaleungitkeun tegangan: Identify the tensioning mechanism for the auger belt. This often involves a spring-loaded idler pulley. Carefully relieve the tension to allow removal of the old belt.
- Cabut Sabuk Lama: Once tension is relieved, carefully remove the old auger belt from the pulleys. Note its routing path for correct installation of the new belt.
- Pariksa Pulleys: While the belt is off, inspect all pulleys for wear, damage, or excessive play. Replace any worn components as necessary.
- Pasang Sabuk Anyar: Route the new Pwc Engine auger belt exactly as the old one was installed. Ensure it is seated correctly in all pulley grooves.
- Mulangkeun tegangan: Re-engage the tensioning mechanism, ensuring the belt has proper tension. The belt should be snug but not overly tight.
- Ganti panutup: Reinstall all belt covers and secure them with their original fasteners.
- Sambungkeun deui Busi: Sambungkeun deui kawat busi.
- Operasi tés: Start the snowblower and engage the auger in a safe, clear area to confirm proper operation before use.
5. Pangropéa
Proper maintenance extends the life of your auger belt and ensures optimal snowblower performance.
- Inspeksi rutin: périodik mariksa sabuk pikeun tanda-tanda maké, retakan, fraying, glazing, atawa manjang. Ganti sabuk upami aya karusakan.
- Tetep Bersih: Keep the belt and pulley areas free from snow, ice, dirt, and debris. Contaminants can cause premature wear and slippage.
- Panyimpenan anu leres: When the snowblower is stored for extended periods, especially during off-season, ensure the belt is not under excessive tension.
- Hindarkeun Overloading: Operating the snowblower beyond its capacity can put undue stress on the auger belt, leading to premature failure.
6. Cara ngungkulan
This section addresses common issues related to the auger belt.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Auger not engaging or slipping | Worn or stretched belt, incorrect belt tension, glazed belt, debris in pulleys. | Inspect belt for wear; replace if necessary. Adjust belt tension according to snowblower manual. Clean pulleys and belt path. |
| Belt squealing or making noise | Belt slippage, incorrect tension, worn pulleys, foreign material on belt/pulleys. | Check and adjust belt tension. Clean belt and pulleys. Inspect pulleys for damage. |
| Sabuk pegat sateuacan waktuna | Incorrect belt type, improper installation, misaligned pulleys, excessive load, worn pulleys. | Ensure correct belt is installed. Verify proper installation and tension. Check pulley alignment and condition. Avoid overloading snowblower. |
If troubleshooting steps do not resolve the issue, consult a qualified service technician.
7. Spésifikasi
- Nomer Bagian: OPE 265-903 A
- Ngagantikeun Nomer Bagian OEM: Ariens 07200004, Ariens 7200004
- Jenis sabuk: Auger Drive Belt, Raw Edge
- Bahan: Fiber-reinforced polychloroprene rubber compound with aramid cord
- ukuran: 1/2" Width x 35 1/2" Length (approx. 0.5" W x 35.5" L)
- Pabrikan: Mesin Pwc
8. Rojongan
For further assistance, technical support, or inquiries regarding this product, please contact Pwc Engine customer service. When contacting support, please have your product model number (OPE 265-903 A) and details of your Ariens snowblower model readily available.
Refer to your original snowblower manual for specific maintenance schedules and detailed repair procedures for your equipment.
