1. Bubuka
The iCarsoft LR V2.0 is a professional multi-system auto diagnostic tool designed for Land Rover and Jaguar vehicles. This device is capable of reading and clearing trouble codes across various vehicle systems, providing essential diagnostic and maintenance functionalities.

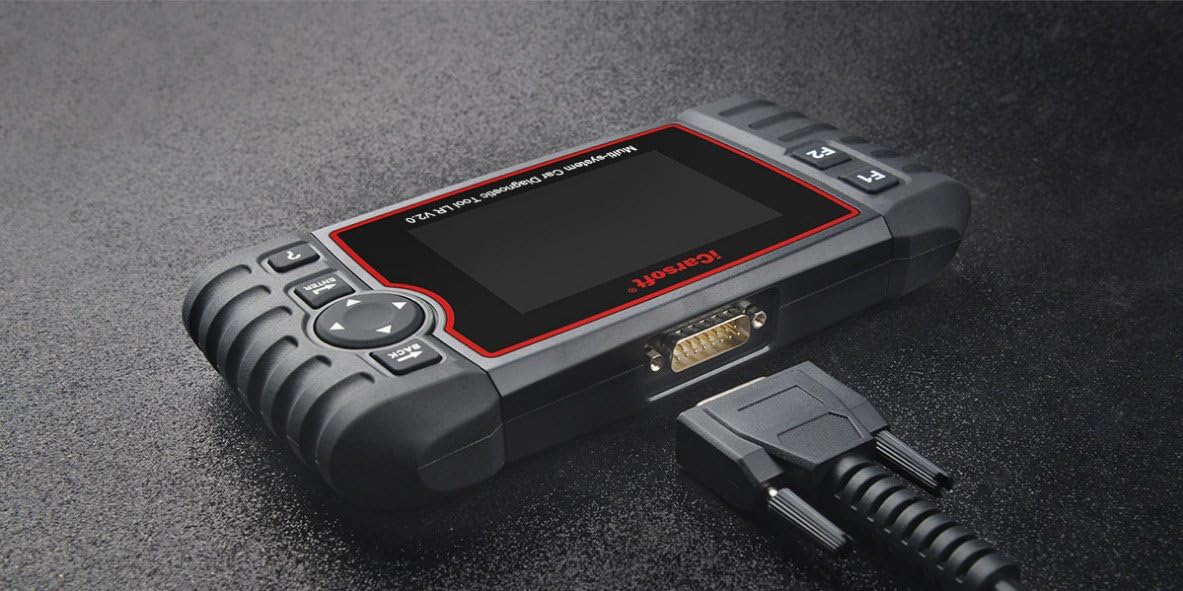

Figure 1: iCarsoft LR V2.0 Diagnostic Tool
2. Fitur Produk
The iCarsoft LR V2.0 offers a comprehensive suite of features to assist with vehicle diagnostics and maintenance:
- Multi-System Diagnosis: Reads and clears trouble codes on most systems including Engine, Transmission, ABS, and Airbag.
- OBDII/EOBD Support: Supports all 10 modes of OBDII/EOBD operation.
- Data Langsung: Displays real-time vehicle data.
- Full ECU Diagnosis: Applies to single brand vehicles equipped with OBDII-16 DLC.
- Antarmuka anu ramah-pamaké: Easy to use with silicone keys and a 4.0" TFT LCD display.
- Oil Light/Service Reset: Resets oil service lights.
- Electronic Parking Brake (EPB) System: Deactivates and reactivates the EPB system for maintenance.
- Sistem Manajemén Batré (BMS): Registers new batteries to the BMS.
- Diesel Particulate Filter (DPF): Performs DPF regeneration control system functions.
- Electronic Throttle Control System (ETC): Relearns electronic throttle control settings.
- Steering Angle Sensor (SAS): Calibrates the steering wheel to straight ahead.
- Perdarahan ABS: Performs ABS bleeding functions.
- Print Data Function: Allows printing out diagnostic data recorded by the scan tool.
- Tés batré: Tests the voltage of the battery with the OBD port when the engine starts.
- Perpustakaan DTC: Provides a lookup function for Diagnostic Trouble Codes.
- PC Upgrade: Software can be updated via PC.
- Rojongan Multi-Basa: English, German, Dutch, Spanish, French, and more.
Gambar 2: Leuwihview of iCarsoft LR V2.0 features
3. Spésifikasi Téknis
- tampilan: 4.0" TFT LCD, 480*320 Pixels
- Suhu operasi: 0°C - 50°C (32°F - 122°F)
- Suhu Panyimpenan: -20°C - 70°C (-4°F - 158°F)
- Operasi Voltage: 9 - 18V
- Operasi ayeuna: 150mA@12V (Typical)
- Konsumsi Daya: 1.8W (biasa)
- ukuran: 206 x 104 x 32.6 mm (L x W x H)
- Beurat barang: 1.52 pon
- Sistem operasi: Windows XP (for PC updates)
Figure 3: iCarsoft LR V2.0 device dimensions and specifications
4. Setup jeung Connection
To begin using your iCarsoft LR V2.0 diagnostic tool, follow these steps:
- Milarian port OBDII dina kendaraan anjeun. Ieu ilaharna kapanggih dina dasbor di sisi supir urang.
- Connect the 16-pin male connector of the main cable to the vehicle's OBDII port.
- Connect the other end of the main cable to the diagnostic tool.
- The device will power on automatically once connected to the vehicle.
Figure 4: Connecting the iCarsoft LR V2.0 to the vehicle's OBDII port
5. Operating the Diagnostic Tool
The iCarsoft LR V2.0 provides various diagnostic functions accessible through its menu. Use the navigation buttons (UP, DOWN, LEFT, RIGHT) and the ENTER button to select options.
5.1. Maca sareng Ngabersihan Kode Masalah
- From the main menu, select 'Diagnose' or 'OBDII/EOBD'.
- Pilih 'Baca Kodeu' pikeun view current, pending, or historical Diagnostic Trouble Codes (DTCs).
- To clear codes, select 'Erase Codes'. Confirm the action when prompted.
5.2. Live Data Stream
Access real-time data from the vehicle's sensors and components.
- From the diagnostic menu, select 'Read Live Data'.
- Choose the specific data parameters you wish to monitor.
- Data can be displayed in text or graphical format for easier analysis.
Figure 5: OBDII Functionality Overview
Video 1: Demonstration of reading and clearing fault codes for Jaguar and Land Rover vehicles using a similar OBDMATE OM501 scanner.
6. Maintenance and Special Functions
The LR V2.0 supports various maintenance and reset functions:
- Oil Light/Service Reset: Reset lampu servis oli saatos ganti oli.
- EPB System Maintenance: Safely performs maintenance on the Electronic Parking Brake system.
- BMS Reset: Ngareset Sistem Manajemén Batré saatos ngagantian batré.
- Regenerasi DPF: Inisiasi regenerasi Saringan Partikulat Diesel.
- ETC Relearns: Adapts the Electronic Throttle Control system.
- Kalibrasi SAS: Calibrates nu Steering Angle Sénsor.
- Perdarahan ABS: Ngalaksanakeun prosedur perdarahan rem ABS.
- Reset TPMS: Ngareset Sistim pangimeutan tekanan ban.
Video 2: Demonstration of battery voltage detection using a similar OBDMATE OM501 scanner.
7. Ngungkulan jeung Rojongan
If you encounter any issues while using the iCarsoft LR V2.0, please refer to the following:
- Taroskeun Manual Pamaké: For detailed instructions and common troubleshooting steps, always check the included instruction manual.
- Bantosan Téknis: iCarsoft provides responsive customer support from professional engineers. Contact them for assistance with complex issues.
8. Kasaluyuan Kandaraan
The iCarsoft LR V2.0 is compatible with most Land Rover and Jaguar vehicles manufactured from 1996 onwards. It supports various OBDII/EOBD test modes including CAN, ISO9141, KWP2000, J1850 VPW, and J1850 PWM.
Supported Land Rover Models: Range Rover, Range Rover Sport, Range Rover Evoque, Discovery II, Discovery III, Discovery, Freelander, Defender.
Supported Jaguar Models: XJ, XF, XK, F_TYPE, S_TYPE, X_TYPE.
Important Notice: Due to changes in protocols and unique systems/ECUs across vehicle models, not all services listed are available for all vehicles. For 2022+ models, contact iCarsoft to confirm compatibility before purchasing.
9. Updates, Warranty, and Support
- Pembaruan Gratis Saumur hirup: Access new features and vehicle coverage with lifetime free software updates.
- Lifetime Free Hardware Repair: The product includes lifetime free hardware repair.
- Garansi 1 Taun: alat nu hadir kalawan jaminan 1 taun.
- Rojongan Palanggan responsif: Professional engineers are available to provide technical assistance.
Figure 6: Comparison of iCarsoft LR V2.0 features and update policy
