This manual provides detailed instructions for the installation, operation, and maintenance of your Hifonics BXX1600.1D Brutus Class D 1600W RMS 1 Ohm Mono Car Subwoofer Amplifier. Please read this manual thoroughly before attempting installation or operation to ensure proper function and safety.

Setup sareng Instalasi

Pamasangan anu leres penting pisan pikeun pagelaran sareng kaamanan anu optimal. Disarankeun yén pamasangan dilaksanakeun ku profésional anu mumpuni.

Sambungan Wiring

Ensure all power, ground, and remote wires are securely connected. Use appropriate gauge wiring for your installation to prevent overheating and ensure stable power delivery.

Gambar: Tukangeun view of the Hifonics BXX1600.1D amplifier. This image highlights the power input terminals (+12V, REM, GND) on the right, and the mono speaker output terminals on the left. Two 70A fuses are visible between the power and speaker terminals, indicating the amplifier's power handling capabilities.

The amplifier features zero-gauge power and ground terminals for robust power delivery, and eight-gauge speaker terminals for secure speaker connections. Always disconnect the vehicle's battery before making any electrical connections.

Pamasangan sekering

The amplifier is equipped with internal fuses to protect against electrical overloads. Ensure these are correctly installed and of the specified rating (70A x 2) before operation.

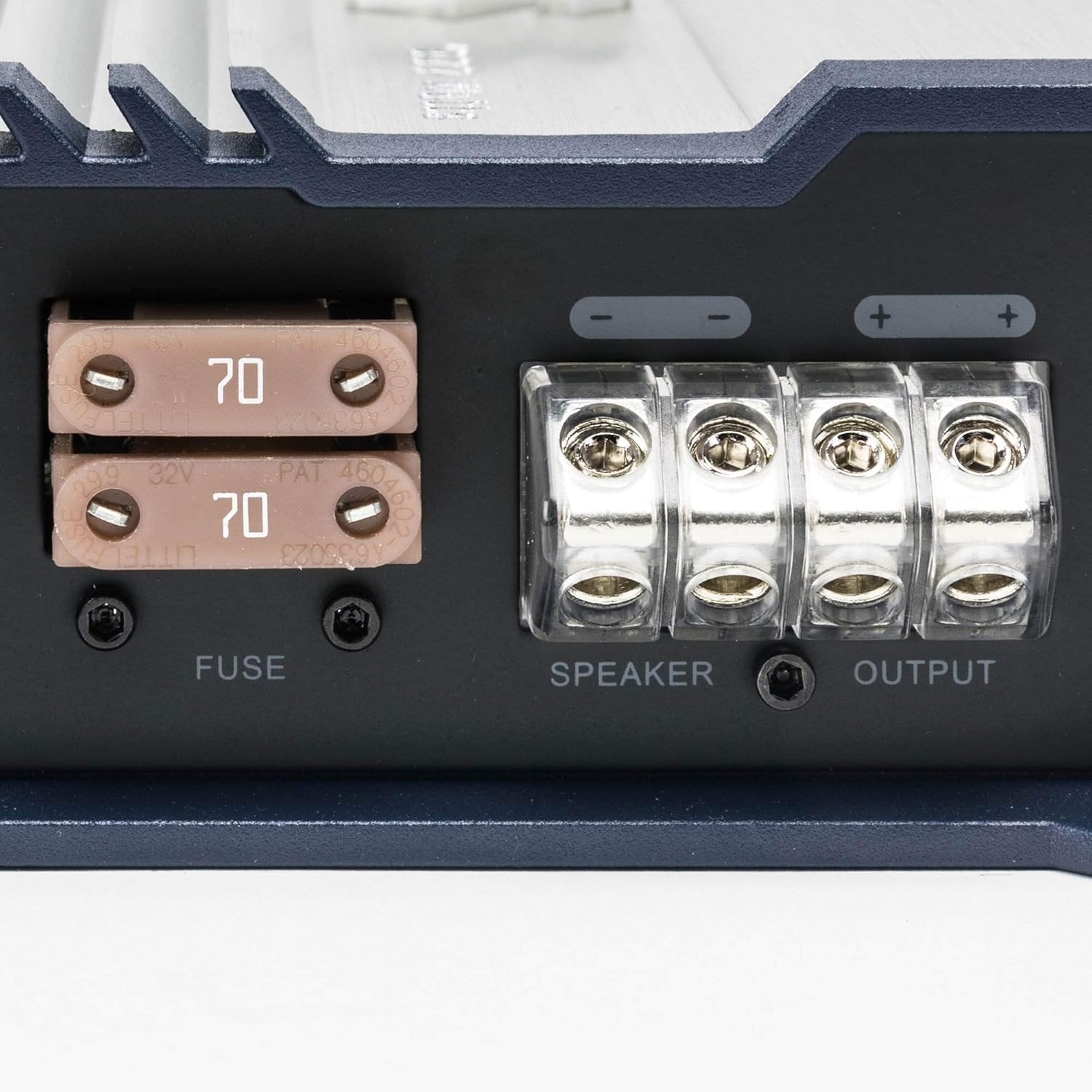

Gambar: A nutup-up view of the Hifonics BXX1600.1D amplifier's fuse compartment and speaker output terminals. Two 70A fuses are clearly visible, along with the robust speaker wire connections labeled "SPEAKER OUTPUT".

Parentah Operasi

Familiarize diri jeung amplifier's controls to optimize your audio experience.

Gambar: Hareupeun view of the Hifonics BXX1600.1D amplifier's control panel. This image displays the RCA input and output jacks, remote bass knob port, and various adjustment controls including Level, Phase, Bass EQ, Subsonic Filter, and Low-Pass Filter (LPF).

Kontrol Panel Langkungview

• Power/Protect Indicators: LEDs indicating operational status (green for power, red for protection mode).
• Jauh: Port for connecting an optional remote bass level control.
• Input/Output RCAs: For connecting to your head unit and bridging multiple amplifsters.
• Kontrol Gain: Nyaluyukeun sensitivitas input supados cocog sareng output head unit anjeun.
• LPF (Low-Pass Filter): Filters out high frequencies, allowing only low frequencies to pass to the subwoofer.
• Saringan Subsonik: Nyaring frékuénsi anu handap pisan anu teu kadéngé sareng tiasa ngaruksak subwoofer.
• Kontrol Fase: Adjusts the phase of the subwoofer output (0° to 180°) to match other speakers.
• Bass EQ/Boost: Provides adjustable bass equalization for enhanced low-frequency response.

Mimiti Power-Up

After all connections are made, turn on your head unit. The amplifier's power indicator should illuminate green. If the protect indicator lights up, immediately turn off the system and check all connections and wiring for faults.

Nyaluyukeun Setélan

Start with the gain control at its minimum setting. Gradually increase the gain until the desired volume is achieved without distortion. Adjust the LPF, Subsonic Filter, and Phase controls to blend the subwoofer output seamlessly with your main speakers.

Pangropéa

Pangropéa rutin mastikeun umur panjang sareng kinerja anu optimal pikeun anjeun amppangagung.

• beberesih: Tetep dina ampBersihkeun heula alatna sarta bébas tina lebu jeung kokotor. Anggo lawon lemes jeung garing pikeun beberesih. Ulah make cairan pembersih.
• Ventilasi: Pastikeun amplifier has adequate ventilation. Do not block the cooling fins or mount the ampLifier dina spasi enclosed tanpa aliran hawa ditangtoskeun.
• Pamariksaan kabel: Periodically check all wiring connections for tightness and signs of corrosion or damage. Loose connections can lead to poor performance or damage.
• Ngagantian sekering: If a fuse blows, replace it only with a fuse of the exact same type and rating (70A). Using an incorrect fuse can cause severe damage to the amplifier or vehicle's electrical system.

Pamérésan masalah

Upami anjeun ngalaman masalah sareng anjeun amplifier, tingali léngkah-léngkah ngungkulan masalah umum ieu:

• Henteu aya kakuatan: Check the main power fuse, ground connection, and remote turn-on wire. Ensure the vehicle's battery has sufficient charge.
• Protection Mode (Red LED): This indicates a fault. Check for short circuits in speaker wiring, improper impedance loads, or overheating. Allow the amplifier to cool down if it's hot.
• Henteu aya sora: Verify all RCA input/output connections, speaker wire connections, and head unit settings. Check the gain control and ensure it's not set too low.
• Sora distort: Reduce the gain setting. Check for proper LPF and Subsonic filter settings. Ensure speaker impedance matches the ampkamampuhan lifier urang.

If problems persist after troubleshooting, consult a qualified car audio technician.
