Bubuka
This manual provides essential information for the proper installation, operation, and maintenance of the Carrier Corporation EA36UZ067 Thermal Expansion Valve. Please read this manual thoroughly before attempting any installation or service to ensure safe and efficient performance of the unit.
Produk Leuwihview

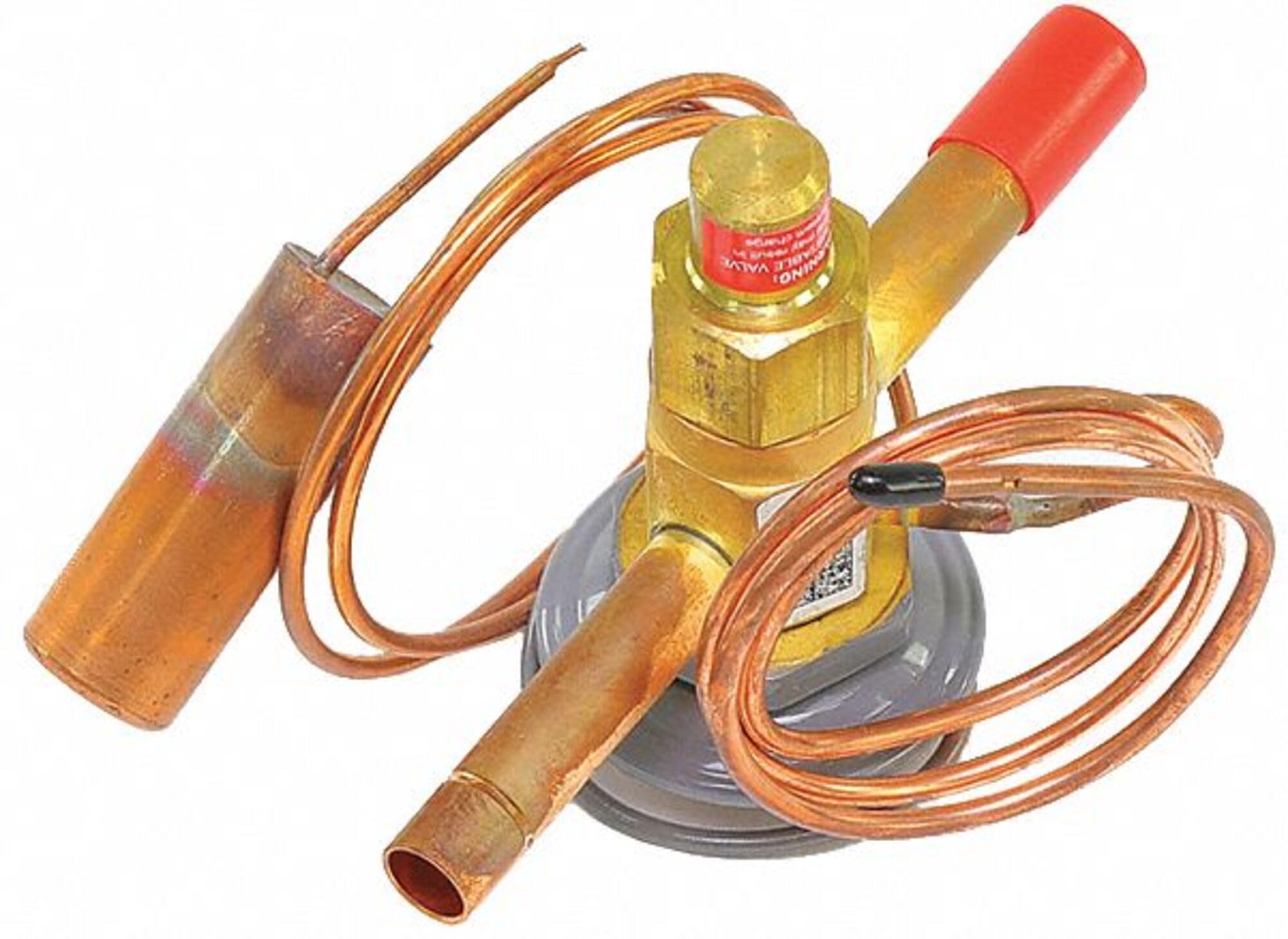

Figure 1: Carrier EA36UZ067 Thermal Expansion Valve. This image displays the brass valve body, copper capillary tube, and sensing bulb, which are key components of the thermal expansion valve.
The Carrier EA36UZ067 is a thermal expansion valve (TXV) designed to regulate the flow of refrigerant into the evaporator coil, ensuring optimal superheat and system efficiency. It is a critical component in air conditioning and refrigeration systems.
Instalasi jeung Setup
Installation of a thermal expansion valve requires specialized knowledge and tools. It is highly recommended that installation be performed by a qualified HVAC technician.
Pancegahan Kasalametan:
- Always disconnect power to the HVAC system before beginning any work.
- Anggo alat pelindung pribadi (PPE), kalebet kacamata sareng sarung tangan.
- Handle refrigerants with care and in accordance with local regulations.
- Pastikeun ventilasi anu cekap nalika damel sareng refrigeran.
Léngkah-léngkah Pamasangan (Pedoman Umum):
- Persiapan Sistim: Recover refrigerant from the system.
- Valve Placement: Install the TXV in the liquid line just before the evaporator coil. Ensure the flow direction arrow on the valve body matches the refrigerant flow.
- Brazing/Connections: Braze or connect the valve securely to the refrigerant lines. Use heat-sinks or wet rags to protect the valve body from excessive heat during brazing. The EA36UZ067 features NPT outlet connections.
- Sensing Bulb Installation: Securely attach the sensing bulb to the suction line, typically after the evaporator coil, using a clamp. Ensure good thermal contact. The bulb should be insulated to prevent ambient temperature interference.
- Cek Bocor: Pressurize the system with nitrogen and perform a thorough leak check using an electronic leak detector or soap bubbles.
- évakuasi: Evacuate the system to a deep vacuum to remove all non-condensable gases and moisture.
- Muatan Refrigerant: Recharge the system with the correct type and amount of refrigerant according to the system manufacturer's specifications.
- Pangaluyuan Superheat: Once the system is running, adjust the superheat setting on the TXV (if adjustable) to the manufacturer's recommended value.
Prinsip Operasi
The thermal expansion valve operates by maintaining a constant superheat at the evaporator outlet. The sensing bulb, filled with a charge similar to the system's refrigerant, detects the temperature of the suction line. Changes in this temperature cause the pressure within the bulb to change, which in turn acts on a diaphragm inside the valve. This diaphragm movement adjusts the valve's opening, controlling the flow of liquid refrigerant into the evaporator. This precise control prevents liquid refrigerant from returning to the compressor (slugging) and ensures the evaporator coil is fully utilized for efficient heat transfer.
Pangropéa
The Carrier EA36UZ067 Thermal Expansion Valve is a sealed component and generally requires no routine maintenance itself. However, regular maintenance of the overall HVAC or refrigeration system is crucial for the TXV's proper function and longevity.
- Kabersihan Sistim: Ensure the refrigerant system is free from contaminants, moisture, and non-condensable gases, as these can impair TXV operation.
- Panggantian Filter Dryer: Periodically replace the system's filter drier to prevent debris from reaching and clogging the TXV.
- Superheat Verification: During routine system checks, verify the superheat at the evaporator outlet. Deviations may indicate an issue with the TXV or other system components.
- Ngadeteksi Integritas Bohlam: Ensure the sensing bulb remains securely attached and insulated on the suction line.
Pamérésan masalah
Troubleshooting TXV issues often involves diagnosing the entire refrigerant system. The following are common symptoms that might indicate a TXV problem, though they can also be caused by other system faults. Always consult a qualified technician for diagnosis and repair.
| Gejala | Possible Cause (TXV Related) | Aksi |
|---|---|---|
| High Superheat / Low Suction Pressure | TXV starved (underfeeding), clogged, or sensing bulb lost charge/contact. | Check sensing bulb contact and insulation. Inspect for clogs. Consider TXV replacement if confirmed faulty. |
| Low Superheat / High Suction Pressure / Liquid Slugging | TXV overfeeding (stuck open), or sensing bulb improperly installed/insulated. | Check sensing bulb installation. If TXV is stuck open, replacement is necessary. |
| Fluctuating Suction Pressure / Erratic Superheat | TXV hunting (improperly sized or faulty), or unstable load conditions. | Verify TXV sizing. If hunting persists, TXV may be faulty and require replacement. |
spésifikasi
The following specifications apply to the Carrier Corporation EA36UZ067 Thermal Expansion Valve:
| Atribut | Nilai |
|---|---|
| merek | Pamawa |
| Produsén | Perusahaan Carrier |
| Nomer Bagian | EA36UZ067 |
| Nomer modél | EA36UZ067 |
| Tipe klep | Thermal ékspansi klep |
| Tipe Sambungan Outlet | NPT |
| Jumlah Palabuhan | 2 |
| Warna | Multiwarna |
| Item Paket Kuantitas | 1 |
| Komponén Kaasup | Valve Unit (Note: Original data listed "Bra", interpreted as the main valve unit) |
Garansi sareng Rojongan
For specific warranty information regarding the Carrier Corporation EA36UZ067 Thermal Expansion Valve, please refer to the documentation provided with your purchase or contact Carrier Corporation directly. Warranty terms and conditions may vary.
For technical support, service, or to locate an authorized Carrier service provider, please visit the official Carrier website or contact their customer service department. Always ensure that any service or repair is performed by a certified technician.
You can visit the Carrier Store on Amazon for more information: Carrier Store
