This instruction manual provides important information for the safe assembly, operation, and maintenance of your vidaXL LED Race Car Bed. Please read it thoroughly before use and retain it for future reference. This fun children's bed, with its appealing race car design and solid construction, will be a focal point in your child's bedroom. It is equipped with a color-changing LED strip to create a striking light effect.

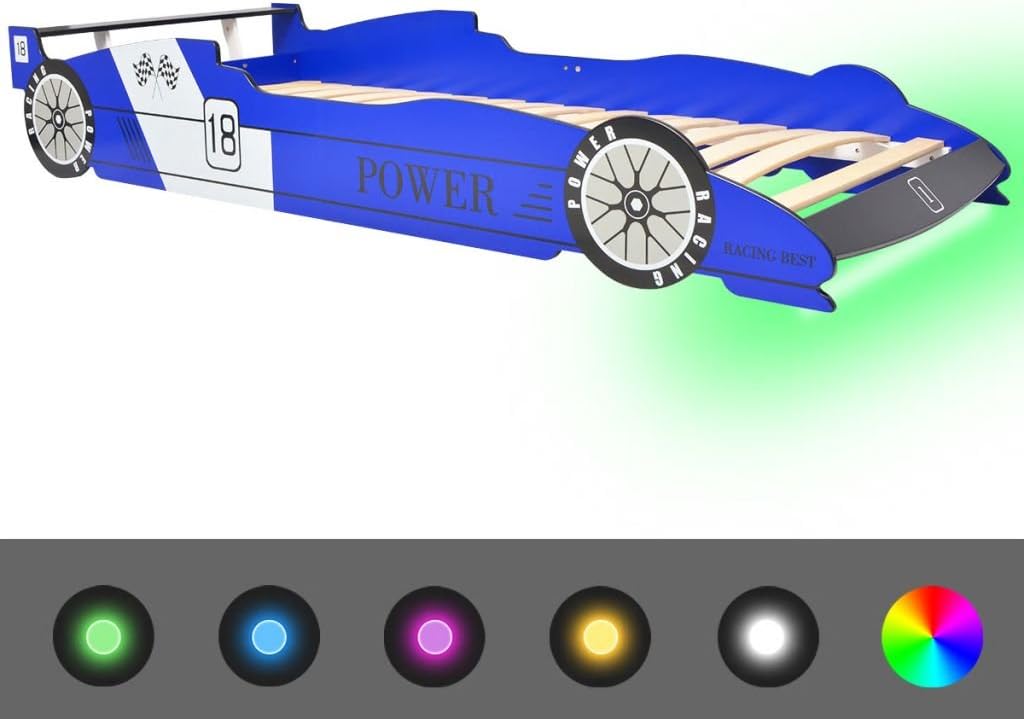

Image: The vidaXL LED Race Car Bed in blue, showcasing its design and illuminated LED strip.
Peringatan Kasalametan
PERHATOSAN: Teu cocog pikeun barudak di handapeun 4 taun.
- Always assemble the bed according to the instructions to prevent instability or collapse.
- Keep the bed away from water sources.
- Use only a dry cloth for cleaning to avoid potential hazards.
- Be careful around the edges of the bed to prevent injuries.
- The LED strip should be used under adult supervision.
Spésifikasi produk
| Fitur | Rincian |
|---|---|
| Nomer modél | 243937 |
| Warna | Biru |
| Bahan | MDF frame + wooden slats (Engineered wood) |
| Ukuran (L x W x H) | 225 x 94 x 38 cm |
| Suitable Mattress Dimensions (W x L) | 90 x 200 cm (Kasur teu kaasup) |
| LED Strip Adapter | 220-240 V ~, 50-60 Hz |
| LED Strip Voltage | DC12V |
| Daya Strip LED | 7.2 W |
| Tipe Jalur LED | 5050-30D RGB LED strip (length: 90 cm) |
| Komponén Kaasup | Remote control, LED strip set (adapter, 12V voltage, RGB LED strips, RGB control box, remote control) |

Image: Technical drawing showing the dimensions of the race car bed: 225 cm length, 94 cm width, 38 cm height.
Parentah Majelis
Assembly is straightforward. Follow the included assembly guide carefully. Ensure all components are present before beginning assembly.
- Bongkar sadaya komponén teras pariksa dibandingkeun sareng daptar bagian dina pituduh perakitan anu misah.
- Assemble the bed frame using the provided hardware. Ensure all connections are secure.
- Install the wooden slats into the bed frame, ensuring they are evenly spaced and firmly seated.
- Attach the side rails to prevent accidental falls.
- Connect the LED strip to the designated area on the bed frame.
- Plug in the LED adapter and test the lights using the remote control.
Catetan: The delivery includes the bed frame only; the mattress is not included.

Gambar: A close-up view of the wooden slats that form the bed base, showing their sturdy construction.
Ngoperasikeun Lampu LED
The bed is equipped with a color-changing LED strip to create a striking light effect. Use the included remote control to operate the LED lights.
- Hurungkeun/Pareuman: Pencét éta ON or Pareum tombol dina kadali jauh.
- Pilihan Warna: Choose from various colors using the color buttons on the remote.
- Penyesuaian Caang: Adjust the light intensity using the brightness control buttons.
- Pilihan Mode: Select different lighting modes such as FLASH, STROBE, FADE, or SMOOTH for dynamic light effects.
penting: Always ensure the LED strip is used under adult supervision.

Image: The LED strip control box, power adapter, and multi-function remote control for the bed's lighting system.
Pangropéa
- beberesih: Wipe the bed frame with a dry cloth. For stubborn marks, a slightly damp lawon bisa dipaké, dituturkeun langsung ku lawon garing. Hindarkeun pembersih abrasive atanapi bahan kimia anu kasar.
- Pamariksaan: Périodik pariksa sagala screws sareng sambungan pikeun mastikeun aranjeunna tetep kedap tur aman.
- Perawatan LED: Ensure the LED strip and its connections are free from dust and moisture. Do not attempt to repair the LED strip or power adapter yourself; contact customer support if issues arise.
Pamérésan masalah
- Lampu LED Teu Gawé:
- Pariksa naha adaptor daya parantos dicolokkeun kalayan pageuh kana stop kontak anu tiasa dianggo.
- Ensure all connections between the LED strip, control box, and adapter are firm.
- Verify the remote control batteries are functional and correctly inserted.
- Kateustabilan Ranjang:
- Re-check all assembly points and tighten any loose screws.
- Ensure the bed is placed on a flat, even surface.
- Bagian anu ruksak:
- If any parts are damaged during shipping or assembly, do not proceed with assembly. Contact customer support for replacement parts.
Garansi sareng Rojongan
For warranty information, replacement parts, or further assistance, please contact vidaXL customer support. Refer to your purchase documentation for specific warranty terms and contact details.
