Buku Panduan Pangguna Lampu PAR Audibax Orlando 162 Plus

1. Bubuka

The Audibax Orlando 162 Plus is a professional PAR light designed for various lighting applications. It features 54 x 3W RGB 3-in-1 LEDs, offering a wide range of color mixing capabilities. This device supports DMX control, automatic programs, sound-activated modes, and master/slave operation, making it suitable for stage lighting, events, and architectural illumination. This manual provides essential information for safe operation, setup, and maintenance.

2. Émbaran Kasalametan

• Kasalametan listrik: Always connect the device to a grounded power outlet. Ensure the voltage matches the device's requirements (AC90-240V, 50/60Hz). Disconnect power before cleaning or servicing.
• panempatan: Install the fixture in a well-ventilated area, away from heat sources and flammable materials. Ensure stable mounting to prevent accidental falls.
• Penanganan: Avoid direct eye exposure to the light source. Do not operate the device if the power cord is damaged. Do not attempt to repair the device yourself; refer servicing to qualified personnel.
• Lingkungan: This device is intended for indoor use only. Protect it from moisture and extreme temperatures.

3. Eusi Paket

Pastikeun yén sadaya barang aya nalika ngabongkar:

• Audibax Orlando 162 Plus PAR Light
• Ningkatna Kurung
• Kabel Daya
• Manual pamaké

4. Produk Langkungview

The Audibax Orlando 162 Plus features a robust aluminum housing and an adjustable mounting bracket for versatile positioning.

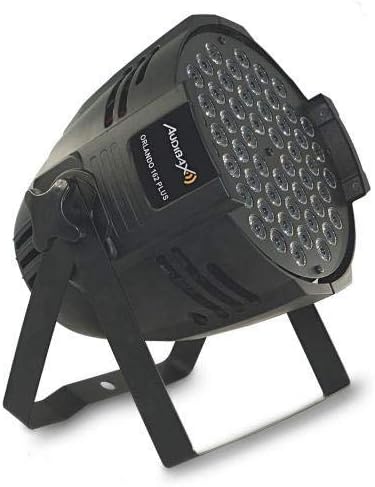

Gambar 4.1: Hareupeun view of the Audibax Orlando 162 Plus PAR light, showcasing the 54 RGB LEDs illuminated in green.

Gambar 4.2: Sisi view of the PAR light, illustrating the adjustable mounting bracket for flexible installation.

Panel Kontrol sareng Sambungan

The rear panel provides access to the control interface and input/output connections.

Gambar 4.3: Tukangeun view of the PAR light, detailing the DMX IN/OUT ports, power input, digital display, and control buttons (MENU, UP, DOWN, ENTER).

• Digital tampilan: Shows current mode and parameter settings.
• Tombol MENU: Navigates through the main menu options.
• Tombol luhur/handap: Adjust parameter values or navigate menu items.
• Tombol ENTER: Konfirmasi pilihan.
• DMX IN/OUT: 3-pin konektor XLR pikeun sambungan sinyal DMX.
• DAYA DI: IEC power input for connecting the power cable.

5. Setélan

5.1 Pamasangan

1. Pasangkeun braket pemasangan kalayan pageuh kana fixture nganggo sekrup anu disayogikeun.
2. Mount the fixture to a truss, ceiling, or stand using appropriate clamps and safety cables (not included). Ensure the mounting surface can support the weight of the fixture.
3. Adjust the angle of the fixture using the bracket's locking knobs.

5.2 Sambungan Daya

1. Connect the supplied power cable to the POWER IN socket on the rear of the fixture.
2. Plug the other end of the power cable into a suitable grounded power outlet.

5.3 Sambungan DMX (Opsional)

For DMX control, connect a DMX controller to the DMX IN port of the first fixture. Use DMX OUT to connect to the DMX IN of the next fixture in a daisy chain configuration.

• Use standard 3-pin XLR DMX cables.
• Ensure the DMX chain is terminated with a 120-ohm resistor at the last fixture for optimal signal integrity.

6. Parentah Operasi

Use the MENU, UP, DOWN, and ENTER buttons on the rear panel to navigate and select operating modes and parameters.

6.1 Navigasi Menu

• Pencét MENU to cycle through the main menu options (e.g., DMX Address, Auto Mode, Sound Mode, Master/Slave).
• Paké UP jeung TURUN to adjust values or select sub-options within a menu.
• Pencét Asupkeun to confirm your selection or save changes.

6.2 Modeu operasi

The Orlando 162 Plus offers several operational modes:

• Modeu DMX: Allows external control via a DMX controller. Set the DMX address using the menu. Refer to the DMX channel chart (not provided in this manual, typically found in a separate DMX protocol sheet) for specific control functions.
• Modeu Otomatis: The fixture runs through pre-programmed light shows automatically. Various auto programs may be available; use UP/DOWN to select.
• Modeu Aktipkeun Sora: The light patterns and changes respond to ambient sound detected by the built-in microphone. Adjust sensitivity if available.
• Mode Master/Budak: Connect multiple Orlando 162 Plus fixtures. Set one unit as 'Master' and others as 'Slave'. The slave units will synchronize their operation with the master unit.
• Modeu Warna statik: Select a fixed color. The 3-in-1 RGB LEDs allow for a wide spectrum of colors.
• Fungsi Strobe: Activates a flashing light effect. This can often be adjusted for speed.

6.3 Color Examples

7. Pangropéa

• beberesih: Regularly clean the lens and housing with a soft, lint-free cloth. Do not use abrasive cleaners or solvents. Ensure the device is powered off and unplugged before cleaning.
• Pamariksaan: Periodically check power cables, DMX cables, and mounting hardware for any signs of wear or damage. Replace damaged components immediately.
• Panyimpenan: When not in use, store the fixture in a dry, dust-free environment.

8. Cara ngungkulan

9. Spésifikasi

10. Garansi jeung Rojongan

Audibax products are manufactured to high-quality standards. For warranty information, please refer to the terms and conditions provided at the point of purchase or contact Audibax customer support. For technical assistance or service inquiries, please visit the official Audibax websitus atanapi ngahubungan dealer lokal Anjeun.
