1. Produk Langkungview
The KERUI J008 is a wireless outdoor strobe siren designed to enhance the security of your premises. It features an intelligent microprocessor, a high-decibel siren, and a high-brightness LED flash light to provide an effective deterrent and alert system. This siren can operate as a standalone on-site alarm or integrate with other wireless accessories like remote controls, magnetic door contacts, and PIR detectors.
When integrated into an alarm system and armed, the J008 activates with both sound and light upon detection of a triggered sensor. Its robust design makes it suitable for outdoor installation, offering reliable performance in various environments.
Gambar 1: Hareupeun view of the KERUI J008 Wireless Outdoor Strobe Siren.
2. Émbaran Kasalametan
- Pastikeun catu daya voltage matches the product's specifications (110-240V).
- Do not open the siren casing unless instructed for maintenance. Refer to qualified personnel for repairs.
- Jauhkeun alat ieu tina suhu anu ekstrim, sinar panonpoé langsung, sareng kalembaban anu kaleuleuwihi.
- Install the siren securely to prevent it from falling.
- The siren produces a loud sound (110dB). Avoid prolonged exposure to prevent hearing damage.
- Buang batré nurutkeun peraturan lokal.
3. Eusi Paket
Pastikeun yén sadaya item aya dina bungkusan:
- 1 x KERUI J008 Wireless Outdoor Flash Siren
- 1 x Kadali Jauh
- 1 x EU Power Adapter
- 3 x Batré CR123A
- Hardware dipasang (screws, colokan témbok)
4. Setup jeung Instalasi
4.1 Idéntifikasi komponén
Gambar 2: Balik view of the J008 siren showing the power adapter interface, ON/OFF switch, SET button, 300mAh backup battery, and siren speaker.
- Antarbeungeut Adaptor Daya: Connect the EU power adapter here.
- Saklar Daya Hurung / OFF: Controls the main power to the siren.
- Tombol SET: Used for pairing with wireless accessories.
- Backup Battery (300mAh): Nyayogikeun kakuatan salami anjeuntages.
- Siren Speaker: Emits the audible alarm.
4.2 Power Connection and Battery Installation
- Ensure the Power ON/OFF switch is in the OFF position.
- If not already installed, insert the 3 CR123A batteries into the designated battery compartment. Ensure correct polarity.
- Connect the EU power adapter to the Power Adapter Interface on the back of the siren.
- Plug the power adapter into a suitable 110-240V AC power outlet.
- Switch the Power ON/OFF switch to the ON position. The siren will perform a self-test, and the LED indicator may flash.
The built-in Ni-MH rechargeable battery will automatically charge when the siren is connected to mains power and will provide backup power during power failures.
4.3 Masang Sirene
The J008 siren is designed for wall mounting, suitable for both indoor and outdoor environments.

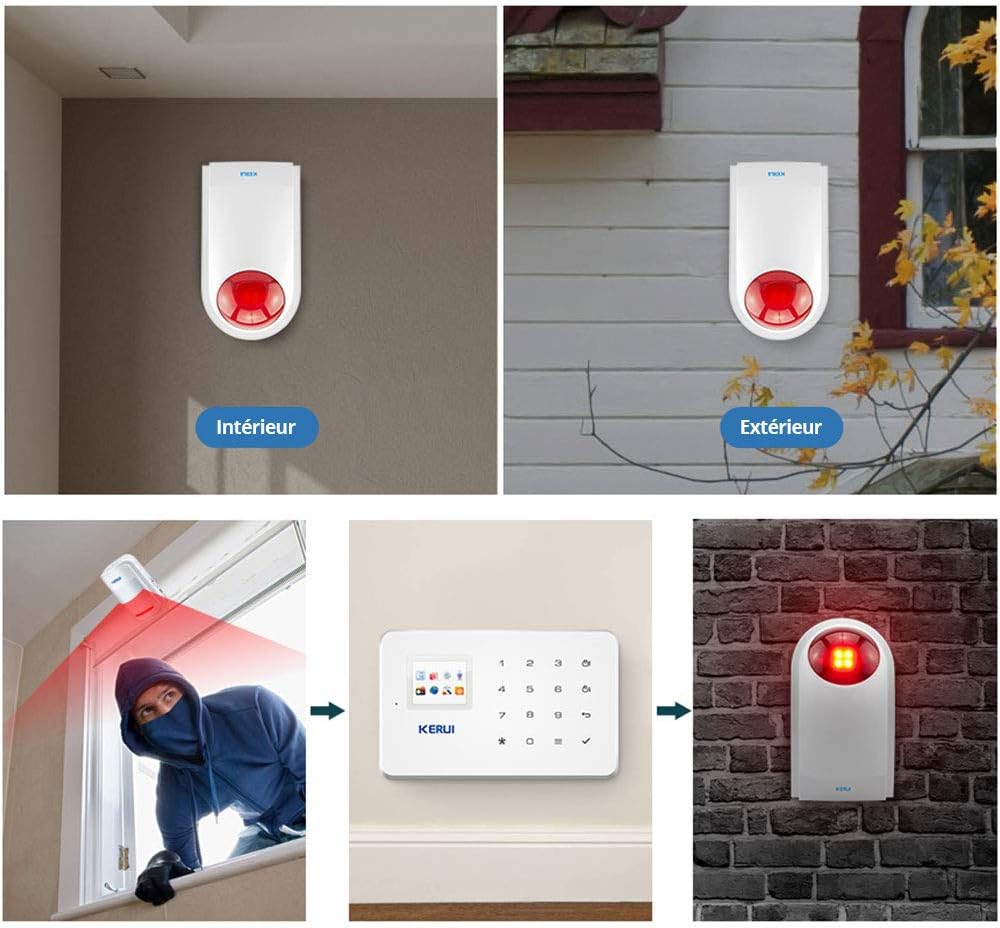

Gambar 3: Kelamples of indoor and outdoor mounting, and a diagram illustrating the alarm system flow: sensor triggers, signal sent to control panel, control panel activates siren.
- Choose a suitable location for mounting. For outdoor use, select a spot that provides good visibility for the strobe light and allows the siren sound to be heard effectively, while also being protected from direct heavy rain if possible.
- Use the siren's back plate as a template to mark the drilling points on the wall.
- Bor liang sareng pasang colokan témbok upami diperyogikeun.
- Secure the siren to the wall using appropriate screws.
- Ensure the siren is firmly attached and the power cable is routed safely.
4.4 Pairing with Wireless Accessories
The J008 siren is compatible with standard PT2262 encoding and millions of group detectors and remote controls. To pair a new accessory (e.g., remote control, door sensor, PIR detector):
- Pencét éta SET button on the back of the siren. The siren will enter pairing mode, indicated by a specific light or sound cue (refer to specific accessory manual for exact cues).
- Within a few seconds, trigger the accessory you wish to pair (e.g., press a button on the remote control, open a door with a door sensor, or trigger a PIR detector).
- The siren will emit a confirmation sound or flash to indicate successful pairing.
- Repeat for all additional accessories.
- Exit pairing mode by pressing the SET button again or waiting for a timeout.
5. Parentah Operasi
5.1 Arming jeung Disarming
The J008 siren is typically armed and disarmed via a paired remote control or a connected alarm control panel.
- To Arm: Press the 'Arm' button on your remote control or activate the arm function on your alarm control panel. The siren may emit a confirmation beep.
- Pikeun ngarampas pakarang: Press the 'Disarm' button on your remote control or deactivate the disarm function on your alarm control panel. The siren may emit a confirmation beep.
5.2 Aktipkeun Alarm
When the system is armed and a paired detector (e.g., door sensor, motion detector) is triggered, the J008 siren will activate:
- It will emit a loud audible alarm at 110dB.
- The integrated LED flash light will activate, providing a visual deterrent and alert.
The alarm will continue for a preset duration or until the system is disarmed.
Figure 4: The J008 siren in active alarm state, highlighting its 110dB sound output, suitability for both indoor and outdoor use, and backup battery feature.
6. Pangropéa
6.1 Perawatan Batré
- The J008 has a built-in Ni-MH rechargeable battery for backup power. Ensure the siren is regularly connected to mains power to keep this battery charged.
- The 3 CR123A batteries are typically for initial setup or specific functions. Check their status periodically. If the siren indicates low battery (e.g., through a specific flash pattern or sound), replace the CR123A batteries.
- When replacing batteries, ensure the siren is powered off and disconnect the main power adapter.
6.2 beberesih
Clean the exterior of the siren with a soft, damp lawon. Ulah nganggo pembersih atanapi pangleyur anu abrasif. Pastikeun teu aya Uap anu asup kana alat.
7. Cara ngungkulan
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Siren does not power on. | No power from adapter; ON/OFF switch is off; backup battery depleted. | Check power adapter connection and outlet. Ensure ON/OFF switch is in the ON position. Allow time for backup battery to charge or replace CR123A batteries. |
| Siren does not sound when a sensor is triggered. | System is not armed; sensor not paired; sensor malfunction; siren not receiving signal. | Ensure the system is armed. Verify the sensor is correctly paired with the siren/control panel. Check sensor battery. Ensure siren is within range of the control panel/sensor. |
| Alarm palsu. | Sensor sensitivity too high; environmental factors (e.g., pets, wind); interference. | Adjust sensor sensitivity if applicable. Reposition sensors to avoid environmental triggers. Check for sources of wireless interference. |
| Cannot pair new accessories. | Siren not in pairing mode; accessory not compatible; accessory not triggered correctly. | Ensure the siren is in pairing mode (press SET button). Verify accessory compatibility (PT2262 encoding). Trigger the accessory promptly after entering pairing mode. |
8. Spésifikasi
| model: | J008 |
| merek: | KERUI |
| Frékuénsi pangiriman: | 433 MHz |
| Tingkat sora: | 110 dB (+3dB or -3dB) |
| Daya operasi: | 110-240V AC |
| Batré Cadangan: | Built-in Ni-MH rechargeable battery (300mAh) |
| Batré tambahan: | 3 x CR123A (kaasup) |
| Métode kontrol: | Kadali jauh |
| Tipe Pamasangan: | Tembok Gunung |
| Ukuran (L x W x H): | 20.1 x 11.2 x 7 cm |
| beurat: | 420 gram |
| Kasaluyuan: | PT2262 encoding (Resistance 1.5M-4.7M), millions of group detectors (Resistance 150K-470K) |
| warna: | Bodas |

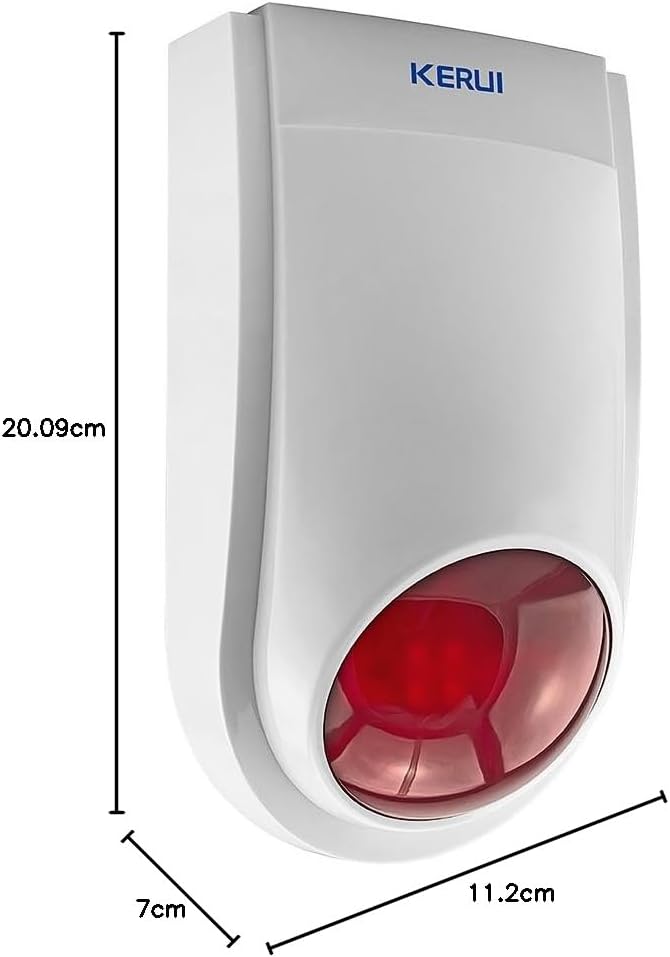

Figure 5: Detailed dimensions of the KERUI J008 siren.
9. Garansi jeung Rojongan
Specific warranty information for the KERUI J008 Wireless Outdoor Strobe Siren is not provided in the product details. Please refer to your purchase documentation or contact the retailer/manufacturer directly for warranty terms and customer support.
For technical assistance or further inquiries, please visit the official KERUI websitus atanapi ngahubungan departemén layanan palanggan maranéhna.
