SEVERIN SM 3583 Induksi Susu Frother Manual Instruksi

Bubuka

This instruction manual provides important information for the safe and efficient operation of your SEVERIN SM 3583 Induction Milk Frother. Please read these instructions carefully before first use and keep them for future reference. This appliance is designed for preparing creamy milk foam, heating milk, and making hot chocolate.

Parentah Kasalametan

Salawasna perhatikeun pancegahan kaamanan di handap ieu pikeun nyegah tatu atanapi karusakan kana alat:

• Do not immerse the motor unit (base) in water or other liquids.
• Pastikeun alat disimpen dina permukaan anu stabil, rata, sareng tahan panas.
• Jauhkeun tina jangkauan barudak sareng individu anu ngirangan kamampuan fisik, indrawi, atanapi mental.
• Do not operate the appliance if it is damaged, has a damaged power cord, or is malfunctioning. Contact customer support for repairs.
• Anggo alat ngan ukur pikeun tujuan anu dimaksud sakumaha anu dijelaskeun dina manual ieu.
• Cabut colokan alat tina stop kontak listrik nalika henteu dianggo, sateuacan beberesih, sareng nalika ngarakit atanapi ngabongkar bagian.
• Hindarkeun kontak sareng bagian anu gerak salami operasi.
• Do not overfill the milk frother beyond the maximum fill lines indicated inside the pot.
• Paké ngan asesoris aslina disadiakeun kalawan alat.

Produk Leuwihview

The SEVERIN SM 3583 is an induction milk frother featuring an innovative induction process that prevents milk from burning and ensures easy cleaning.

Gambar 1: Components of the SM 3583 Milk Frother. This image displays the main base unit, the removable stainless steel pot, the transparent lid, the smooth stirring ring for heating, and the serrated frothing ring for creating foam.

Komponén konci:

• Unit Dasar: Houses the induction heating element and the control panel.
• Panci Stainless Steel: Removable, with a maximum capacity of 700 ml.
• tutup: Transparent lid with an integrated opening for adding ingredients during operation.
• Smooth Stirring Ring: Dianggo pikeun manaskeun susu tanpa ngabuih.
• Serrated Frothing Ring: Dianggo pikeun nyieun busa susu.
• Panél kontrol: Features a rotary knob for temperature selection and a power button. The stirring rings are magnetically stored on the appliance when not in use.

Disetél

Follow these steps to set up your milk frother for first use:

1. Buka bungkus sadaya komponén sareng cabut bahan bungkusan.
2. Clean the stainless steel pot, lid, and both stirring/frothing rings thoroughly before first use. Refer to the "Cleaning and Maintenance" section for detailed instructions.
3. Place the base unit on a dry, stable, and heat-resistant surface, away from water sources.
4. Ensure the power cord is fully extended and connected to a suitable power outlet (230 Volts). The power cord can be stored in the base compartment when not in use.

Parentah Operasi

The SEVERIN SM 3583 offers versatile preparation options for various milk-based beverages.

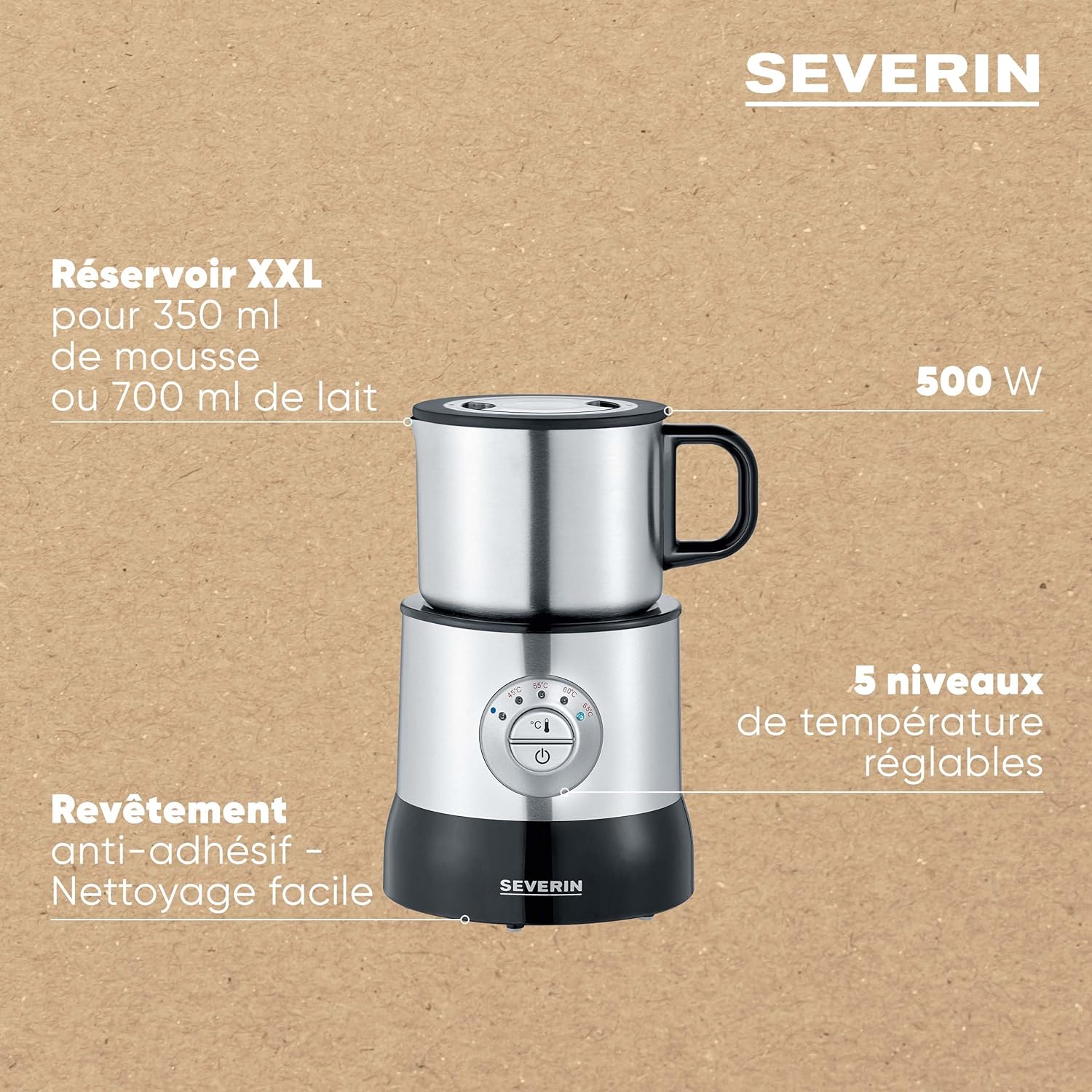

Gambar 2: Control Panel and Capacity Markings. The control panel allows selection of temperature, and the pot has clear markings for maximum fill levels.

1. Preparing Milk Foam (Hot or Cold)

1. Selapkeun serrated frothing ring into the bottom of the stainless steel pot. Ensure it is securely placed.
2. Pour fresh, cold milk (animal or plant-based) into the pot. Do not exceed the maximum fill line for frothing (typically up to 350 ml).
3. Place the lid securely on the pot, then place the pot onto the base unit.
4. Select the desired temperature using the rotary knob: Cold, 45°C, 55°C, 60°C, or 65°C. For cold foam, select "Cold".
5. Press the power button to start the frothing process. The indicator light will illuminate.
6. The appliance will automatically stop when the selected temperature is reached or the frothing cycle is complete.
7. Carefully remove the pot and pour the frothed milk into your beverage.

Gambar 3: Pouring frothed milk. The image shows the rich, creamy texture of the frothed milk being poured from the pot into a cup.

2. Ngahaneutan Susu (tanpa Ngabuih)

1. Selapkeun smooth stirring ring into the bottom of the stainless steel pot.
2. Pour milk (animal or plant-based) into the pot. Do not exceed the maximum fill line for heating (up to 700 ml).
3. Place the lid securely on the pot, then place the pot onto the base unit.
4. Select the desired temperature using the rotary knob: 45°C, 55°C, 60°C, or 65°C. The "Cold" setting is not applicable for heating.
5. Pencét tombol daya pikeun ngamimitian prosés pemanasan.
6. The appliance will automatically stop when the selected temperature is reached.
7. Carefully remove the pot and pour the heated milk.

3. Preparing Hot Chocolate

The lid's opening allows for adding ingredients during operation.

1. Selapkeun serrated frothing ring into the bottom of the stainless steel pot.
2. Pour milk into the pot. For best results with frothing, do not exceed the 350 ml mark. If only heating with minimal frothing, you can fill up to 700 ml.
3. Teundeun tutup dina pot.
4. Select a suitable temperature (e.g., 60°C or 65°C) using the rotary knob.
5. Press the power button. Once the stirring begins, gradually add chocolate powder, syrup, or small chocolate pieces through the lid opening.
6. The appliance will mix and heat the ingredients.
7. The appliance will automatically stop when the selected temperature is reached.

Gambar 4: Adding ingredients during operation. This image shows how to safely add chocolate powder through the lid's opening while the frother is mixing.

beberesih sarta Pangropéa

Regular cleaning ensures optimal performance and extends the lifespan of your appliance. Always unplug the appliance before cleaning.

• Stainless Steel Pot, Lid, and Rings: The removable stainless steel pot, lid, and both stirring/frothing rings are dishwasher safe. Alternatively, they can be washed by hand with warm soapy water and a soft cloth. Ensure all milk residues are thoroughly removed after each use to prevent buildup.
• Unit Dasar: Ngusap unit dasar kalayan iklanamp cloth. Do not immerse the base unit in water or rinse it under running water, as this can damage the electrical components.
• Do not use abrasive cleaning agents, harsh scourers, or metal brushes, as these can scratch or damage the surfaces.
• Pastikeun sadaya bagian tos garing sateuacan dipasang deui atanapi nyimpen alat.

Gambar 5: Dishwasher-safe pot for easy cleaning. The removable stainless steel pot can be conveniently cleaned in a dishwasher.

Pamérésan masalah

If you encounter any issues with your milk frother, please consult the table below before contacting customer support.

spésifikasi

• model: MS 3583
• merek: Severin
• kakuatan: Kira-kira. 500 Watt
• Voltage: 230 volt
• Kapasitas: Max. 700 ml (for heating milk), Max. 350 ml (for frothing milk)
• Ukuran (L x W x H): 15 x 19 x 23.7 cm
• beurat: 1.4 kg
• Bahan: Stainless Steel, Plastik
• Tingkat Suhu: Tiis, 45°C, 55°C, 60°C, 65°C
• Fitur: Induction heating, Automatic shut-off, Dishwasher-safe pot, Magnetic stirring rings.

Garansi sareng Rojongan

For detailed warranty information and customer support, please refer to the warranty card included with your product or visit the official Severin websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.

Resmi Websitus: www.severin.com
